Heating and Air Conditioning: Description and Operation

AIR CONDITIONING SYSTEM:

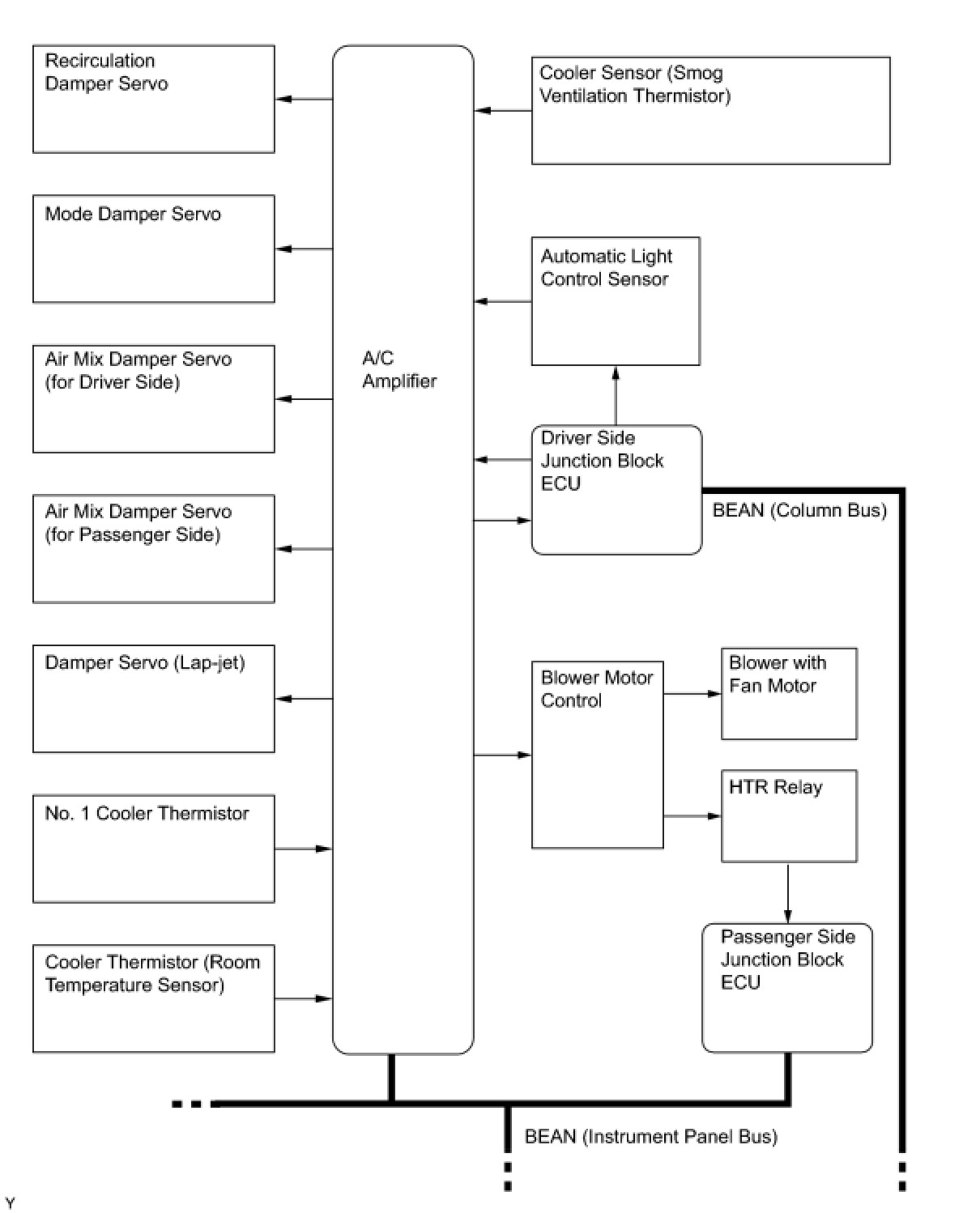

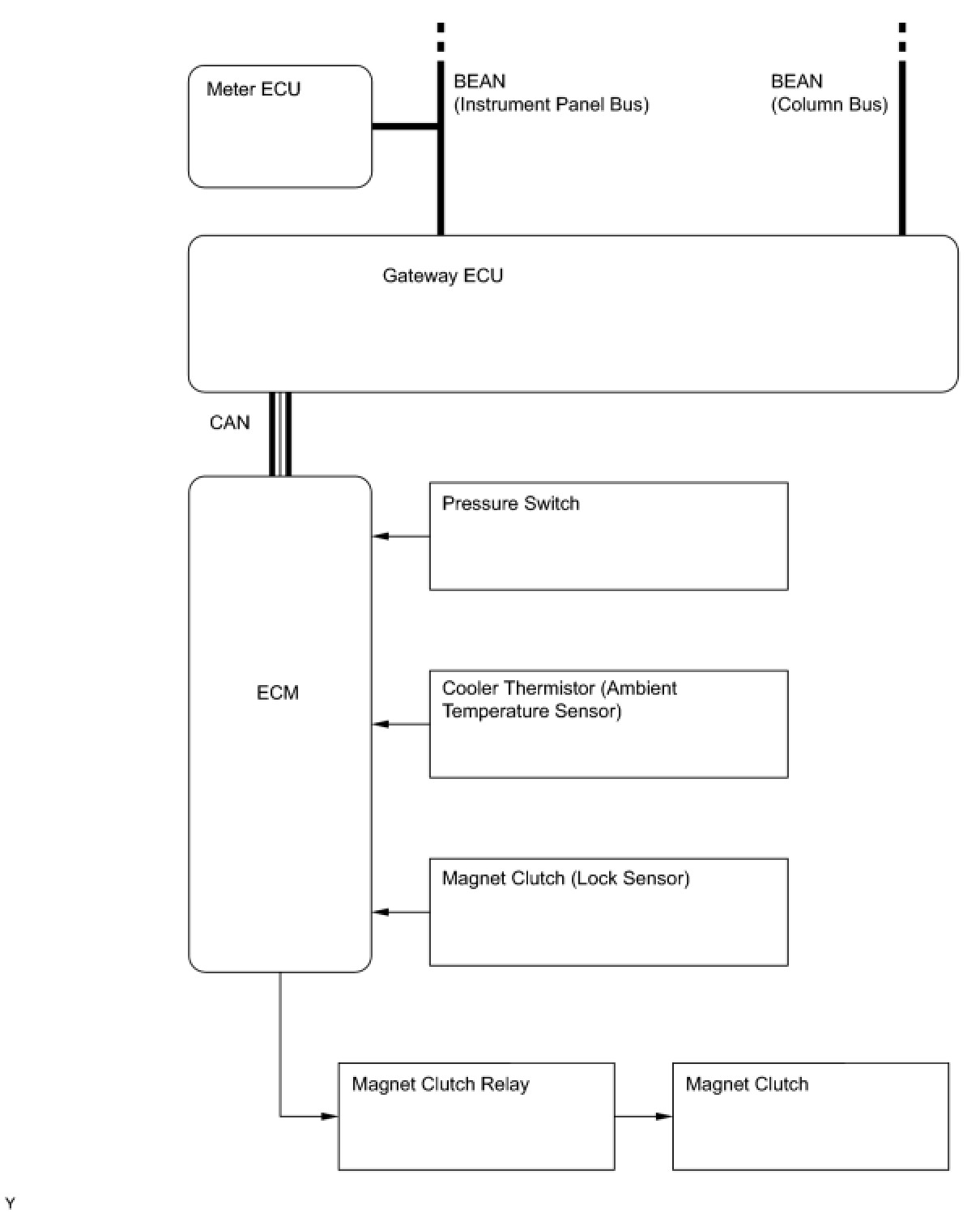

SYSTEM DIAGRAM

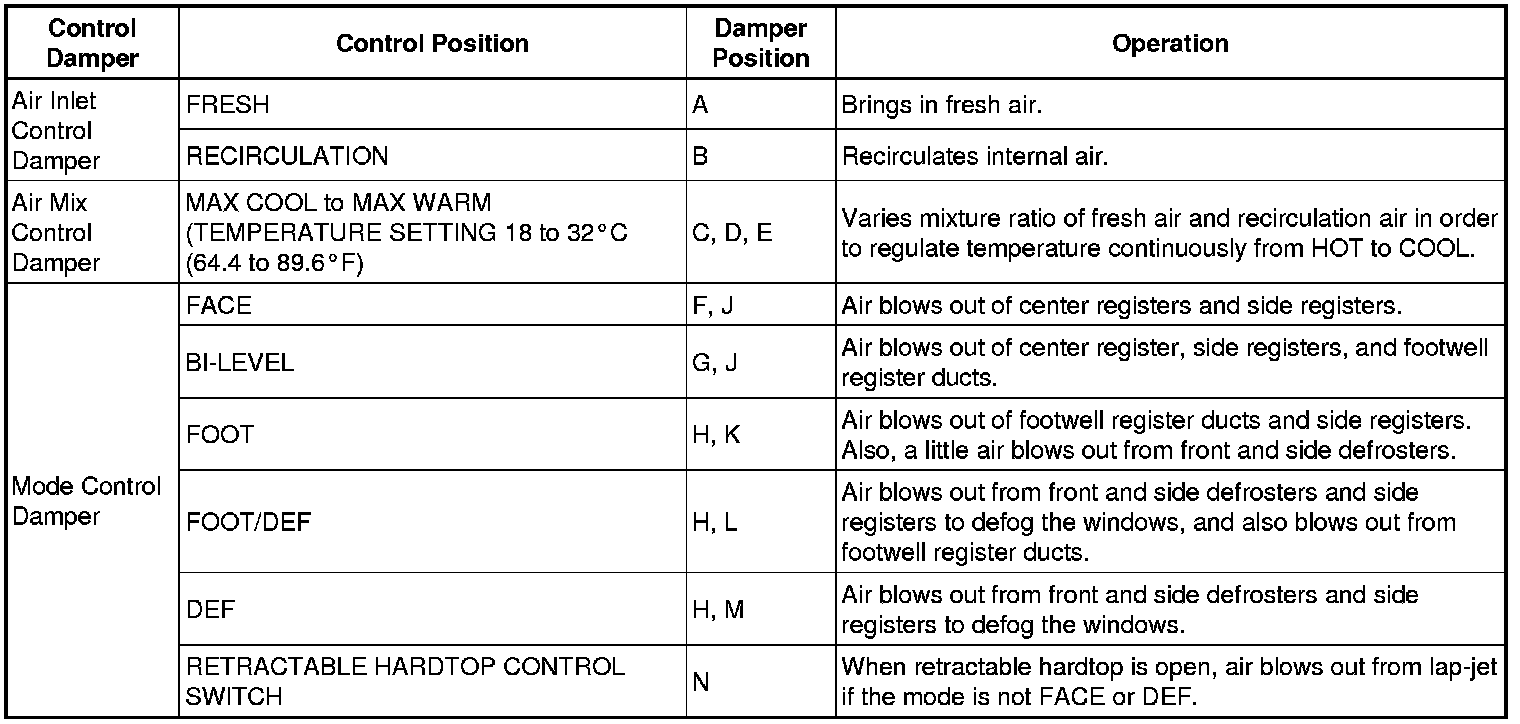

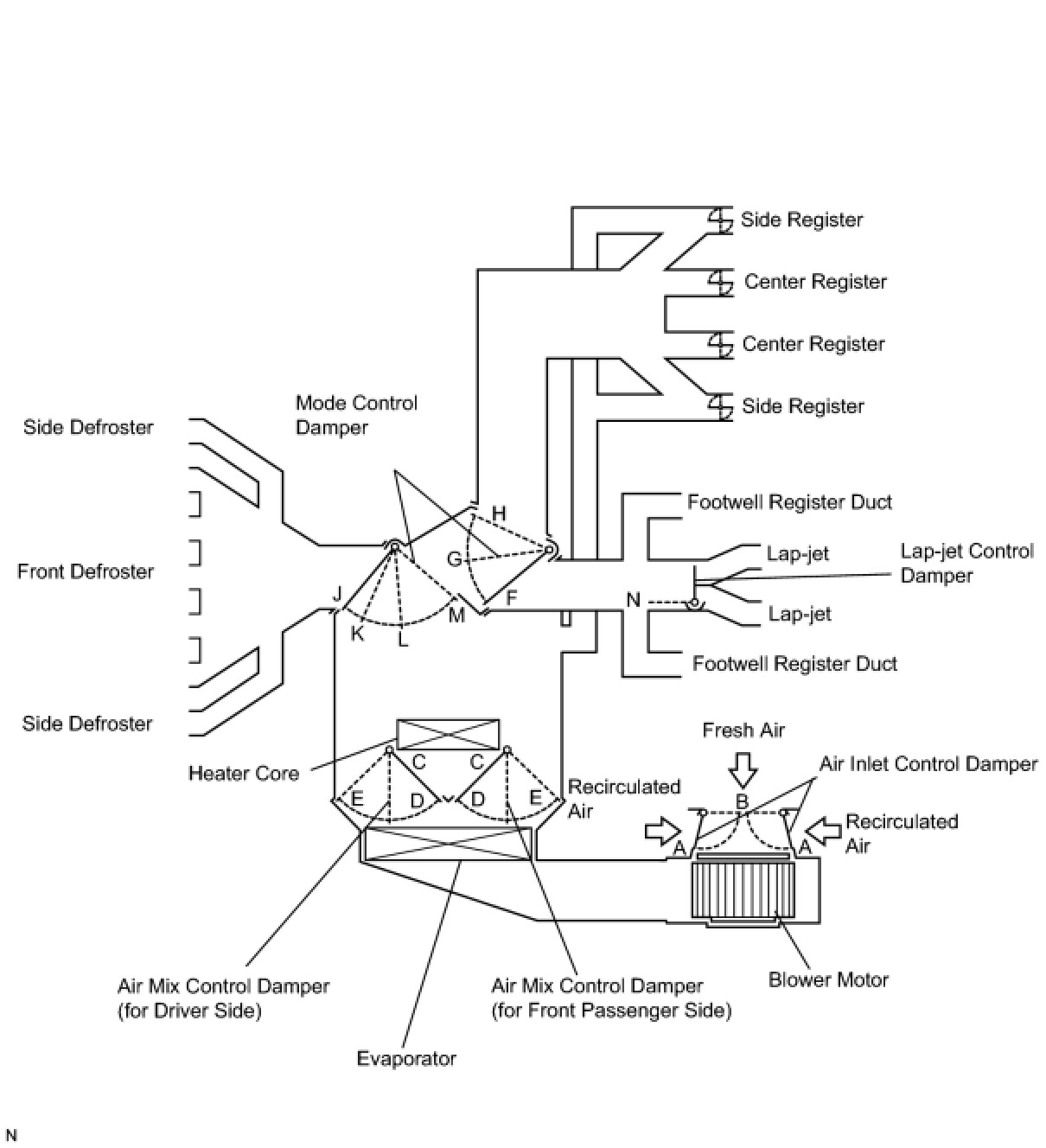

1. MODE POSITION AND DAMPER OPERATION

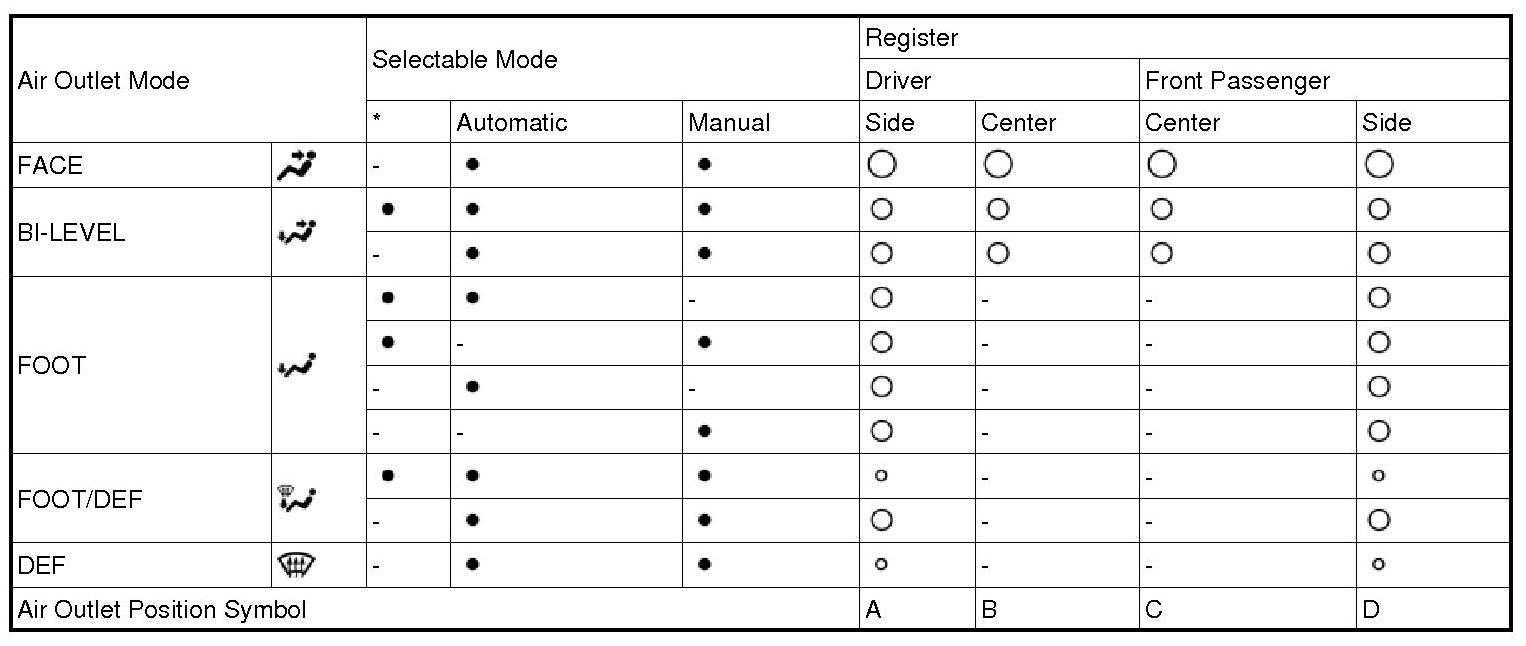

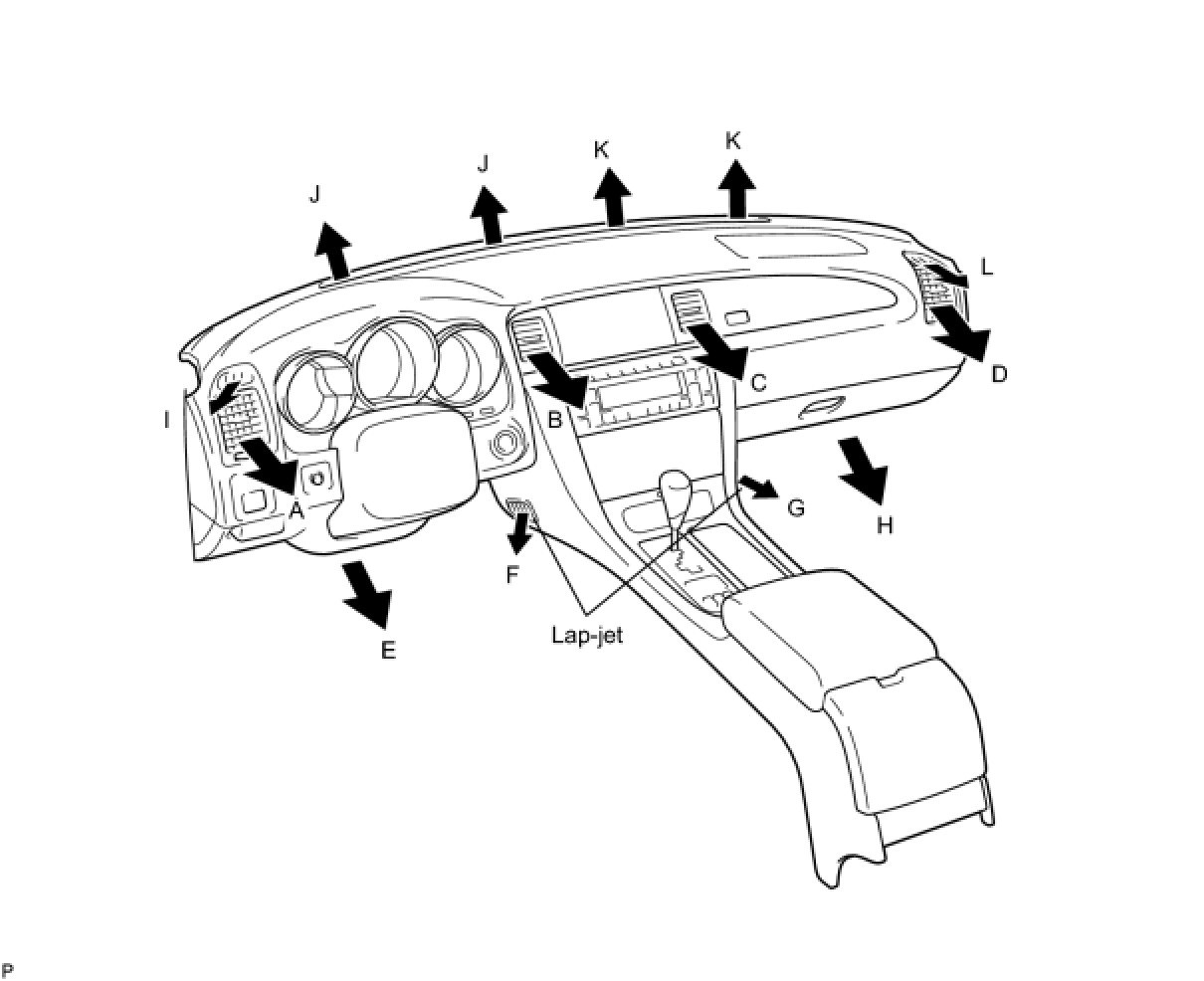

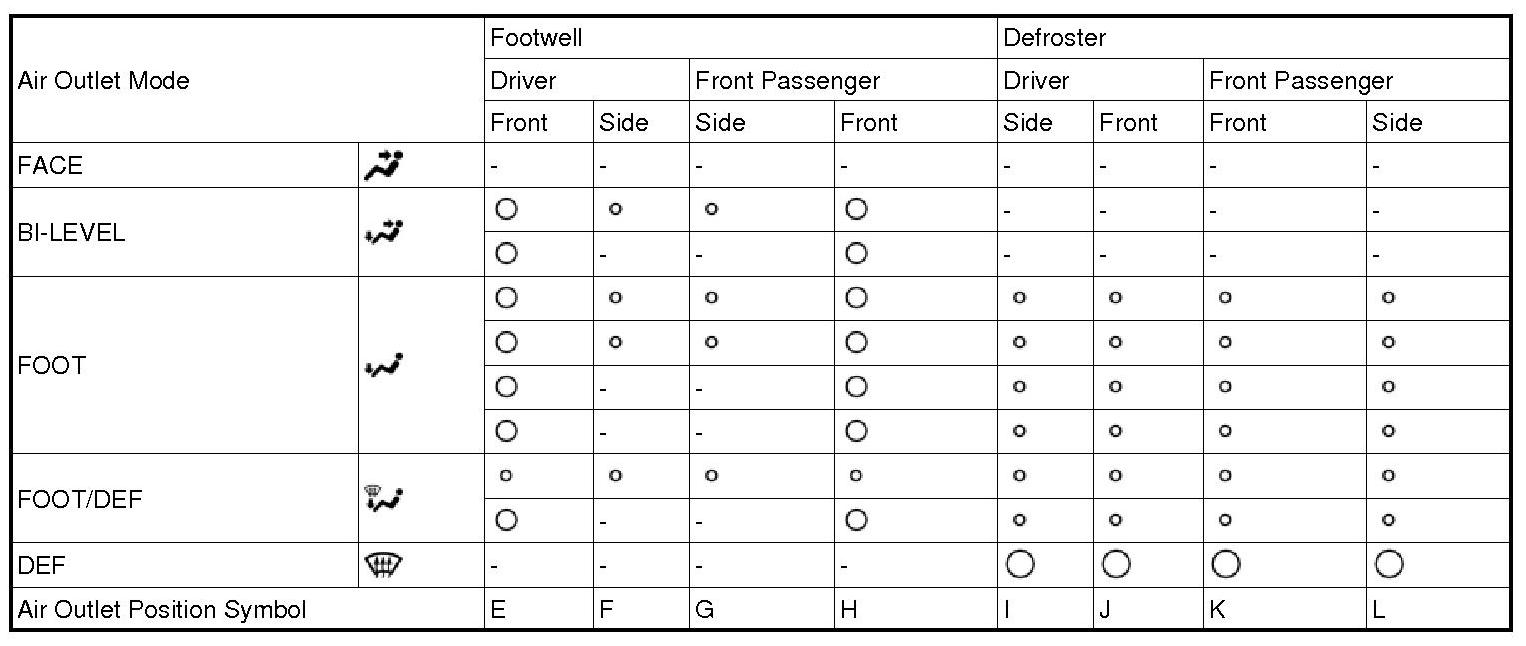

2. AIR OUTLETS AND AIR VOLUME RATIONS













HINT:
- o : Available
- - : Not available
- The size of the white circle indicates the proportion of the airflow volume. There are 3 sizes.
- *: When the retractable hardtop is opened.

SYSTEM DESCRIPTION

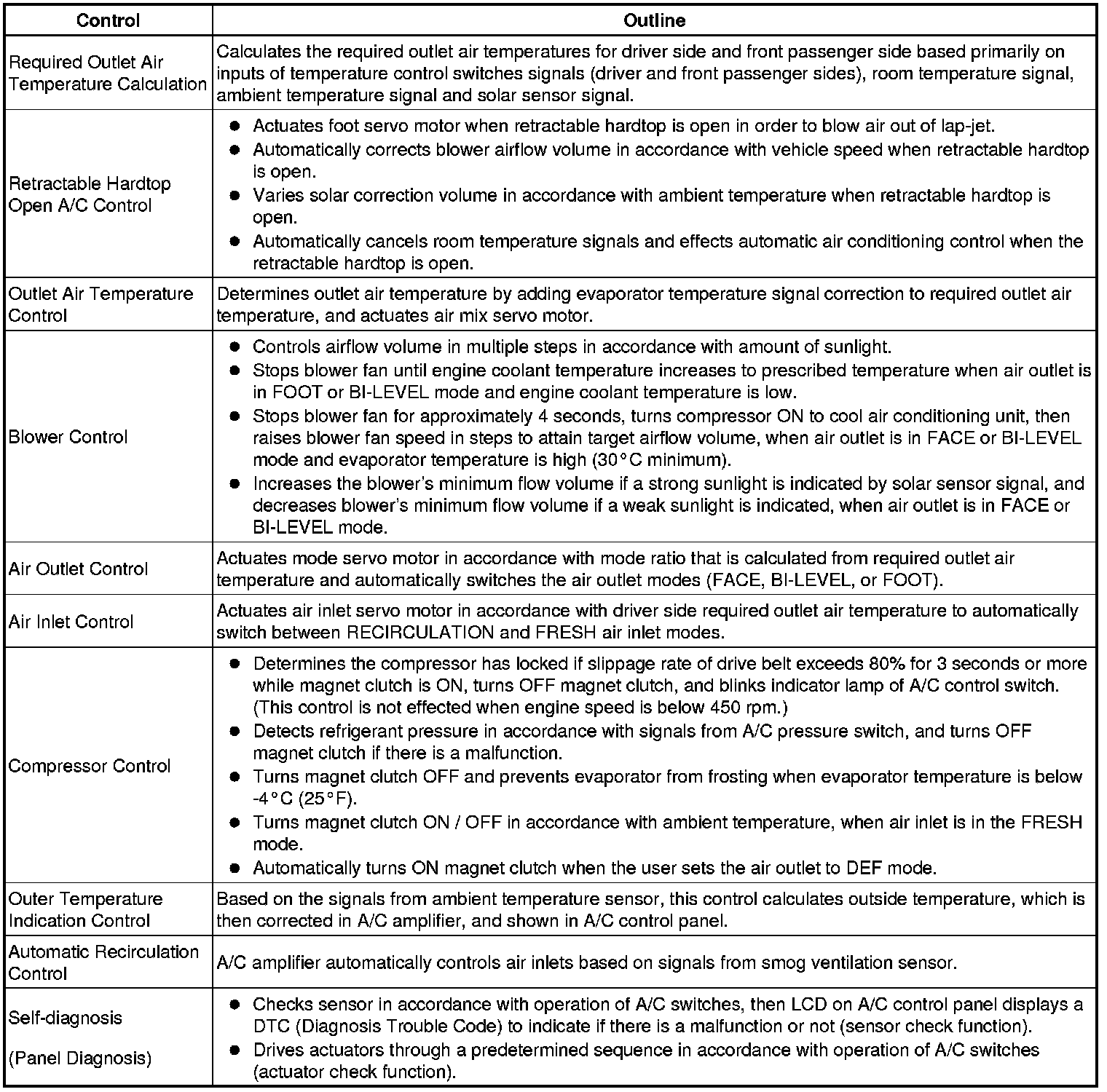

1. SYSTEM CONTROL
