Oil Pump: Specifications

OIL PUMP

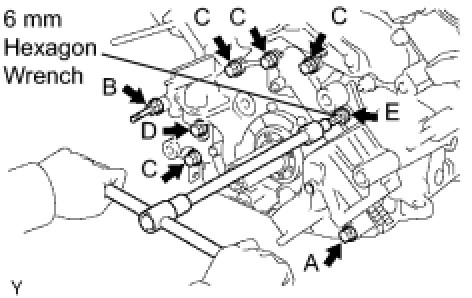

Install the oil pump with a new stud bolt and the 7 bolts. Uniformly tighten the bolts in several passes.
Torque: 15.5 Nm (153 kgf-cm, 11 ft-lbf)
Torque: 30.5 Nm (311 kgf-cm, 22 ft-lbf)
- Use a 6 mm hexagon wrench for the hexagon head bolt.

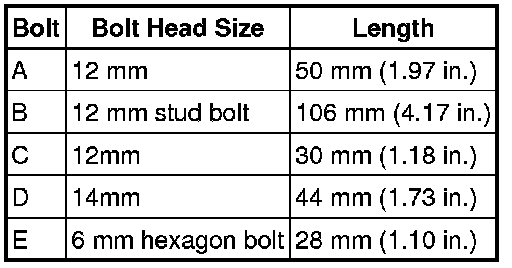

- Each bolt length is as shown in the table.

Bolt length:





NOTE: Do not reuse the stud bolt B.
