Wiper and Washer

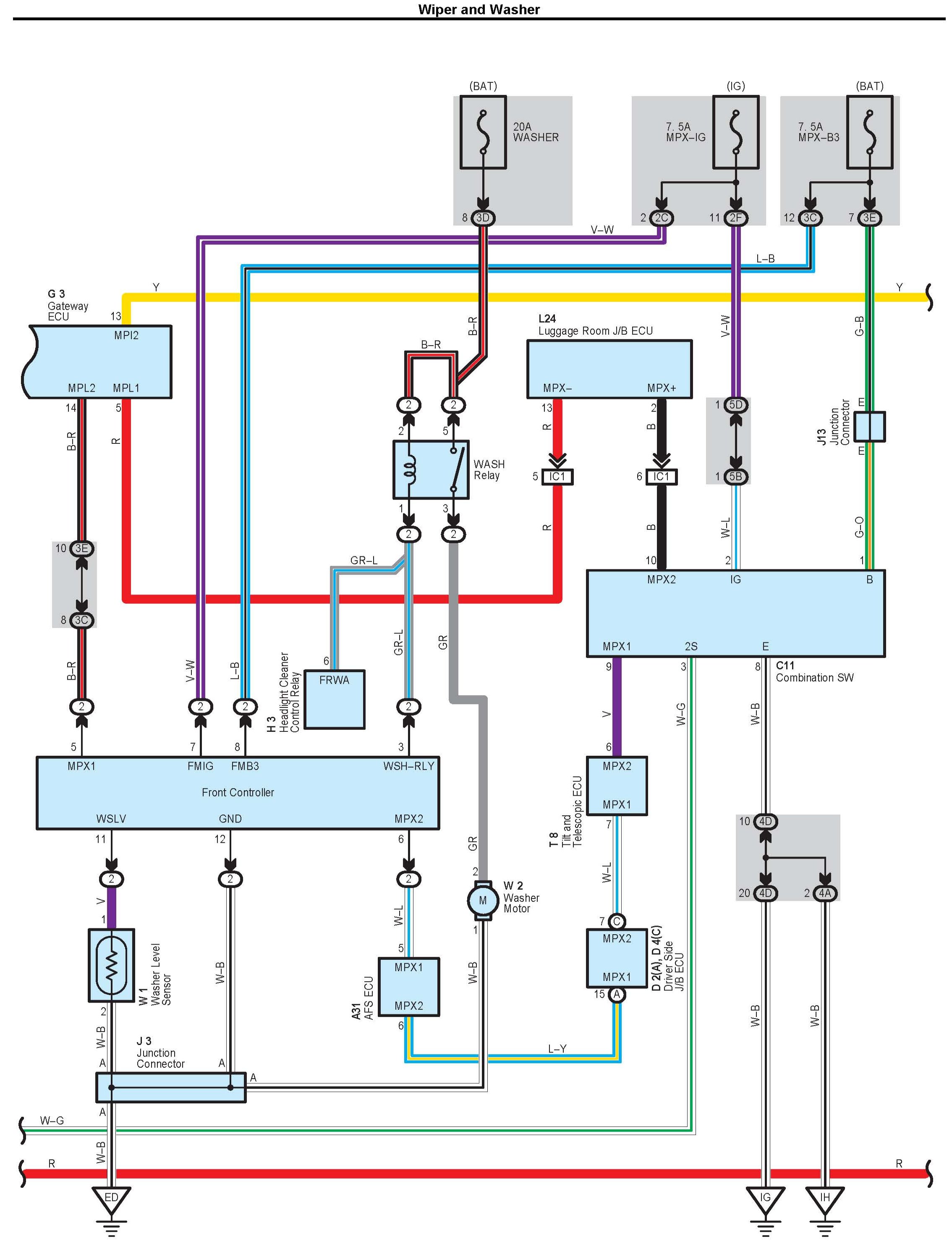

Wiper And Washer Part 1:

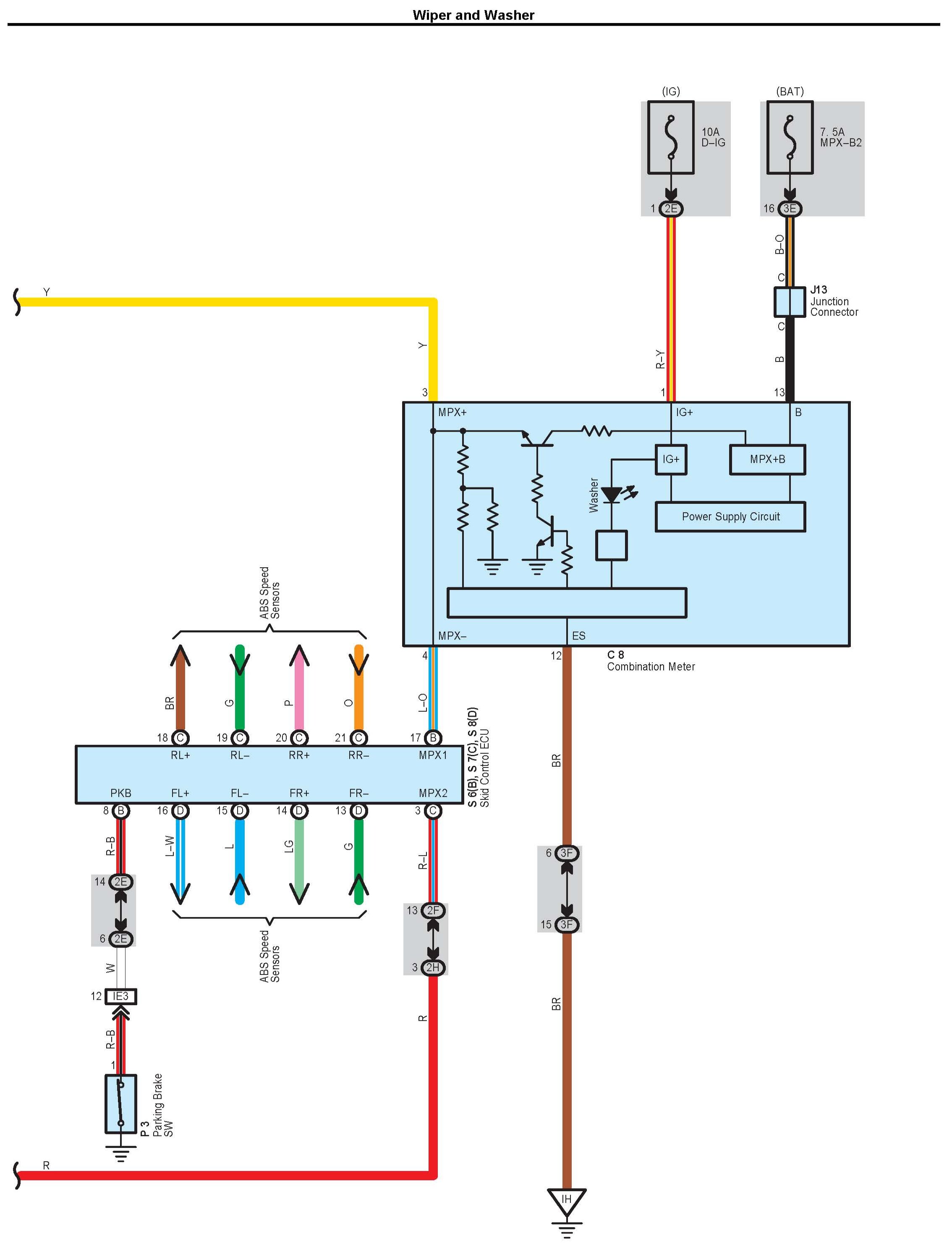

Wiper And Washer Part 2:

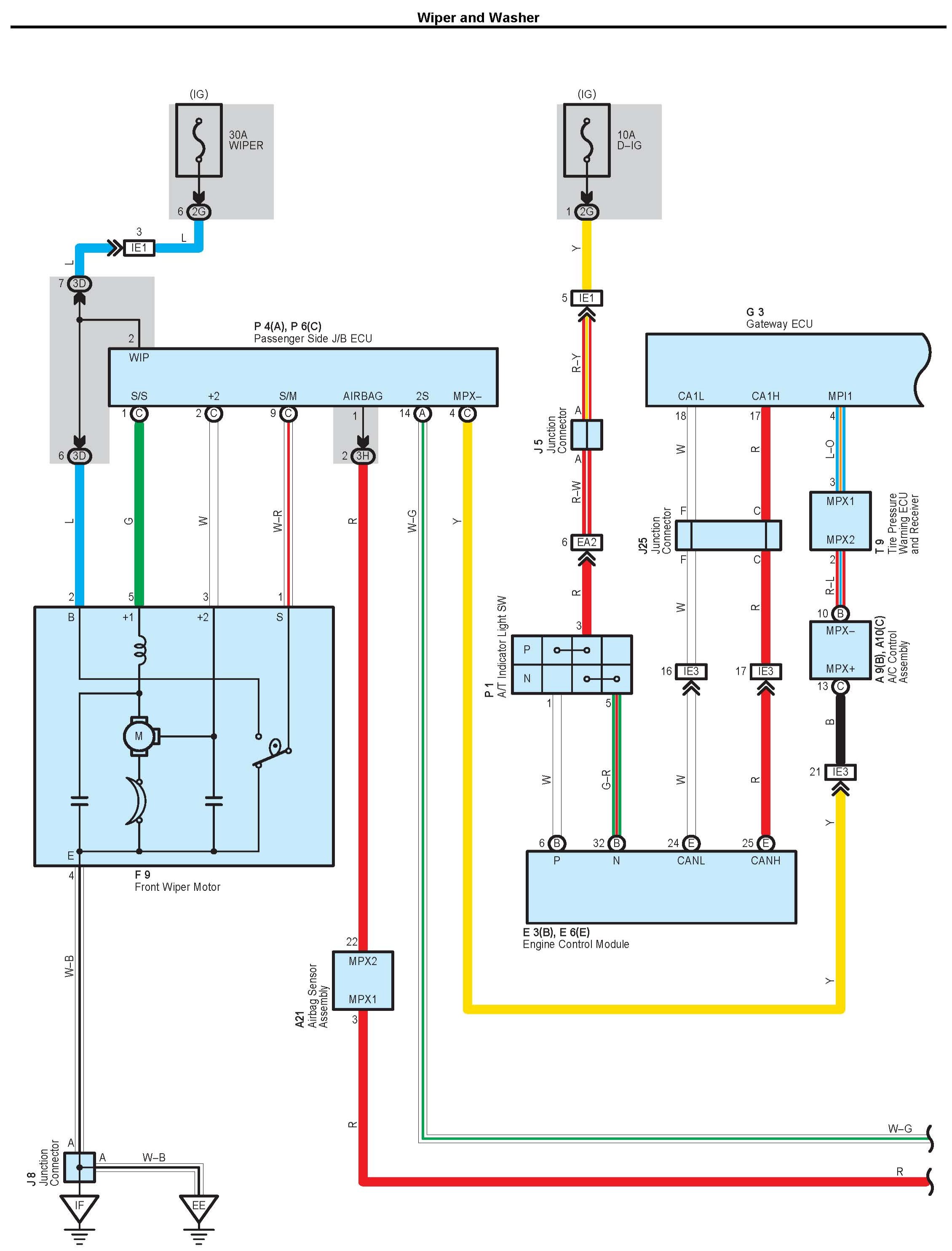

Wiper And Washer Part 3:

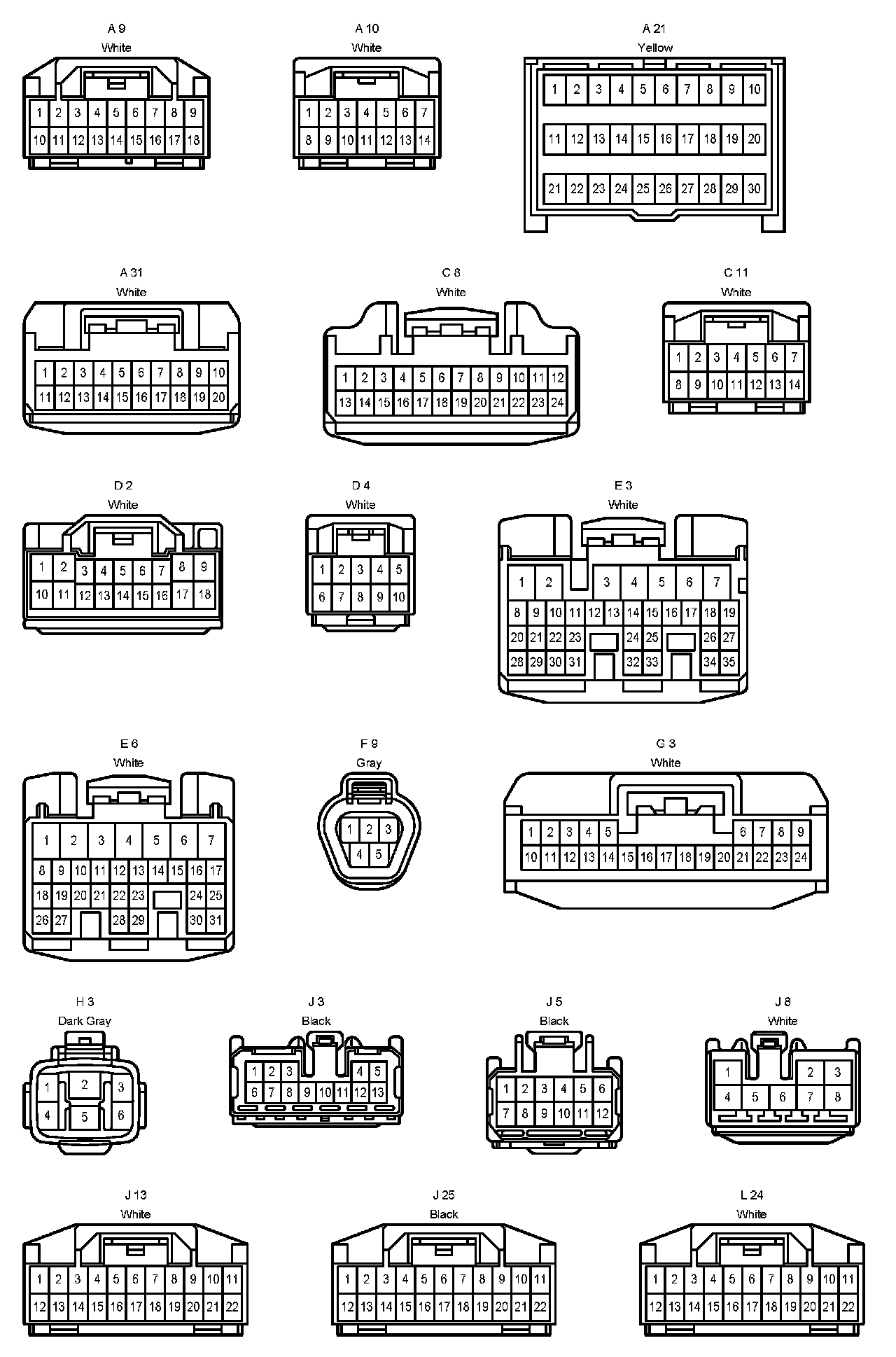

Connector Pin Outs Part 1:

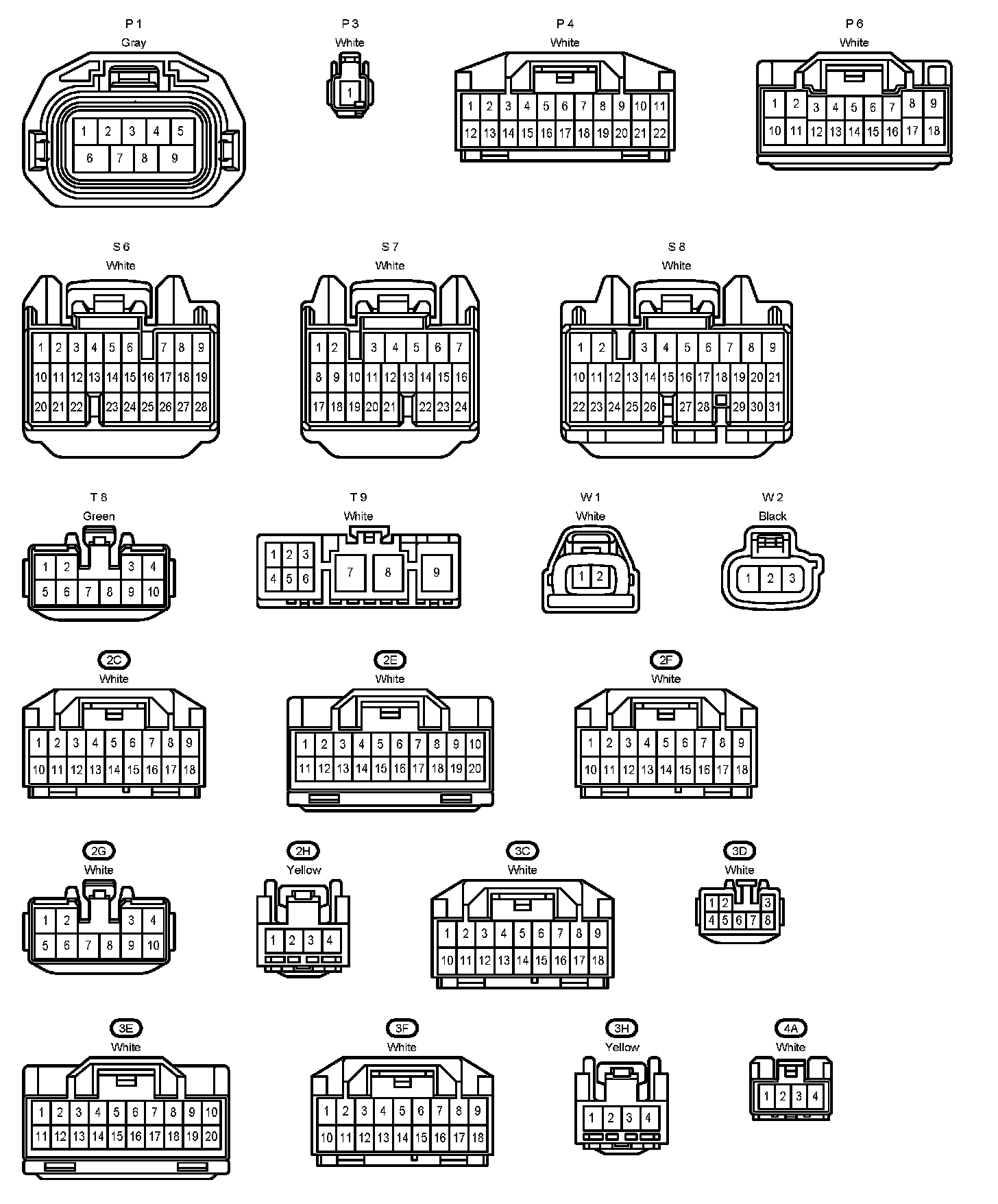

Connector Pin Outs Part 2:

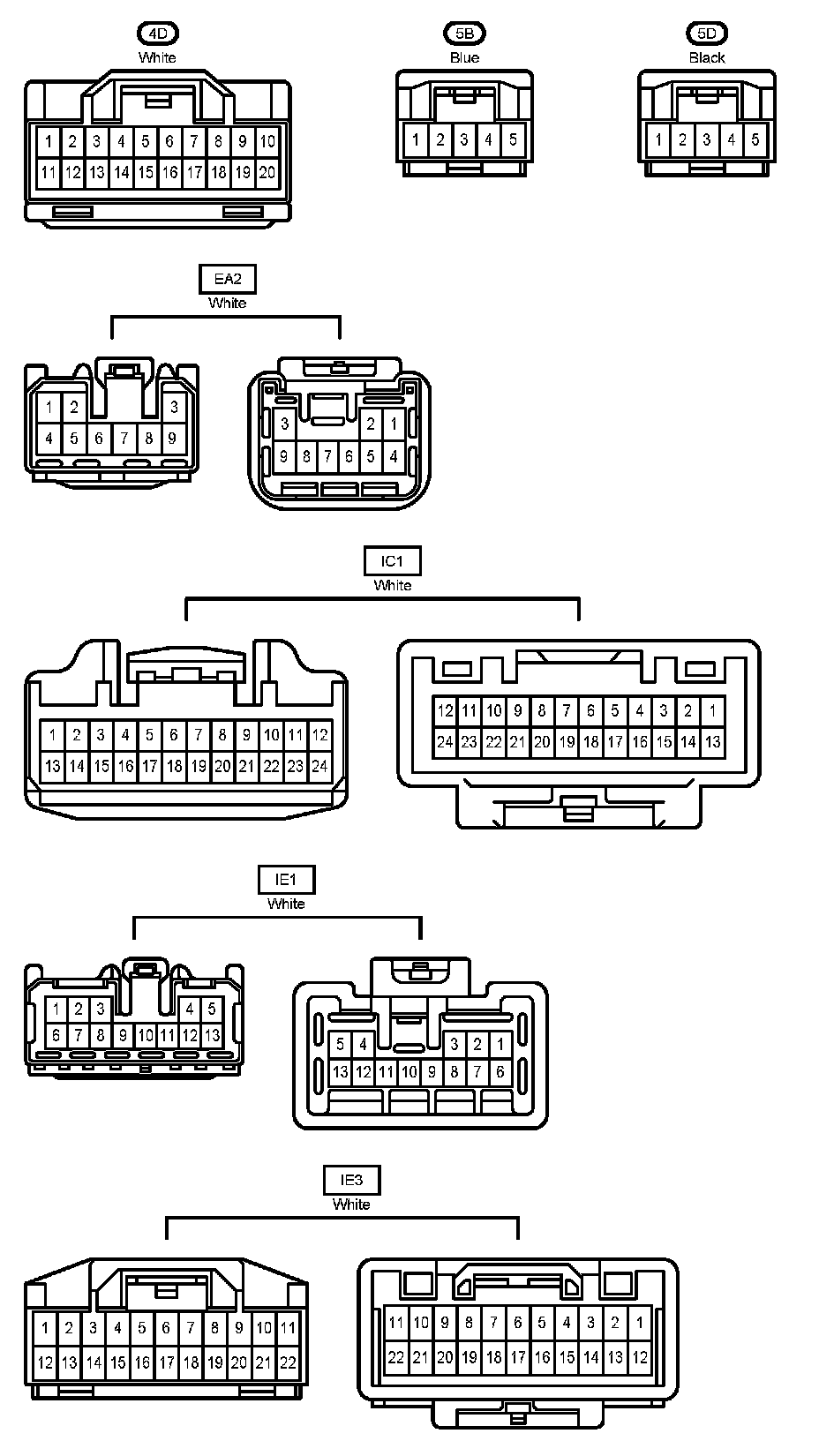

Connector Pin Outs Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
