Multiplex Communication System (J/B ECU) Part 20

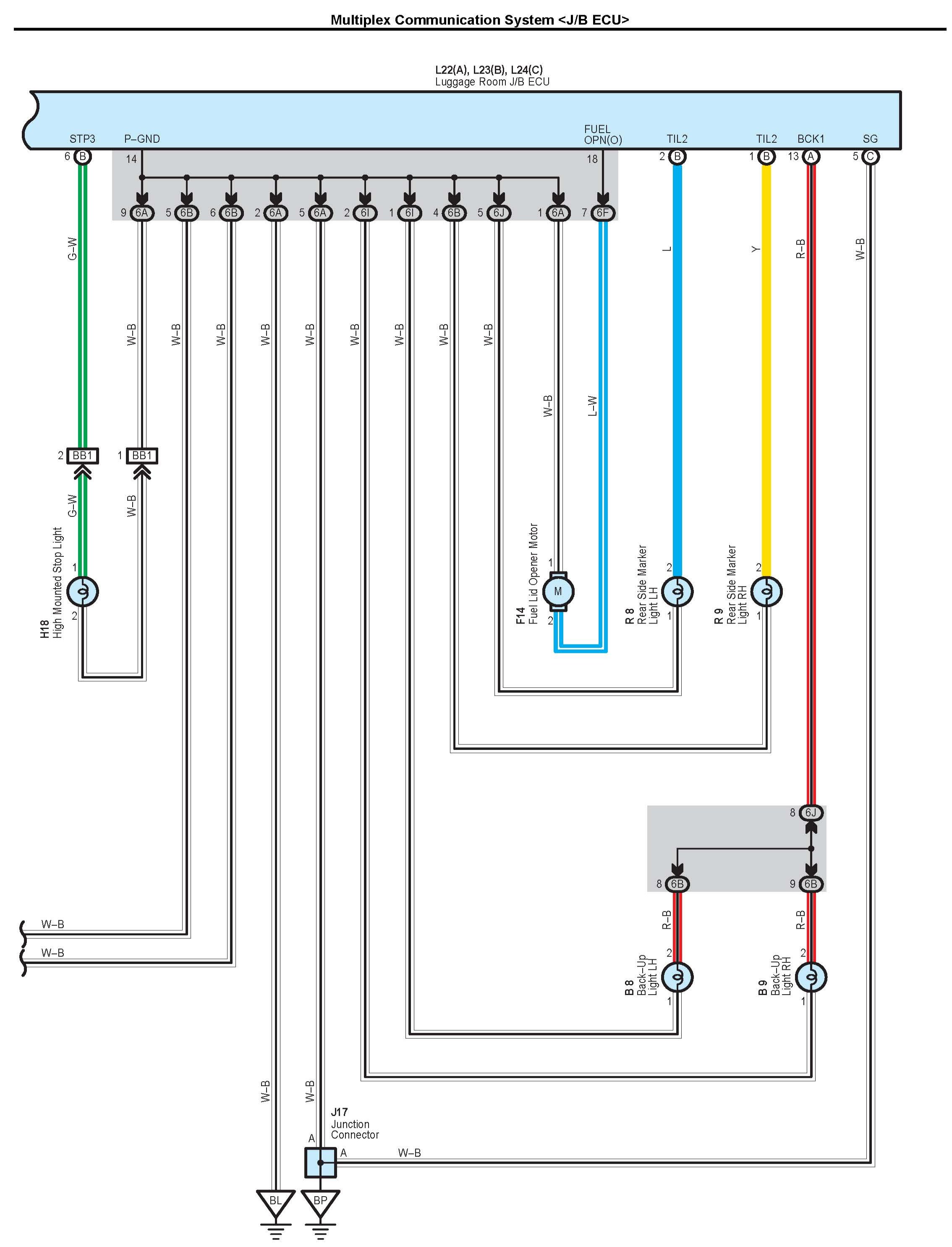

Multiplex Communication System <J/B ECU> Part 20:

Connector Pin Outs Part 1:

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Connector Pin Outs Part 7:

Previous Diagram Multiplex Communication System (J/B ECU) Part 19

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
