Multiplex Communication System (Door ECU) Part 3

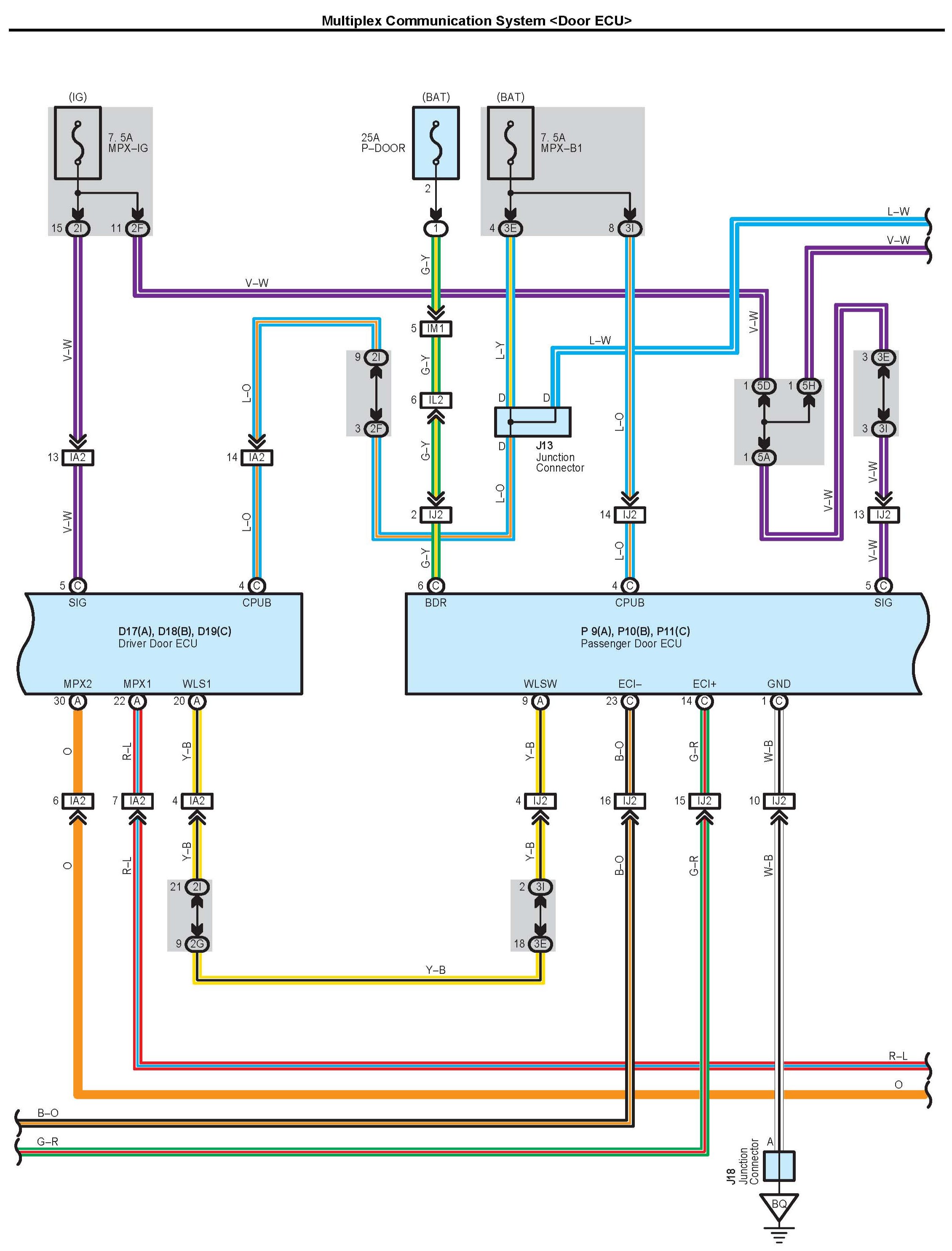

Multiplex Communication System <Door ECU> Part 3:

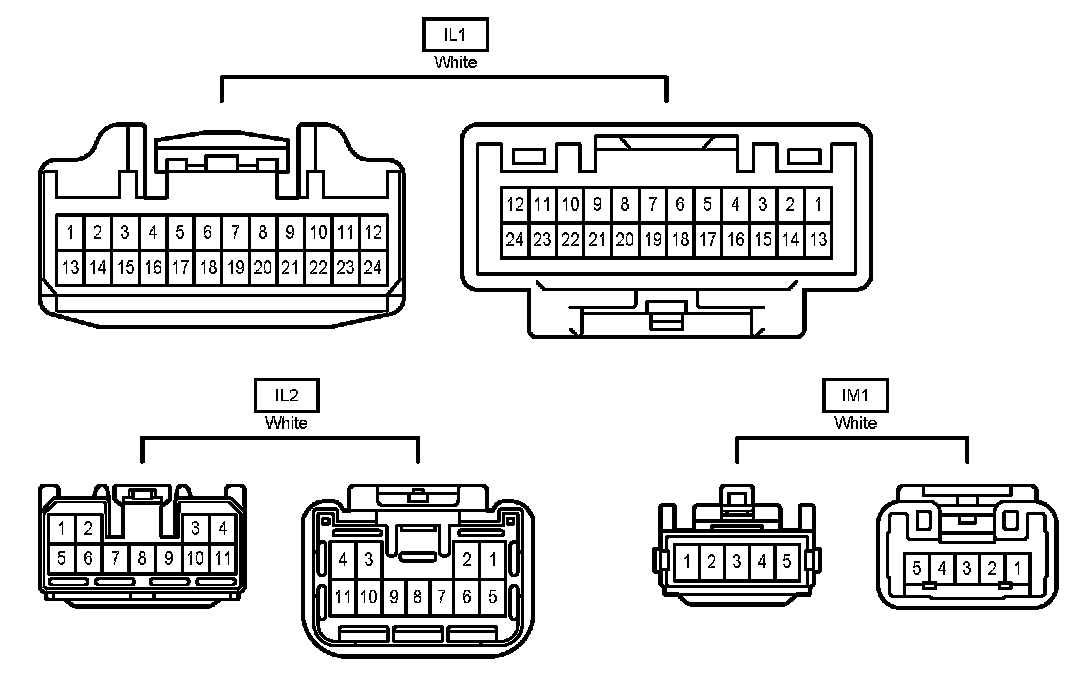

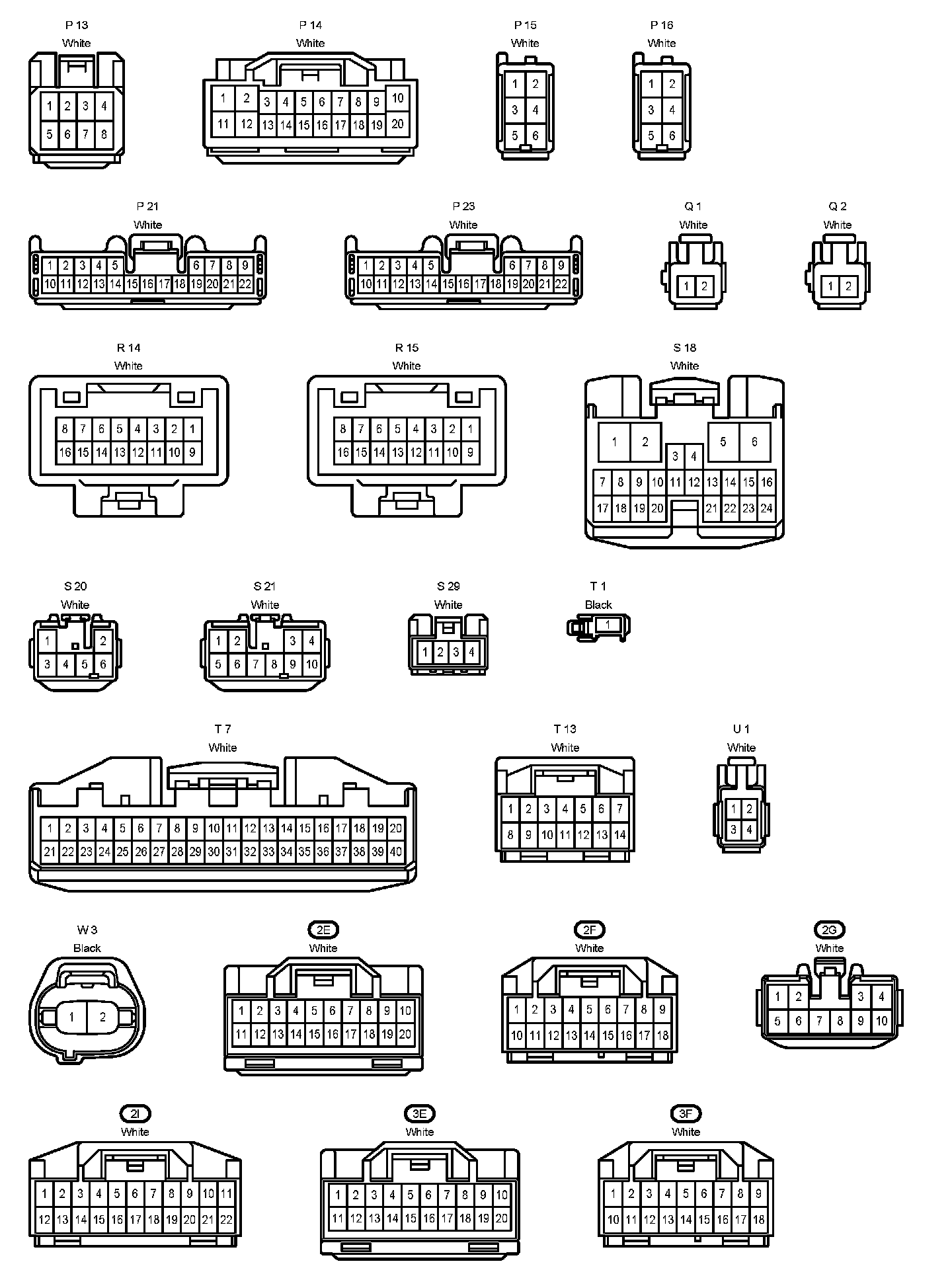

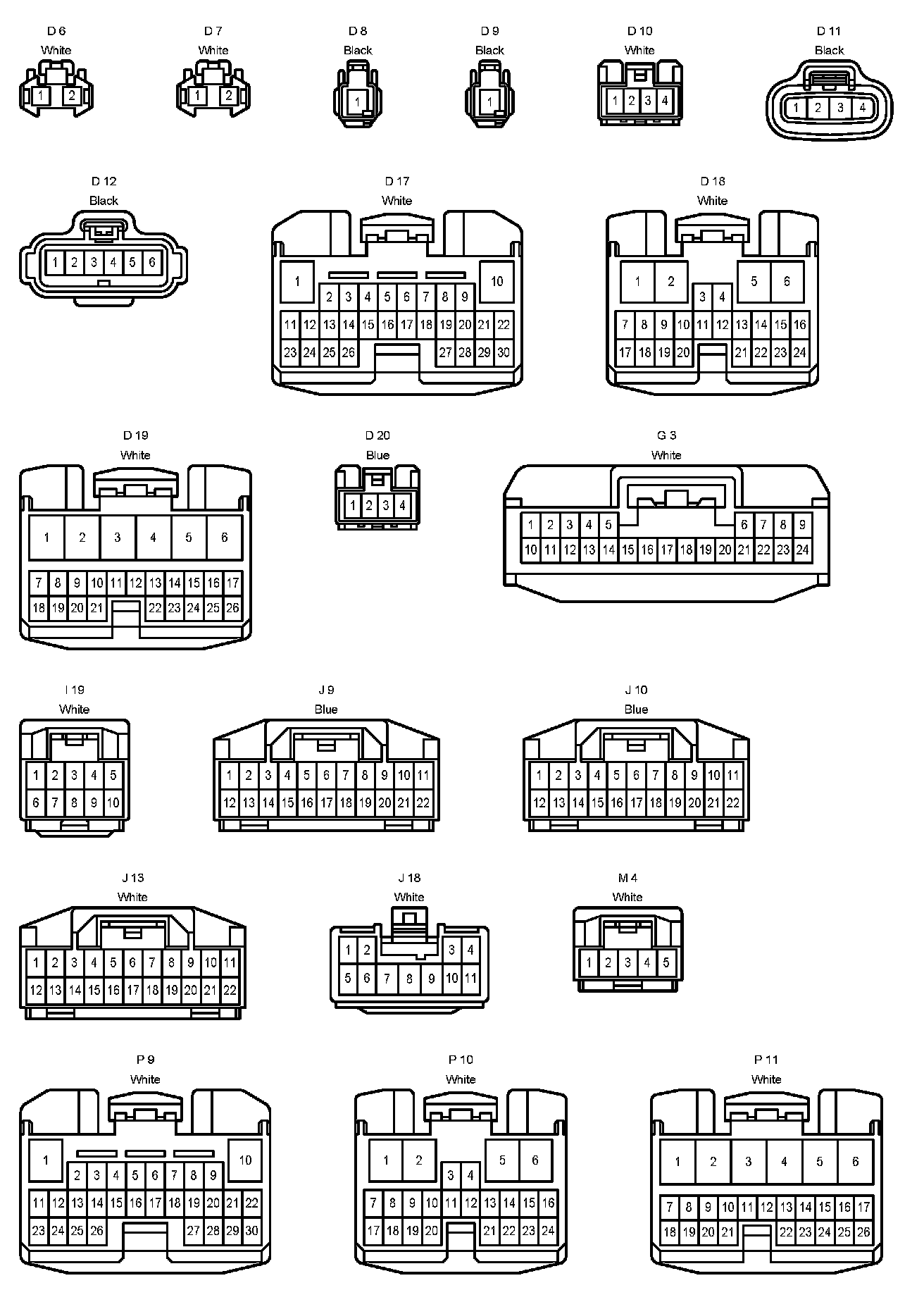

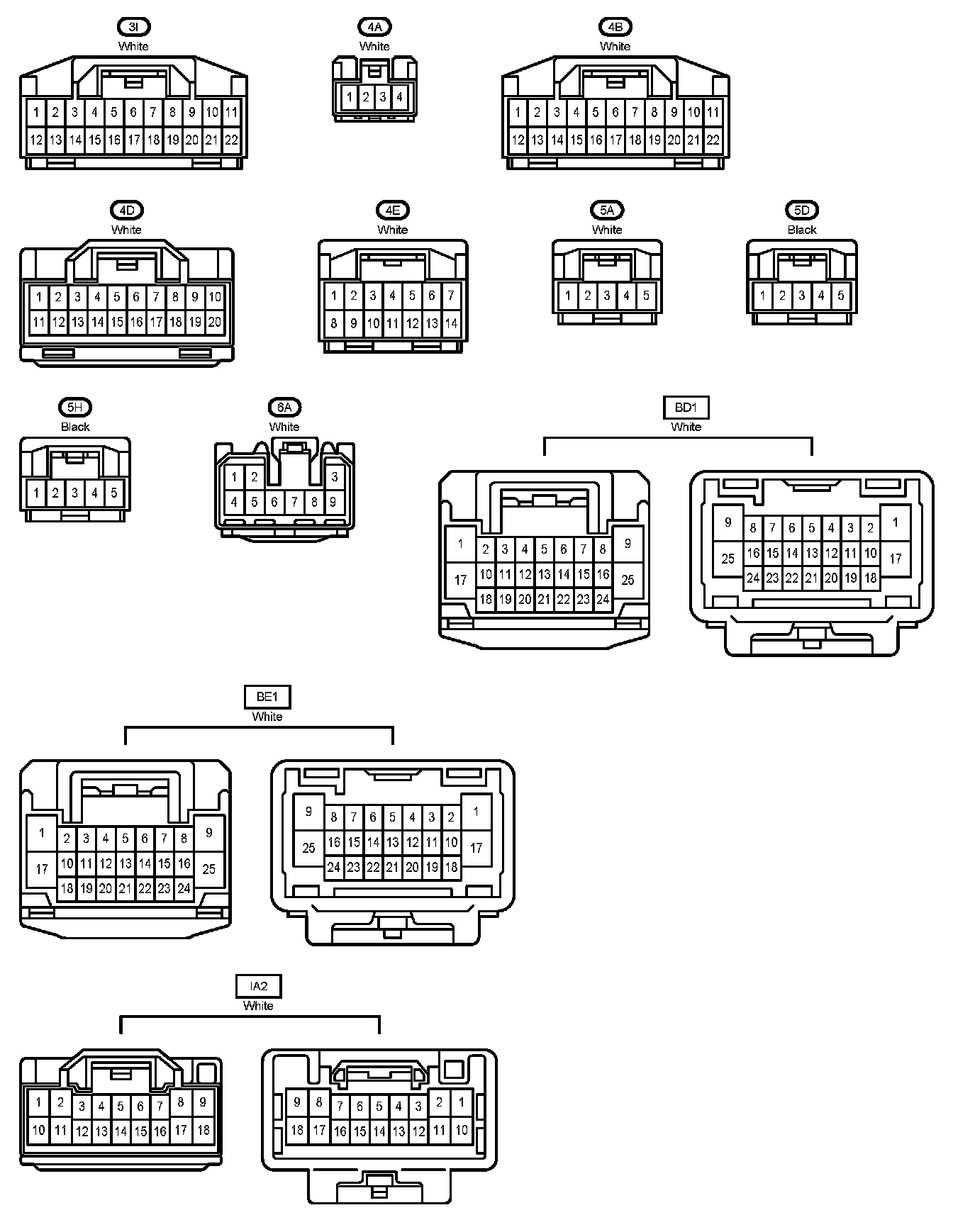

Connector Pin Outs Part 1:

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Next Diagram Multiplex Communication System (Door ECU) Part 4

Previous Diagram Multiplex Communication System (Door ECU) Part 2

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
