Multiplex Communication System (Communication Bus)

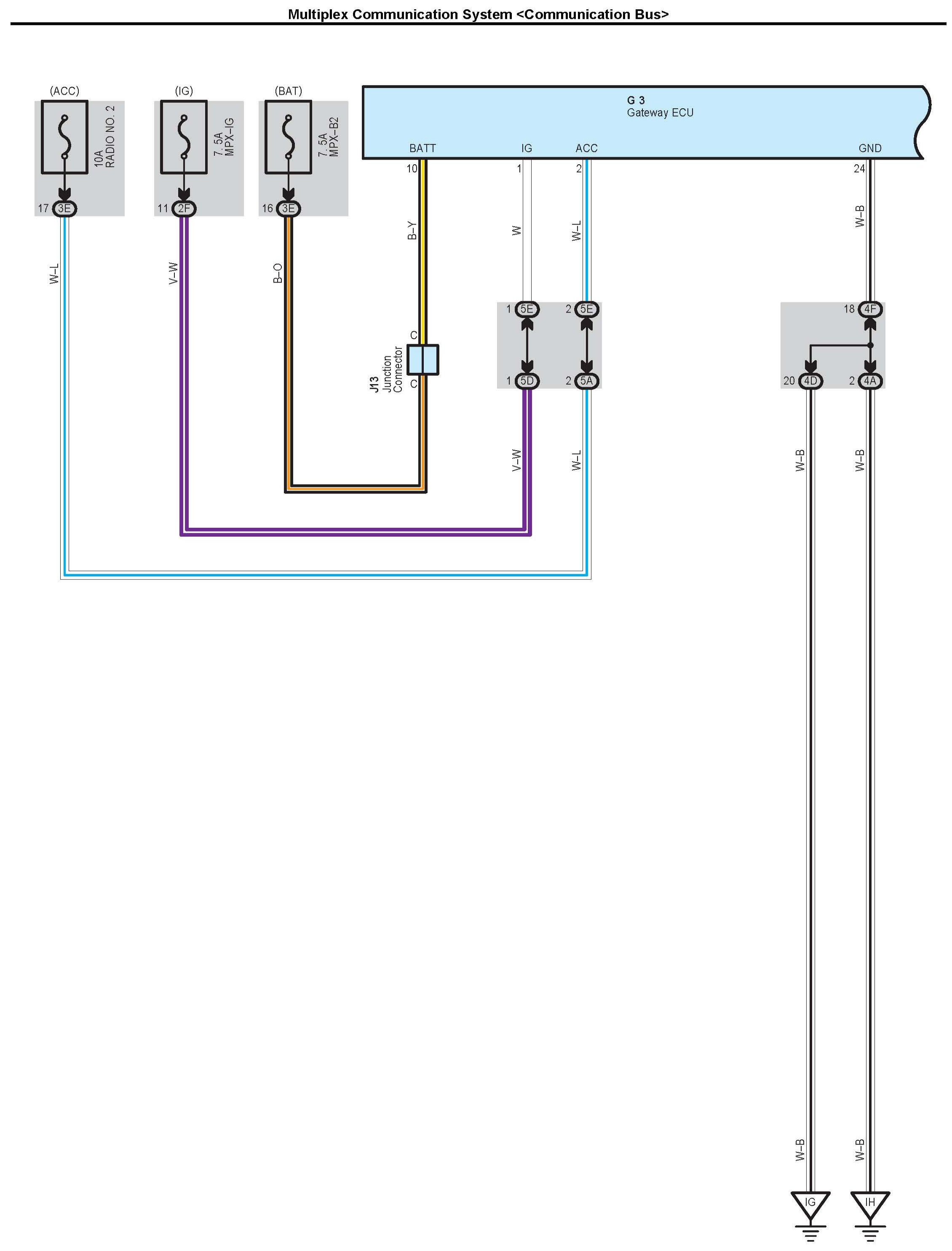

Multiplex Communication System <Communication Bus> Part 1:

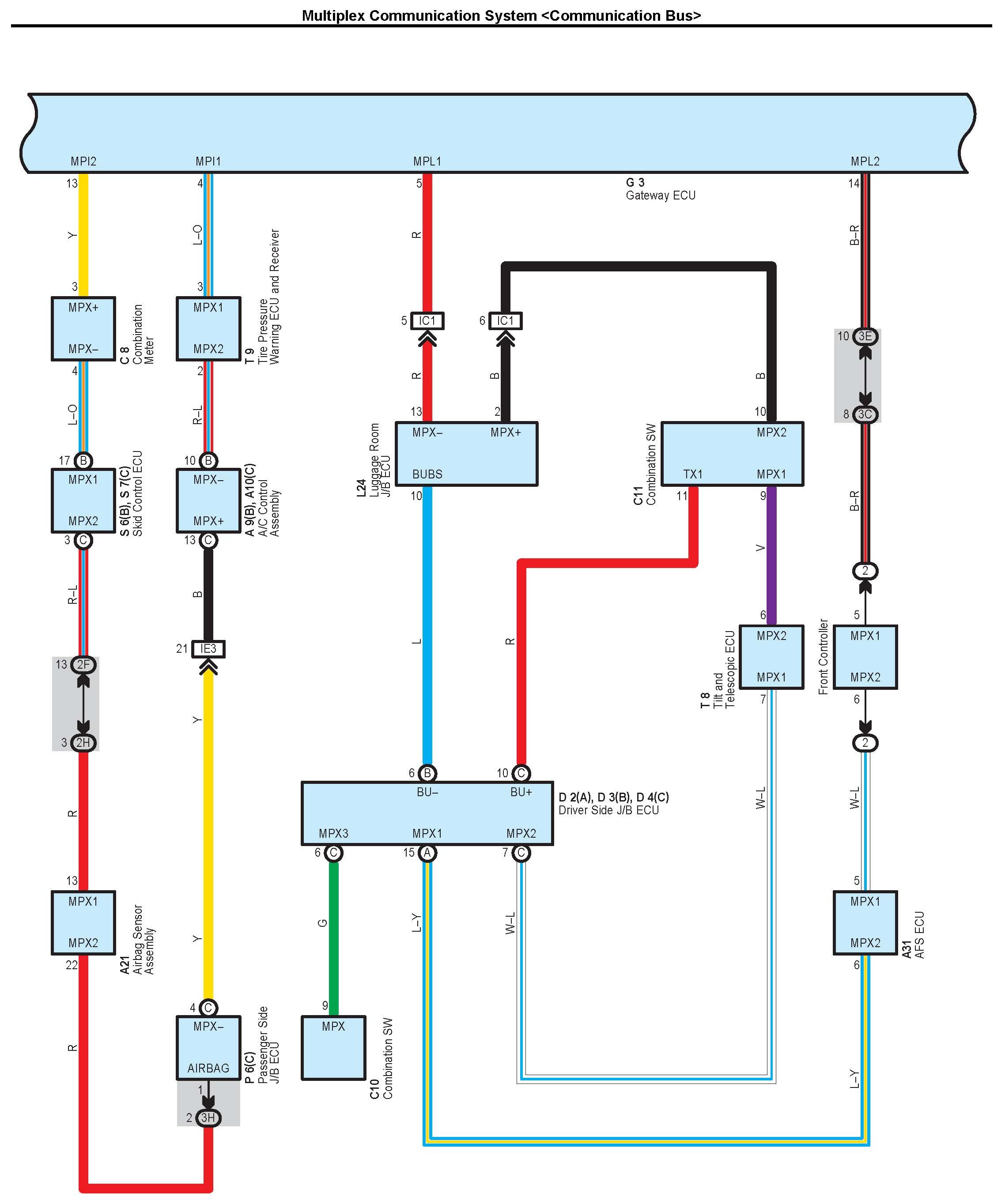

Multiplex Communication System <Communication Bus> Part 2:

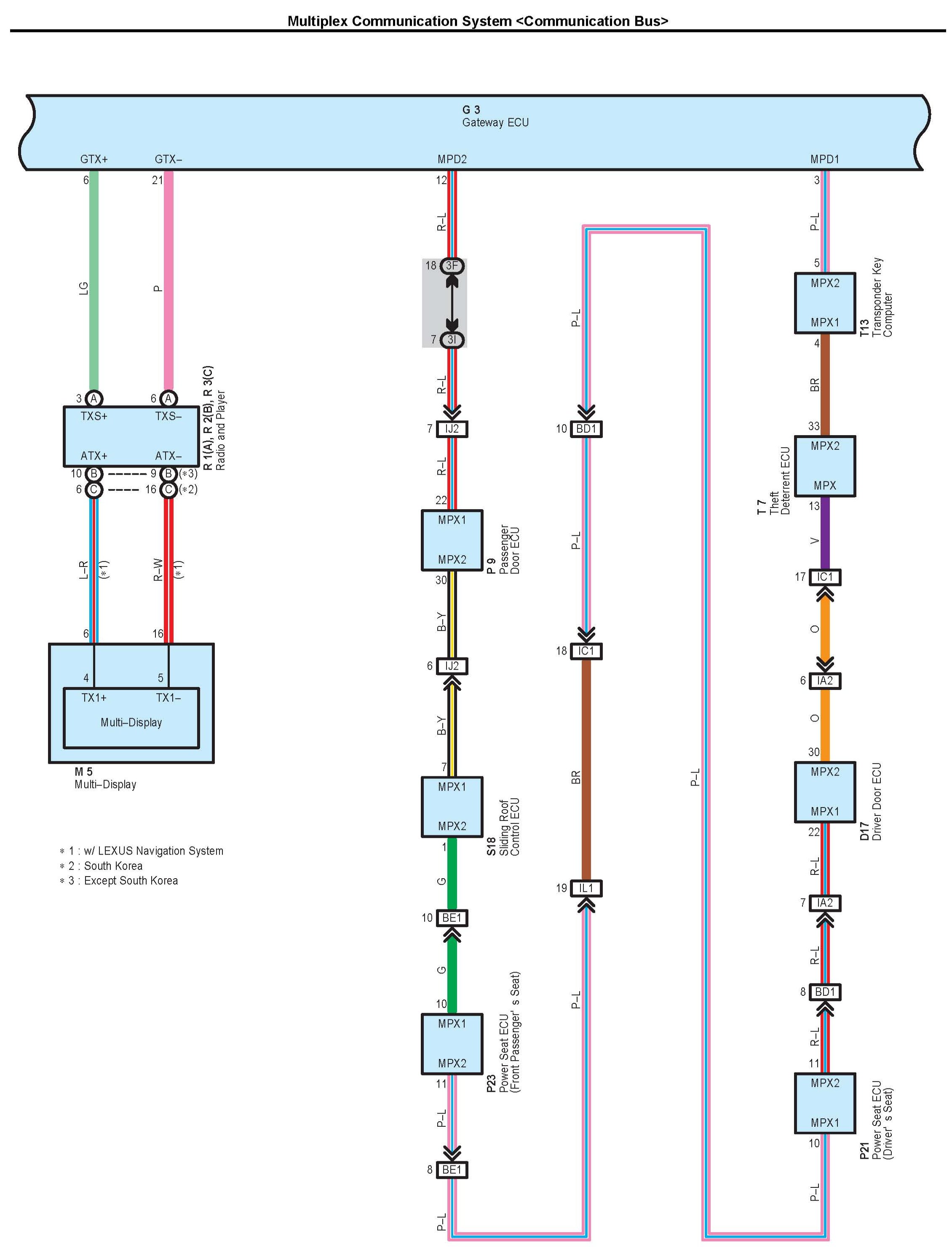

Multiplex Communication System <Communication Bus> Part 3:

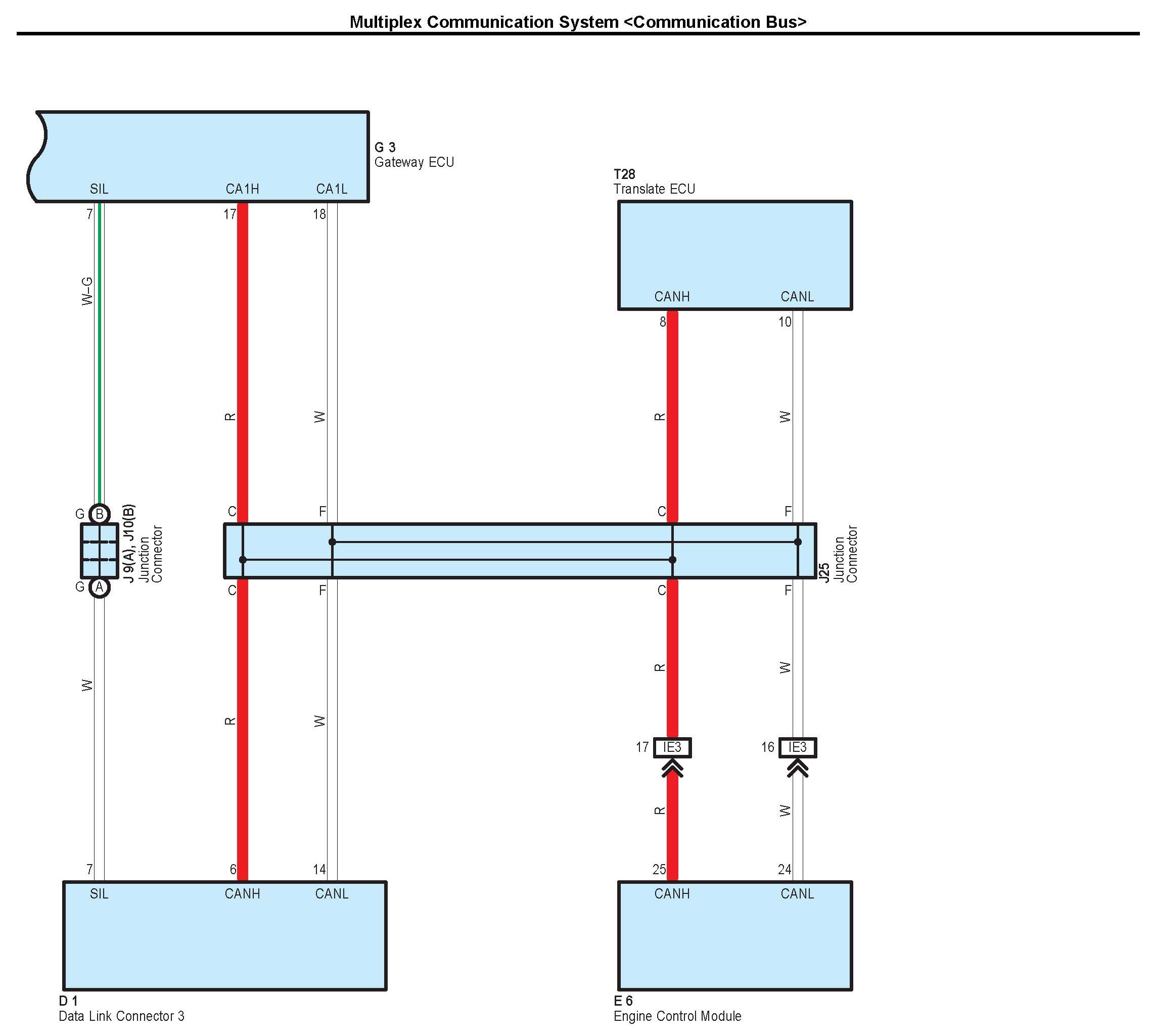

Multiplex Communication System <Communication Bus> Part 4:

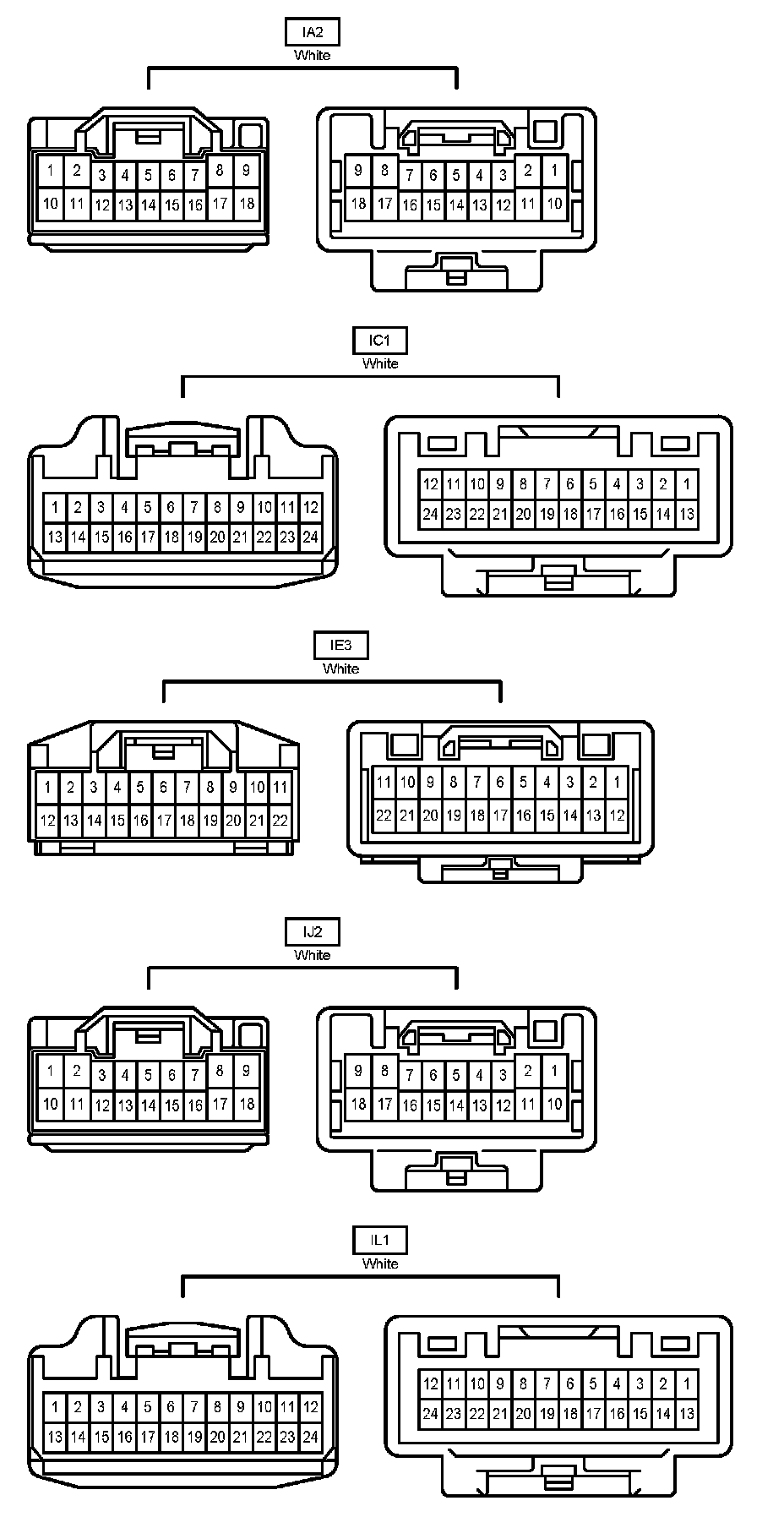

Connector Pin Outs Part 1:

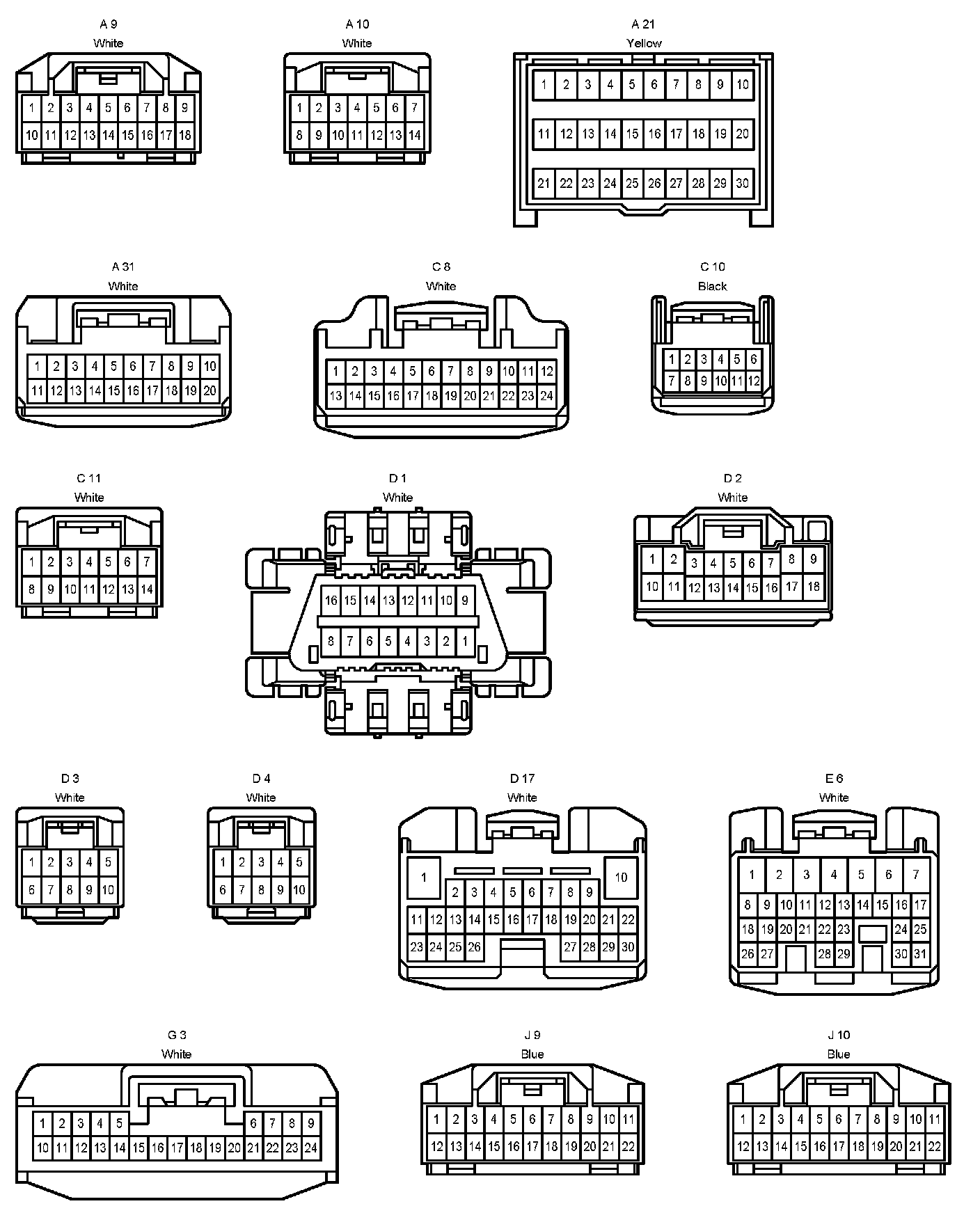

Connector Pin Outs Part 2:

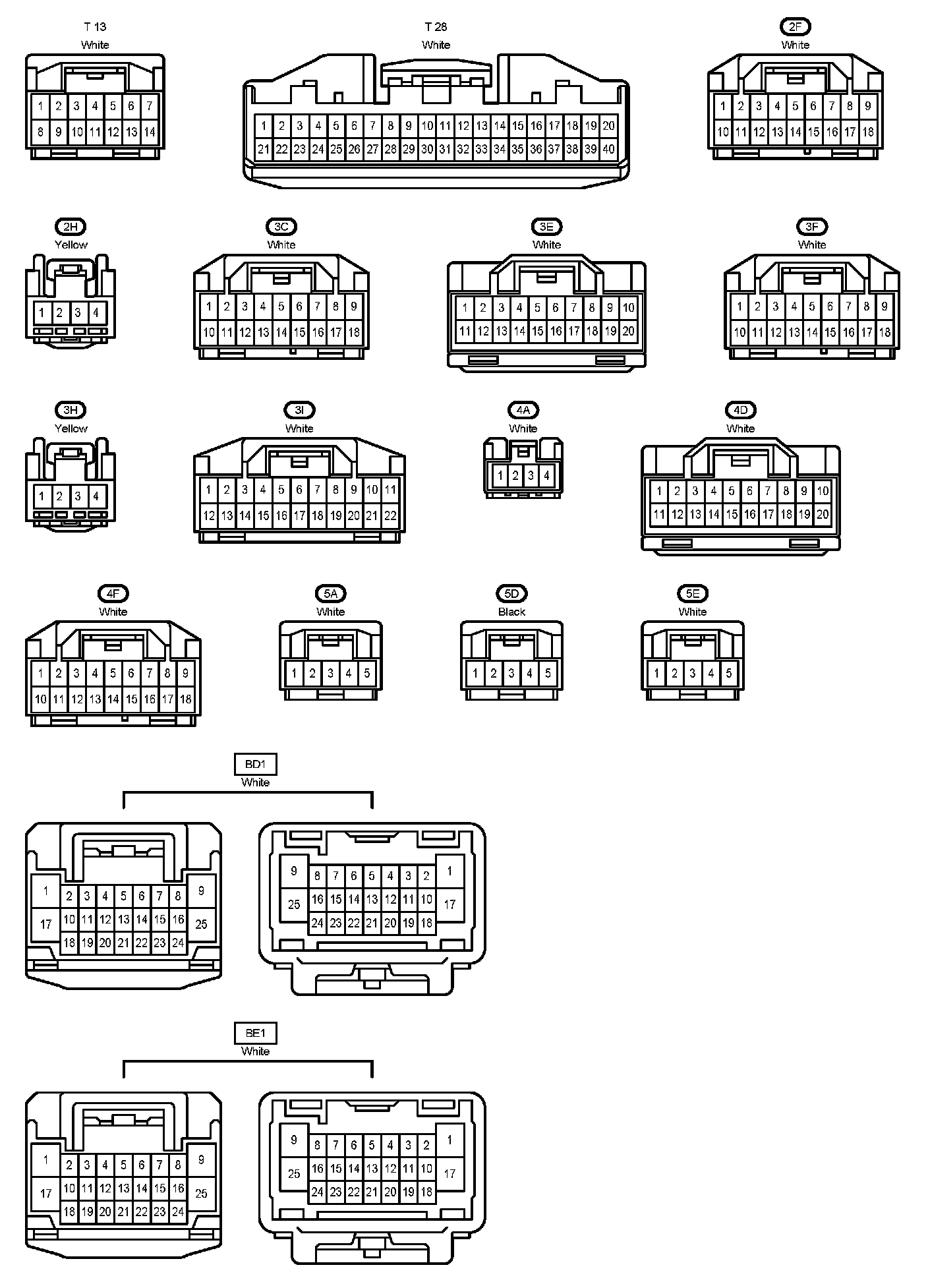

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
