Lexus
>>
2008
>>
SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Distribution Module
>>
Driver Side J/B ECU
Driver Side J/B ECU

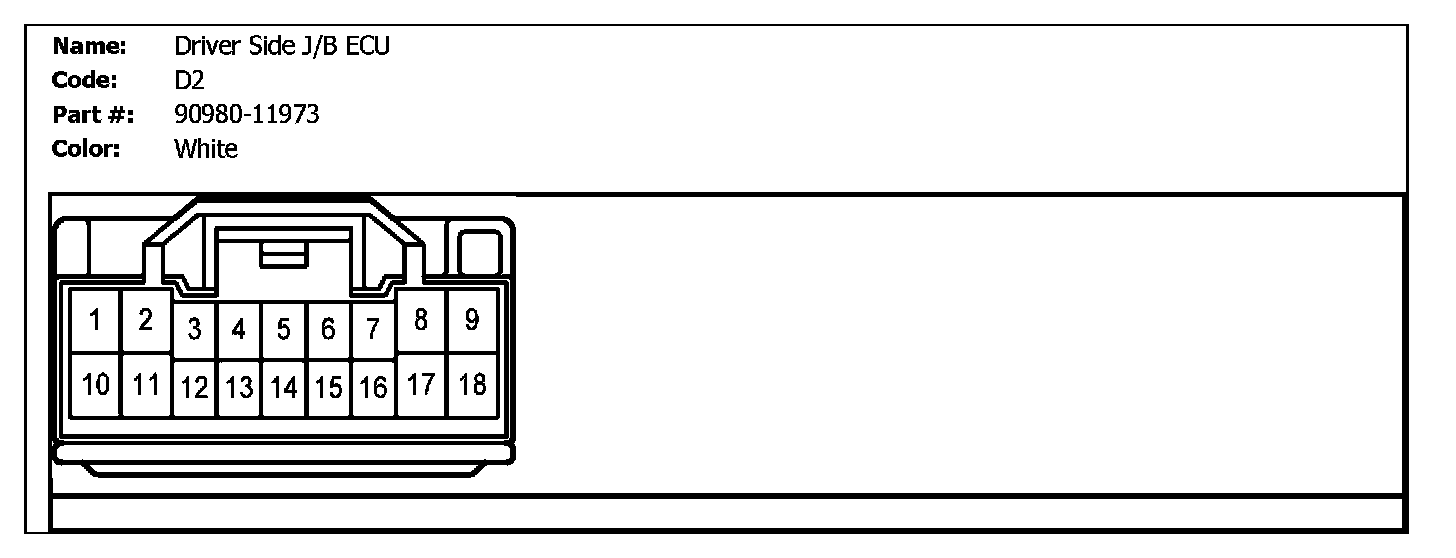

D2 (Driver Side J/B ECU):
D3 (Driver Side J/B ECU):

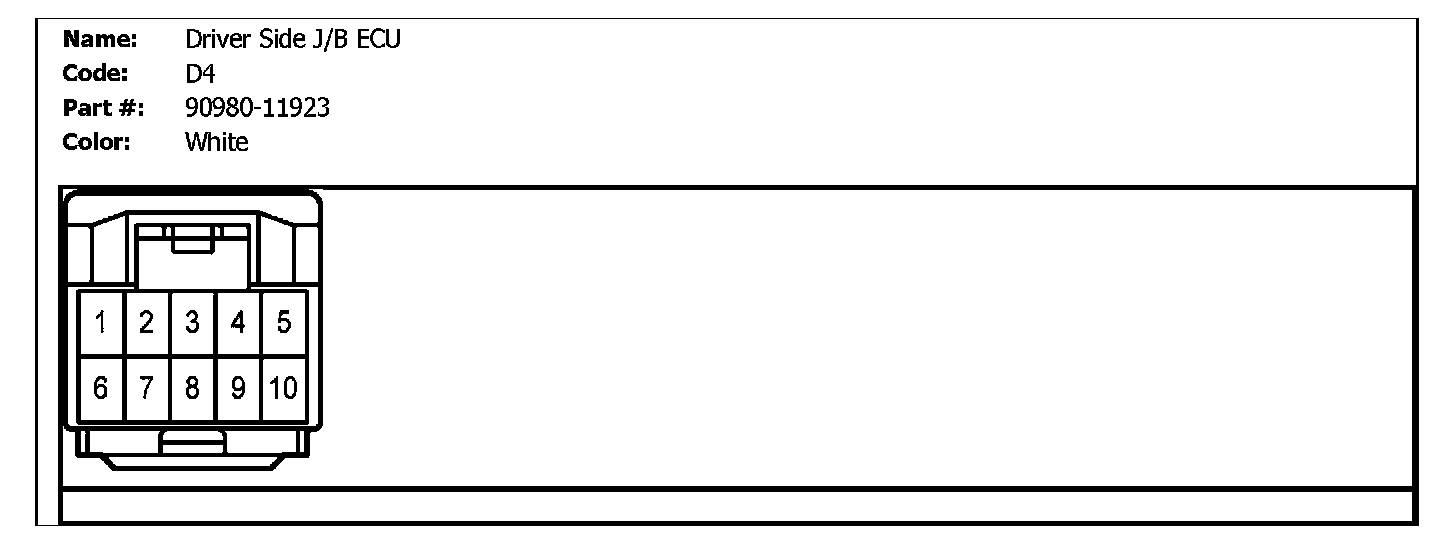

D4 (Driver Side J/B ECU):

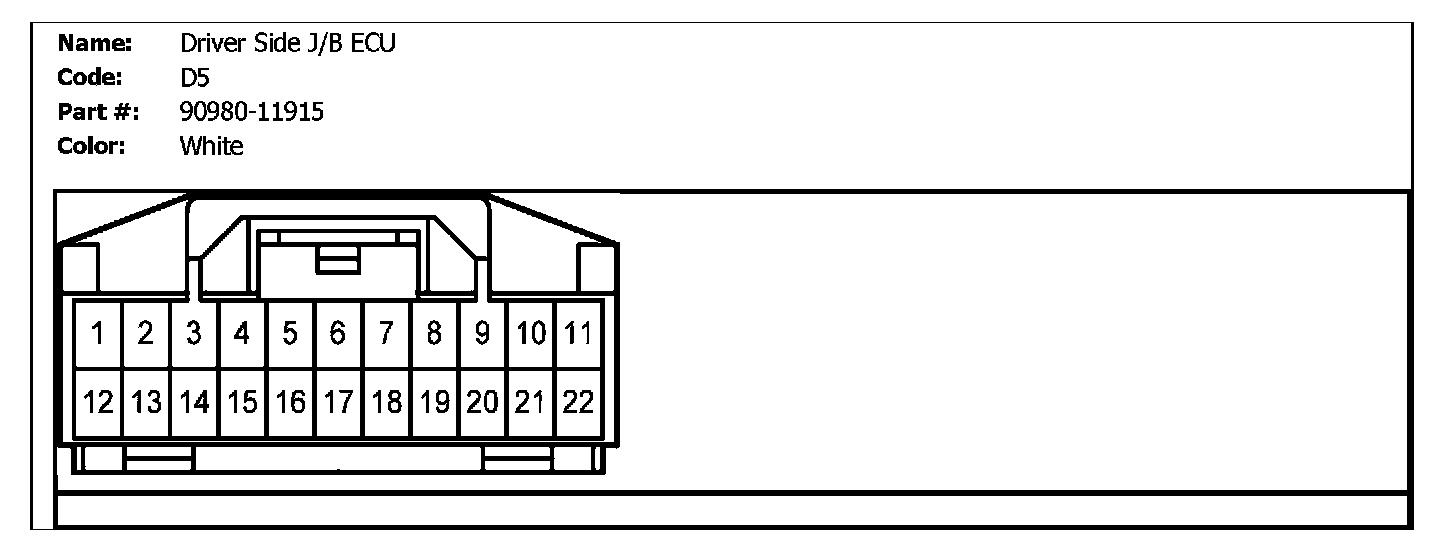

D5 (Driver Side J/B ECU):
