Door Module
Door Module

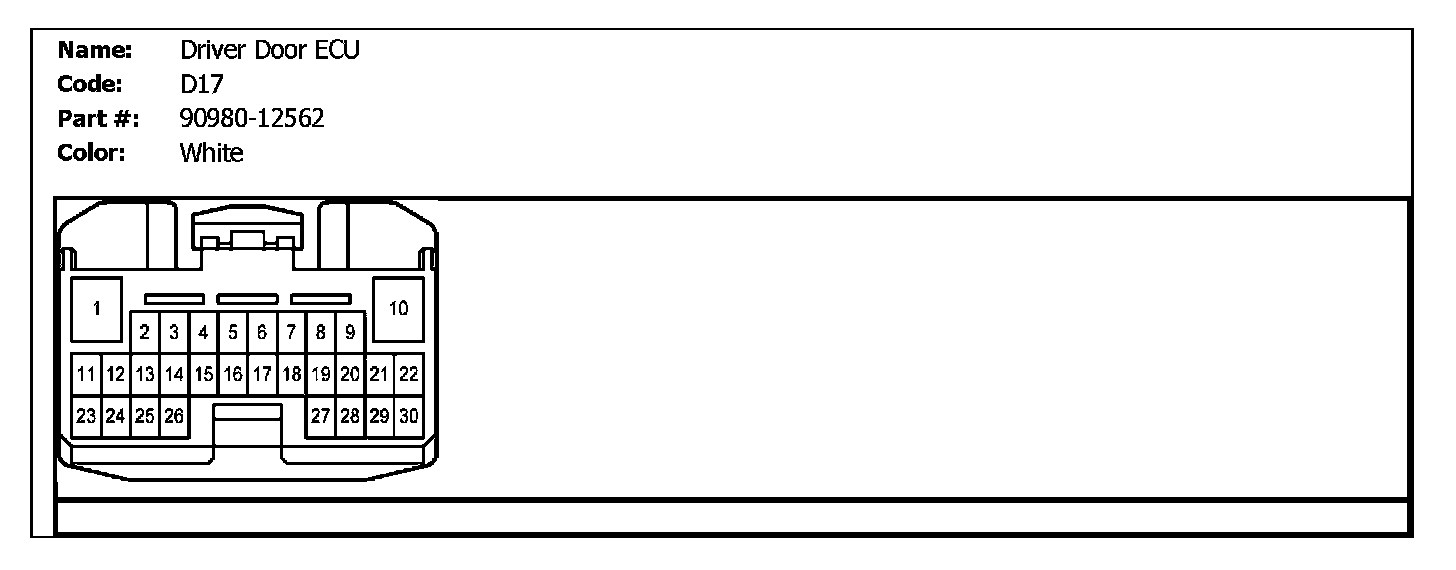

D17 (Driver Door ECU):

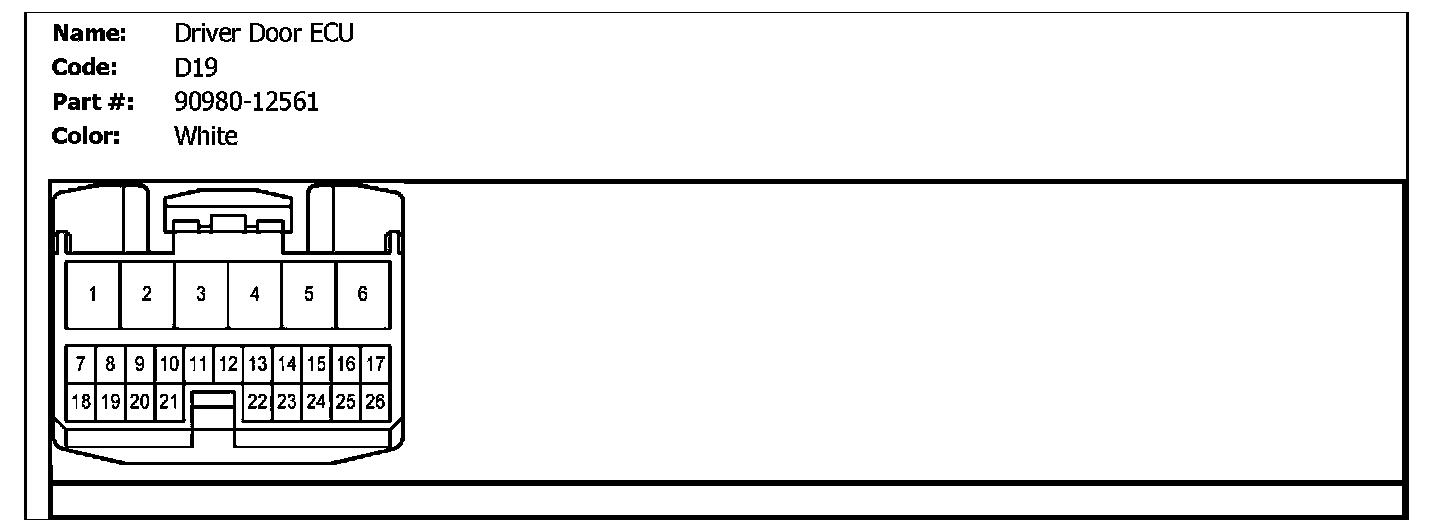

D19 (Driver Door ECU):

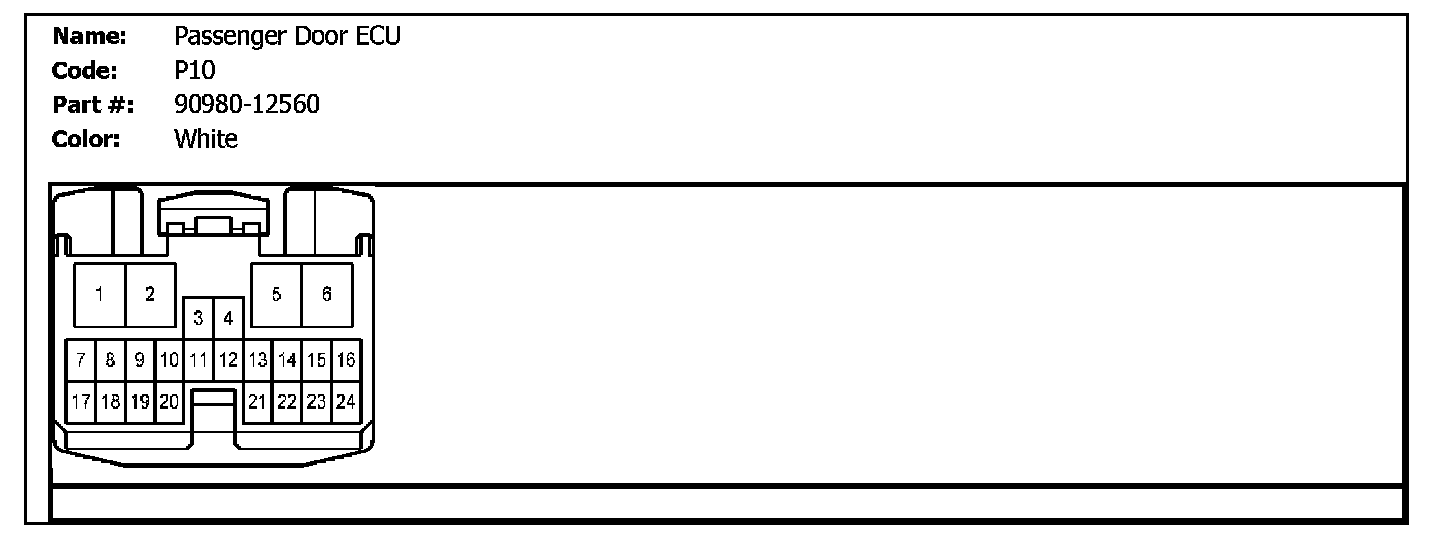

P10 (Passenger Door ECU):

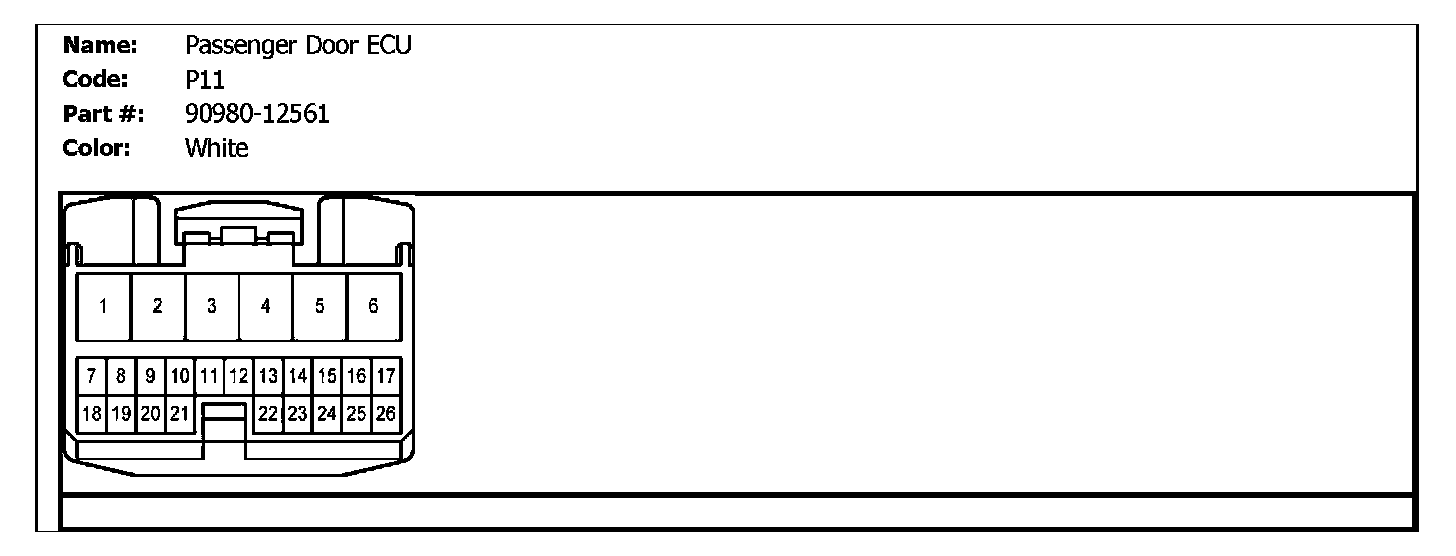

P11 (Passenger Door ECU):

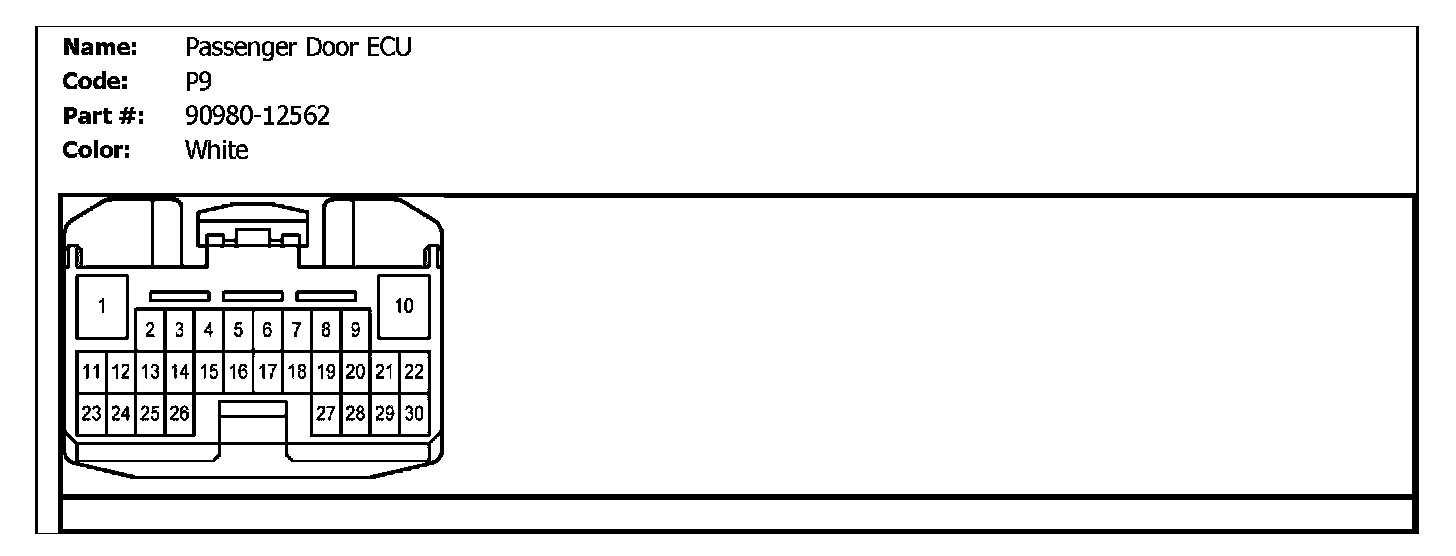

P9 (Passenger Door ECU):
