Convertible Top Position Sensor / Switch

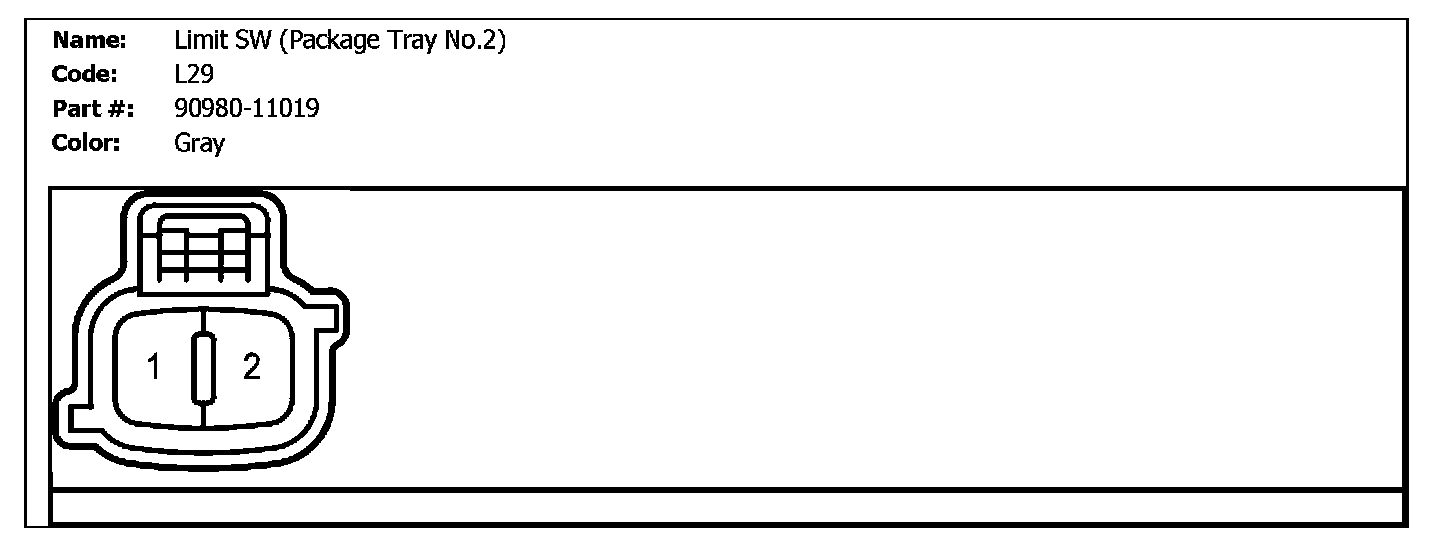

L29 (Limit SW (Package Tray No.2)):

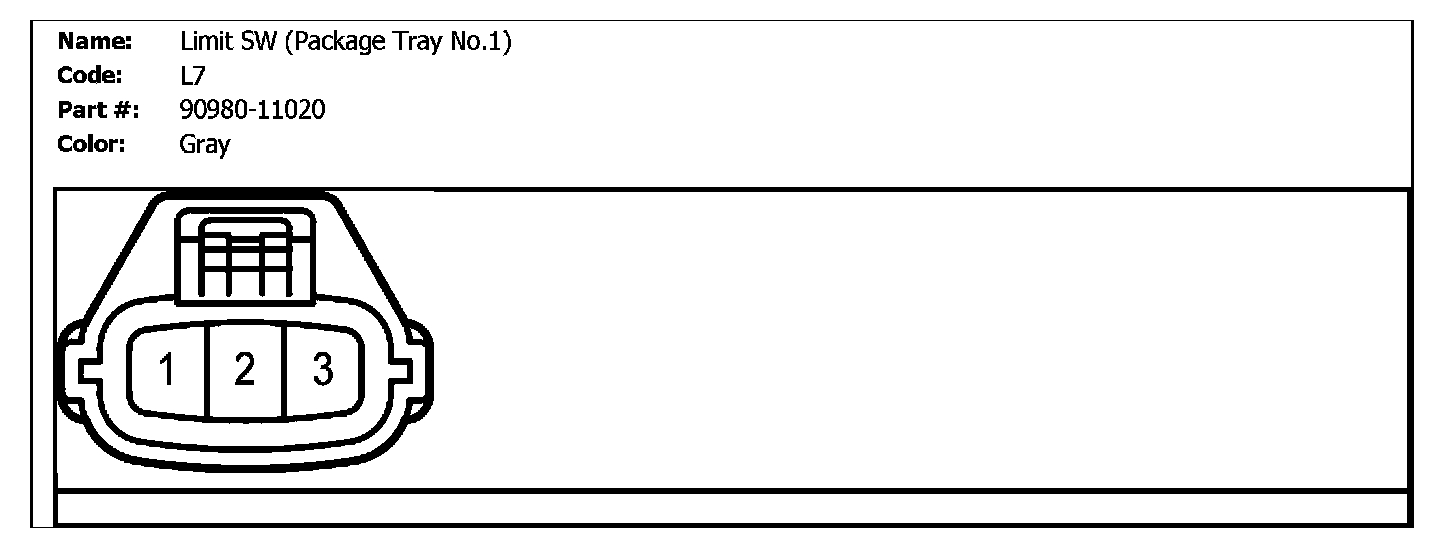

L7 (Limit SW (Package Tray No.1)):

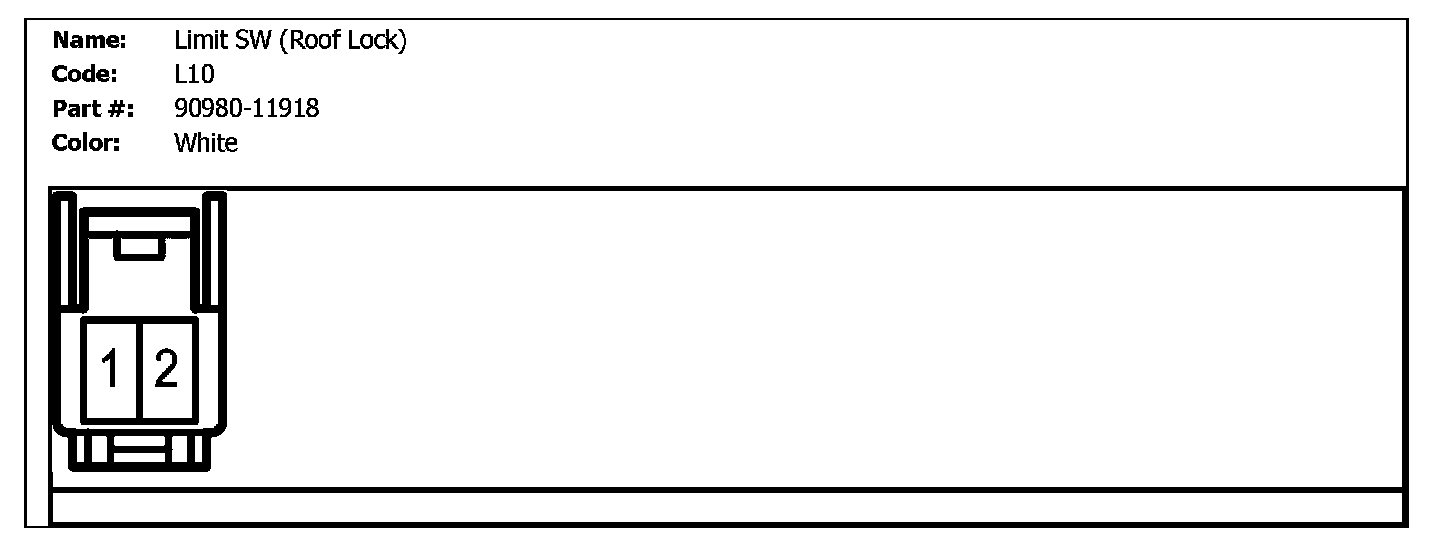

L10 (Limit SW (Roof Lock)):

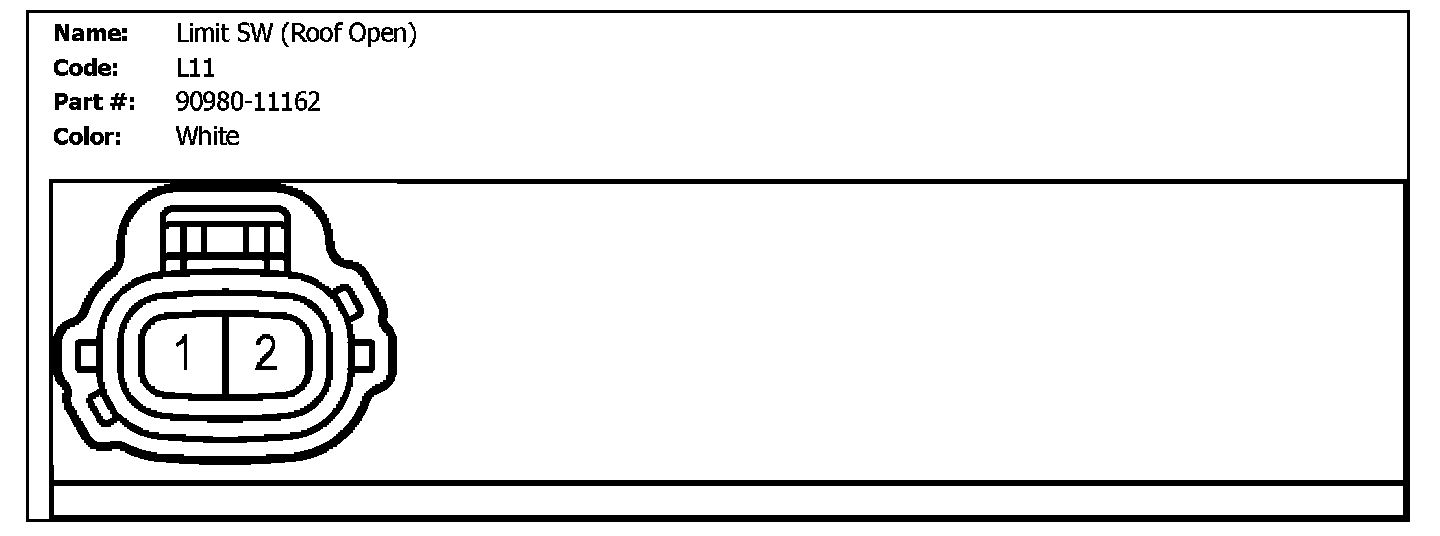

L11 (Limit SW (Roof Open)):

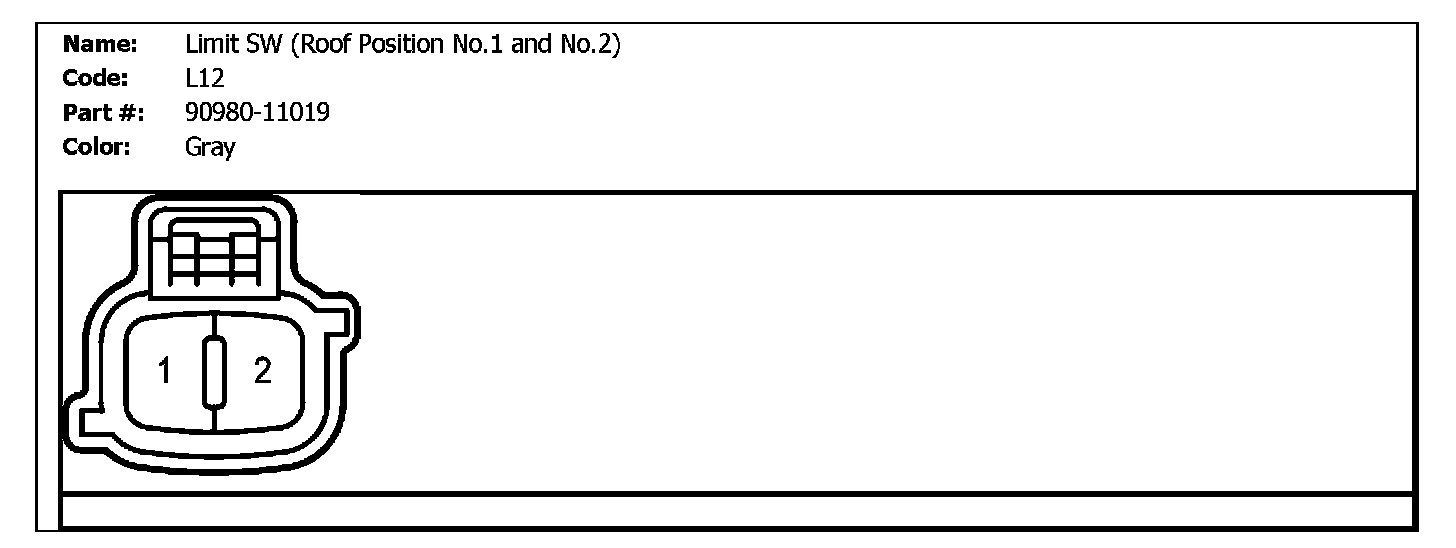

L12 (Limit SW (Roof Position No.1 And No.2)):

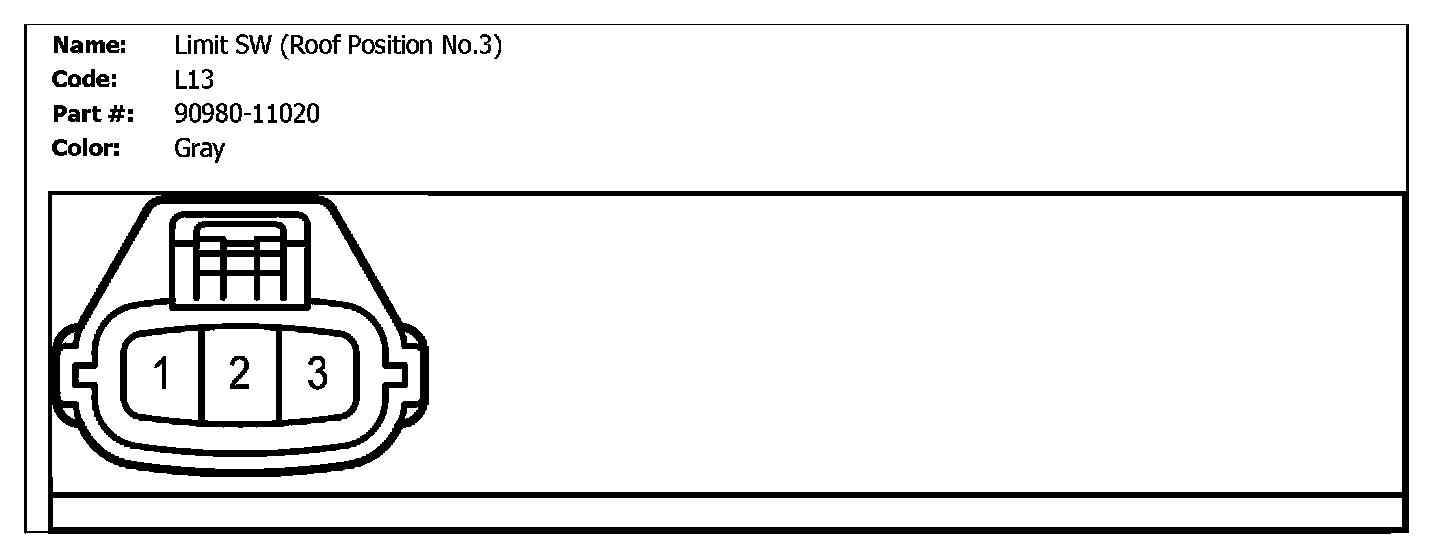

L13 (Limit SW (Roof Position No.3)):

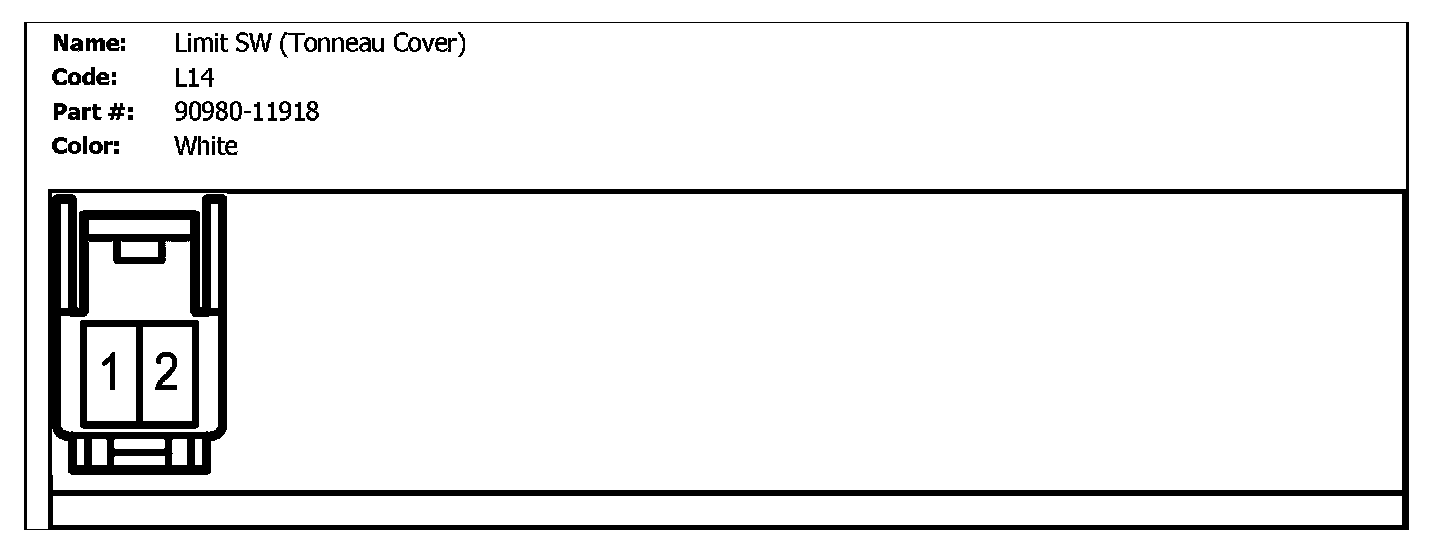

L14 (Limit SW (Tonneau Cover)):

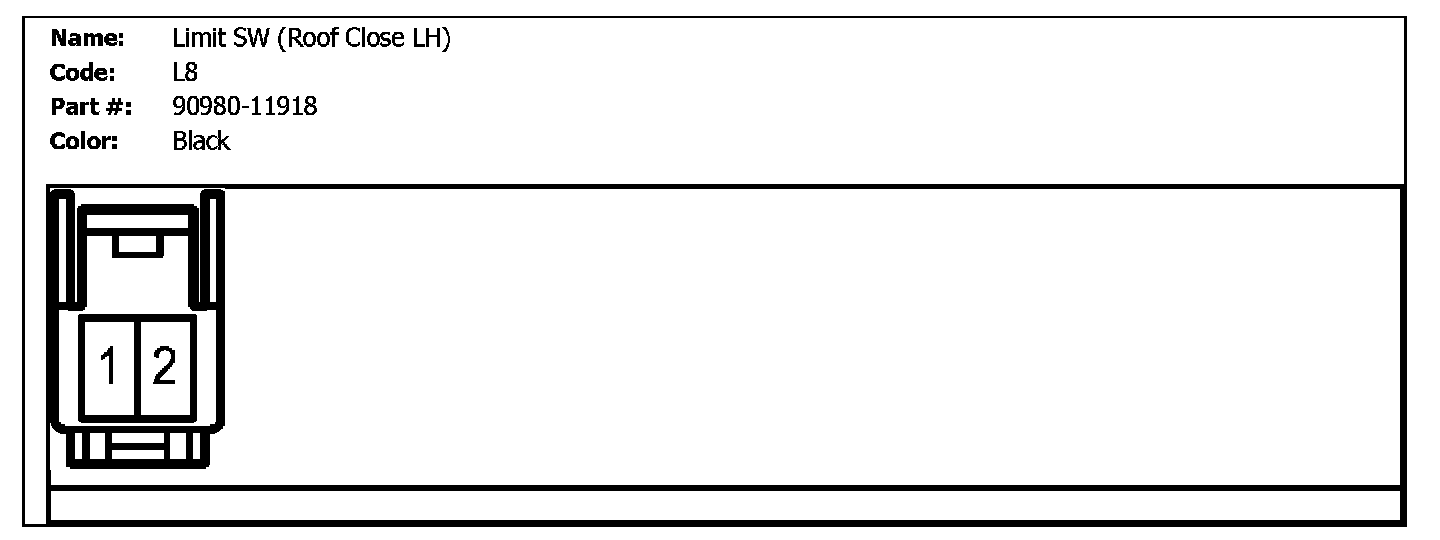

L8 (Limit SW (Roof Close LH)):

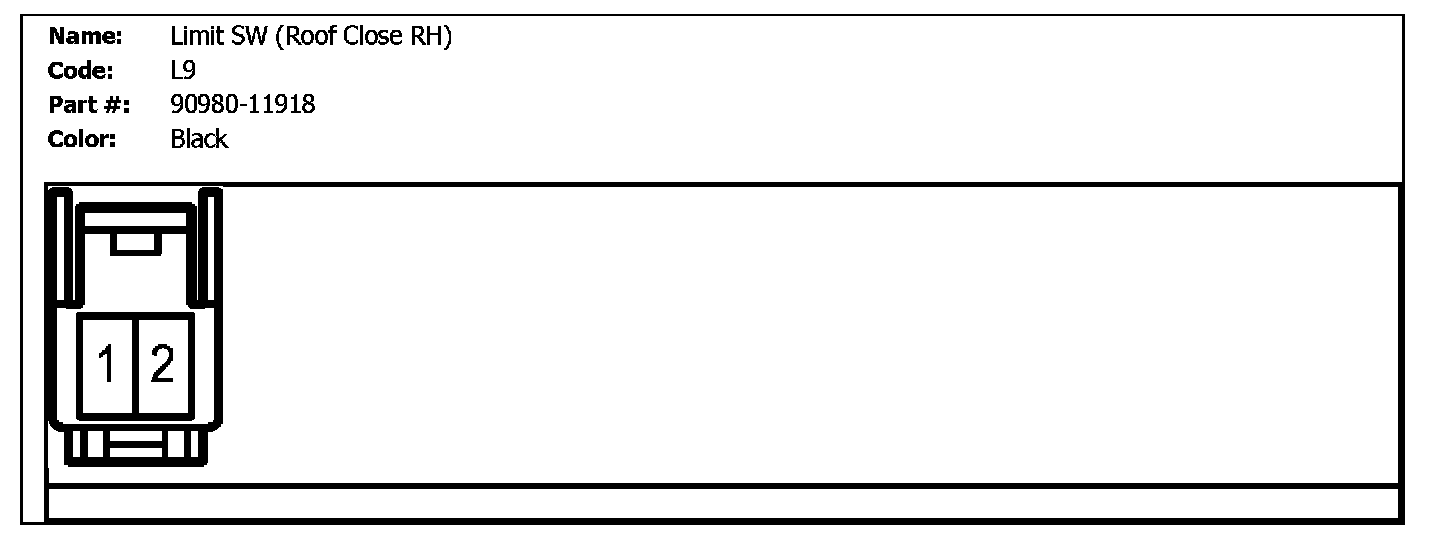

L9 (Limit SW (Roof Close RH)):
