Convertible Top Motor
Convertible Top Motor

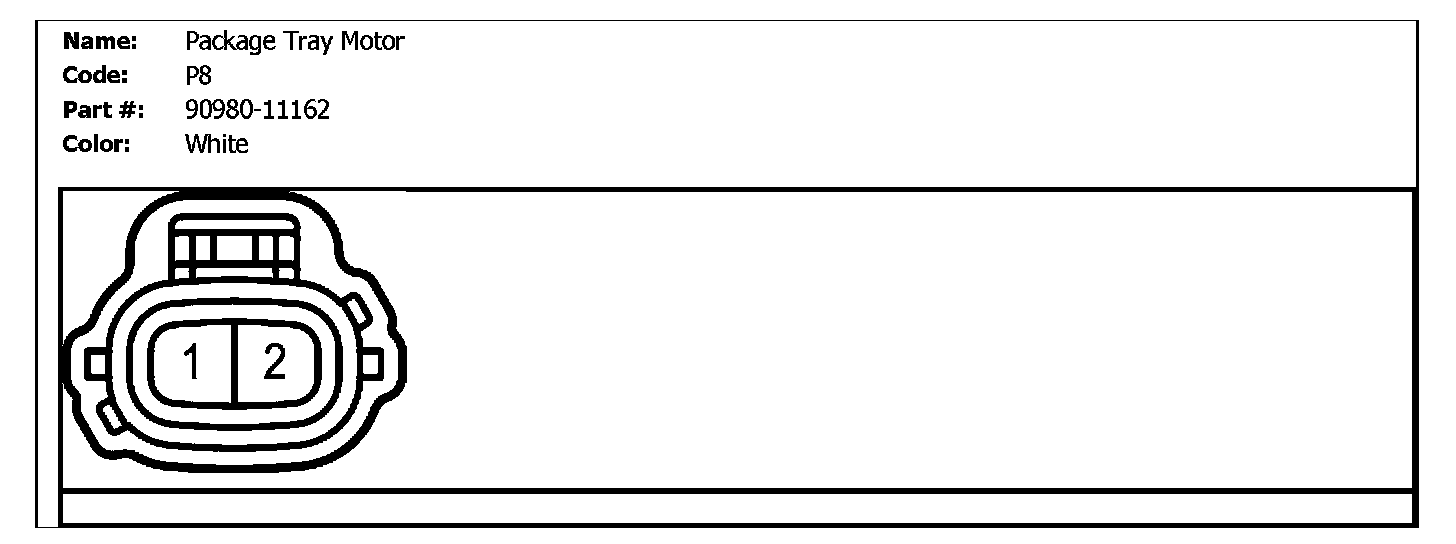

P8 (Package Tray Motor):

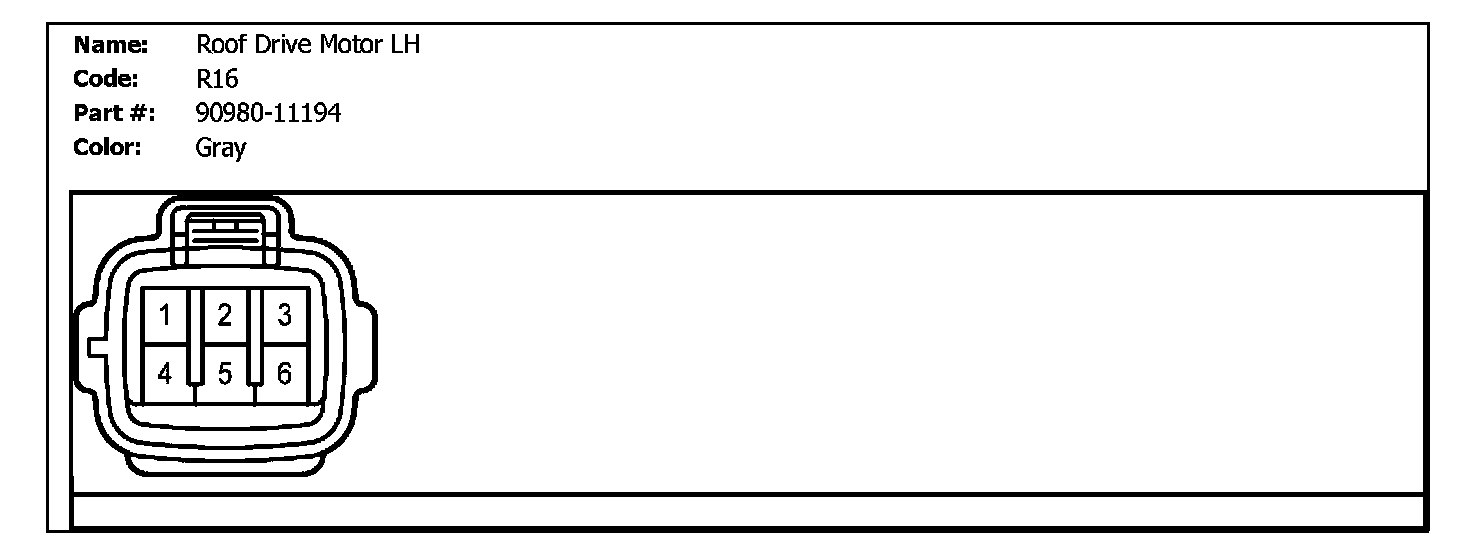

R16 (Roof Drive Motor LH):

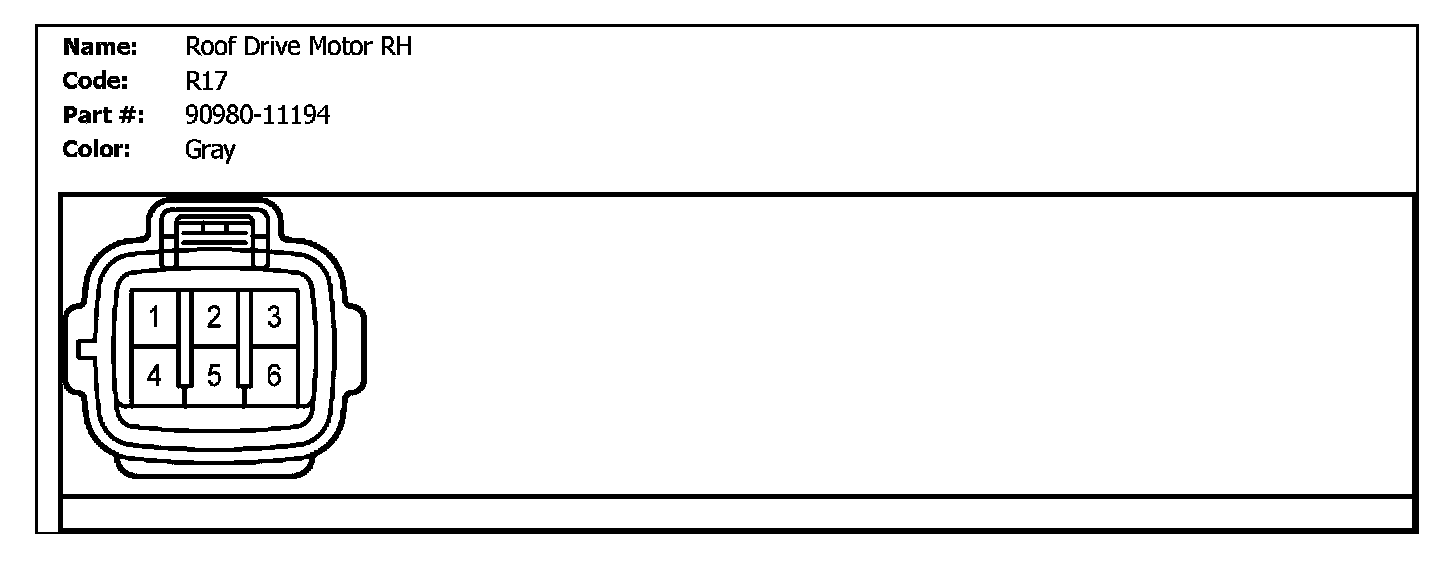

R17 (Roof Drive Motor RH):

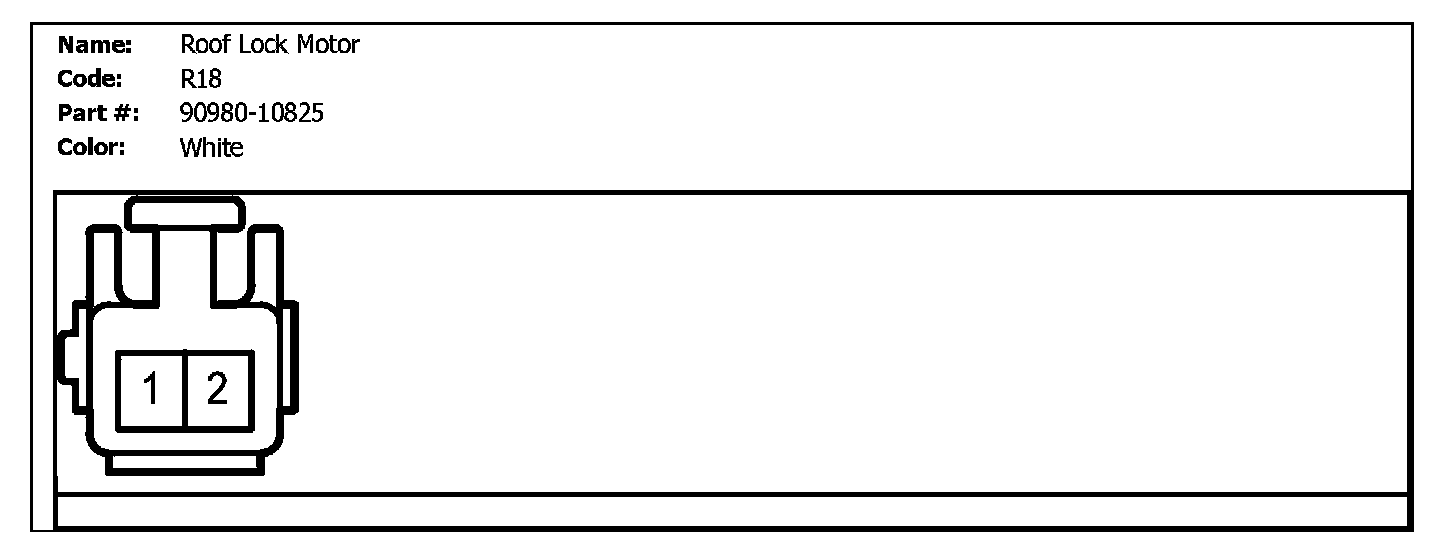

R18 (Roof Lock Motor):
