Removal

MIRROR: OUTER REAR VIEW MIRROR:

REMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedure listed below are for the LH side.

1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY Disassembly

2. REMOVE NO. 2 DOOR INSIDE HANDLE BEZEL LH Disassembly

3. REMOVE FRONT DOOR WINDOW UPPER BRACKET GARNISH LH Disassembly

4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Disassembly

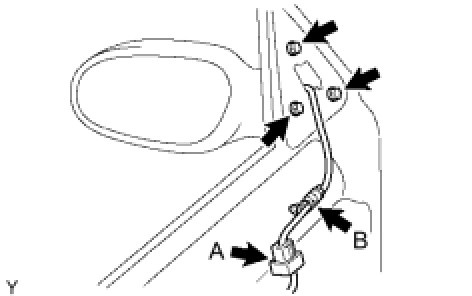

5. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH
(a) Disconnect the mirror connector labeled A.
(b) Remove the clamp labeled B.
(c) Remove the 3 bolts and outer rear view mirror.
6. REMOVE OUTER REAR VIEW MIRROR SUB-ASSEMBLY LH

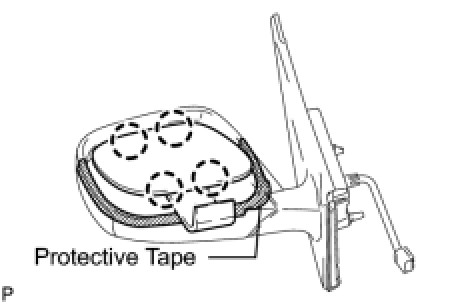

(a) Using a moulding remover, detach the 4 claws.
HINT: Apply protective tape to the mirror body.

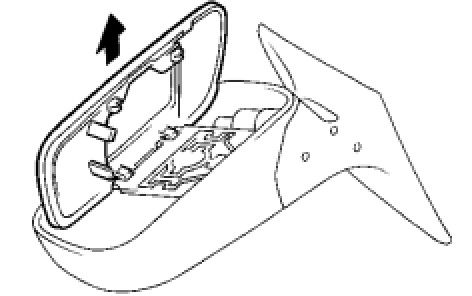

(b) Pull up the mirror and remove it.

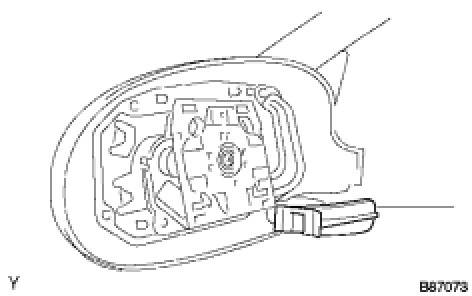

(c) Remove the 2 connectors and disconnect the mirror.
7. REMOVE OUTER MIRROR COVER LH

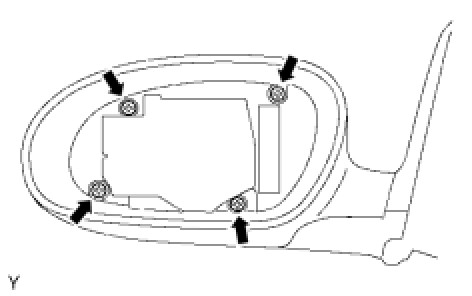

(a) Remove the 4 screws.

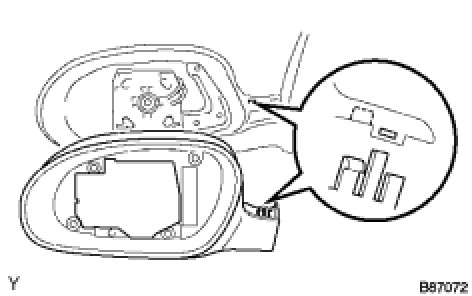

(b) Detach the claw and remove the visor rim.






(c) Remove the protect cover LH.

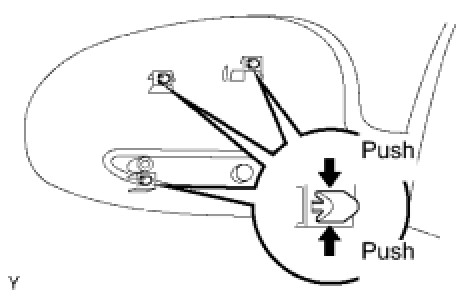

(d) Detach the 3 clamps and remove the outer mirror cover.
