Installation

MIRROR: OUTER REAR VIEW MIRROR:

INSTALLATION

1. INSTALL OUTER MIRROR COVER LH

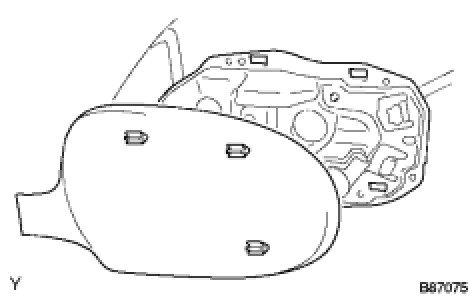

(a) Install the mirror cover as shown in the illustration.

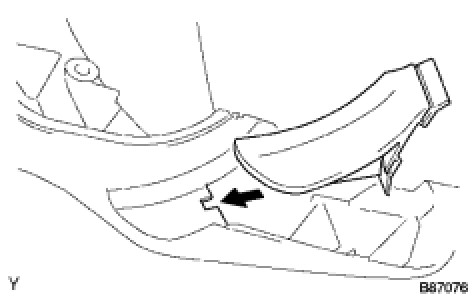

(b) Install the protect cover LH.






(c) Install the visor rim and attach the claw.

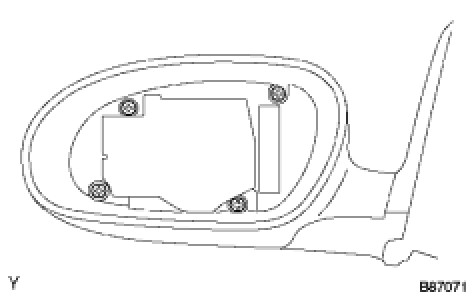

(d) Install the 4 screws.
(e) After installing the outer mirror cover, check that there is no gap between the cover and mirror visor rim.
HINT: If there is a gap between the cover and visor rim, noises may occur during driving.

2. INSTALL OUTER REAR VIEW MIRROR SUB-ASSEMBLY LH

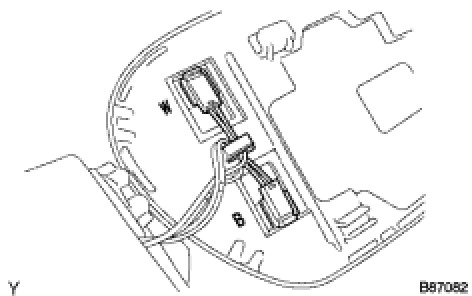

(a) Connect the black connector to the terminal with the "B" engraving next to it.
(b) Connect the white connector to the terminal with the "W" engraving next to it.






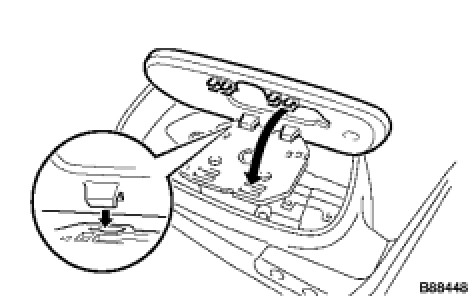

(c) Install the mirror as shown in the illustration.

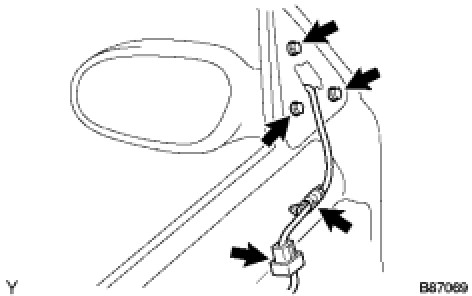

3. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH
(a) Install the mirror with the 3 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
(b) Install the clamp.
(c) Connect the connector.
4. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Reassembly

5. INSTALL FRONT DOOR WINDOW UPPER BRACKET GARNISH LH Reassembly

6. INSTALL NO. 2 DOOR INSIDE HANDLE BEZEL LH Reassembly

7. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY Reassembly
