Home >> Lexus >> 2008 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Trunk / Liftgate Lock >> Locations

Trunk / Liftgate Lock: Locations

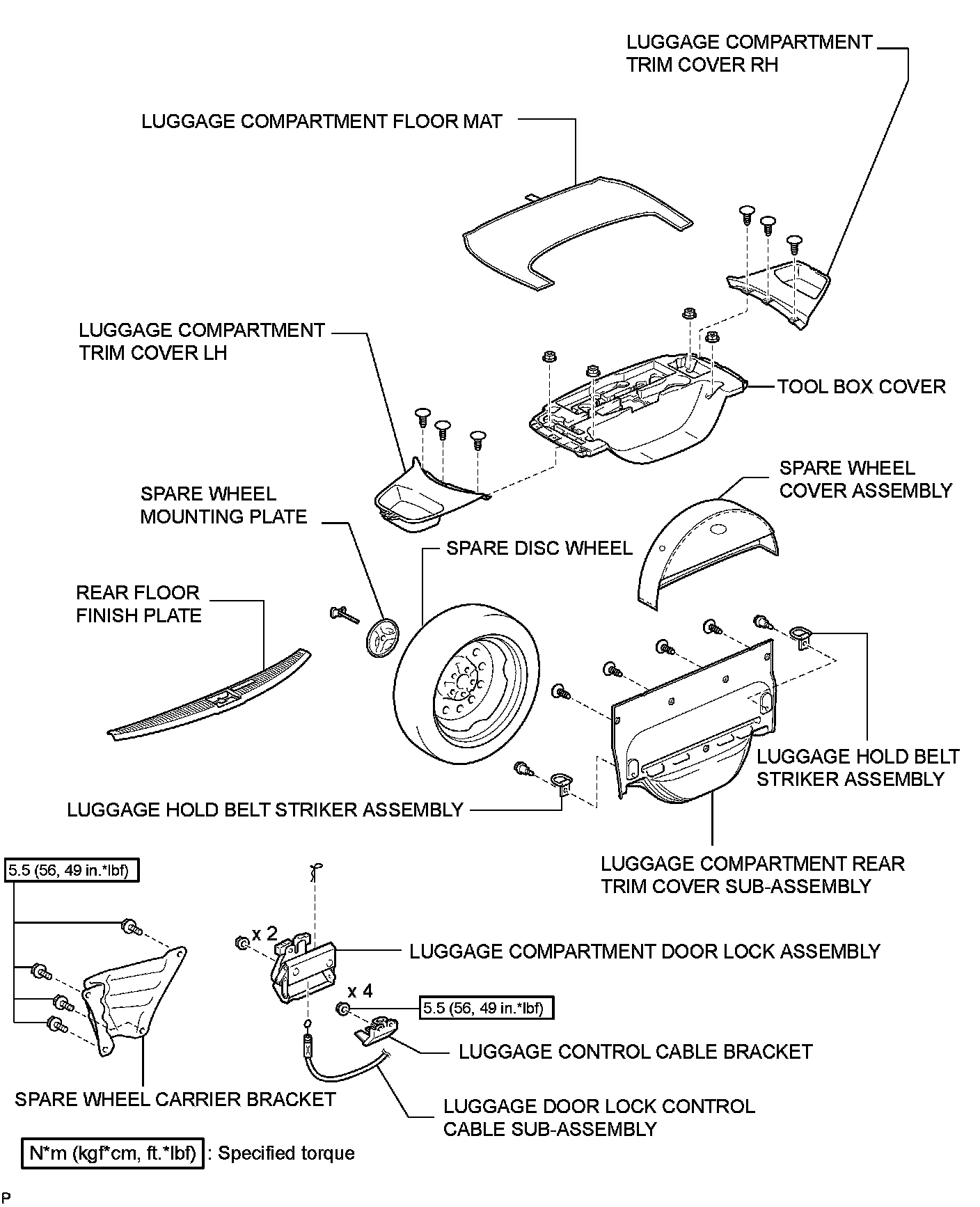

DOOR LOCK: LUGGAGE COMPARTMENT DOOR LOCK:

COMPONENTS
