Installation

AUDIO / VISUAL: REAR CENTER SPEAKER:

INSTALLATION





1. INSTALL REAR NO. 2 SPEAKER ASSEMBLY LH

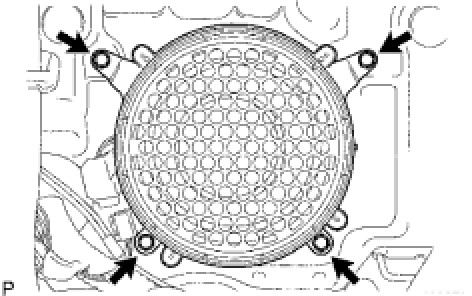

(a) Install the speaker with the 4 screws.
(b) Connect the connector.
2. INSTALL REAR SEATBACK ASSEMBLY Installation

3. INSTALL REAR SEAT HEADREST ASSEMBLY Installation

4. INSTALL REAR SEAT HEADREST PLATE Installation

5. INSTALL WIND DEFLECTOR BOARD ASSEMBLY Installation

6. INSTALL REAR SEAT HEADREST PLATE COVER Installation

7. INSTALL REAR SEAT CUSHION ASSEMBLY Installation

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
9. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
