Removal

AUDIO / VISUAL: FRONT DOOR SPEAKER:

REMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY Disassembly

3. REMOVE NO. 2 DOOR INSIDE HANDLE BEZEL LH Disassembly

4. REMOVE FRONT DOOR WINDOW UPPER BRACKET GARNISH LH Disassembly

5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Disassembly

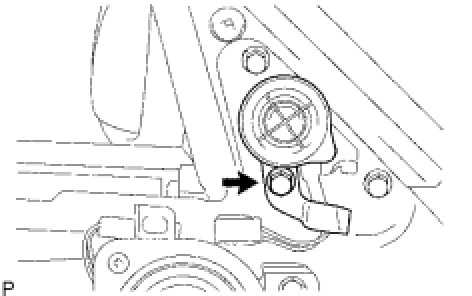

6. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY LH






(a) Disconnect the connector.
(b) Remove the bolt and speaker.

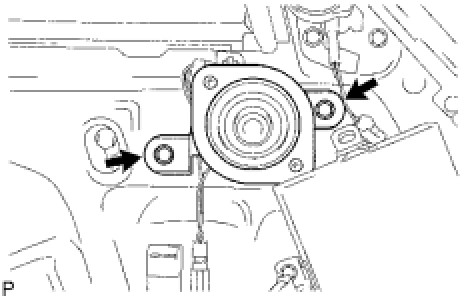

7. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY LH






(a) Disconnect the 2 connectors.
(b) Remove the 2 screws and speaker.

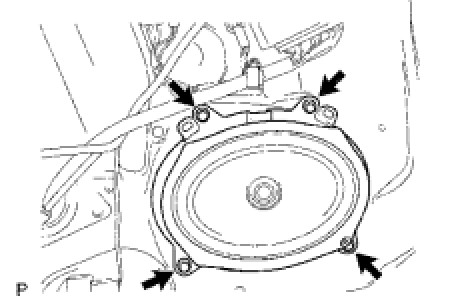

8. REMOVE STEREO COMPONENT SPEAKER ASSEMBLY LH






(a) Disconnect the connector.
(b) Remove the 4 screws and speaker.
