Engine Control System - SFI System

3UZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0607: Control Module Performance

DTC P0607 - Control Module Performance

DESCRIPTION

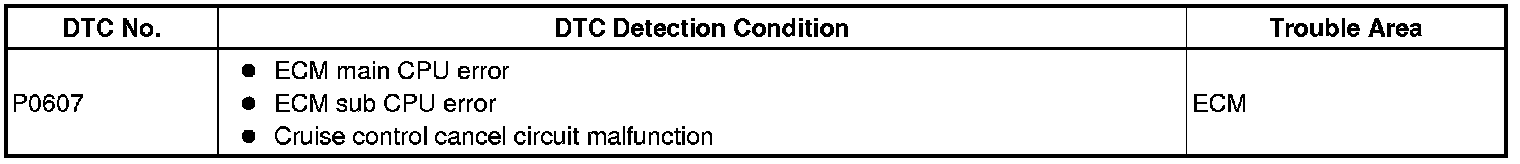

The ECM continuously monitors its main and sub CPUs. This self-check ensures that the ECM is functioning properly. If outputs from the CPUs are different and deviate from the standards, the ECM will illuminate the MIL and set a DTC immediately.
The ECM also monitors the cruise control cancel circuit. If this circuit malfunctions, the ECM will set a DTC immediately (MIL is not illuminated).





HINT: The MIL does not illuminate when a malfunction is detected in the cruise control cancel switch circuit of the ECM. It illuminate when a malfunction is detected in the main CPU and sub CPU of the the ECM.

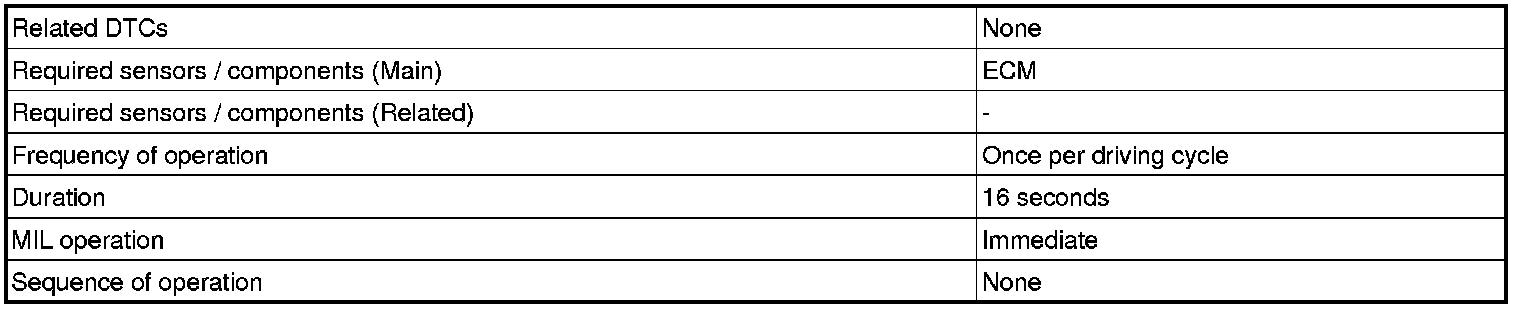

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS

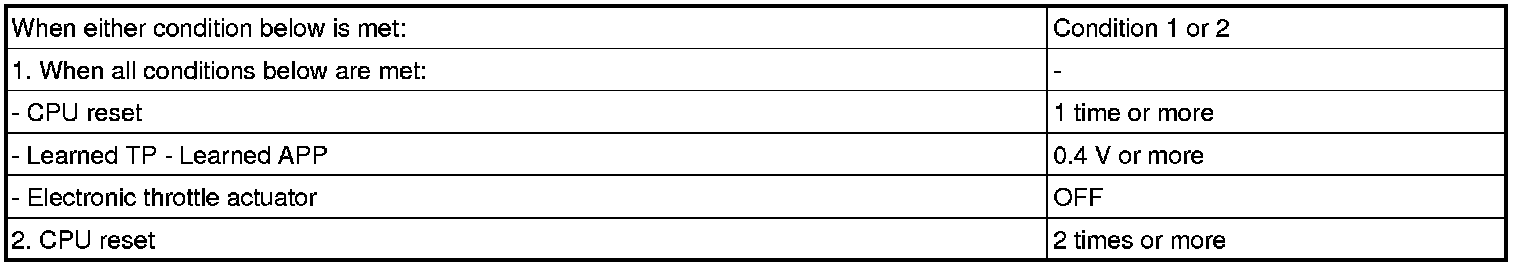

TYPICAL MALFUNCTION THRESHOLDS





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC
(a) Clear DTC.
(b) Turn the ignition switch OFF.
(c) Disconnect the cable from the negative battery terminal and wait for 1 minute.
(d) Connect the cable to the negative battery terminal.
(e) Turn the ignition switch ON.
(f) Check DTC.
OK:
P0607 is not present.
NG -- REPLACE ECM
OK -- CHECK FOR INTERMITTENT PROBLEMS
