Home >> Lexus >> 2008 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Wireless Door Lock Control System

Wireless Door Lock Control System








DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM:

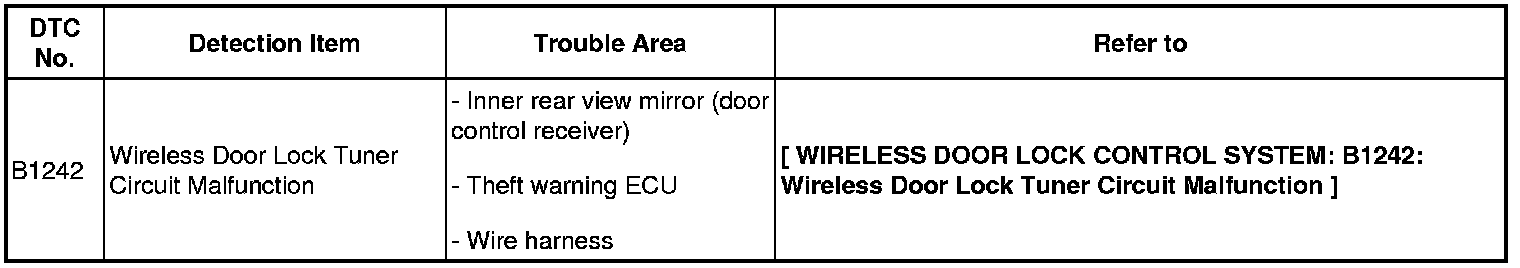

DIAGNOSTIC TROUBLE CODE CHART

If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.

Wireless door lock control system
