Vehicle Stability Control System

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM:

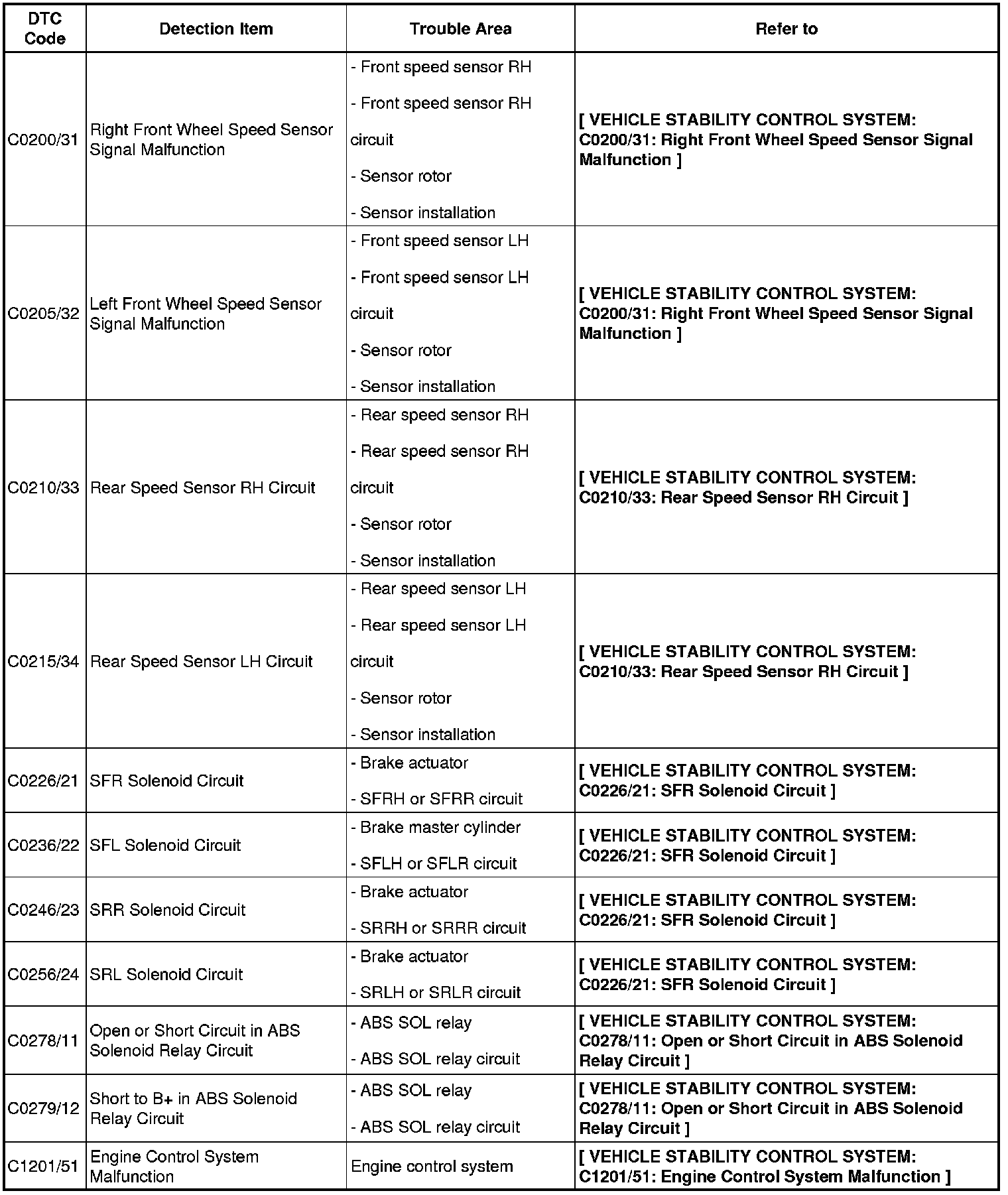

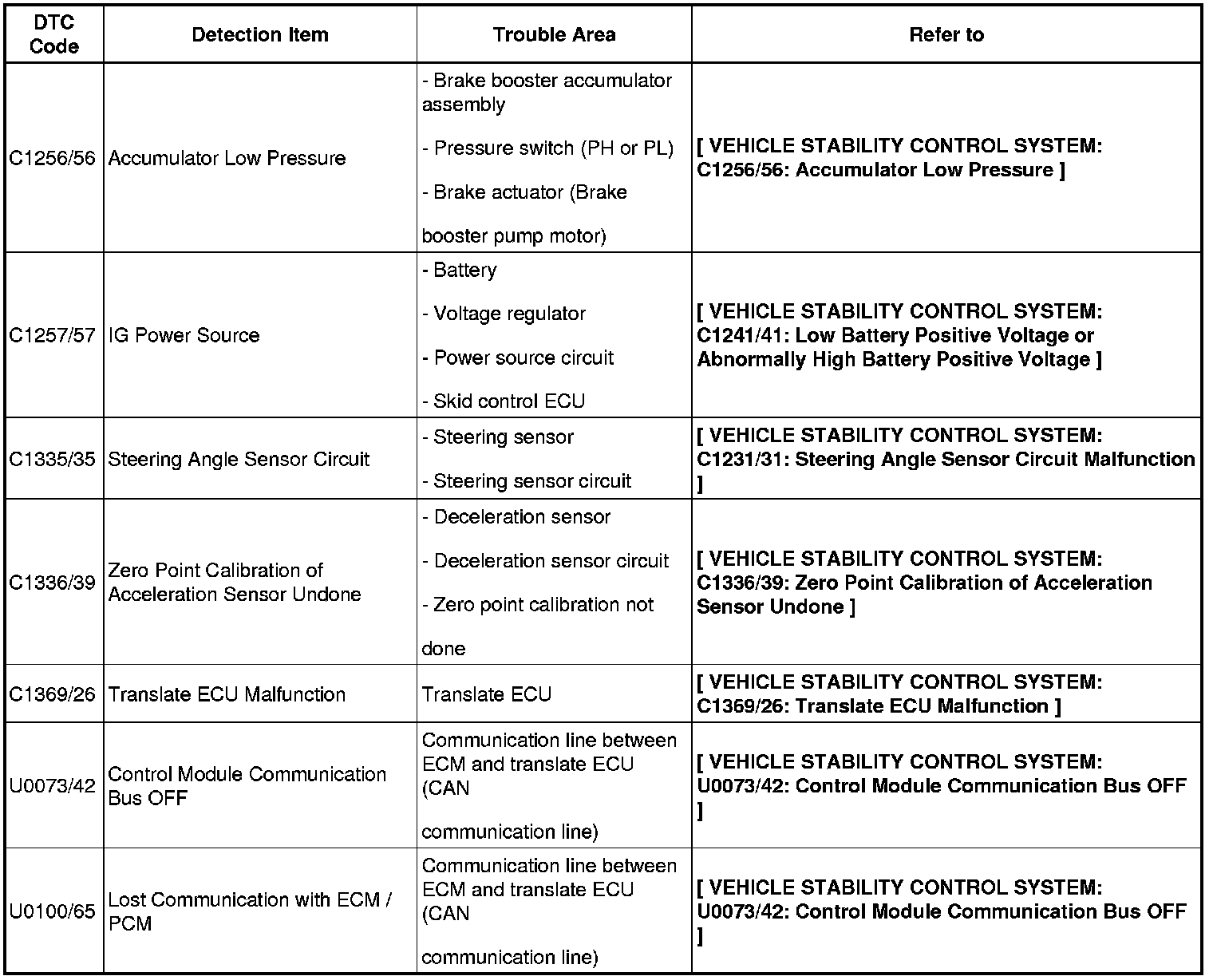

DIAGNOSTIC TROUBLE CODE CHART
HINT:
- If an abnormality is not found when inspecting parts, inspect the ECU and ground points for poor contact.
- If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.

Vehicle stability control system
