Power Tilt and Power Telescopic Steering Column System








STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM:

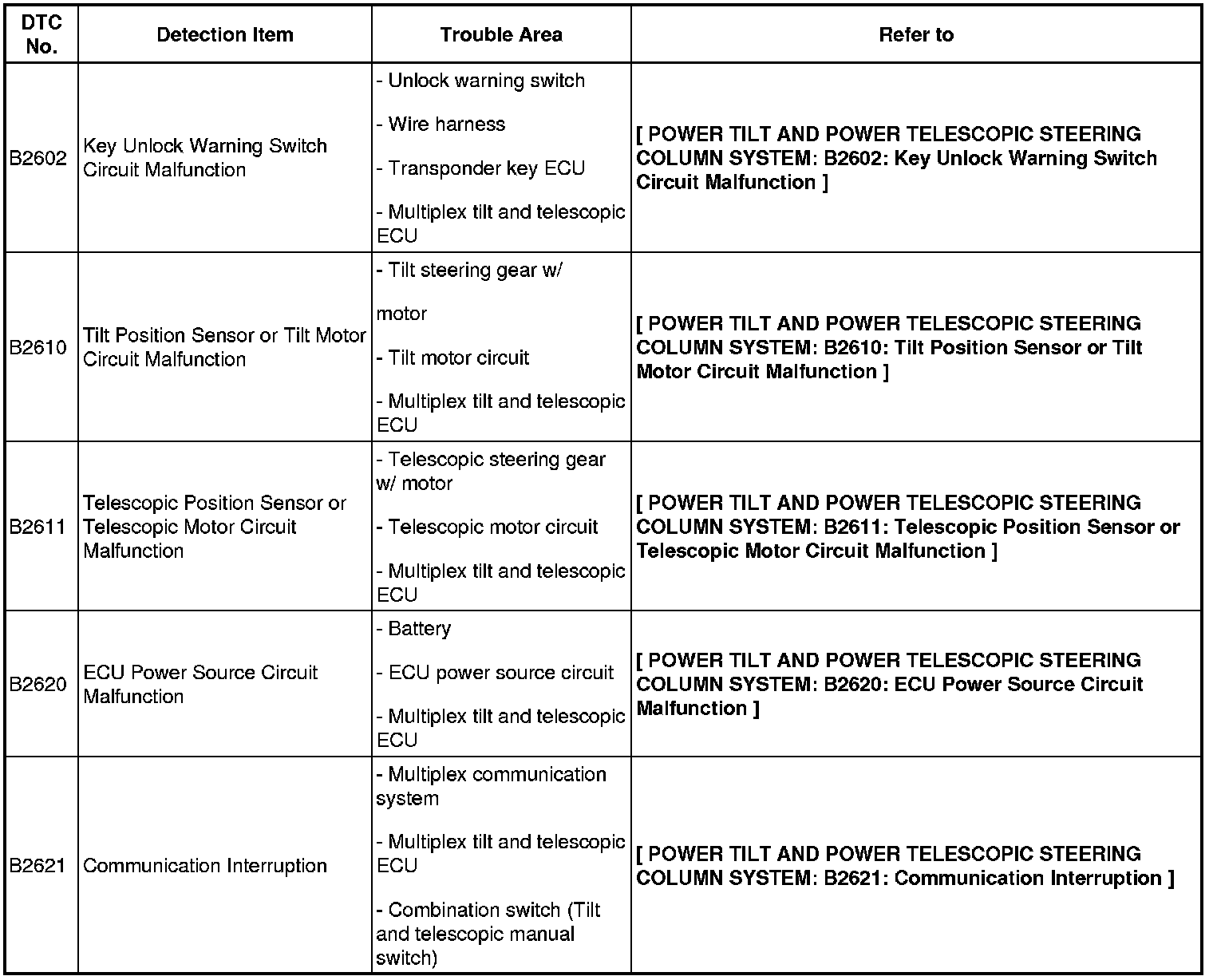

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.

Power tilt and telescopic steering column system
