Automatic Transmission System

A761E AUTOMATIC TRANSMISSION SYSTEM:

DIAGNOSTIC TROUBLE CODE CHART

HINT:
- If a DTC is displayed during the DTC check, check the parts listed in the table.
- *1: "Comes on" means the Malfunction Indicator Lamp (MIL) illuminates.
- *2: "DTC stored" means the ECM memorizes the malfunction code if the ECM detects the DTC detection condition.
- These DTCs may be output when the clutch, brake, gear components, etc., inside the automatic transmission are damaged.

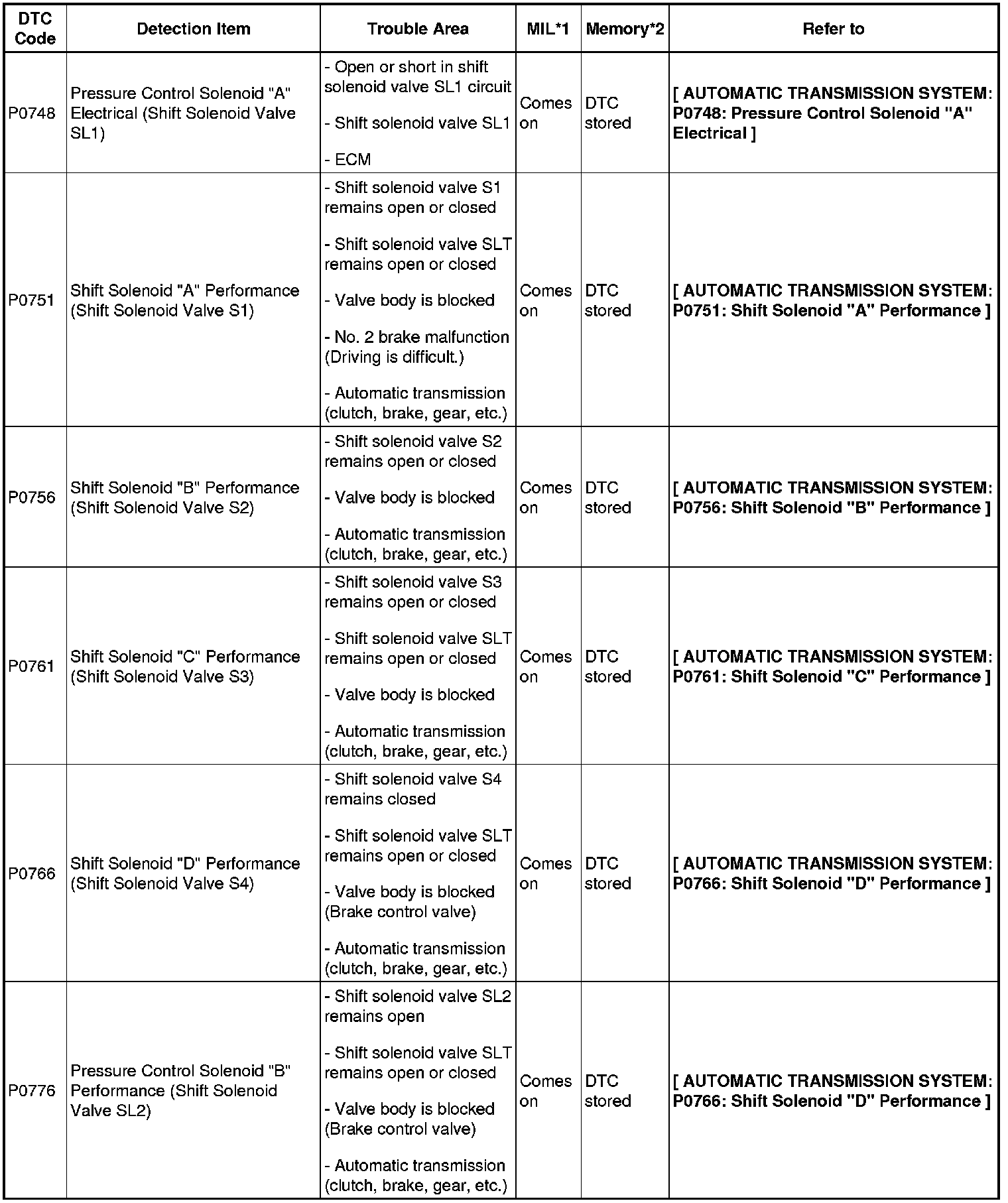

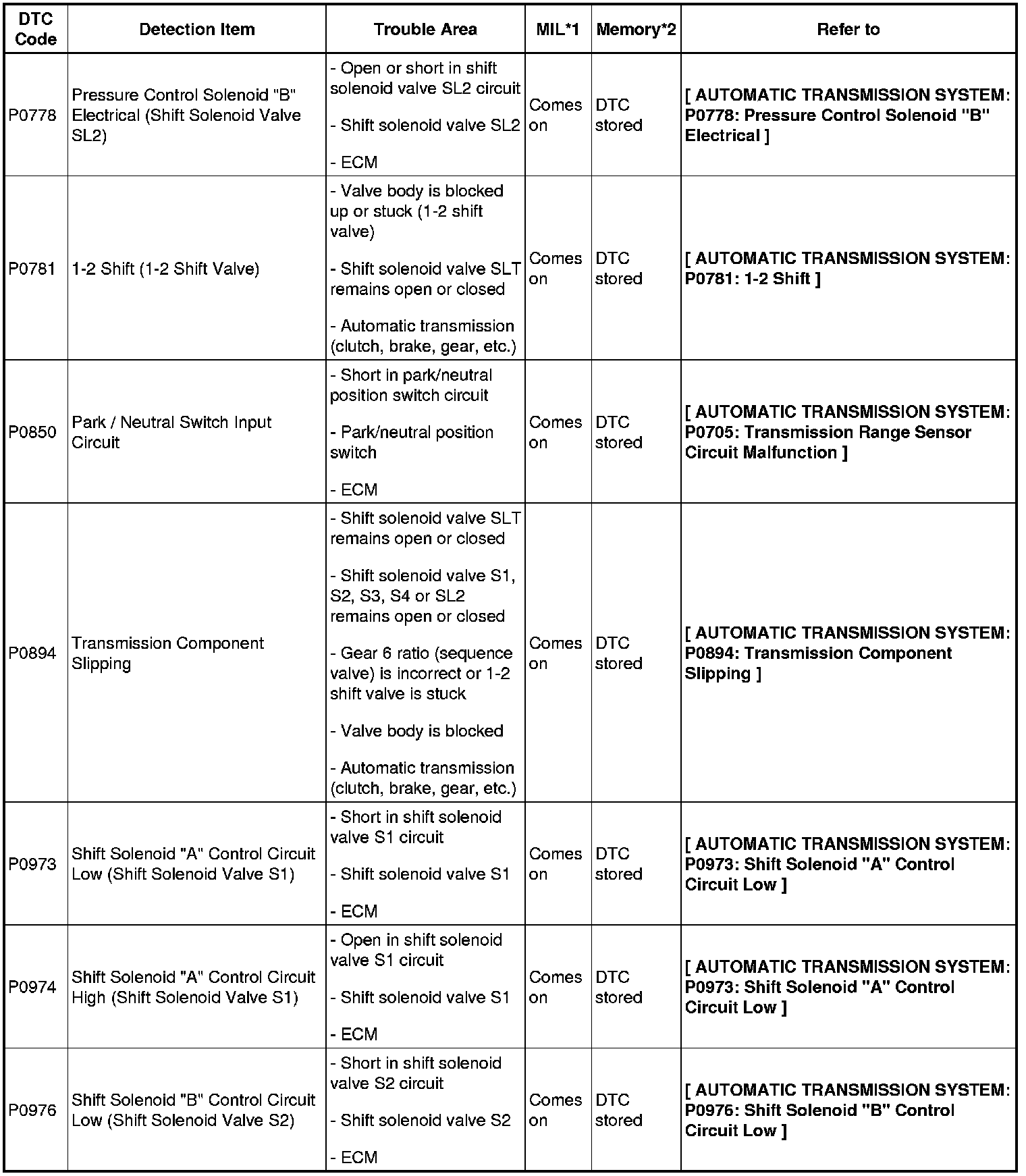

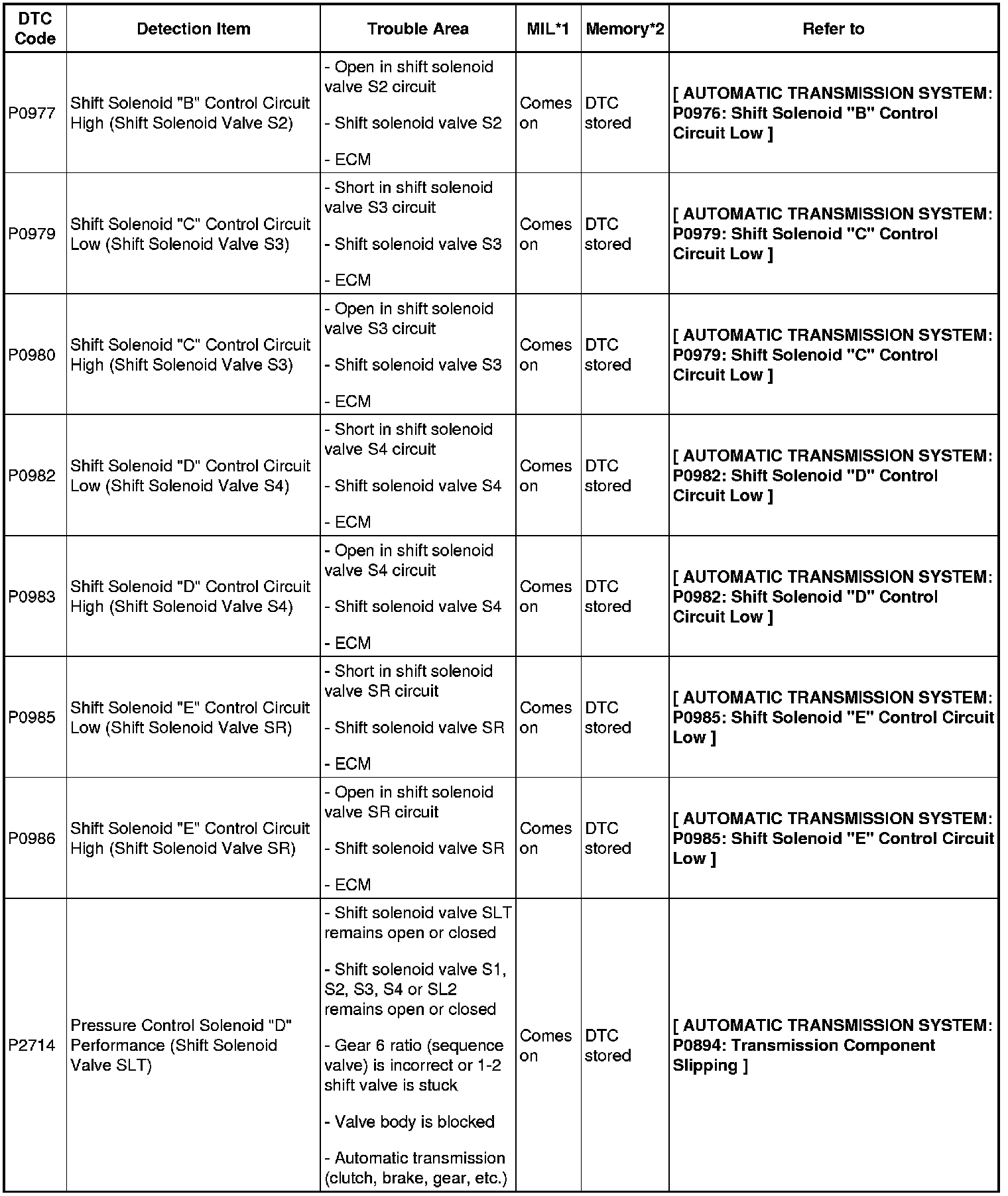

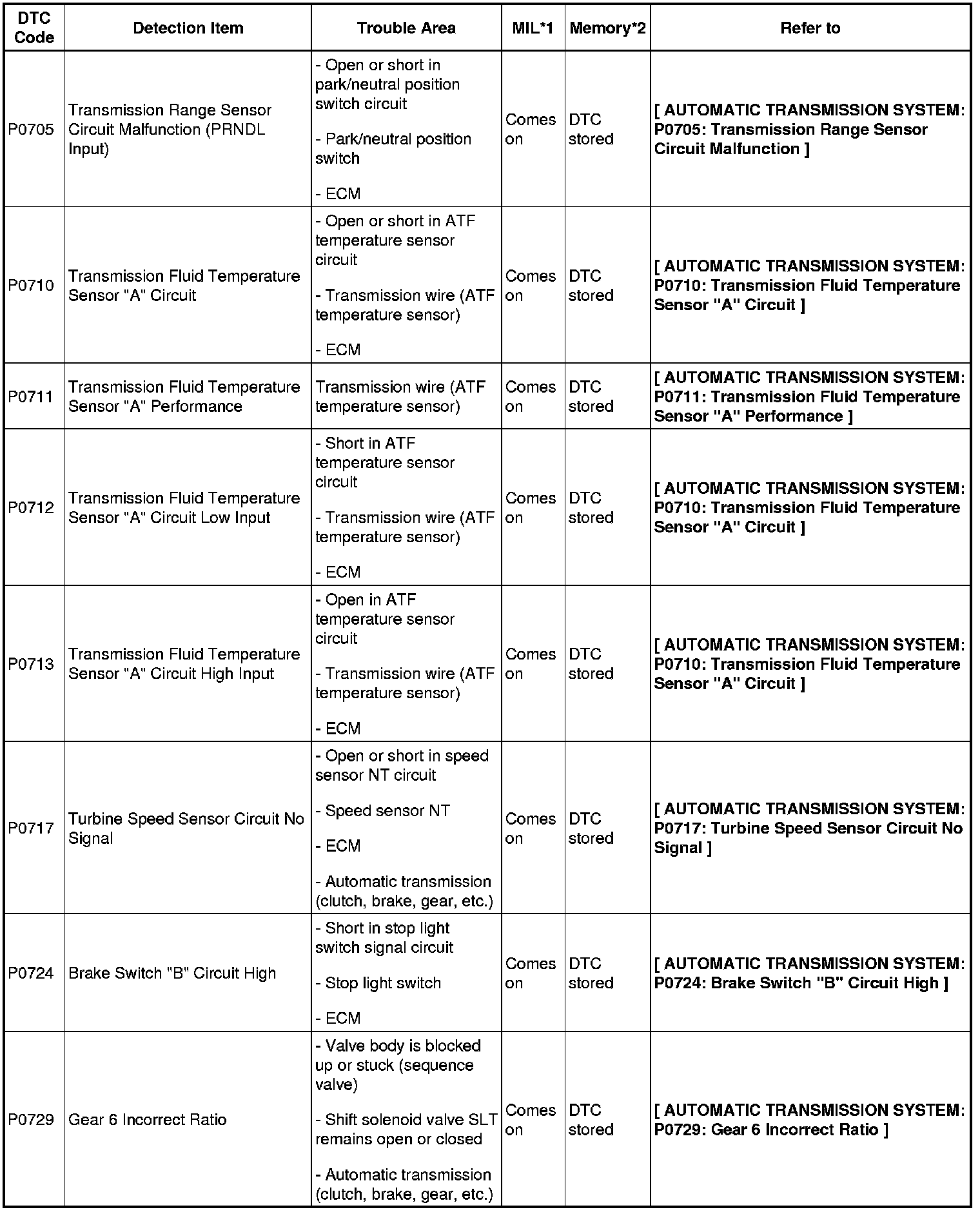

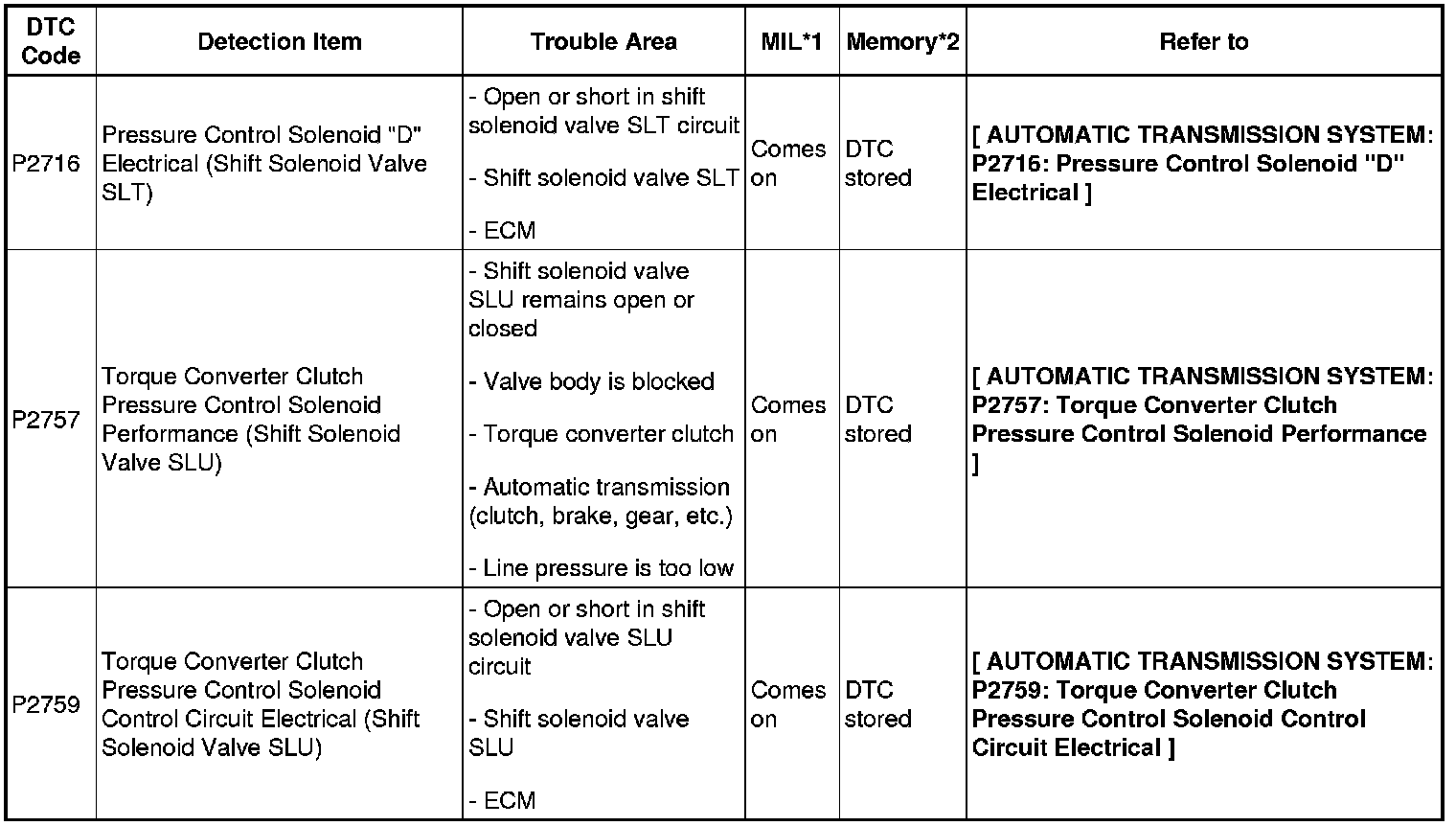

Automatic transmission system:
