Airbag System

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM:

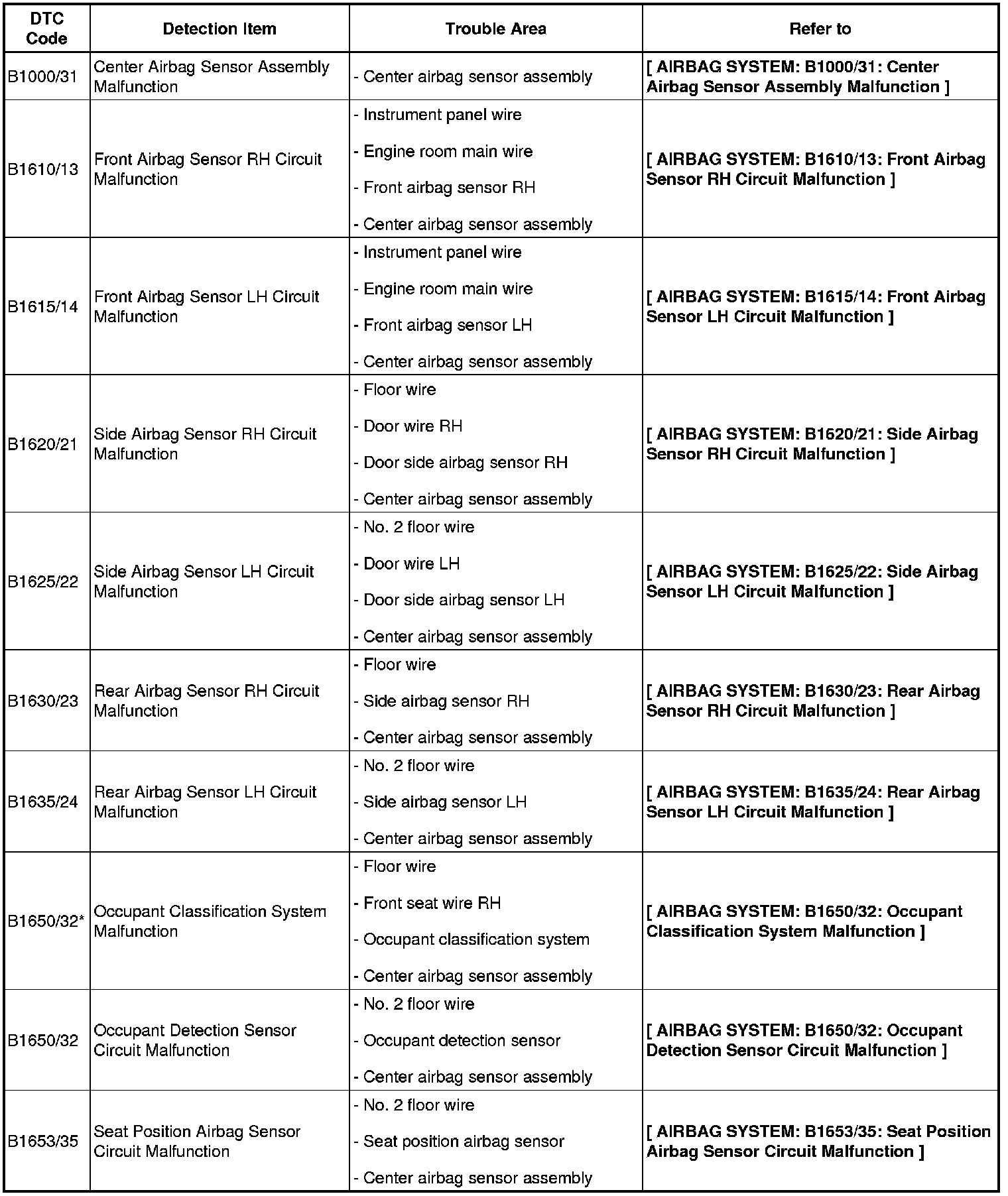

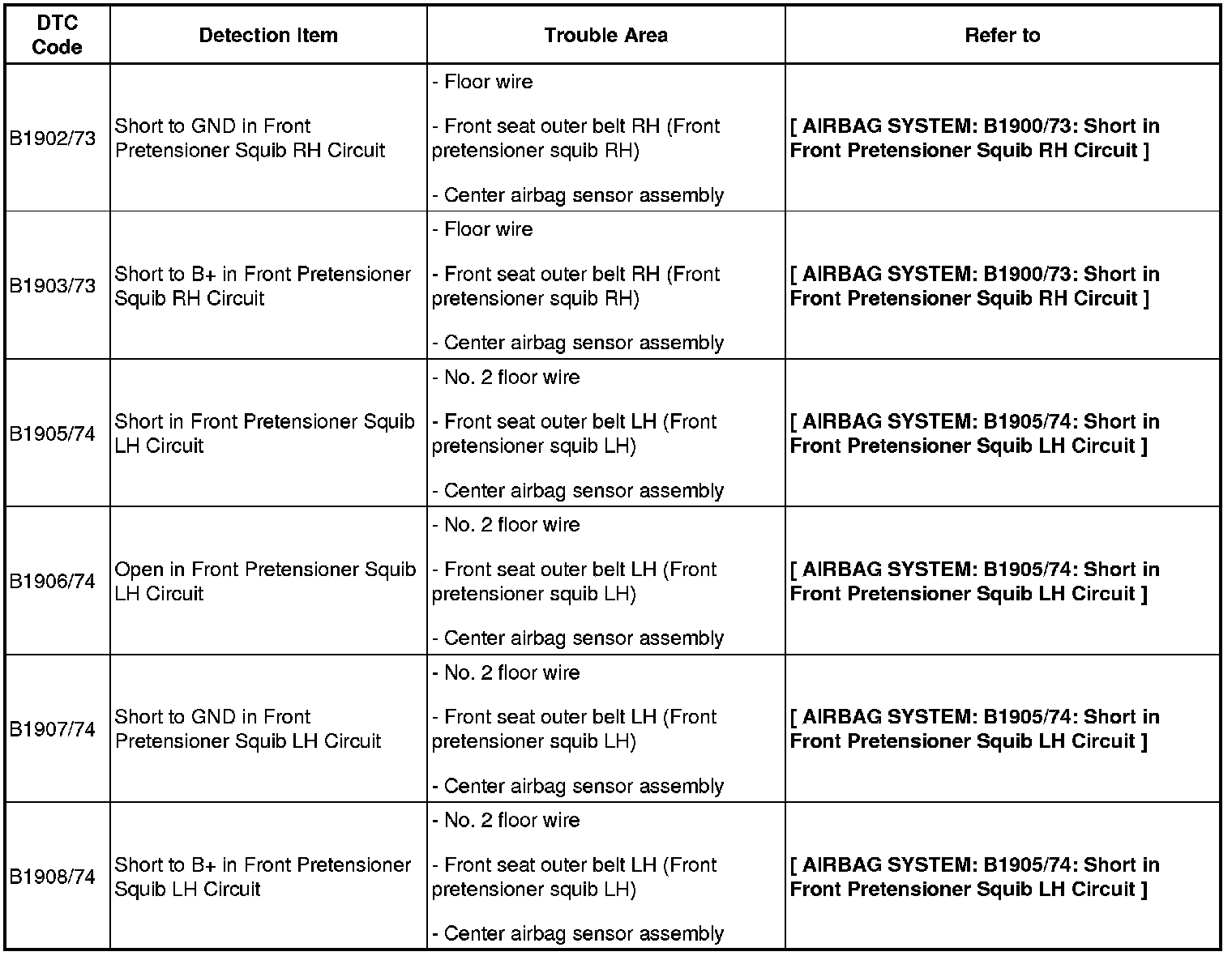

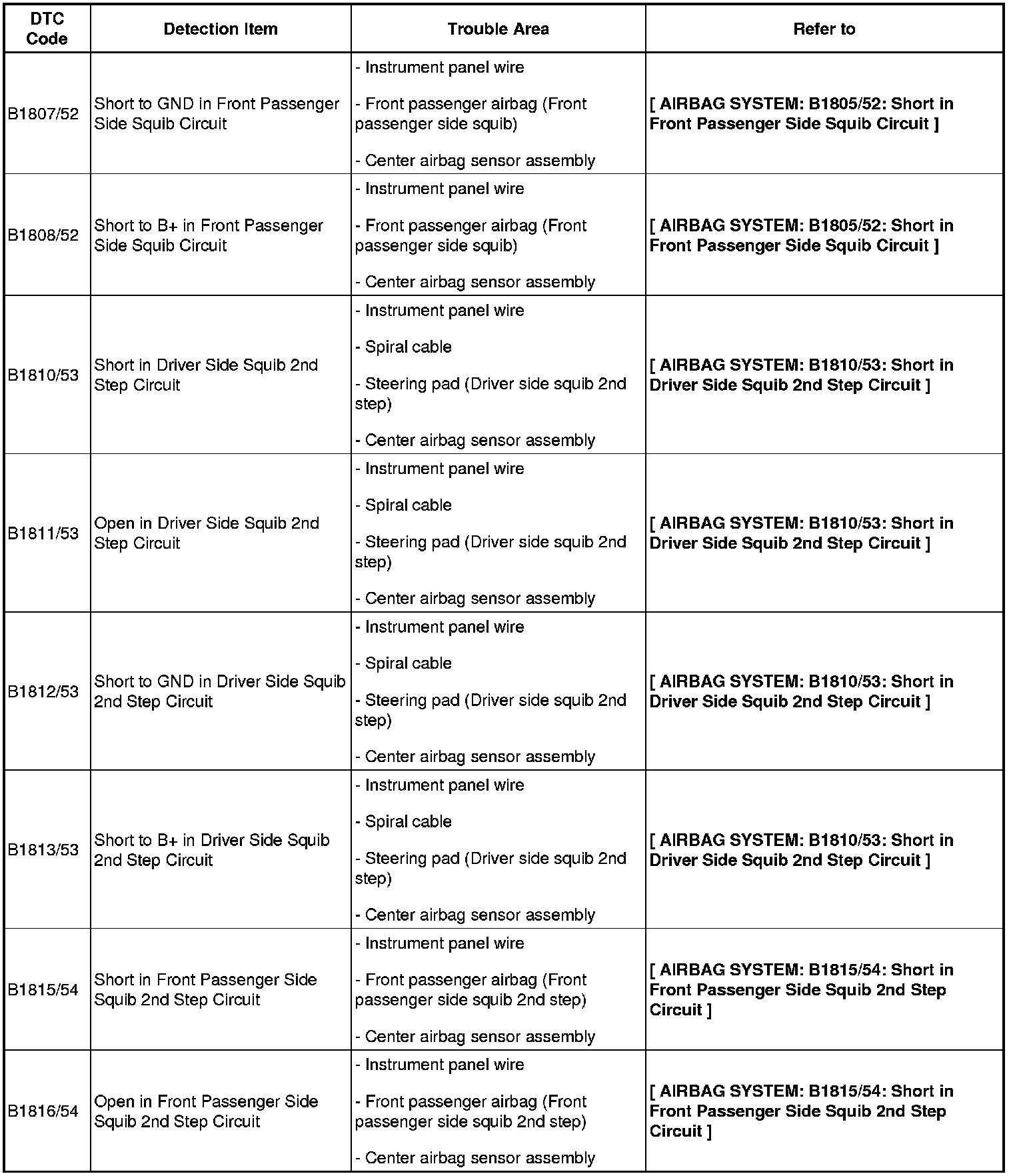

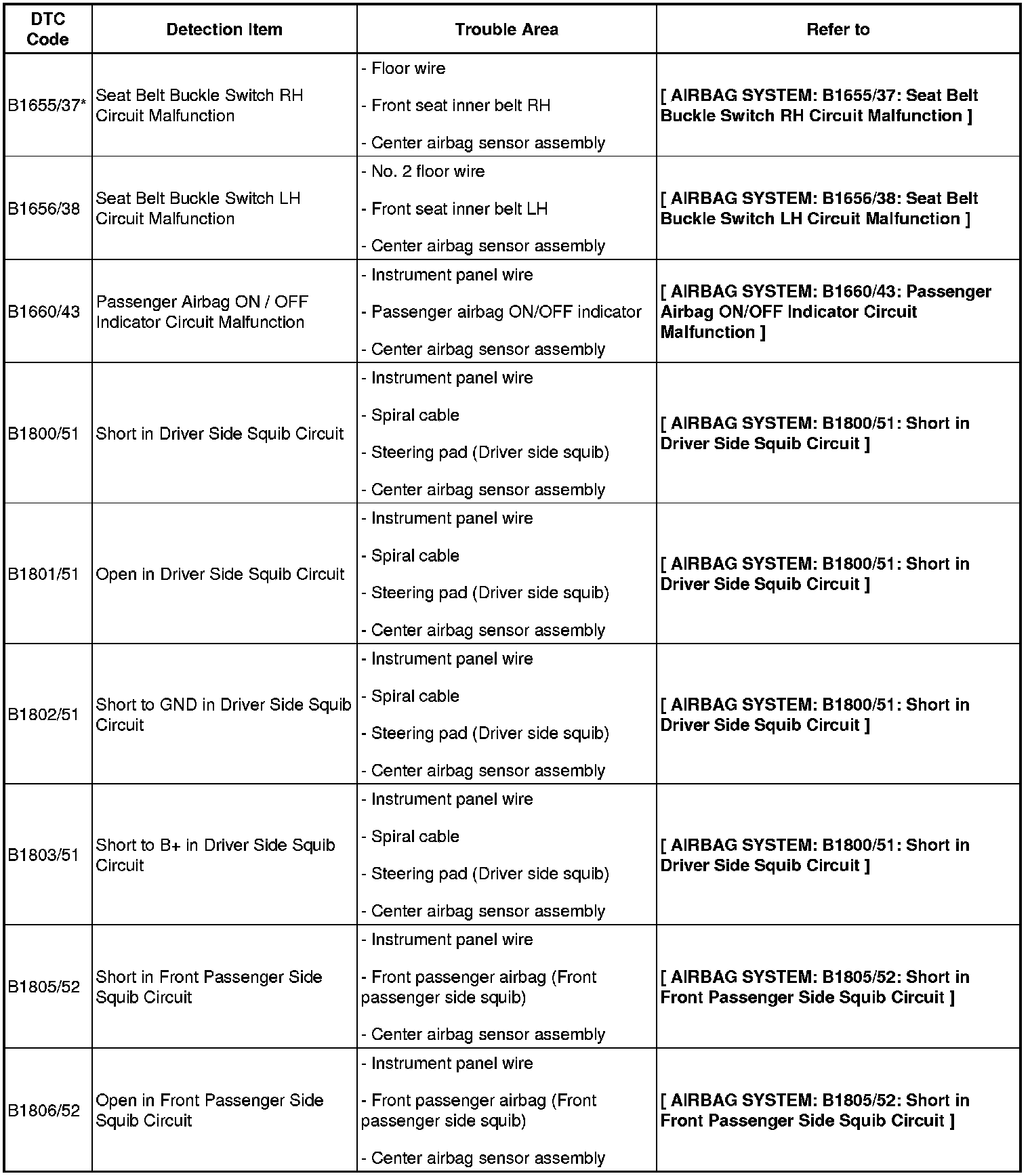

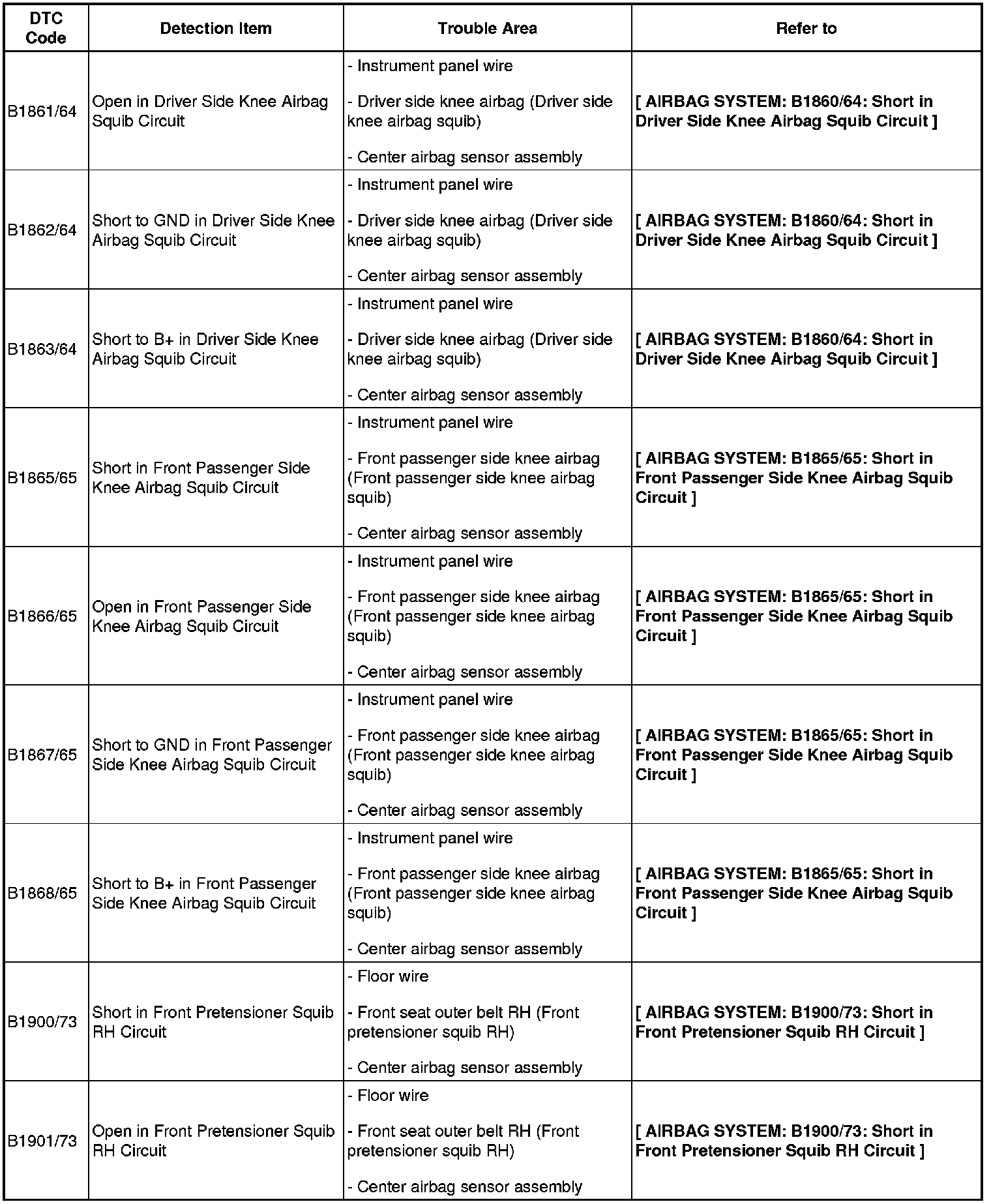

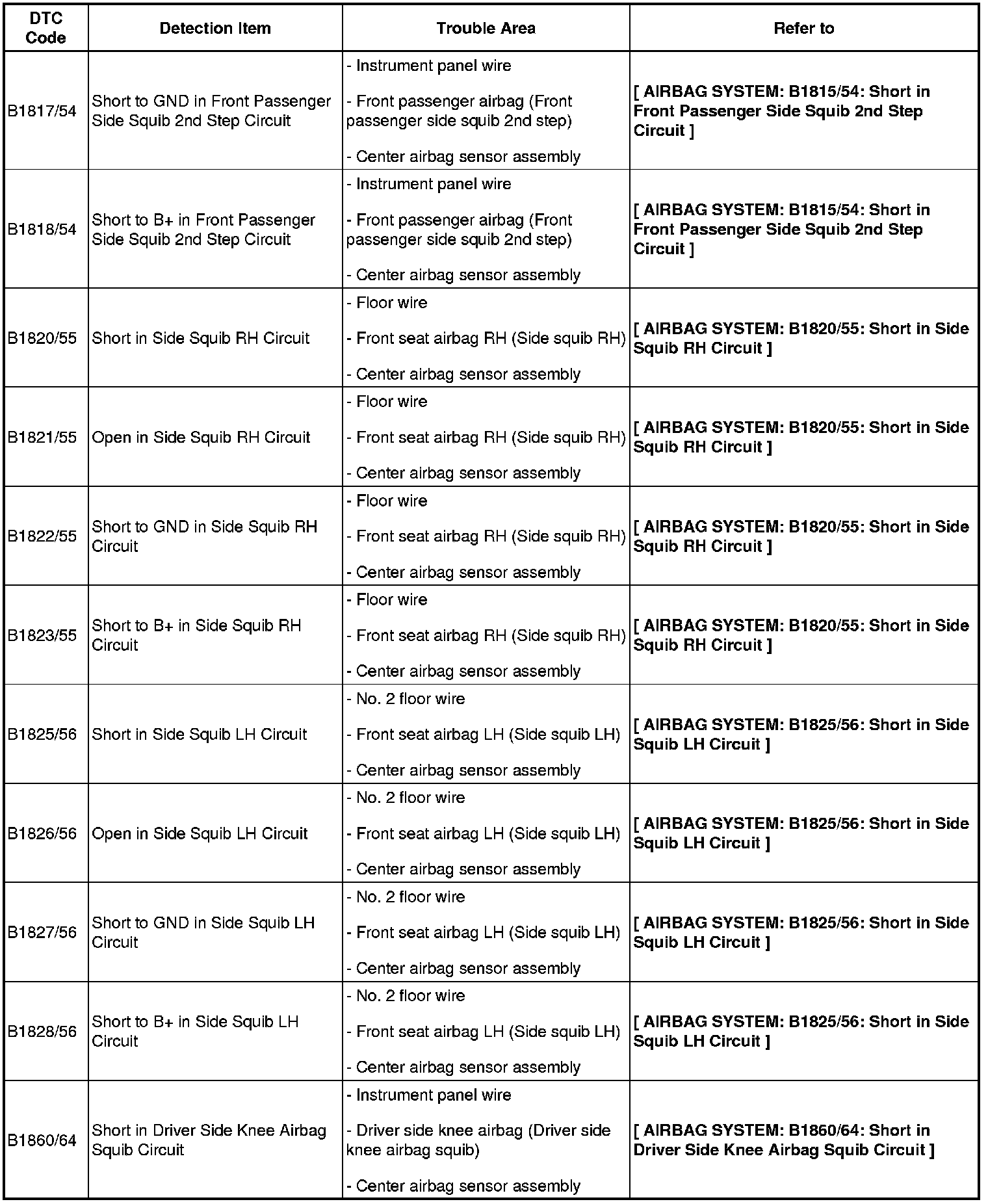

DIAGNOSTIC TROUBLE CODE CHART

HINT:
- If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.

- *: w/o Occupant classification system

Airbag system
