Installation

SUSPENSION CONTROL: SUSPENSION CONTROL ECU: INSTALLATION

INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. INSTALL SUSPENSION CONTROL ECU

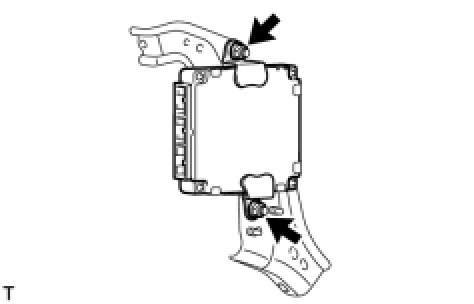

(a) Install the suspension control ECU to the bracket with the 2 nuts.
Torque: 6.0 Nm (61 kgf-cm, 53 in-lbf)
- Avoid any impact to the suspension control ECU.
- Do not drop the ECU. If it is dropped, replace it with a new one.

2. INSTALL SUSPENSION CONTROL ECU WITH BRACKET

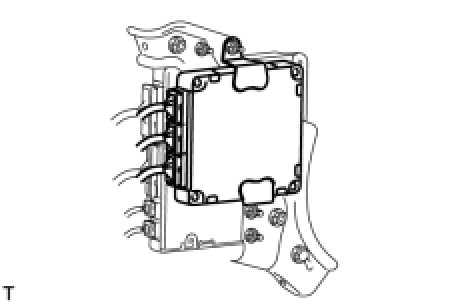

(a) Install the ECU with bracket with the nut and bolt.






(b) Connect the ECU connectors.
3. CONNECT CONNECTORS (w/ Clearance Warning ECU)
4. CONNECT CONNECTORS (w/ Parking Assist ECU)
5. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

6. INSTALL NO. 2 INSTRUMENT CLUSTER MOULDING Installation

7. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY Installation

8. INSTALL INSTRUMENT PANEL LOWER Installation

9. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

10. INSTALL INSTRUMENT SIDE PANEL RH Installation

11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
12. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

13. ADJUST VEHICLE HEIGHT
NOTE: If the suspension control ECU has been replaced, be sure to adjust the vehicle height.

(a) Adjust the vehicle height Adjustments.
14. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

15. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
16. ADJUST HEADLIGHT ASSEMBLY
(a) Adjust the headlight Adjustments.
17. ADJUST OBJECT RECOGNITION CAMERA
(a) Adjust the object recognition camera Adjustments.
