Home >> Lexus >> 2008 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Motor >> Service and Repair >> Components

Components

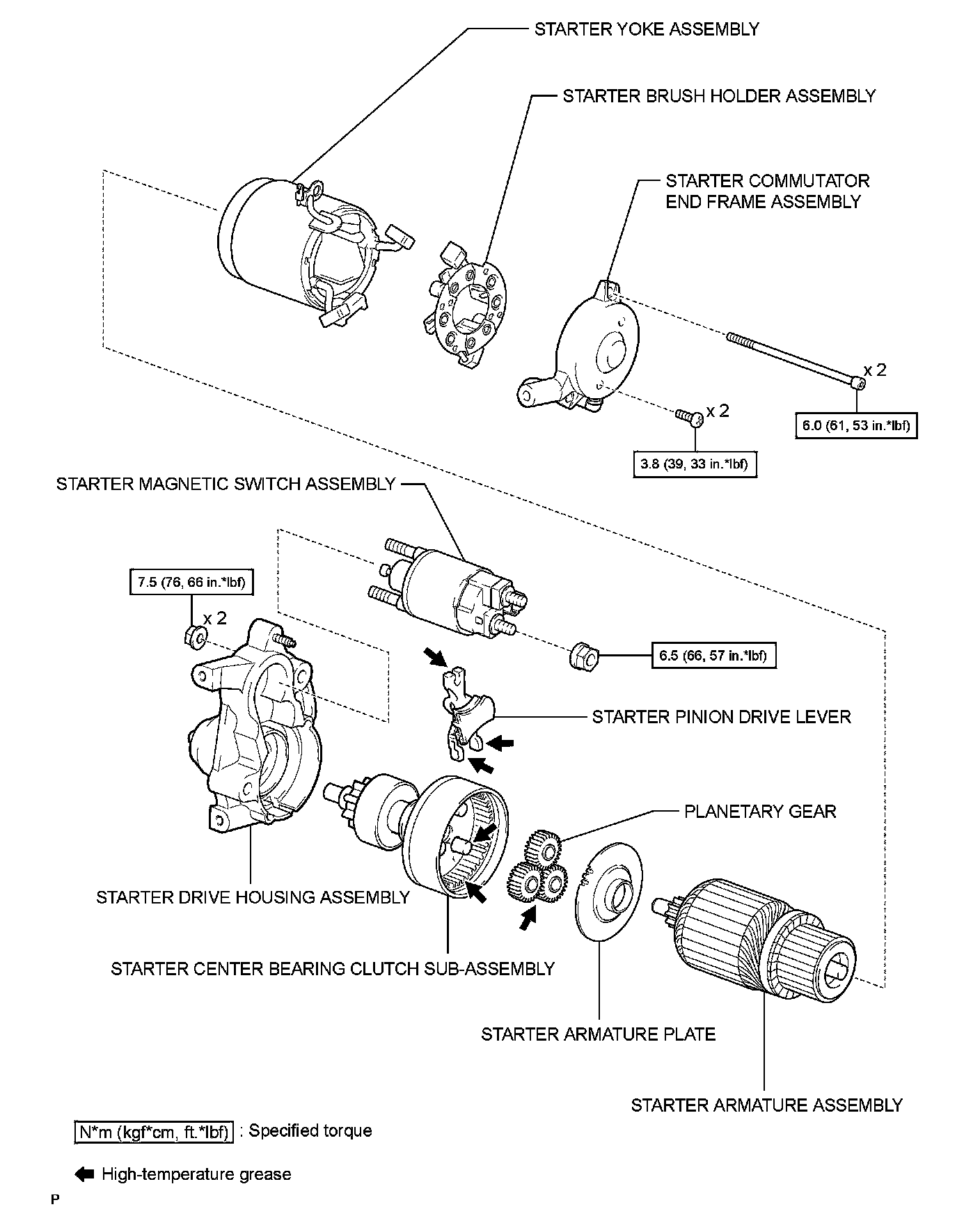

1UR-FSE STARTING: STARTER (for 2.0 kW Type): COMPONENTS

COMPONENTS

ILLUSTRATION
