Engine Room Main Wire

1A (Engine Room Main Wire And Engine Room J/B No.1 (Engine Compartment Right)):

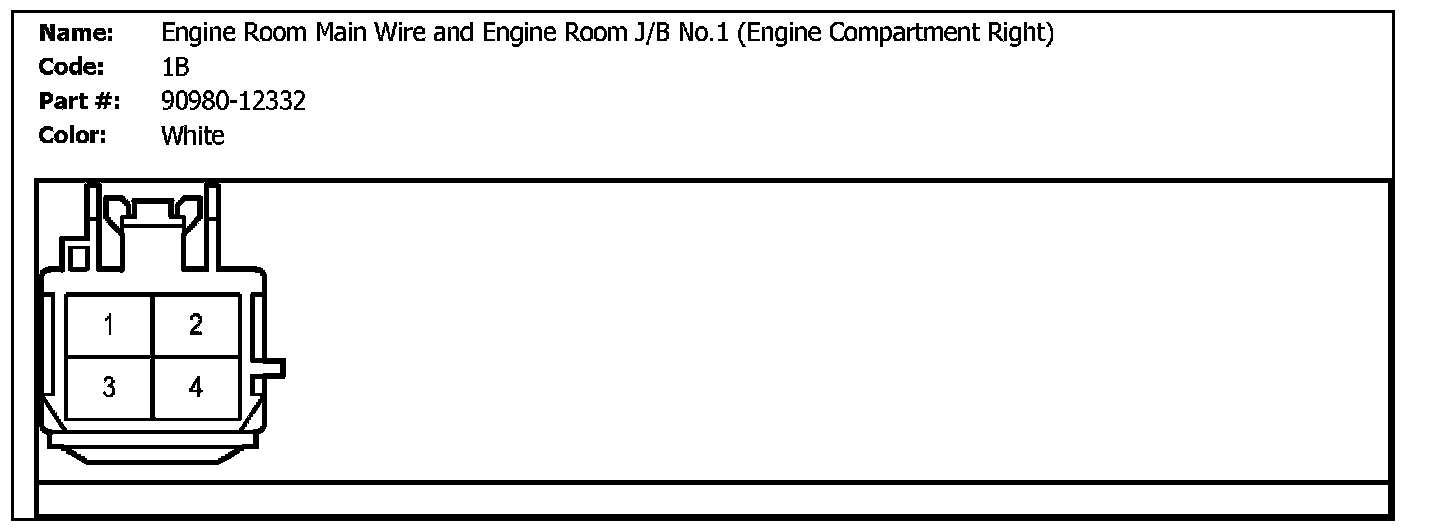

1B (Engine Room Main Wire And Engine Room J/B No.1 (Engine Compartment Right)):

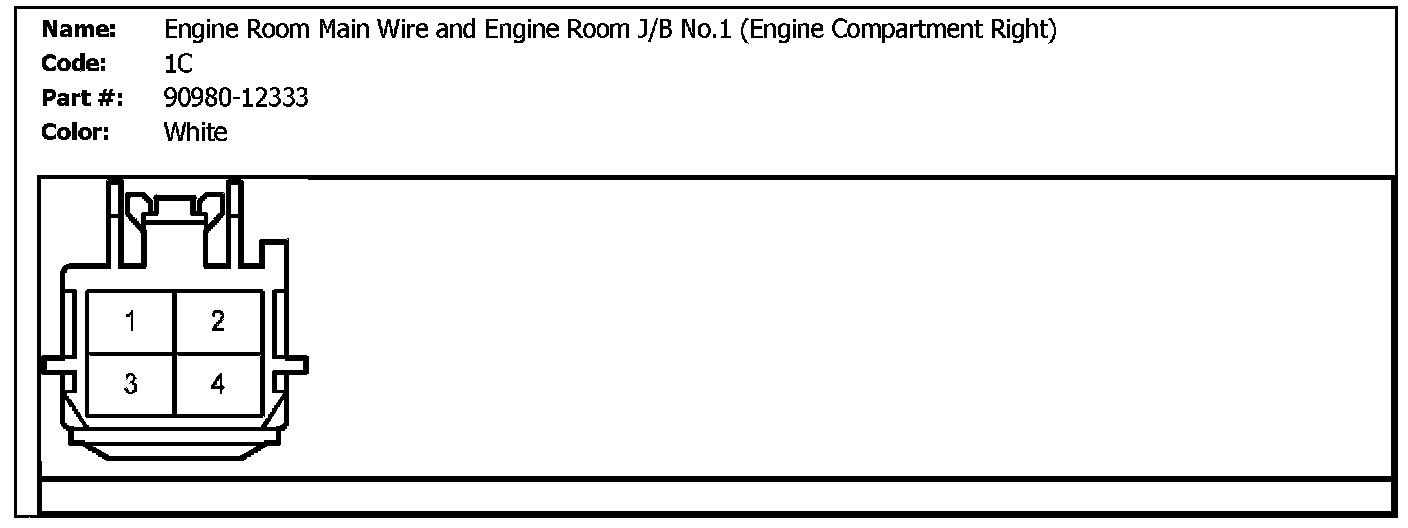

1C (Engine Room Main Wire And Engine Room J/B No.1 (Engine Compartment Right)):

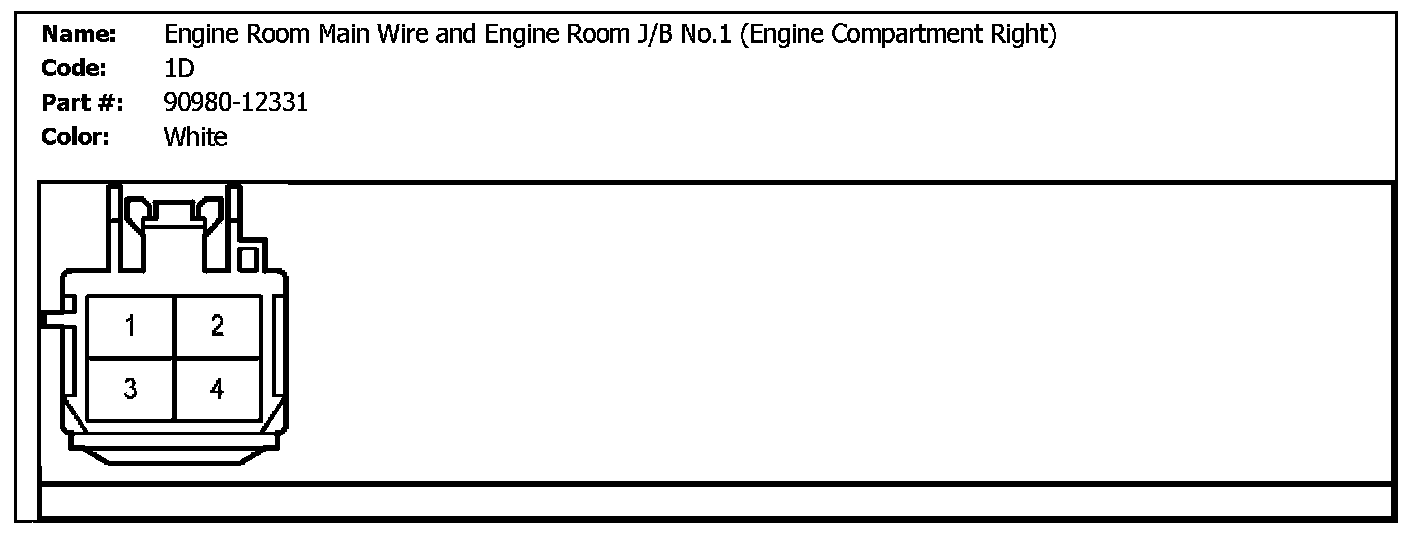

1D (Engine Room Main Wire And Engine Room J/B No.1 (Engine Compartment Right)):

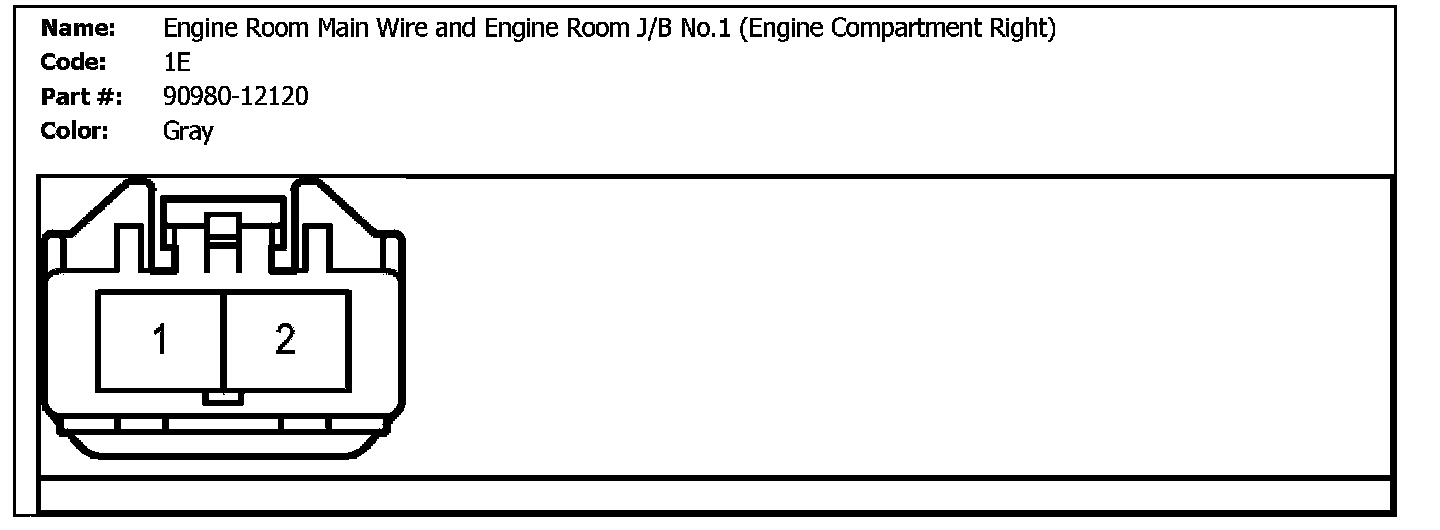

1E (Engine Room Main Wire And Engine Room J/B No.1 (Engine Compartment Right)):

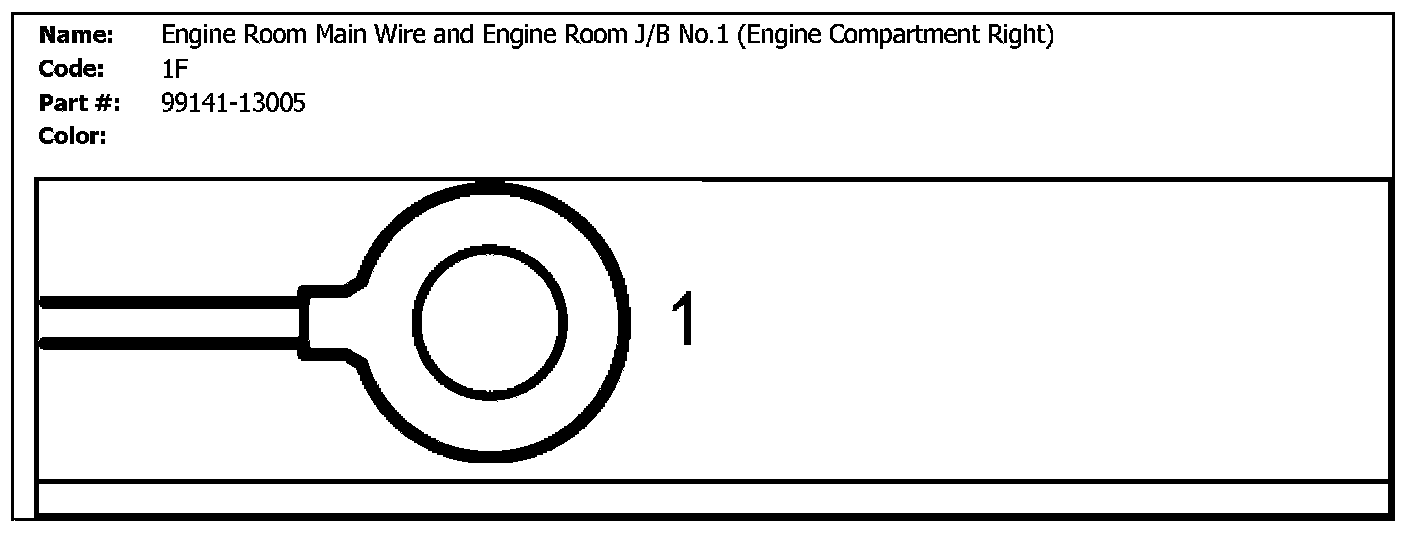

1F (Engine Room Main Wire And Engine Room J/B No.1 (Engine Compartment Right)):

1G (Engine Room Main Wire And Engine Room J/B No.1 (Engine Compartment Right)):

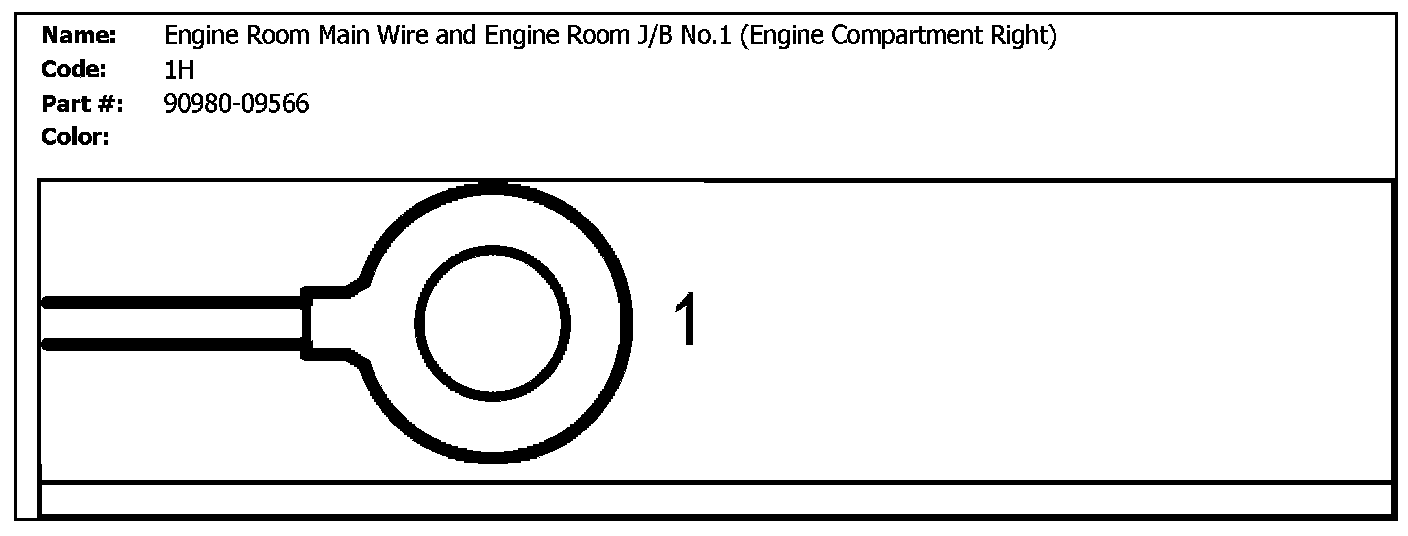

1H (Engine Room Main Wire And Engine Room J/B No.1 (Engine Compartment Right)):

1J (Engine Room Main Wire And Engine Room J/B No.1 (Engine Compartment Right)):

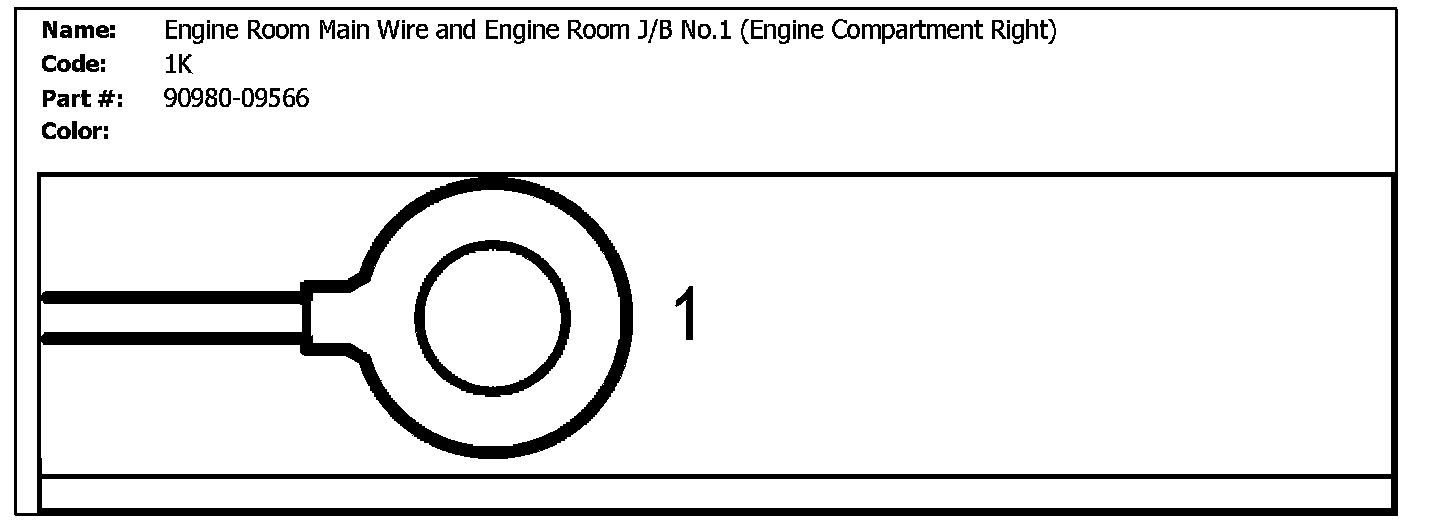

1K (Engine Room Main Wire And Engine Room J/B No.1 (Engine Compartment Right)):

1L (Engine Room Main Wire And Engine Room J/B No.1 (Engine Compartment Right)):

1M (Engine Room Main Wire And Engine Room J/B No.1 (Engine Compartment Right)):

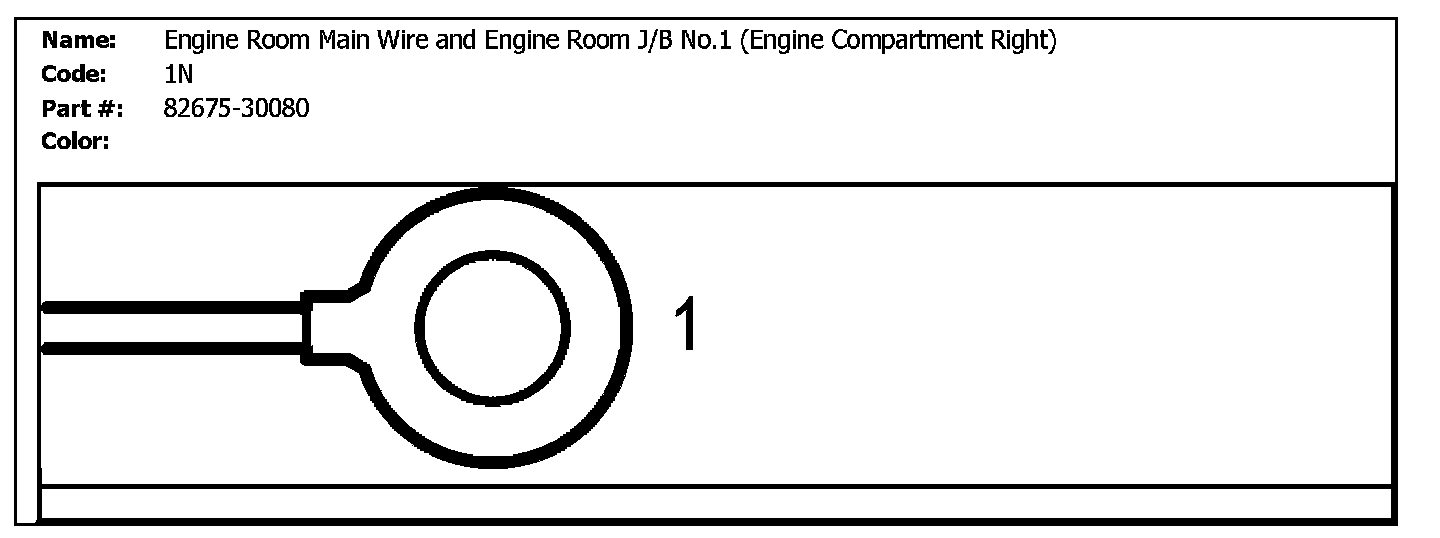

1N (Engine Room Main Wire And Engine Room J/B No.1 (Engine Compartment Right)):

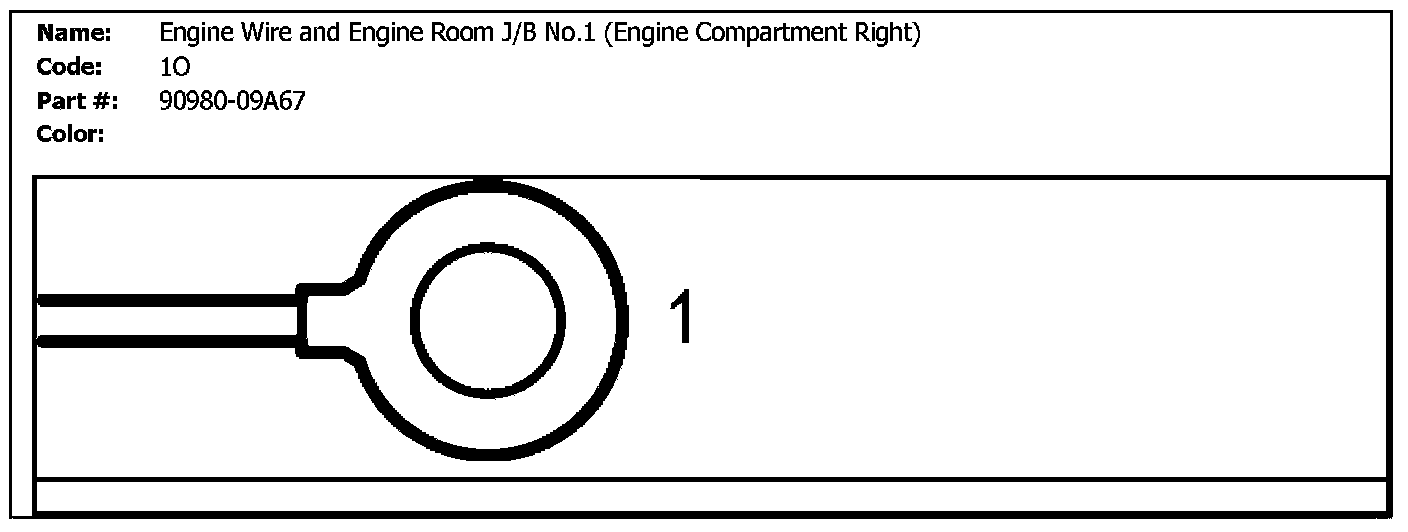

1O (Engine Wire And Engine Room J/B No.1 (Engine Compartment Right)):

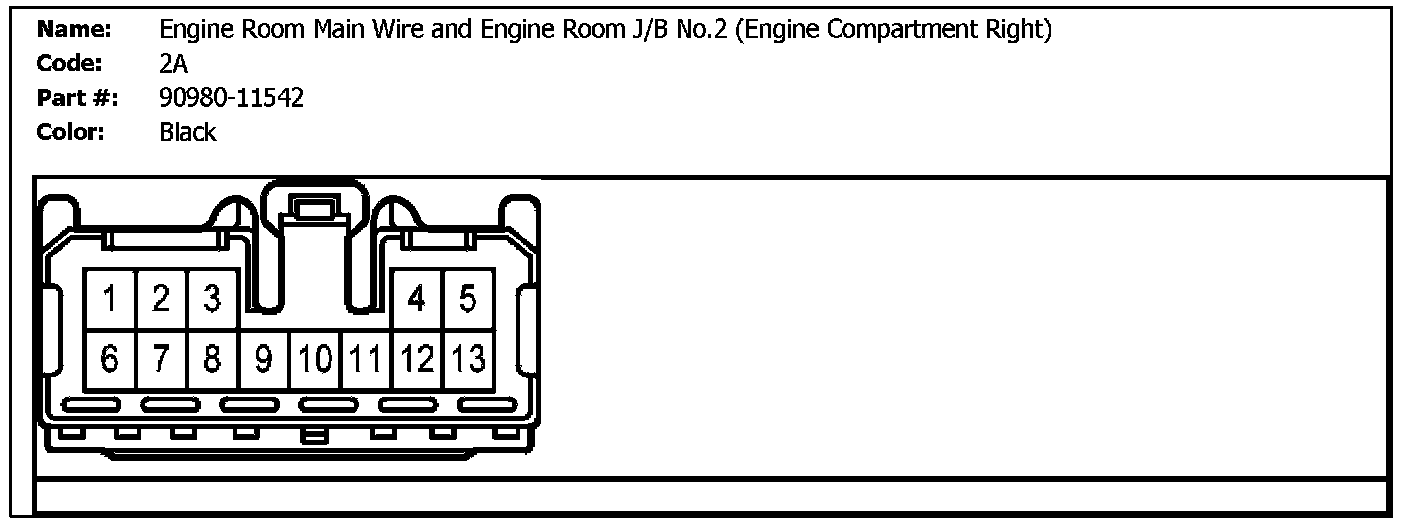

2A (Engine Room Main Wire And Engine Room J/B No.2 (Engine Compartment Right)):

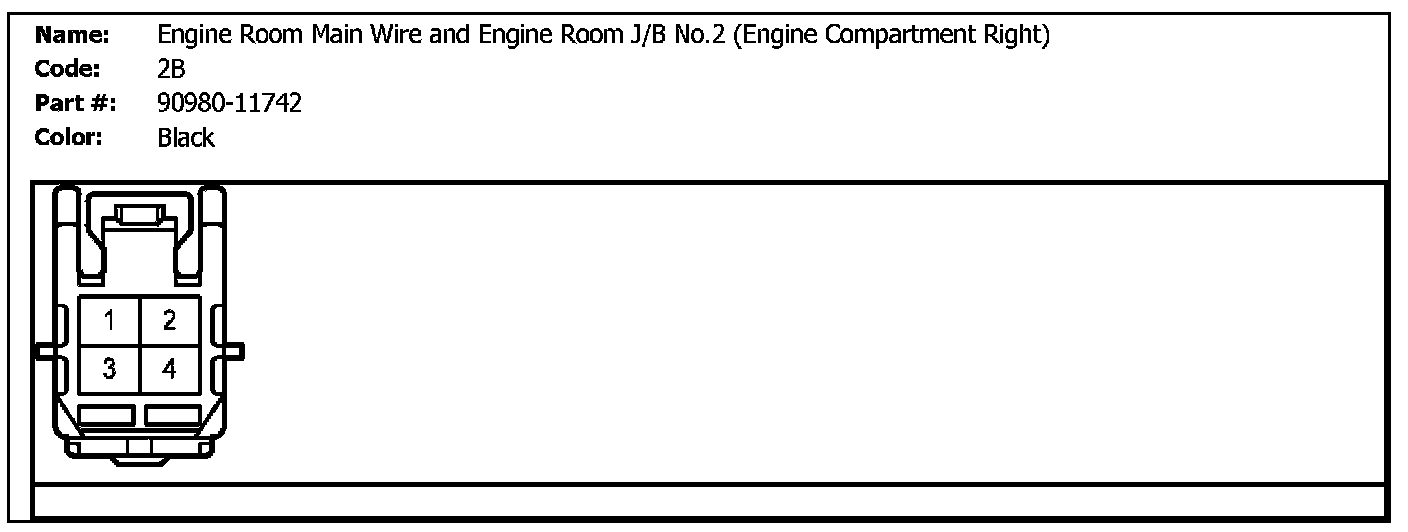

2B (Engine Room Main Wire And Engine Room J/B No.2 (Engine Compartment Right)):

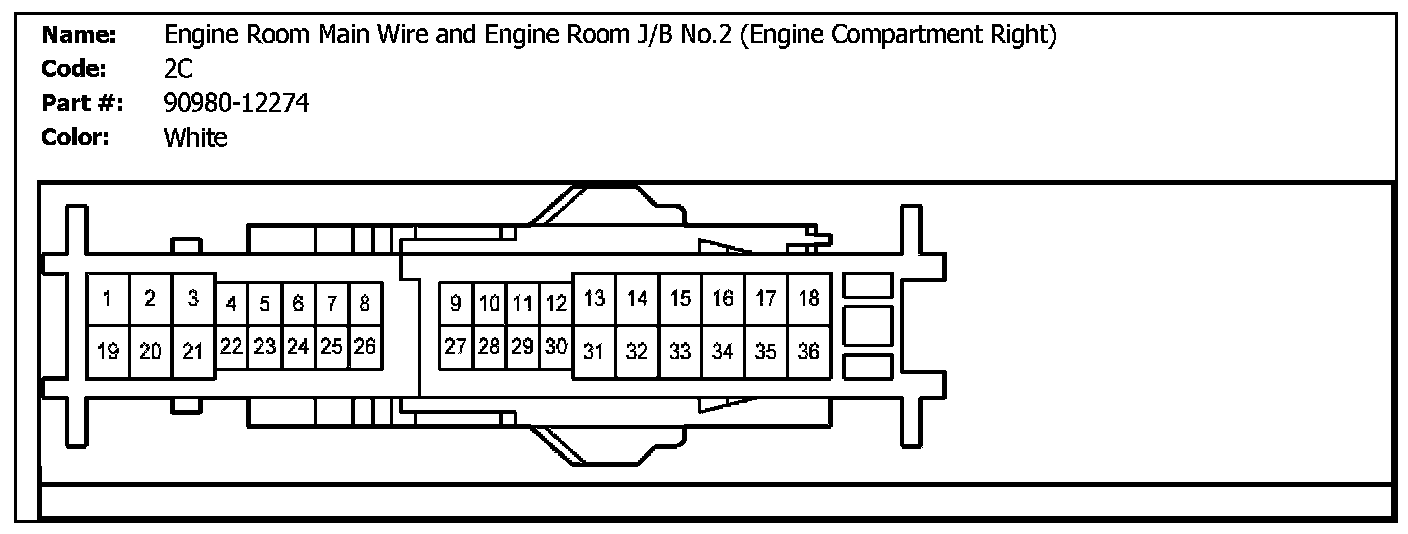

2C (Engine Room Main Wire And Engine Room J/B No.2 (Engine Compartment Right)):

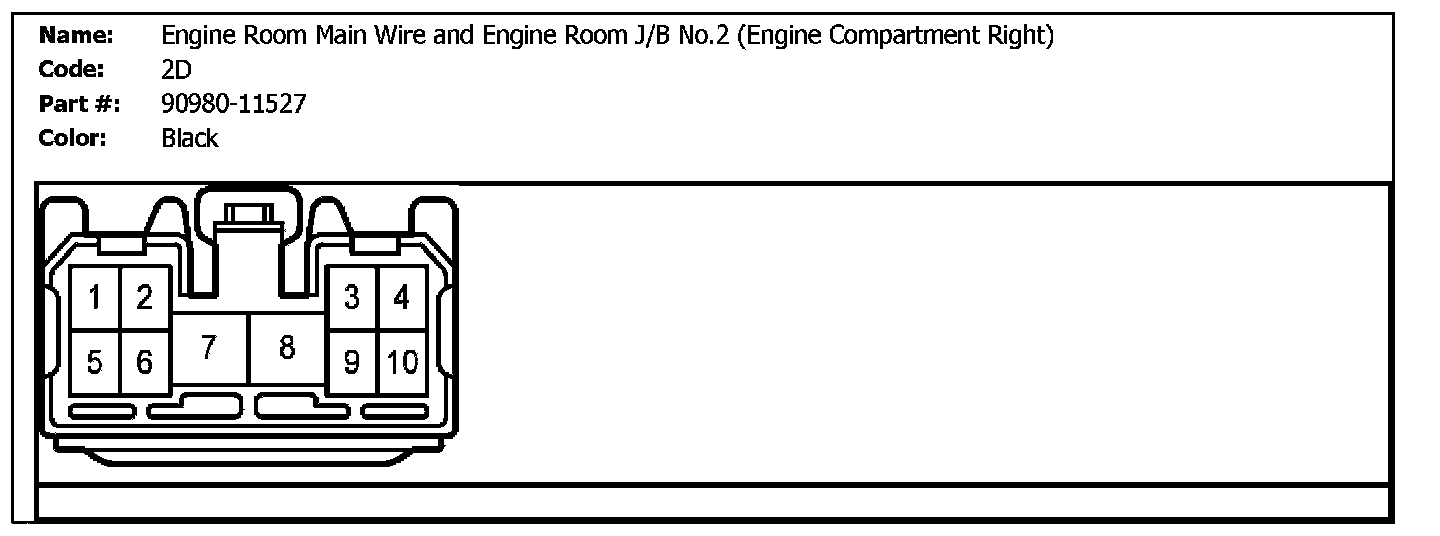

2D (Engine Room Main Wire And Engine Room J/B No.2 (Engine Compartment Right)):

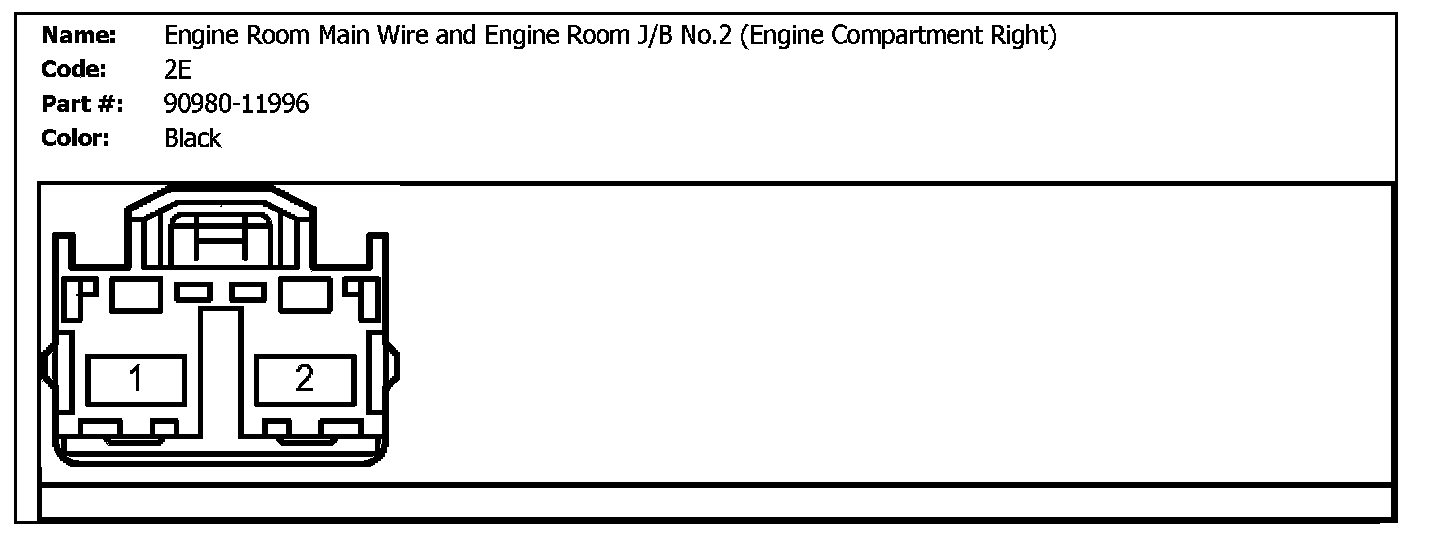

2E (Engine Room Main Wire And Engine Room J/B No.2 (Engine Compartment Right)):

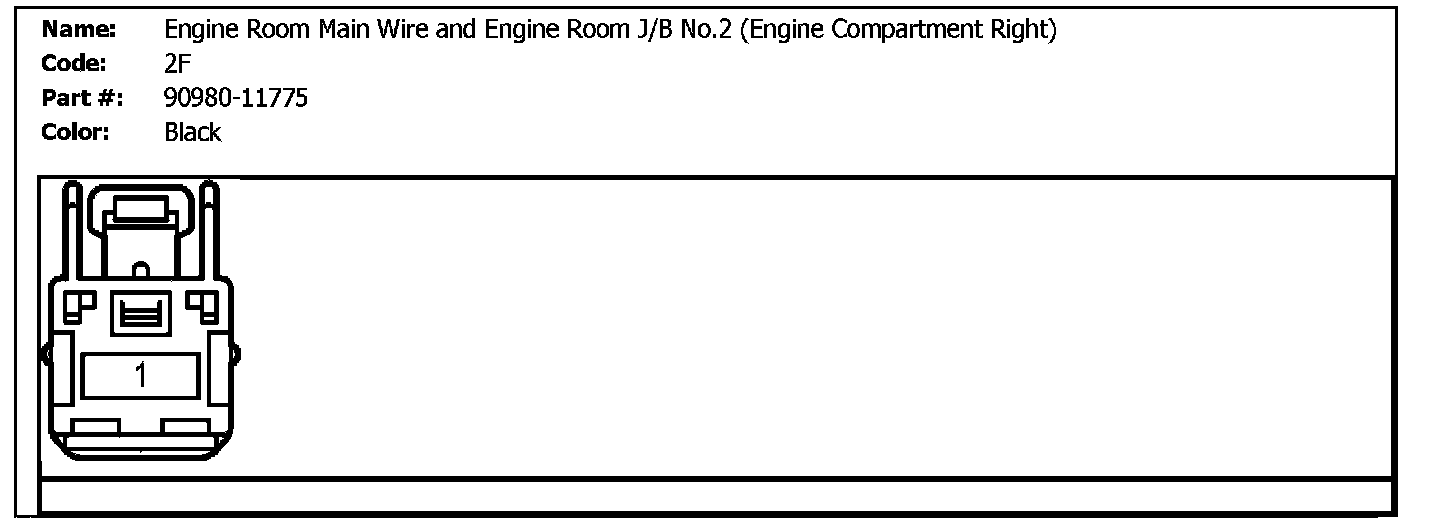

2F (Engine Room Main Wire And Engine Room J/B No.2 (Engine Compartment Right)):

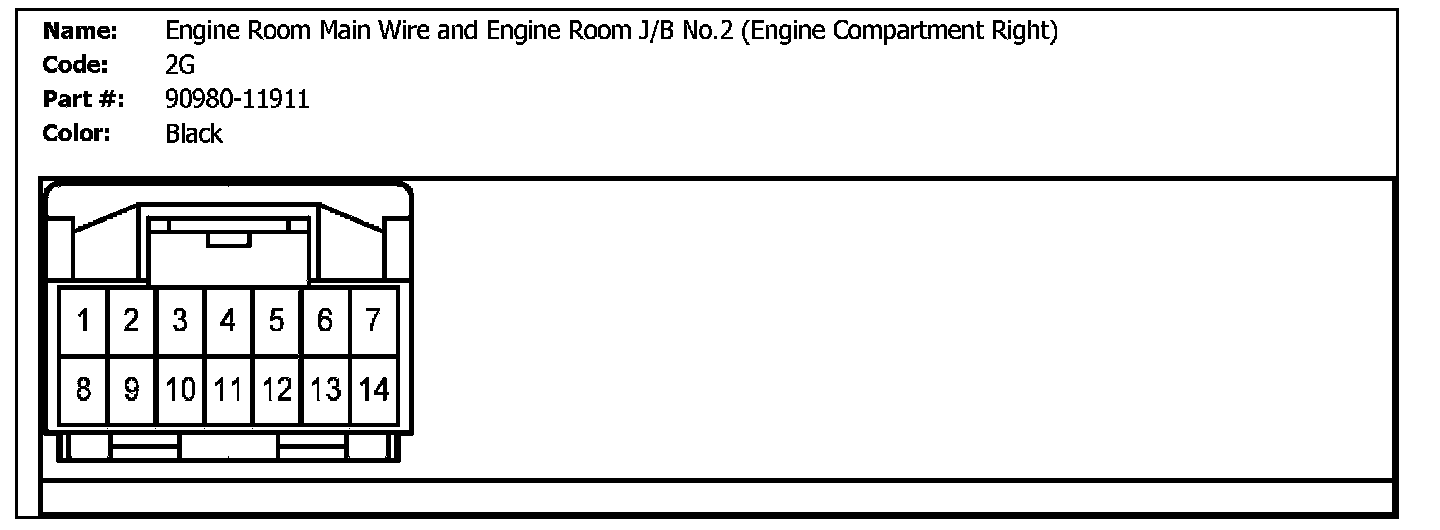

2G (Engine Room Main Wire And Engine Room J/B No.2 (Engine Compartment Right)):

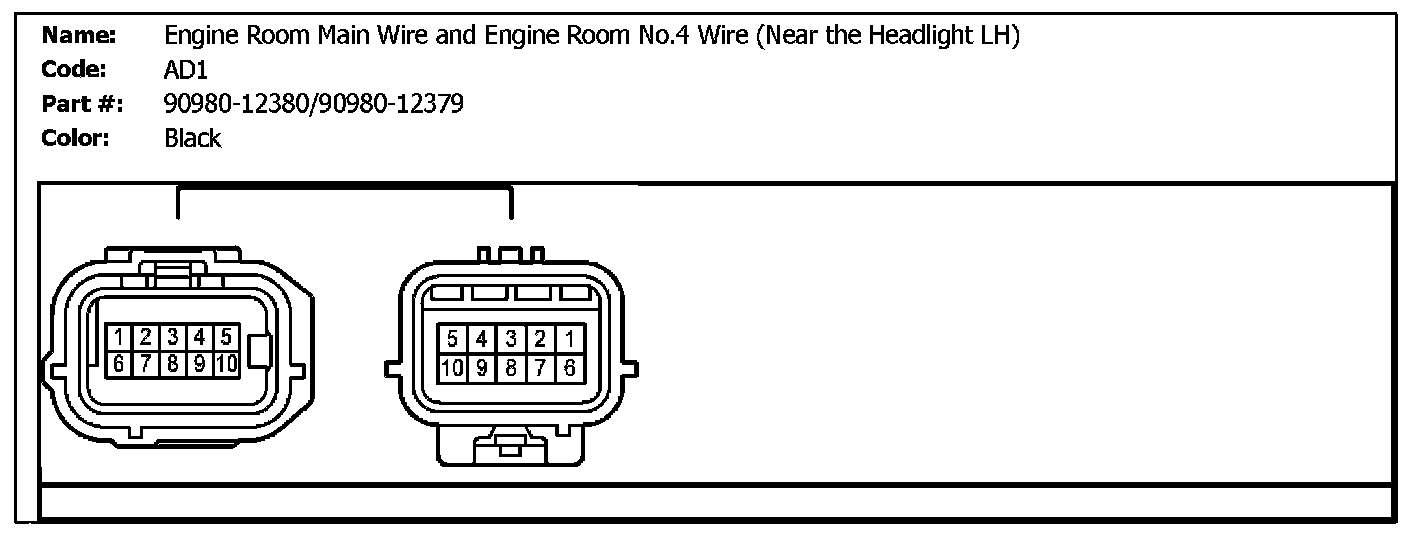

AD1 (Engine Room Main Wire And Engine Room No.4 Wire (Near The Headlight LH)):

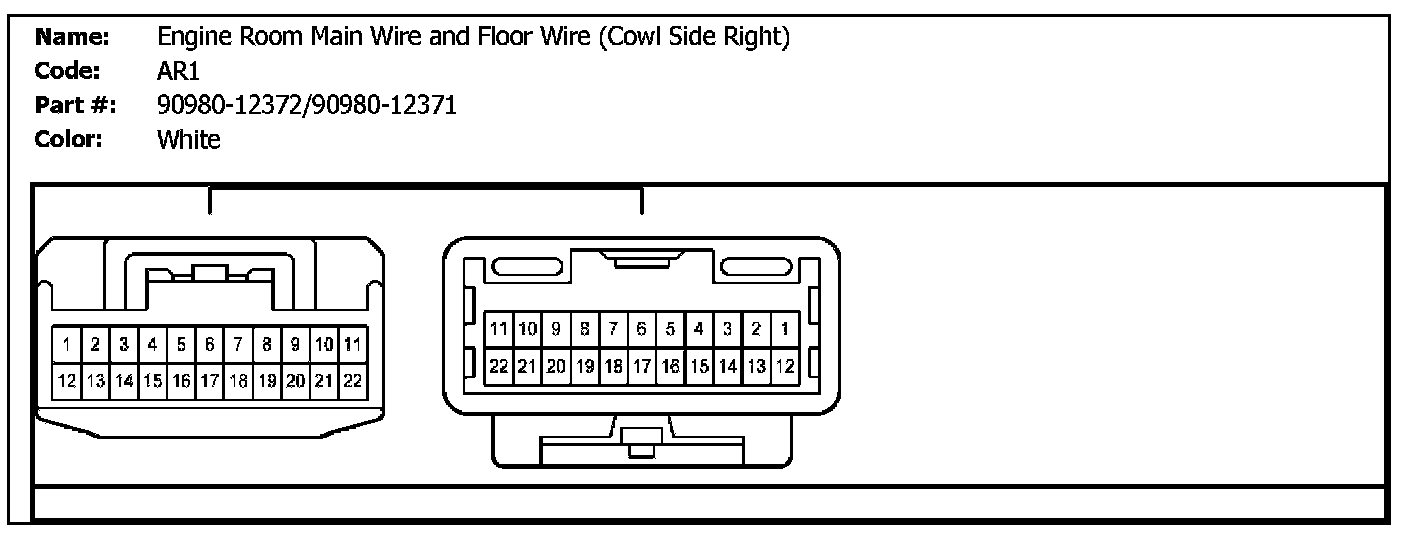

AR1 (Engine Room Main Wire And Floor Wire (Cowl Side Right)):

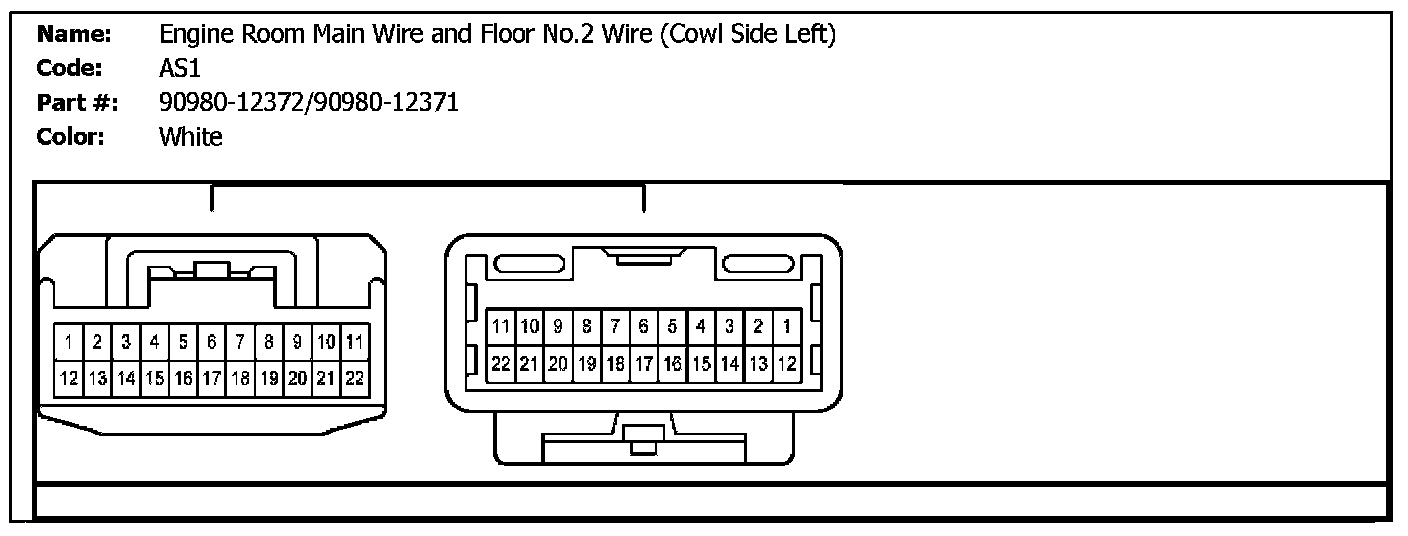

AS1 (Engine Room Main Wire And Floor No.2 Wire (Cowl Side Left)):

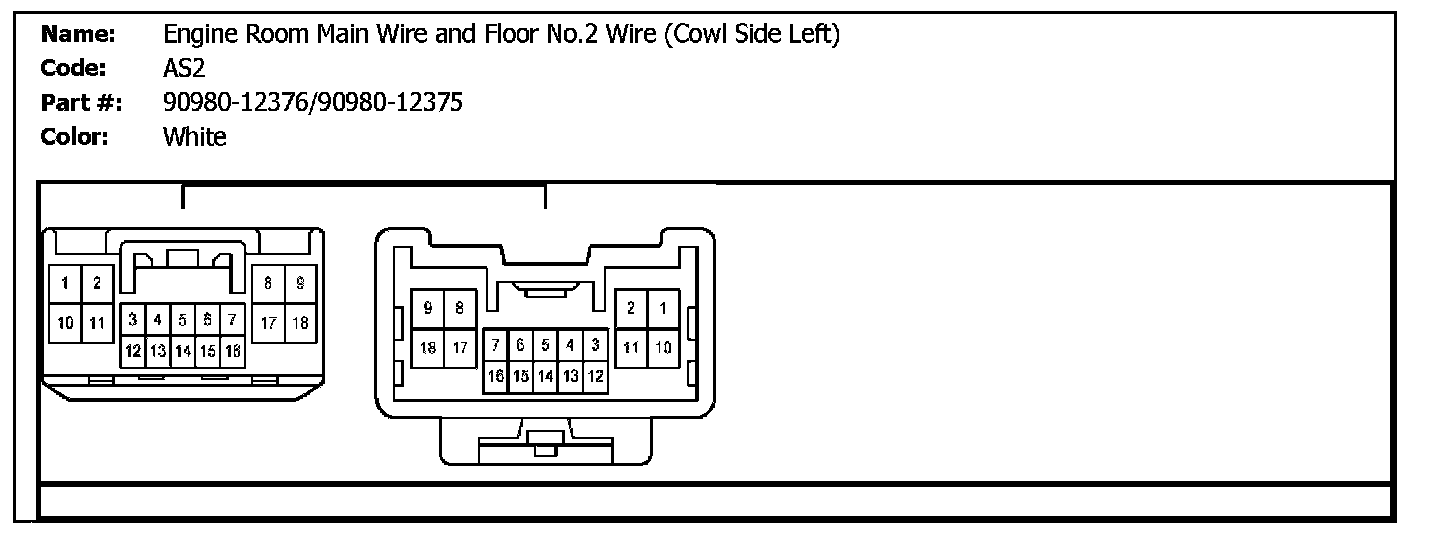

AS2 (Engine Room Main Wire And Floor No.2 Wire (Cowl Side Left)):

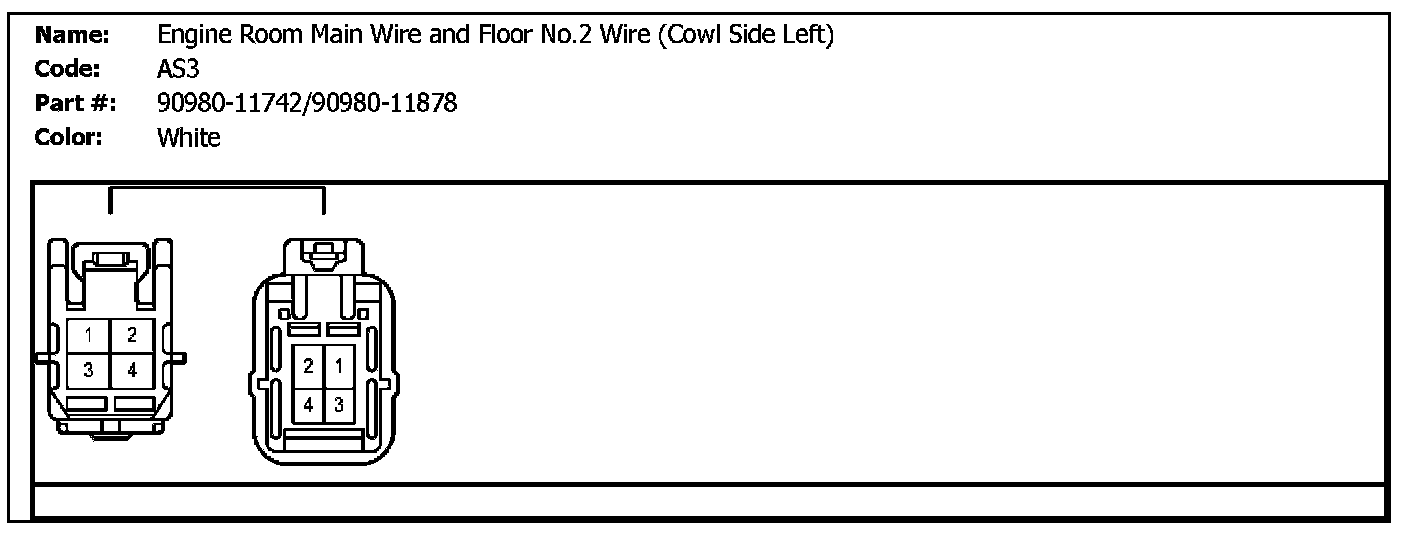

AS3 (Engine Room Main Wire And Floor No.2 Wire (Cowl Side Left)):

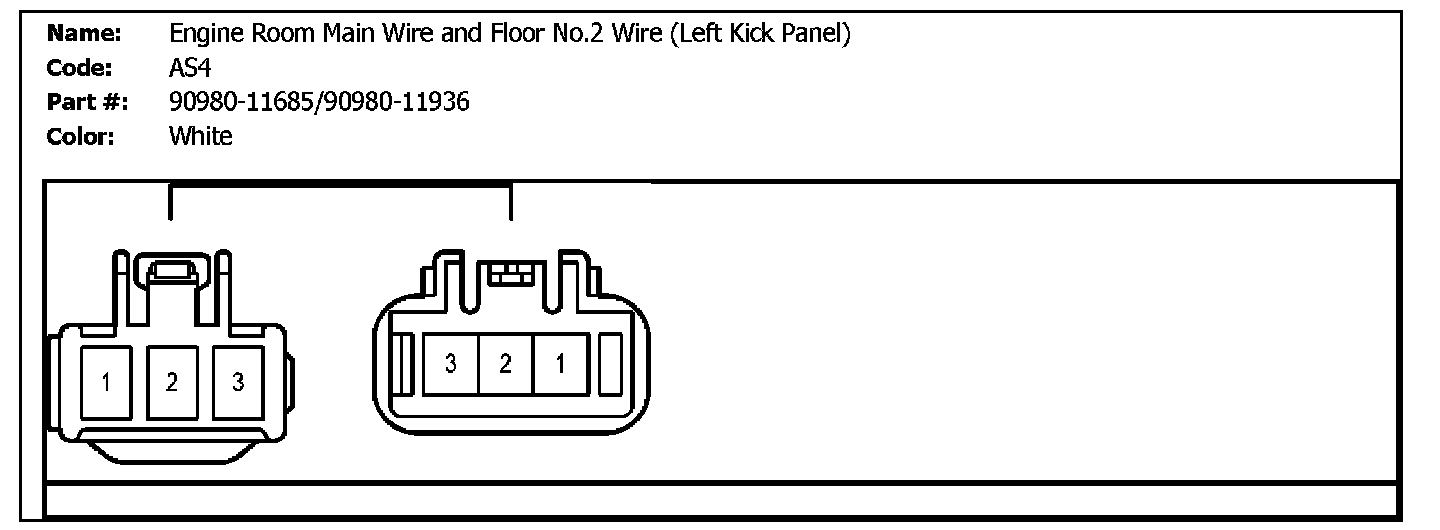

AS4 (Engine Room Main Wire And Floor No.2 Wire (Left Kick Panel)):

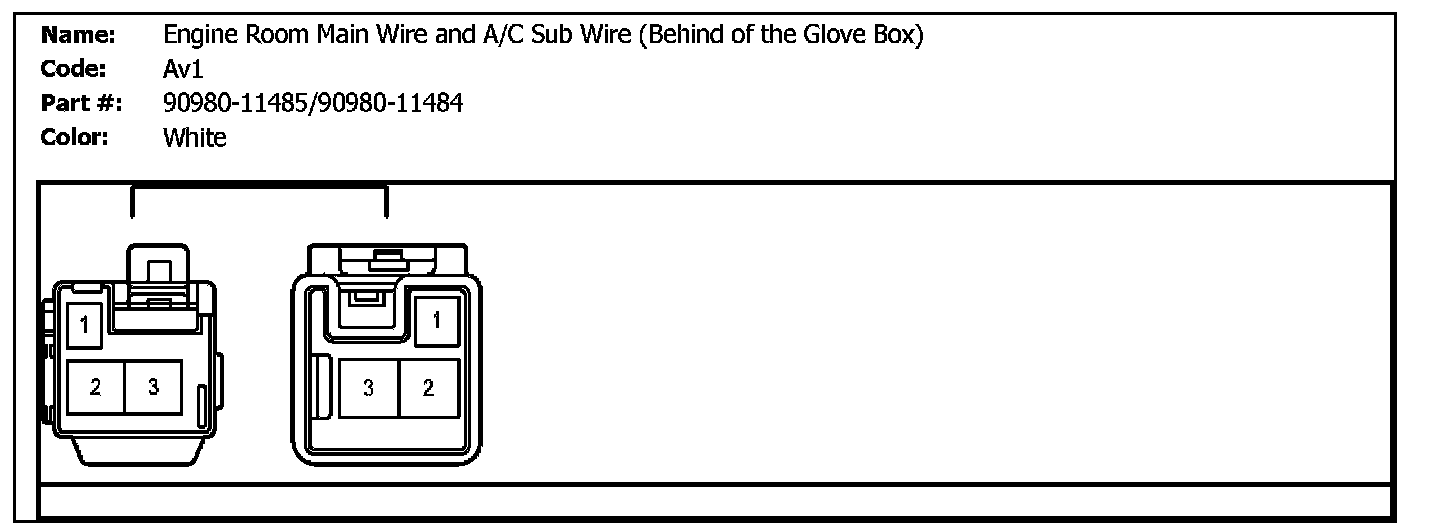

Av1 (Engine Room Main Wire And A/C Sub Wire (Behind Of The Glove Box)):

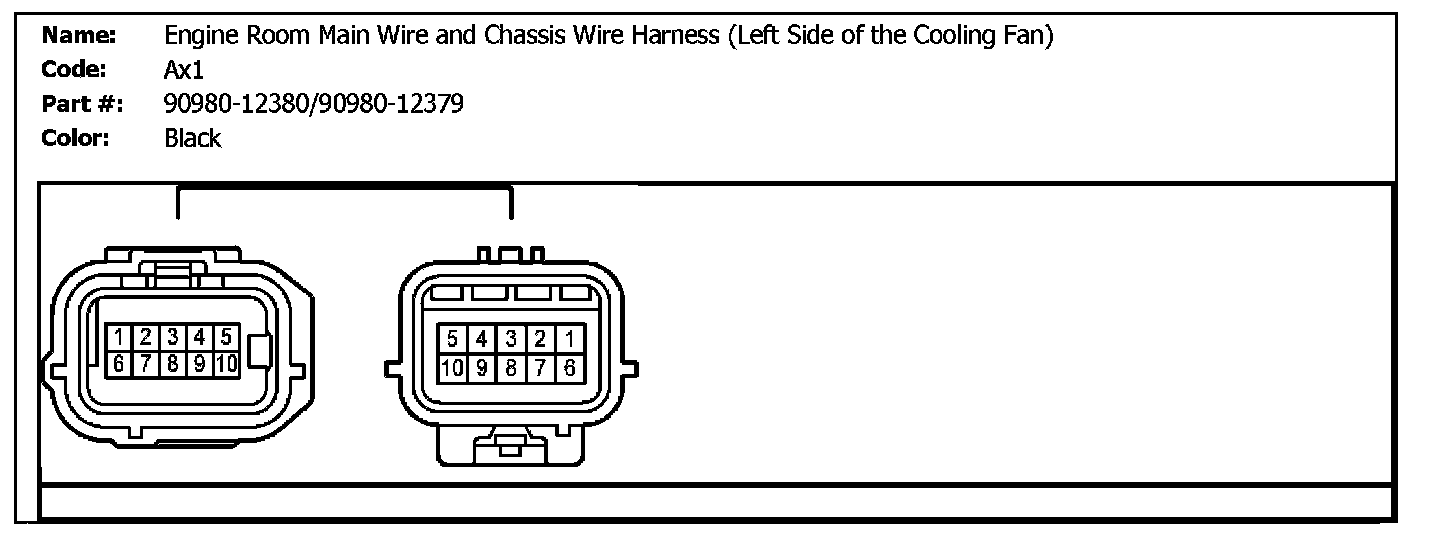

Ax1 (Engine Room Main Wire And Chassis Wire Harness (Left Side Of The Cooling Fan)):

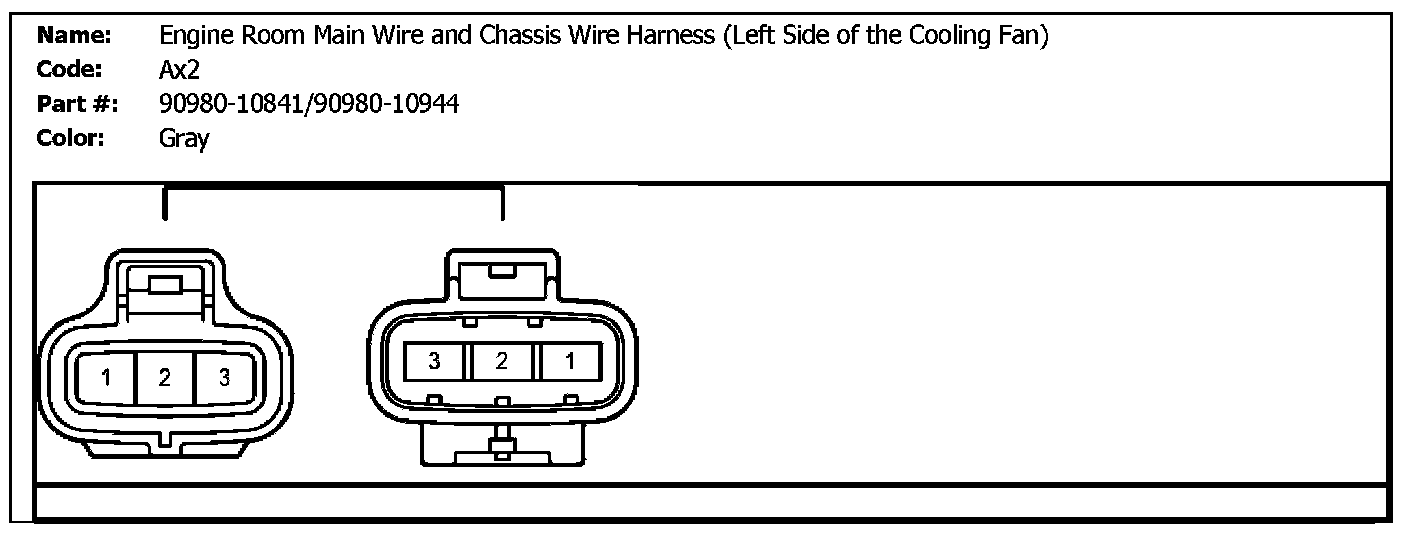

Ax2 (Engine Room Main Wire And Chassis Wire Harness (Left Side Of The Cooling Fan)):

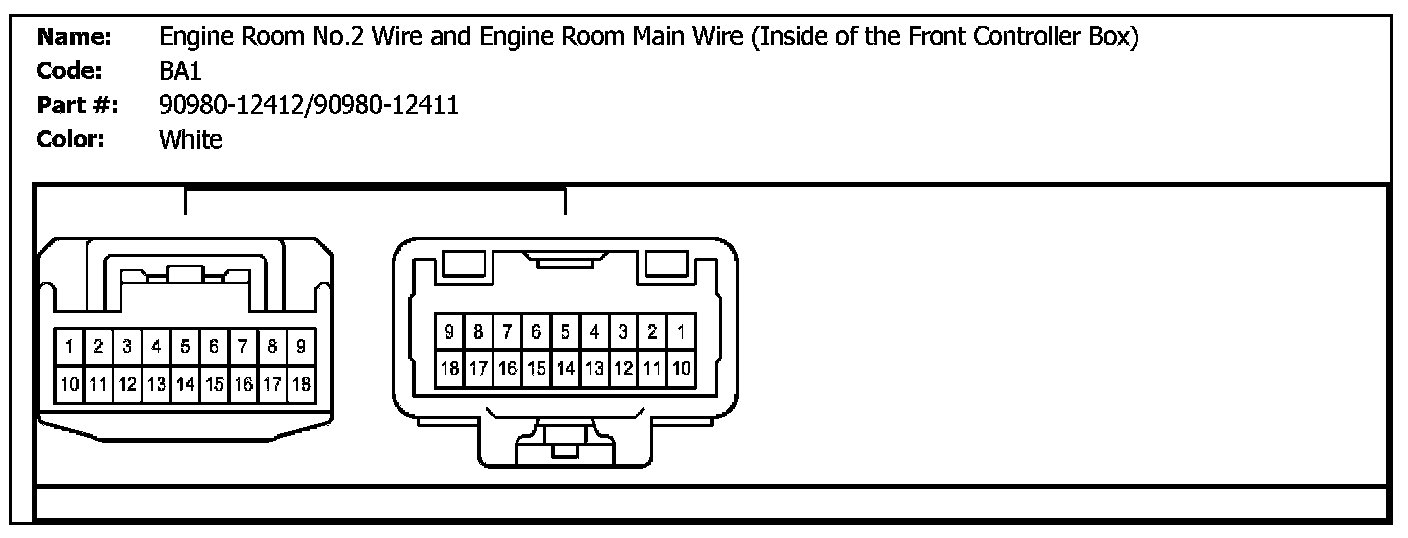

BA1 (Engine Room No.2 Wire And Engine Room Main Wire (Inside Of The Front Controller Box)):

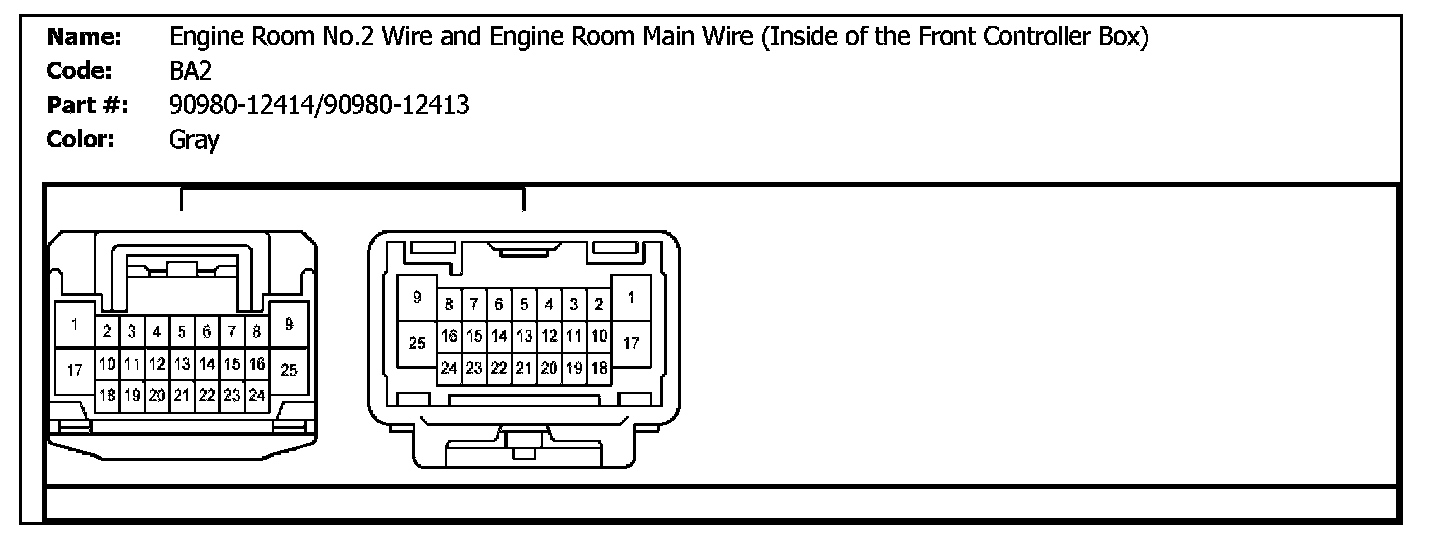

BA2 (Engine Room No.2 Wire And Engine Room Main Wire (Inside Of The Front Controller Box)):

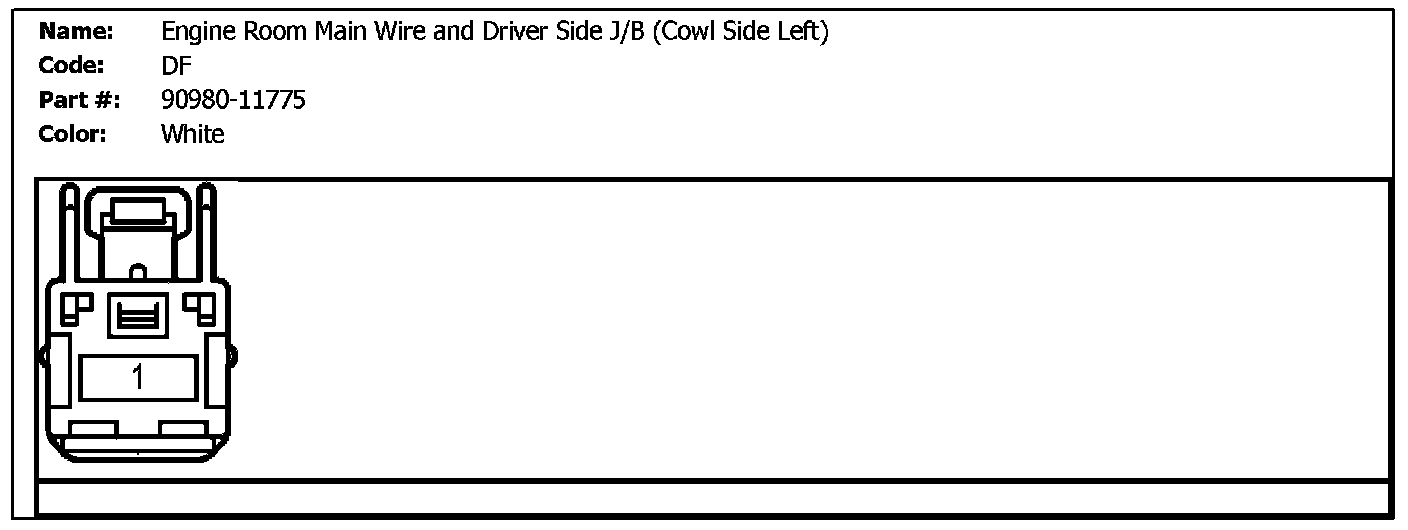

DF (Engine Room Main Wire And Driver Side J/B (Cowl Side Left)):

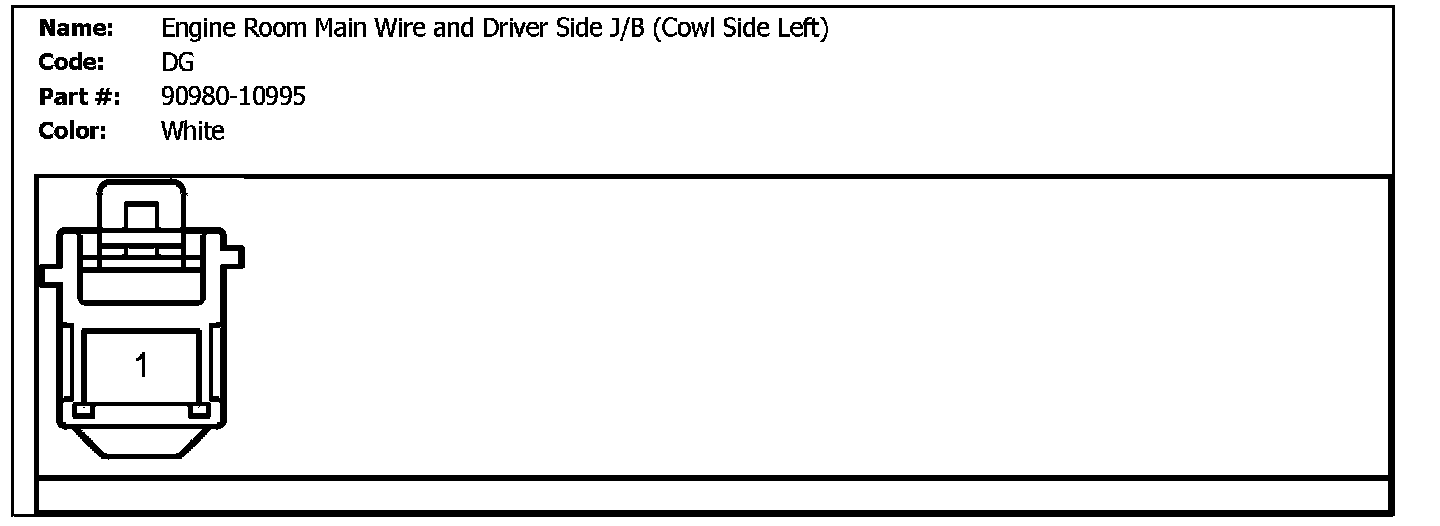

DG (Engine Room Main Wire And Driver Side J/B (Cowl Side Left)):

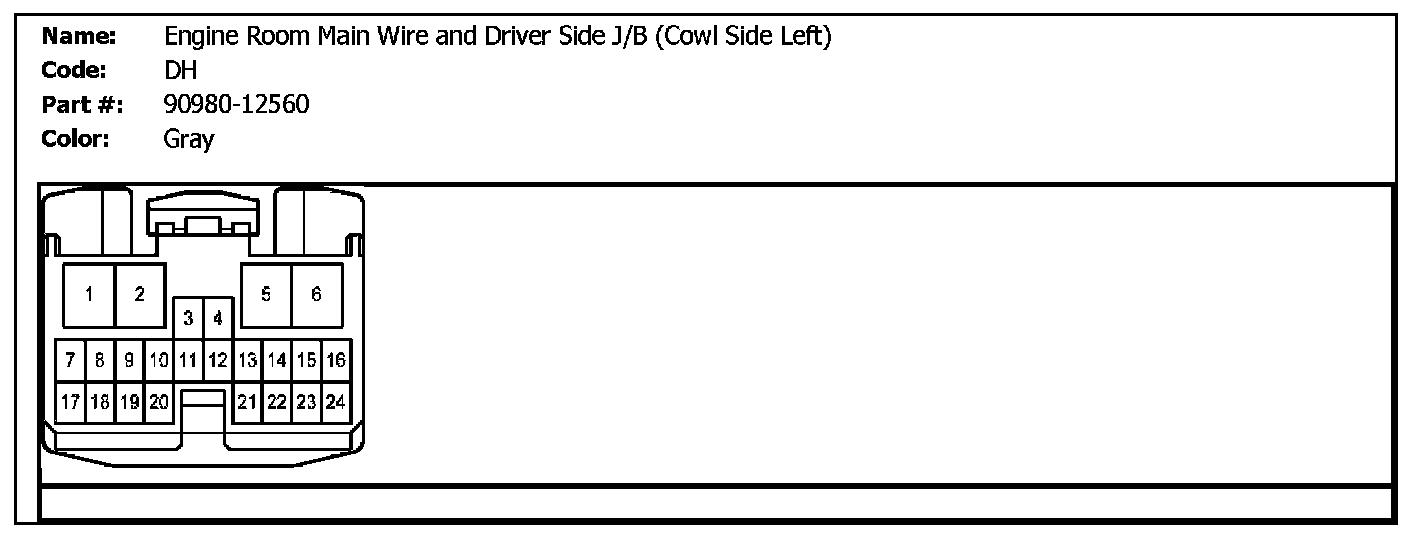

DH (Engine Room Main Wire And Driver Side J/B (Cowl Side Left)):

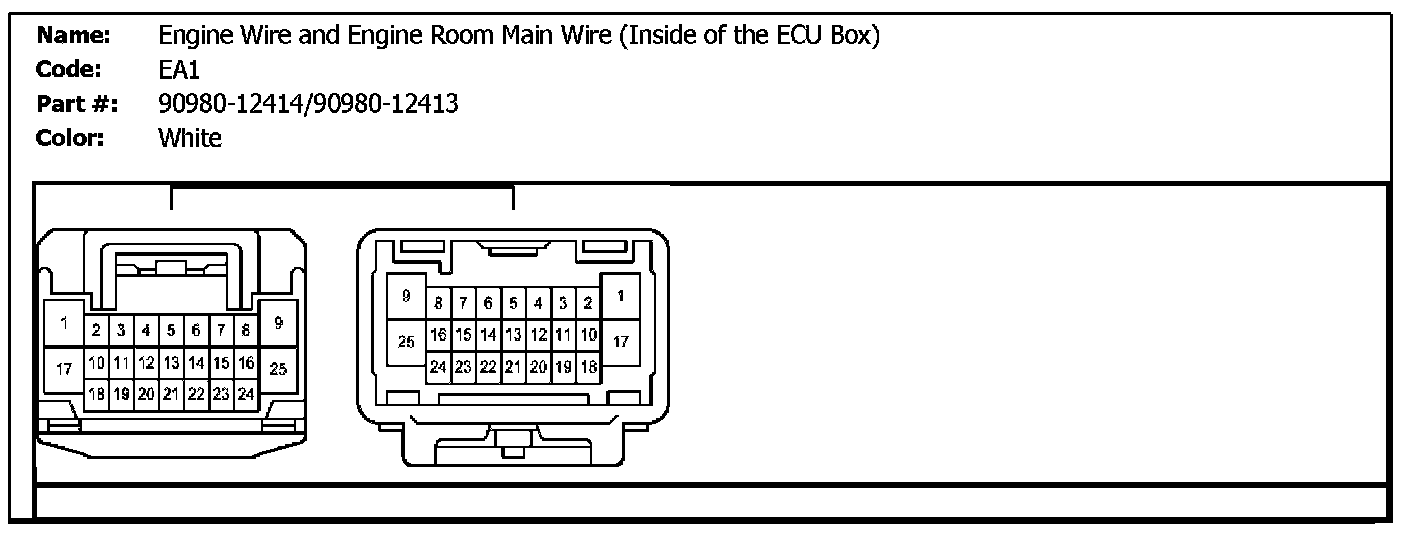

EA1 (Engine Wire And Engine Room Main Wire (Inside Of The ECU Box)):

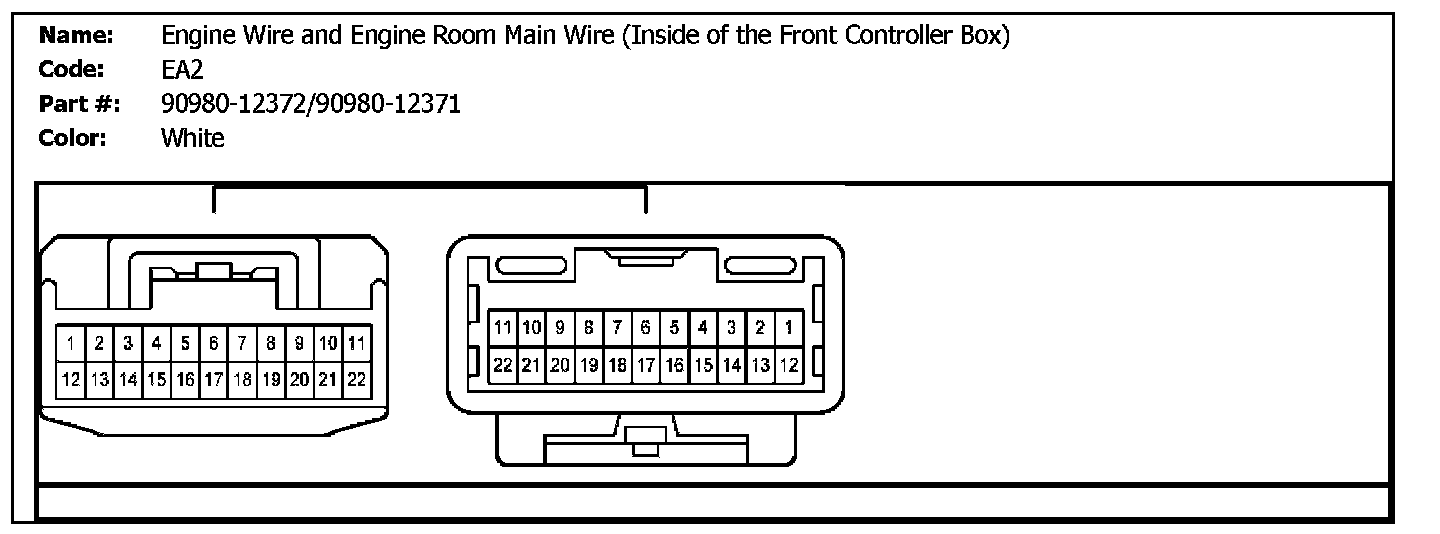

EA2 (Engine Wire And Engine Room Main Wire (Inside Of The Front Controller Box)):

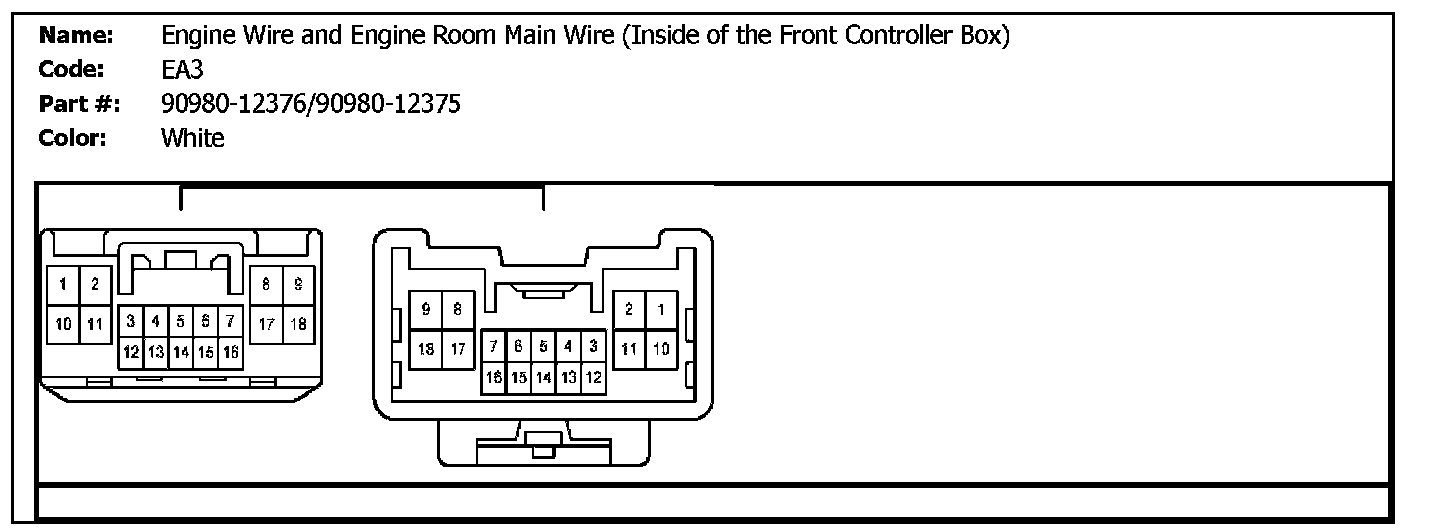

EA3 (Engine Wire And Engine Room Main Wire (Inside Of The Front Controller Box)):

EA4 (Engine Wire And Engine Room Main Wire (Inside Of The Front Controller Box)):

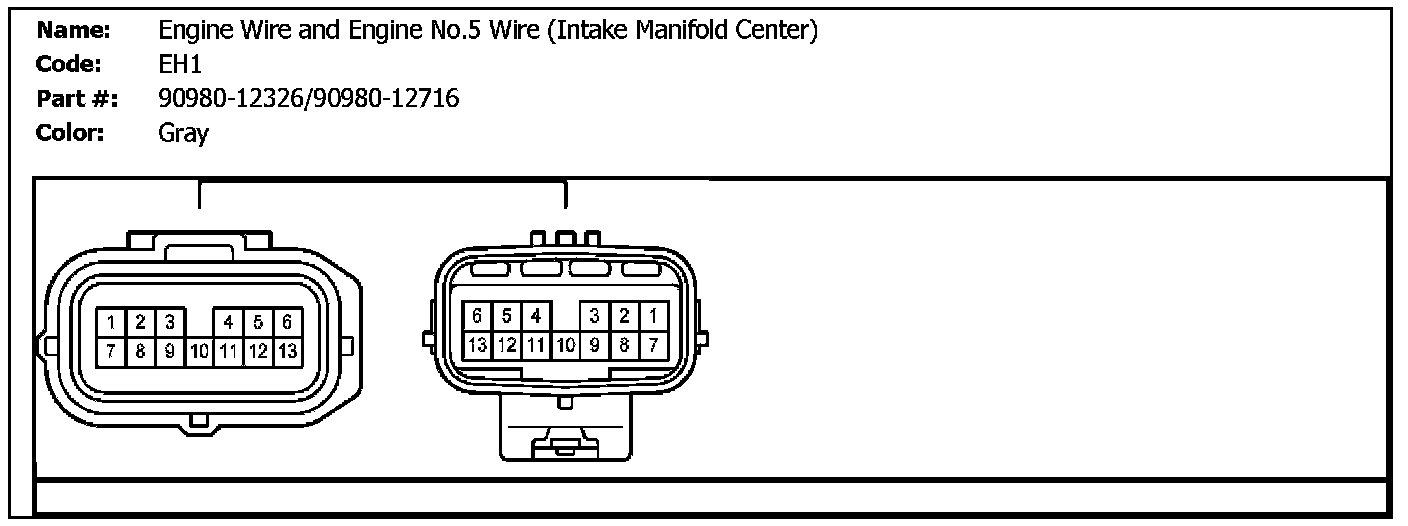

EH1 (Engine Wire And Engine No.5 Wire (Intake Manifold Center)):

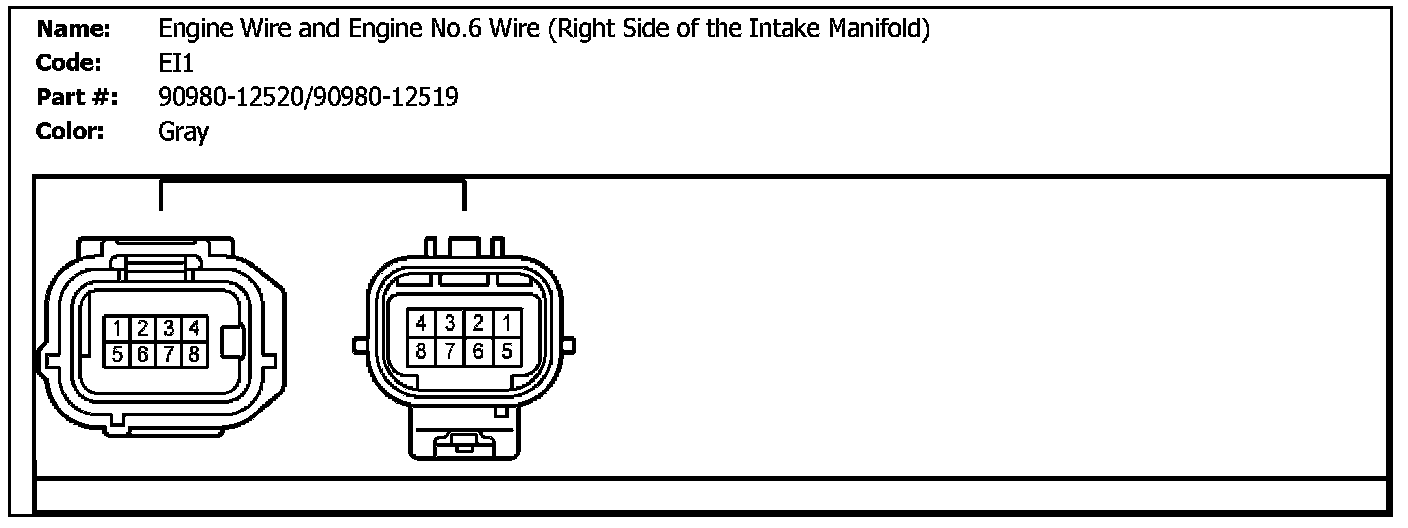

EI1 (Engine Wire And Engine No.6 Wire (Right Side Of The Intake Manifold)):

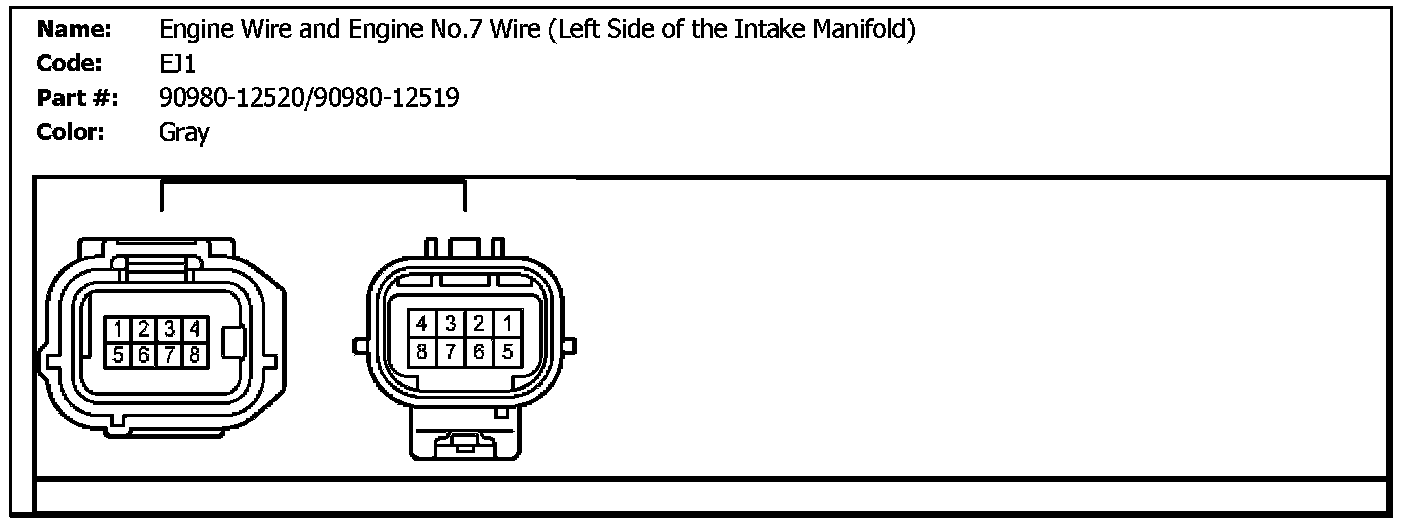

EJ1 (Engine Wire And Engine No.7 Wire (Left Side Of The Intake Manifold)):

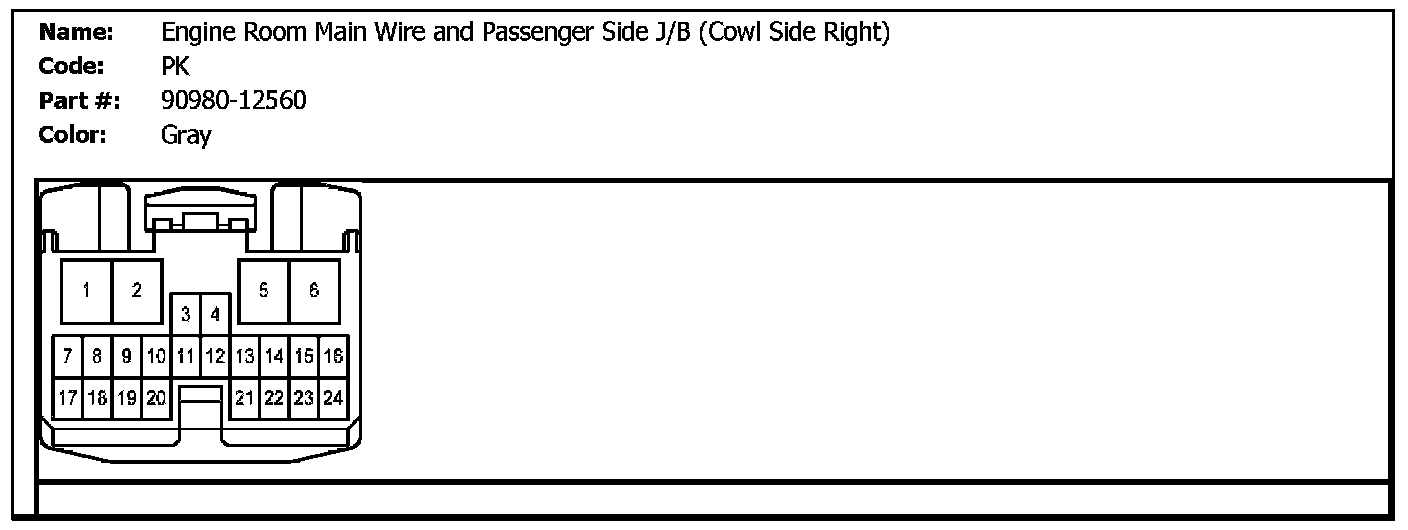

PK (Engine Room Main Wire And Passenger Side J/B (Cowl Side Right)):

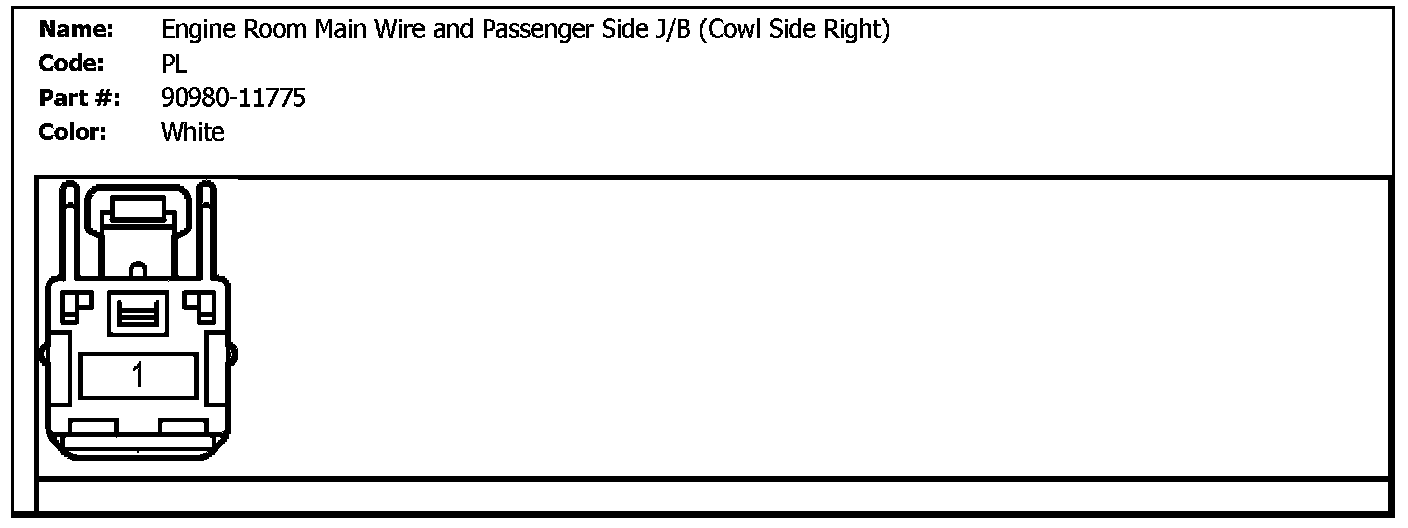

PL (Engine Room Main Wire And Passenger Side J/B (Cowl Side Right)):

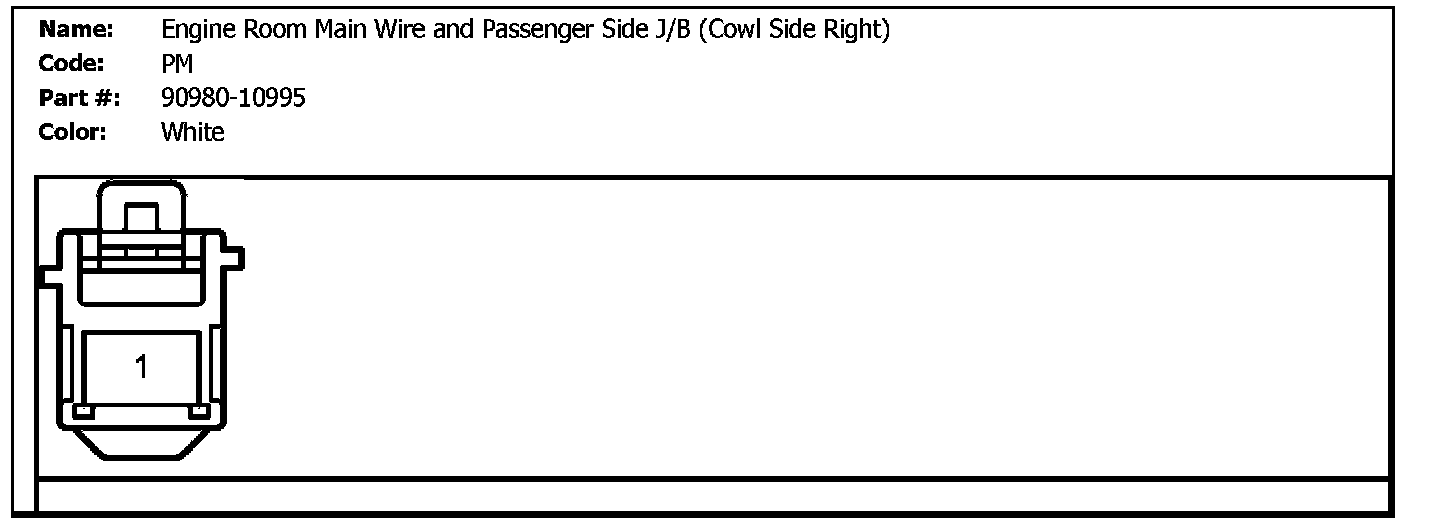

PM (Engine Room Main Wire And Passenger Side J/B (Cowl Side Right)):
