Removal

OTHER SYSTEM: POWER OUTLET SOCKET (for Ottoman): REMOVAL

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE REAR SEAT CONSOLE ARMREST BASE Disassembly

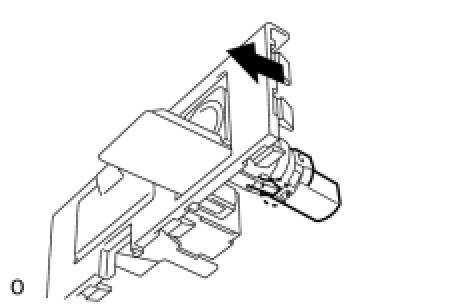

4. REMOVE POWER OUTLET SOCKET






(a) Detach the claw and remove the power outlet socket.
HINT: Open the cover.

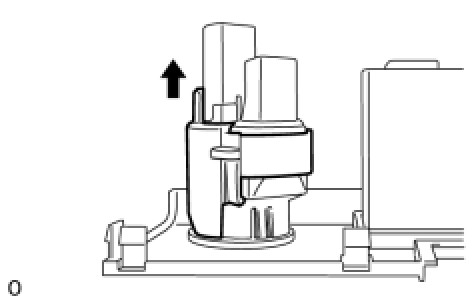

5. REMOVE POWER OUTLET SOCKET COVER






(a) Detach the 2 claws and remove the power outlet socket cover.






6. REMOVE REAR CIGARETTE LIGHTER COVER (w/ Cigarette Lighter)
(a) Remove the cover.

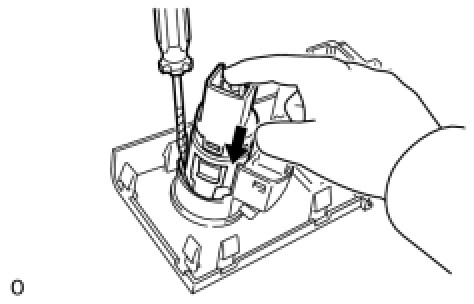

7. REMOVE REAR CIGARETTE LIGHTER ASSEMBLY (w/ Cigarette Lighter)
(a) Remove the cigarette lighter knob and element.






(b) Using a screwdriver, detach the claw and remove the cigarette lighter socket and retainer.
HINT: Tape the screwdriver tip before use.

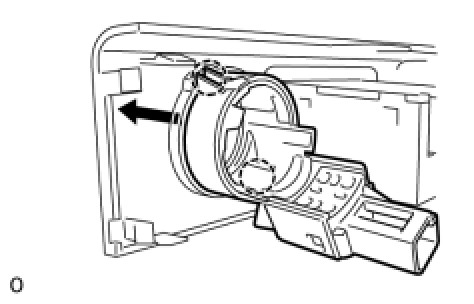

8. REMOVE REAR CIGARETTE LIGHTER BEZEL STAY (w/ Cigarette Lighter)






(a) Detach the 2 claws and remove the bezel stay.
