SERVICE SPECIFICATIONS:
SUSPENSION
: TORQUE SPECIFICATIONS

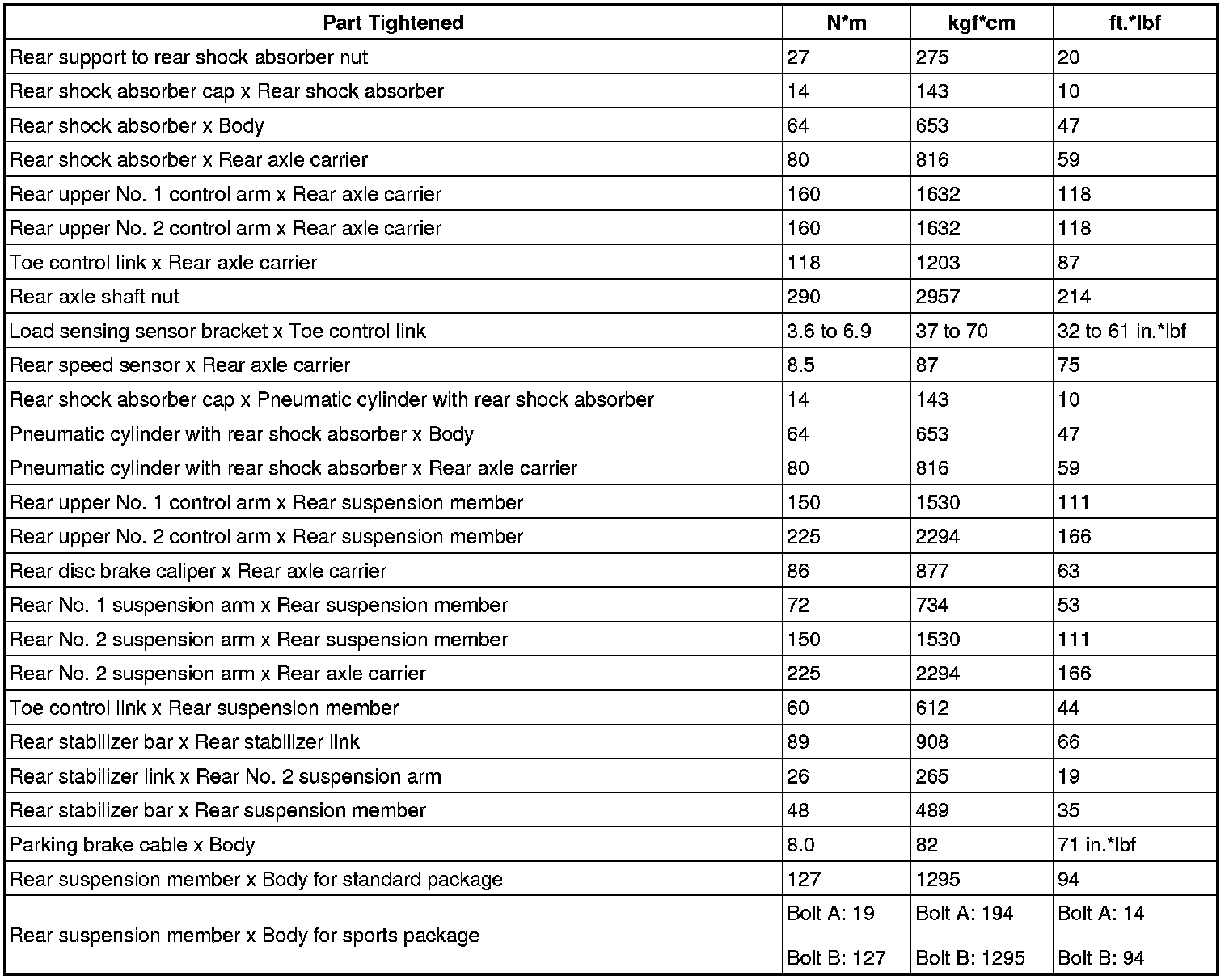

TORQUE SPECIFICATIONS
Front
suspension
Rear
suspension
