Ball Joint

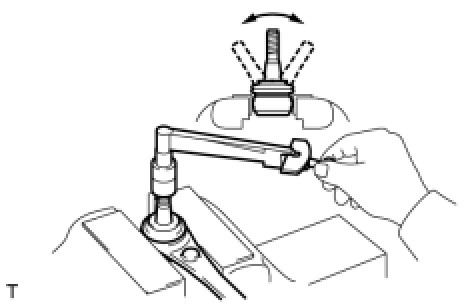

Front Upper Ball Joints





Standard turning torque 3.5 Nm (36 kgf-cm, 31 in. lbf) or less on 5th turn

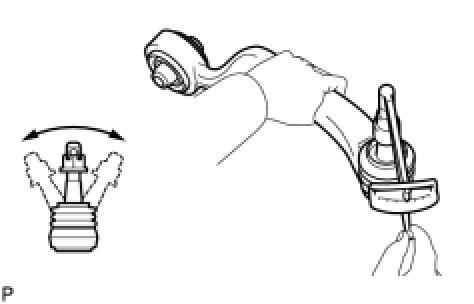

Front Lower Ball Joints





Standard turning torque 3.0 Nm (31 kgf-cm, 27 in. lbf) on 5th turn

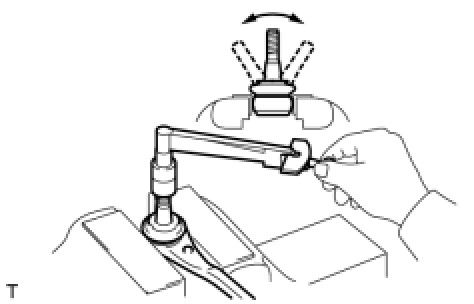

Rear Upper No. 1 Ball Joint





Standard turning torque 3.5 Nm (36 kgf-cm, 31 in. lbf) or less on 5th turn

Rear Upper No. 2 Ball Joint





Standard turning torque 9.0 Nm (92 kgf-cm, 80 in. lbf) or less on 5th turn

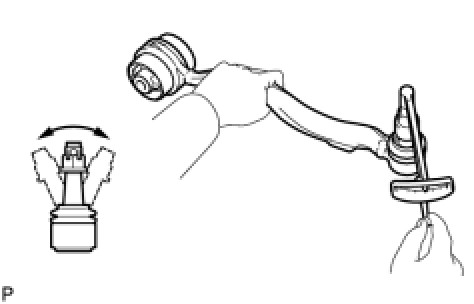

Rear Lower Ball Joint





Standard turning torque 5.0 Nm (51 kgf-cm, 44 in. lbf) or less on 5th turn
