Brake Control








SERVICE SPECIFICATIONS: BRAKE CONTROL: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

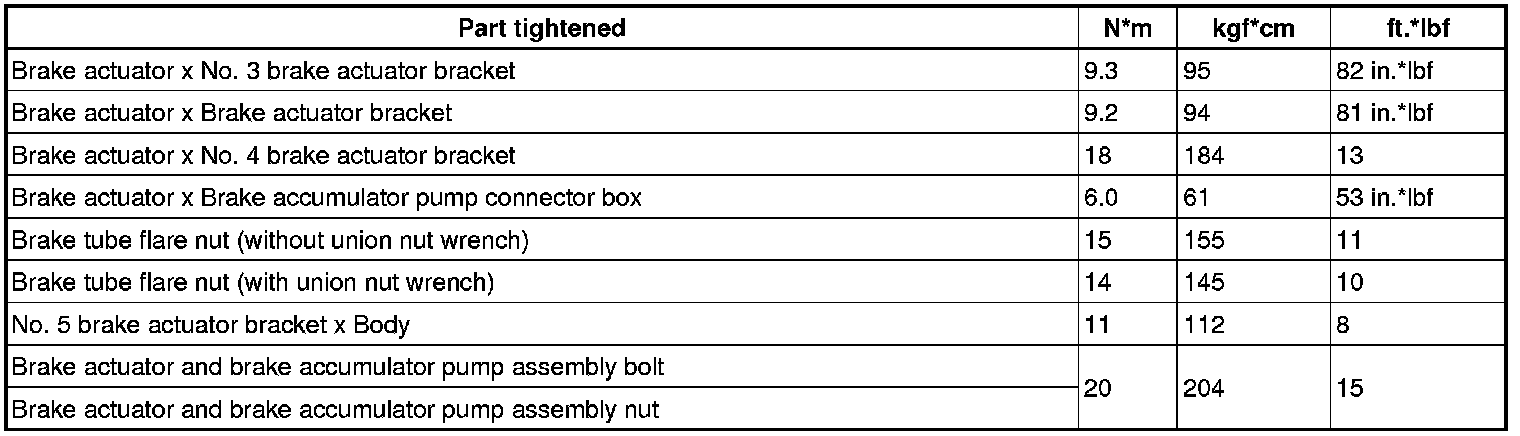

Brake Actuator





Front Speed Sensor

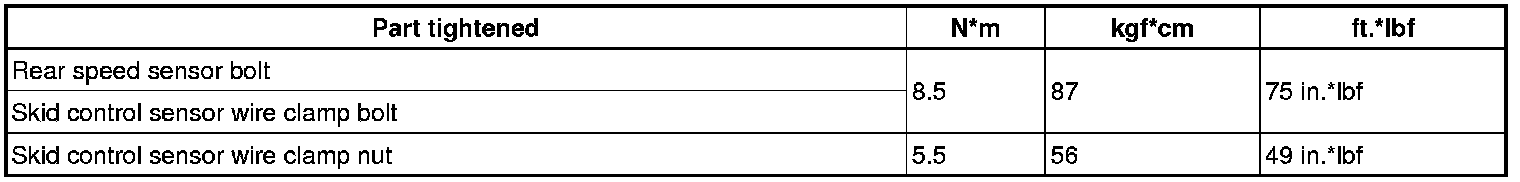

Rear speed sensor





Yaw Rate Sensor

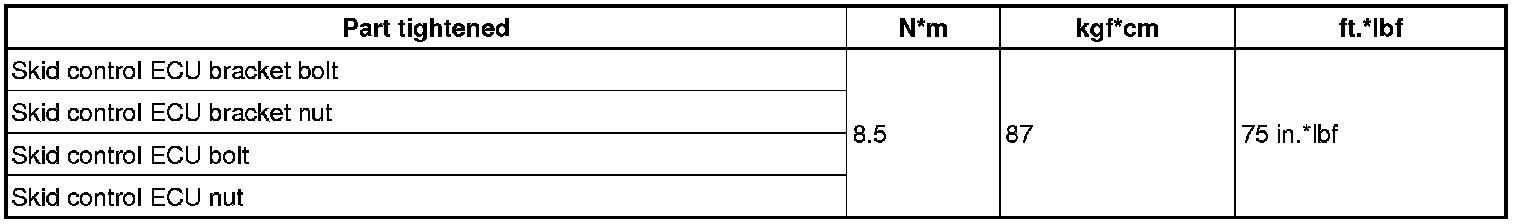

Skid Control ECU

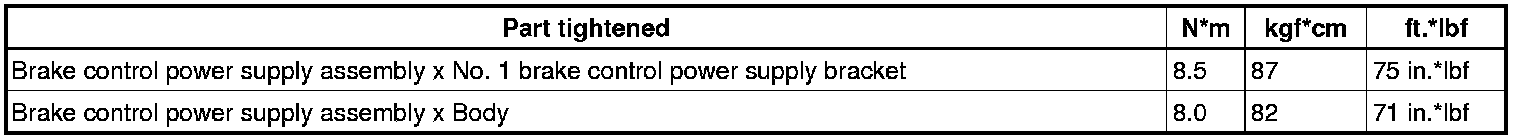

Brake Control Power Supply





Brake Pedal Stroke Sensor
