Wiper Switch: Diagrams

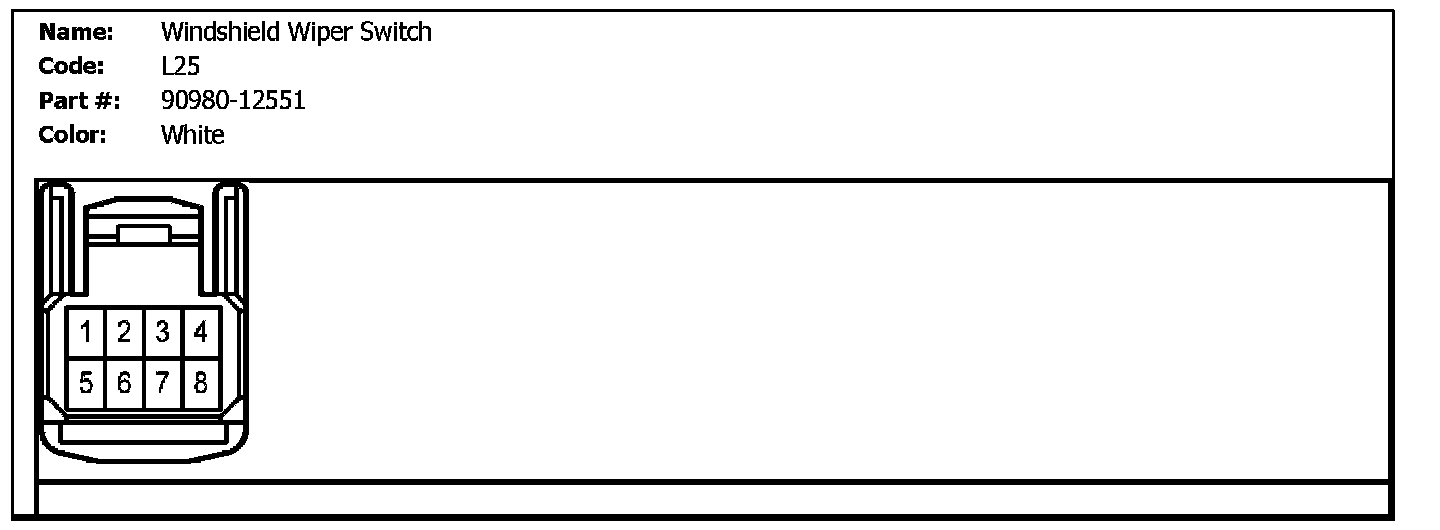

L25 (Windshield Wiper Switch):

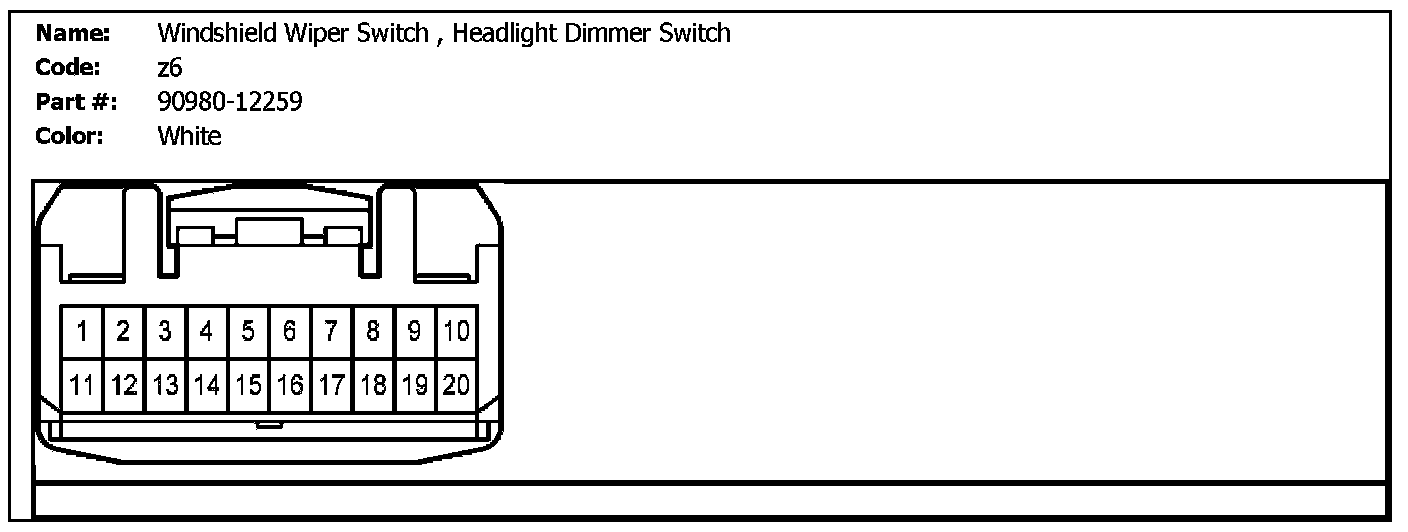

z6 (Windshield Wiper Switch, Headlight Dimmer Switch):
