WINDSHIELD / WINDOWGLASS: REAR POWER WINDOW SWITCH: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the RH side.

1. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

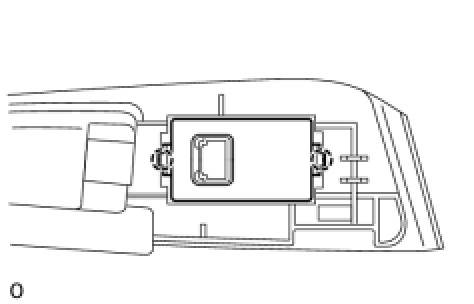

(a) Install the power window regulator switch assembly with the 2 claws.

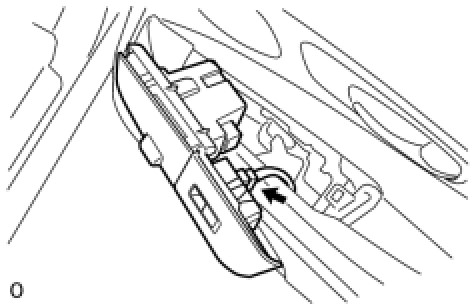

(b) Connect the connector.

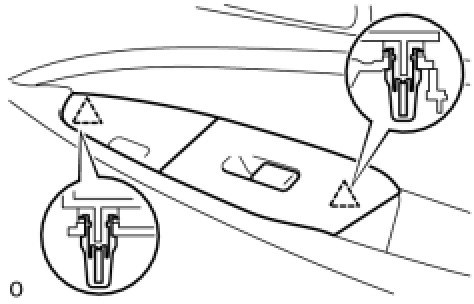

(c) Install the armrest base panel assembly with the 2 clamps.
