Power Window Switch: Diagrams

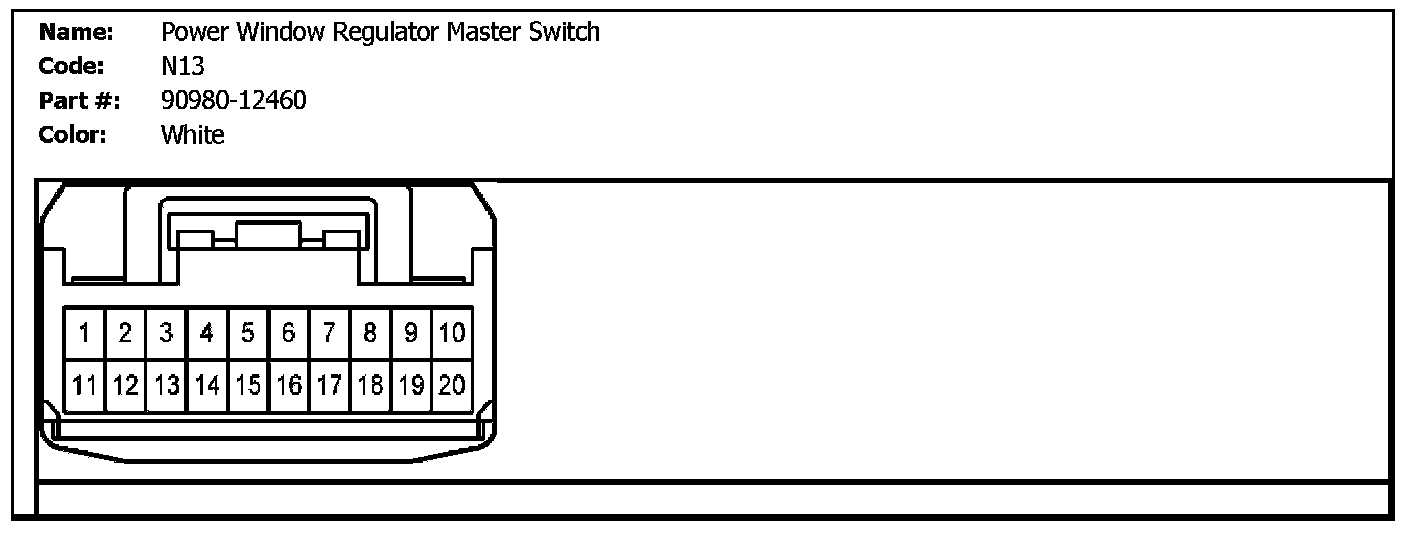

N13 (Power Window Regulator Master Switch):

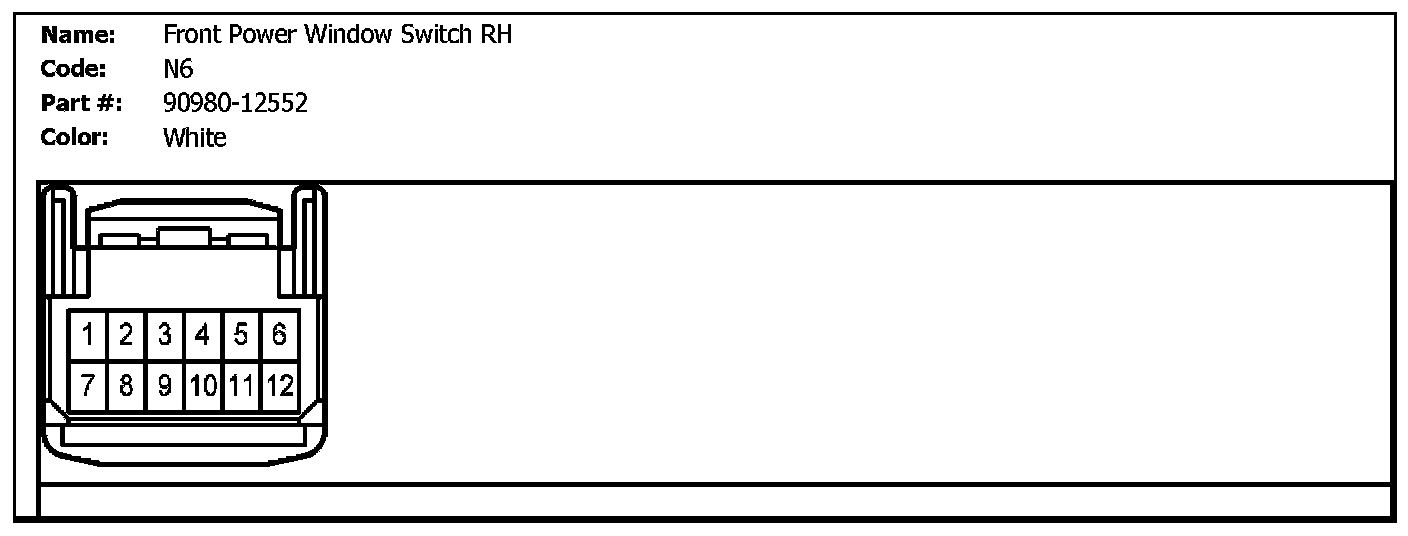

N6 (Front Power Window Switch RH):

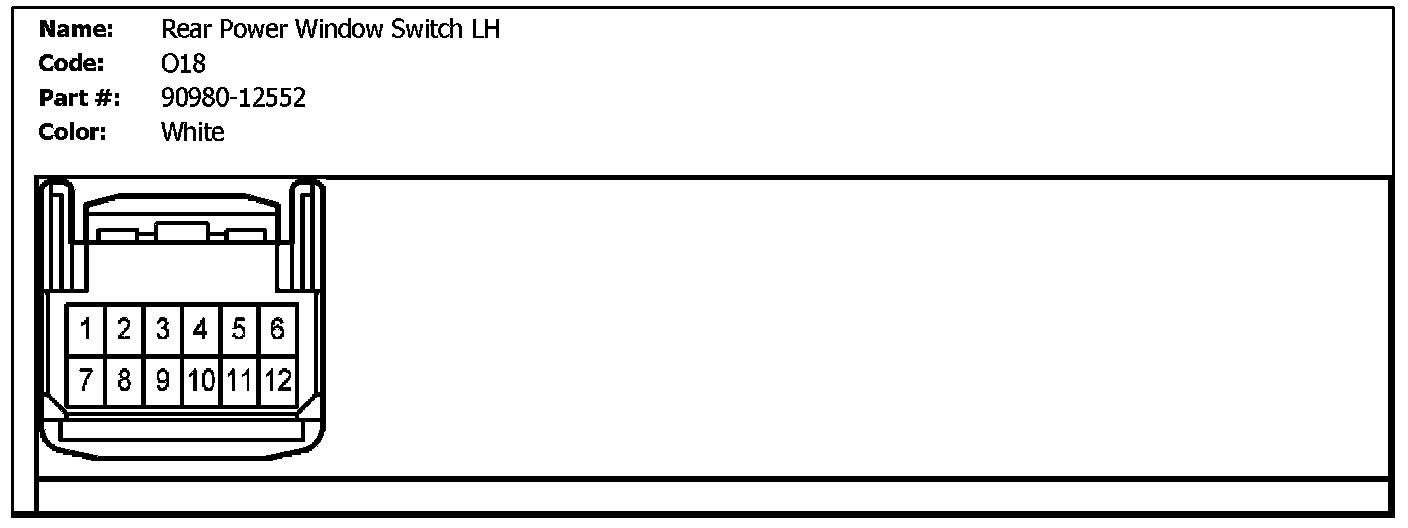

O18 (Rear Power Window Switch LH):



O7 (Rear Power Window Switch RH):
