LIGHTING: HAZARD WARNING SWITCH: REMOVAL

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal

4. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal

5. REMOVE SHIFT LEVER KNOB Removal

6. REMOVE NO. 3 BOX PANEL Removal

7. REMOVE REAR CONSOLE PANEL UPPER Removal

8. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER Removal

9. REMOVE RADIO RECEIVER ASSEMBLY Removal

10. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY (w/o Multi-display) Removal

11. REMOVE MULTI-MEDIA MODULE DISPLAY ASSEMBLY (w/ Multi-display) Removal

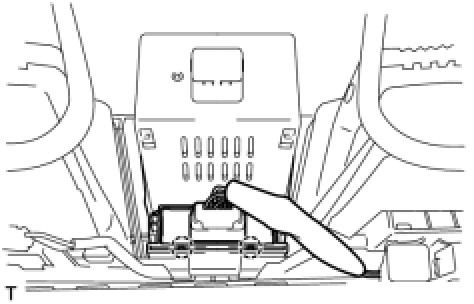

12. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY






(a) Disconnect the connector.
(b) Detach the 2 claws and remove the hazard warning signal switch.
