ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH: REMOVAL

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP Removal

2. REMOVE DOOR INSIDE HANDLE BEZEL Removal

3. REMOVE SWITCH BEZEL (w/ Power Trunk Lid System) Removal

4. REMOVE NO. 2 COURTESY LIGHT ASSEMBLY Removal

5. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER LH Removal

6. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER RH Removal

7. REMOVE REAR COMBINATION LIGHT SERVICE COVER LH Removal

8. REMOVE REAR COMBINATION LIGHT SERVICE COVER RH Removal

9. REMOVE BACK DOOR TRIM COVER Removal

10. REMOVE TELEVISION CAMERA ASSEMBLY (w/ Rear View Monitor) Removal

11. REMOVE REAR LIGHT ASSEMBLY LH Removal

12. REMOVE REAR LIGHT ASSEMBLY RH Removal

13. REMOVE LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSEMBLY OUTSIDE

14. REMOVE BACK DOOR GARNISH RETAINER SUB-ASSEMBLY Removal

15. REMOVE LUGGAGE COMPARTMENT DOOR OPENER SWITCH ASSEMBLY






(a) Open the screw caps and remove the 2 screws.

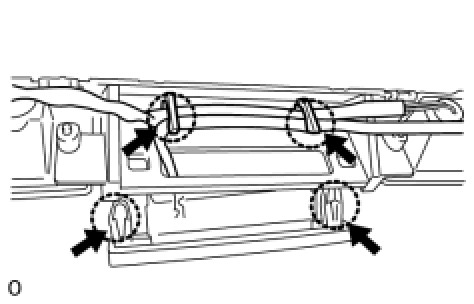

(b) Detach the 4 claws and remove the opener switch.
