Removal

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR OPENER MAIN SWITCH: REMOVAL

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal

4. REMOVE INSTRUMENT SIDE PANEL RH Removal

5. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

6. REMOVE INSTRUMENT PANEL LOWER Removal

7. REMOVE NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY LOWER Removal

8. REMOVE NO. 2 INSTRUMENT CLUSTER MOULDING Removal

9. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY Removal

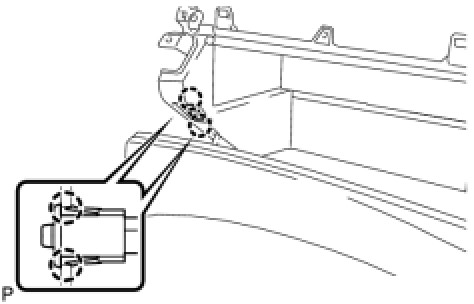

10. REMOVE LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY






(a) Detach the cancel switch.
