Driver Side Seat Belt Anchor Does Not Operate Manually

SEAT BELT: POWER SHOULDER BELT ANCHORAGE SYSTEM: Driver Side Seat Belt Anchor does not Operate Manually

Driver Side Seat Belt Anchor does not Operate Manually

DESCRIPTION

When the shoulder belt anchorage switch's UP or DOWN switch are pressed, an UP or DOWN signal is sent to the front door ECU LH. Then the signal is sent to the rear junction block ECU through CAN communication. Based on the received signal, the rear junction block ECU moves the shoulder belt anchor LH up or down.

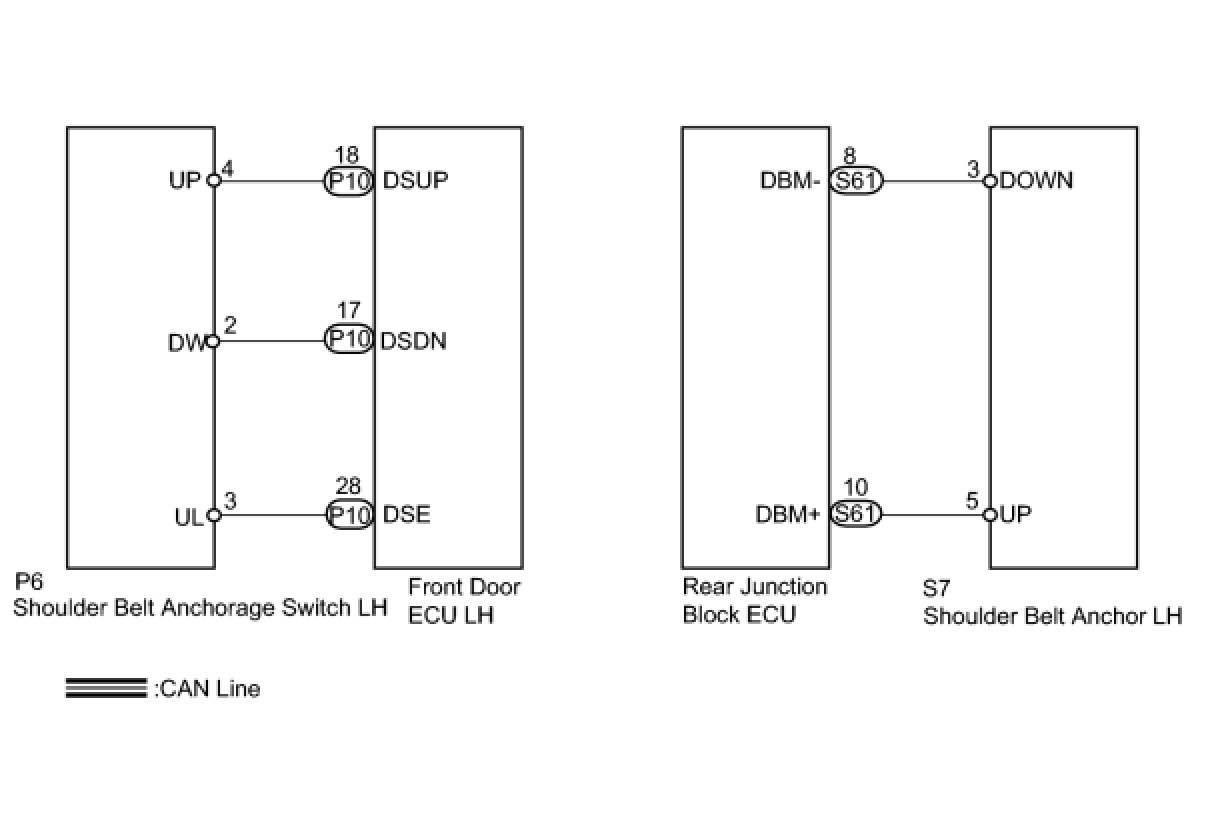

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. PERFORM ACTIVE TEST USING INTELLIGENT TESTER OR TECHSTREAM (SHOULDER BELT ANCHORAGE SWITCH LH)

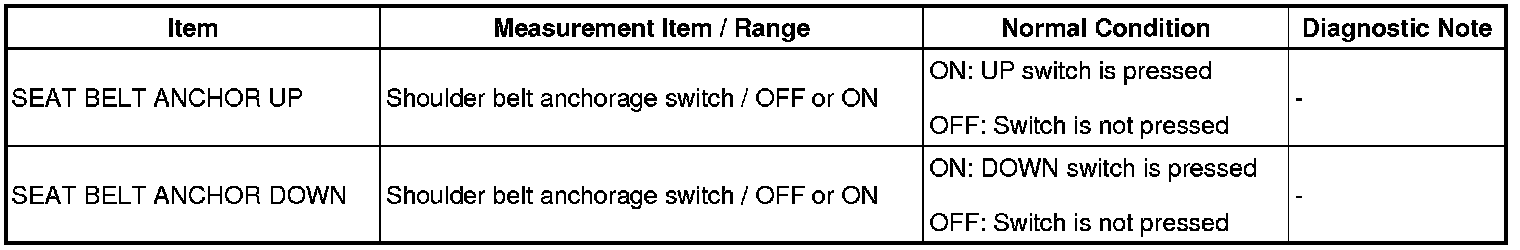

(a) Check the DATA LIST for proper functioning of the shoulder belt anchorage switch.
(1) Intelligent tester

D-DOOR:





(2) Techstream

Driver door:





OK:
Switch operates
NG -- INSPECT SHOULDER BELT ANCHORAGE SWITCH LH
OK -- Continue to next step.
2. CHECK SHOULDER BELT ANCHOR LH

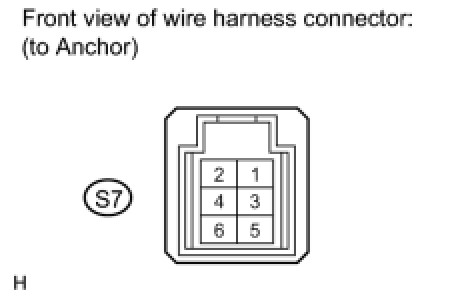

(a) Disconnect the S7 anchor connector.
(b) Connect the battery's positive lead to terminal 3 of the shoulder belt anchor LH, and the battery's negative lead to terminal 5. Check that the motor operates.
OK:
Motor moves downward.
(c) Connect the battery's positive lead to terminal 5 of the shoulder belt anchor LH, and the battery's negative lead to terminal 3. Check that the motor operates.
OK:
Motor moves upward.
NG -- REPLACE SHOULDER BELT ANCHOR LH
OK -- Continue to next step.

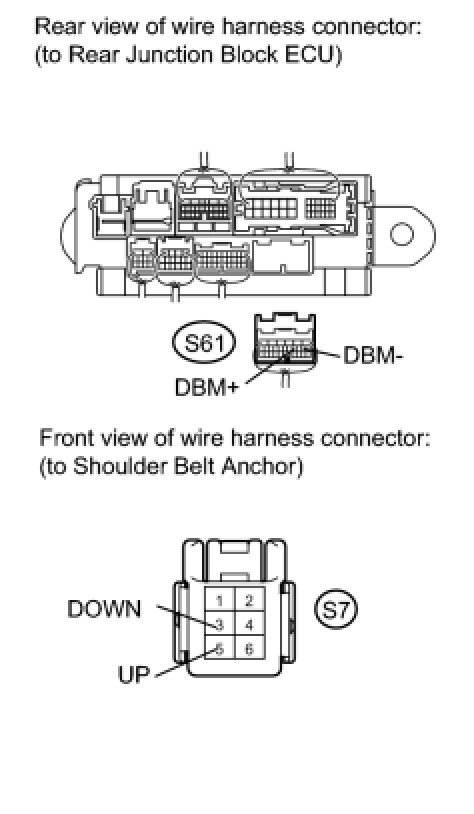

3. CHECK HARNESS AND CONNECTOR (ANCHOR - REAR JUNCTION BLOCK ECU)





(a) Disconnect the S61 ECU connector.
(b) Disconnect the S7 anchor connector.

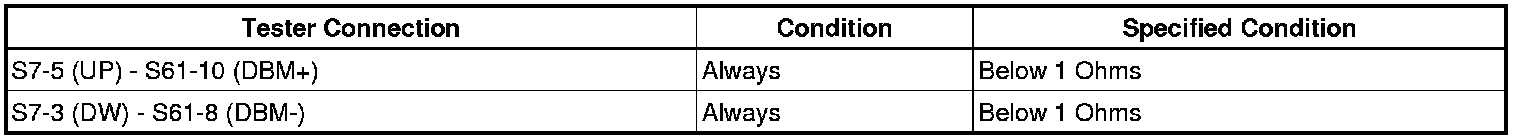

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE LUGGAGE ROOM JUNCTION BLOCK ASSEMBLY (REAR JUNCTION BLOCK ECU)

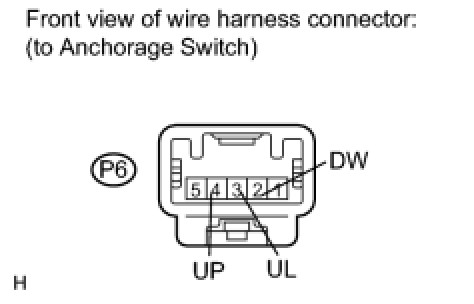

4. INSPECT SHOULDER BELT ANCHORAGE SWITCH LH





(a) Disconnect the P6 switch connector.

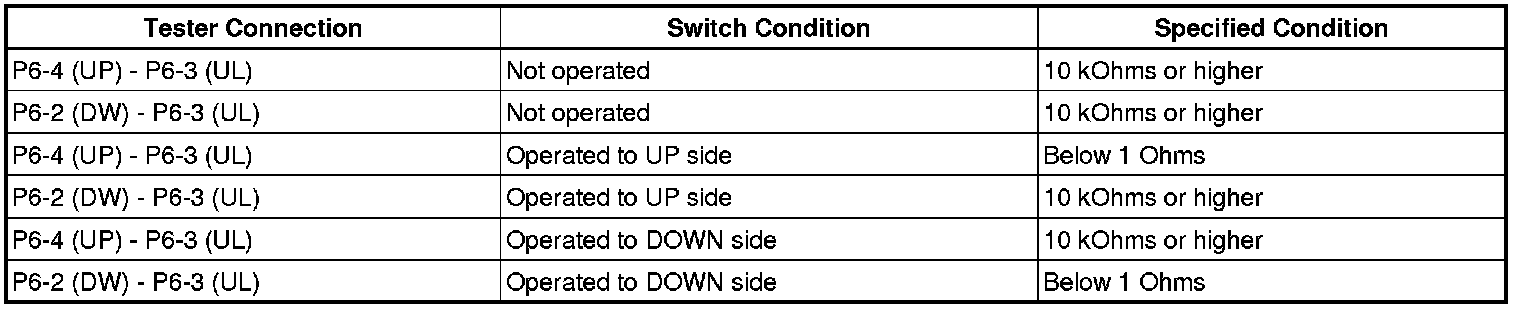

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPLACE SHOULDER BELT ANCHORAGE SWITCH LH
OK -- Continue to next step.

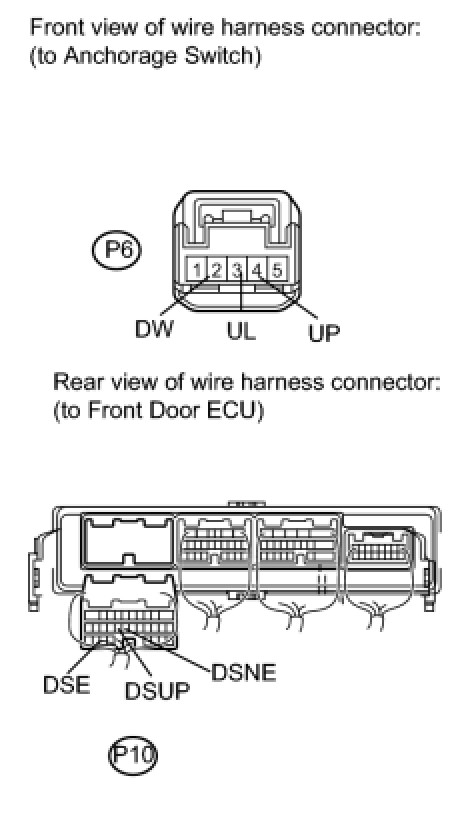

5. CHECK HARNESS AND CONNECTOR (ANCHORAGE SWITCH - FRONT DOOR ECU)





(a) Disconnect the P10 ECU connector.
(b) Disconnect the P6 switch connector.

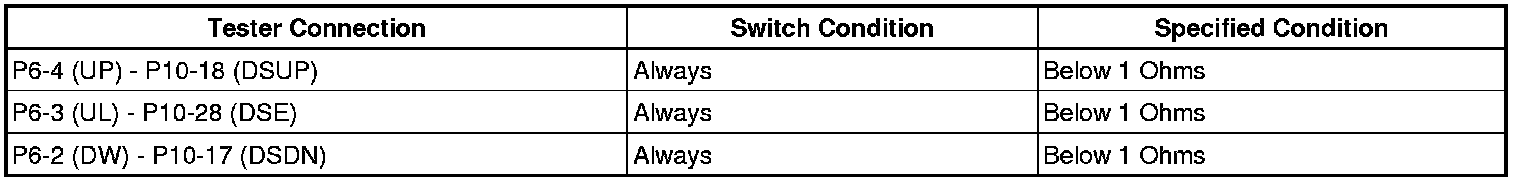

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE FRONT DOOR ECU LH
