Power Shoulder Belt Anchorage System

SEAT BELT: POWER SHOULDER BELT ANCHORAGE SYSTEM: SYSTEM DIAGRAM

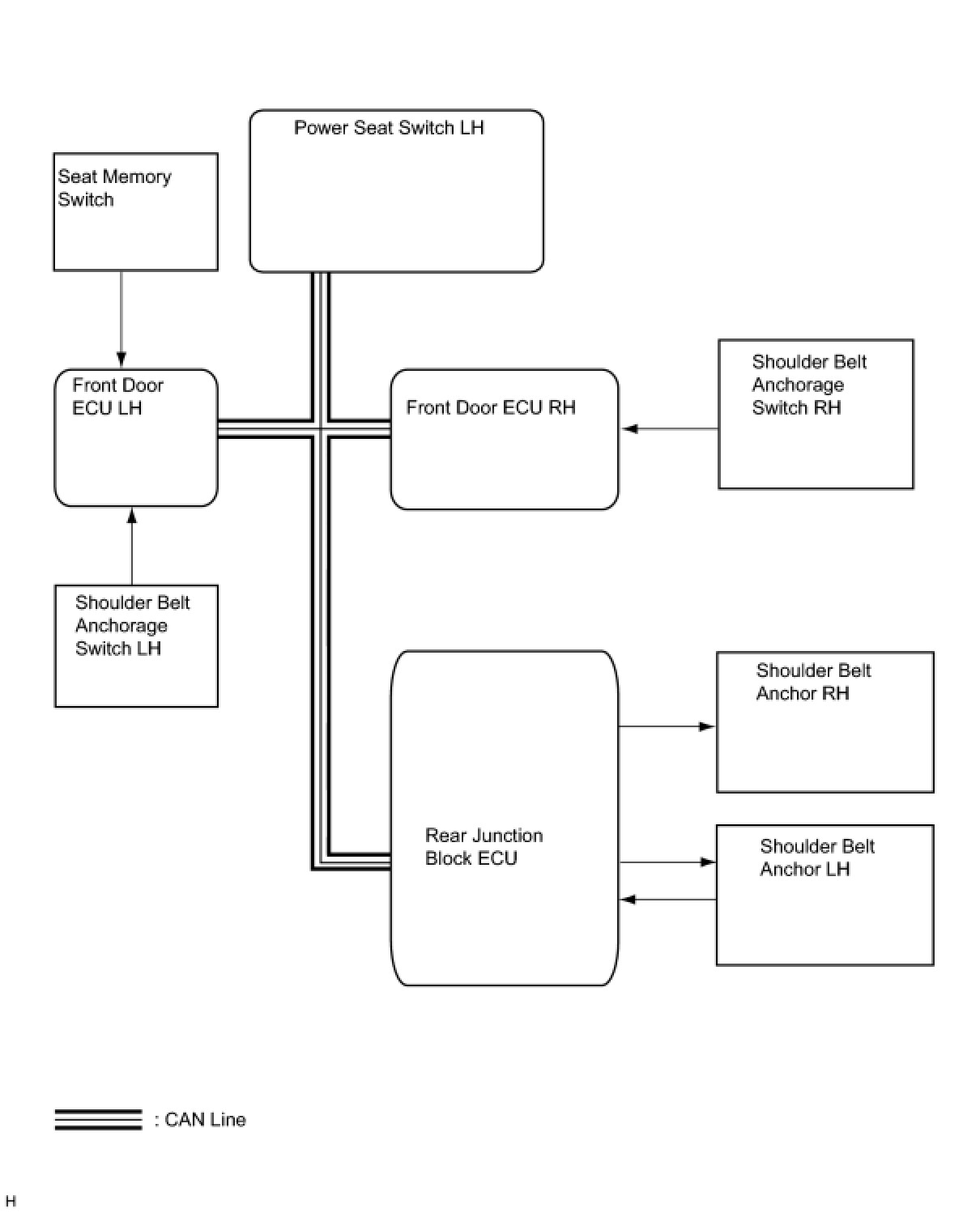

SYSTEM DIAGRAM









SEAT BELT: POWER SHOULDER BELT ANCHORAGE SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. POWER SHOULDER BELT ANCHORAGE SYSTEM DESCRIPTION
(a) The position of the power adjustable shoulder belt anchor can be adjusted by operating the control switch, which is located on the door trim.

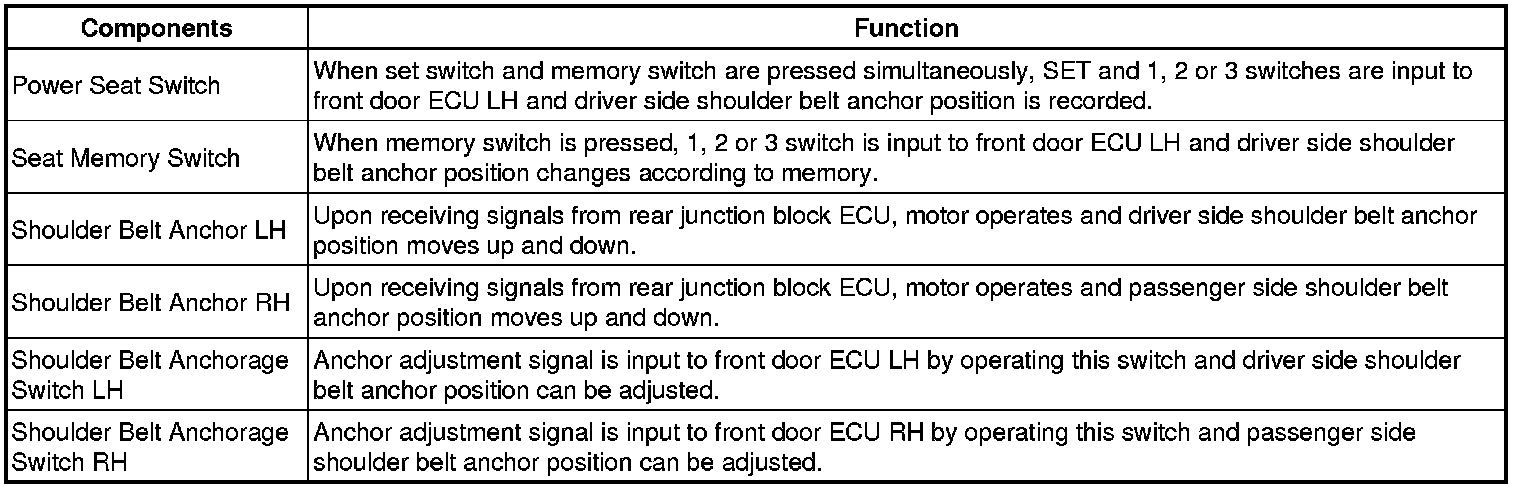

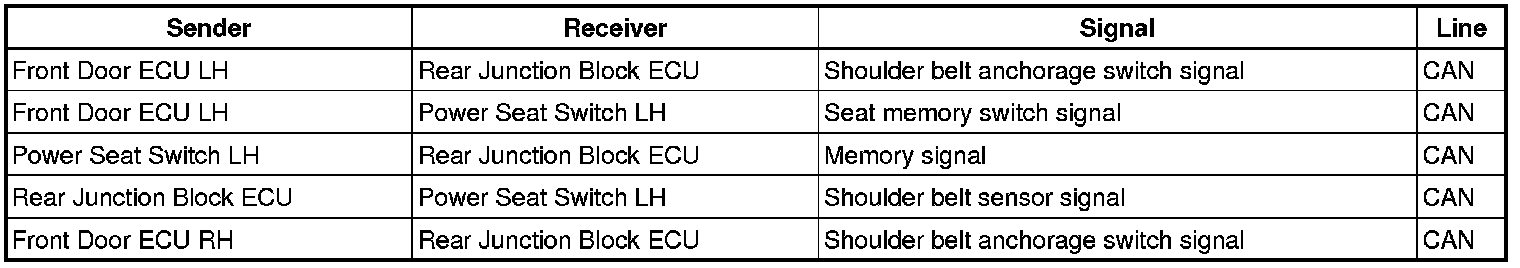

2. FUNCTION OF MAN COMPONENT






3. POWER SHOULDER BELT ANCHORAGE FUNCTION
(a) The shoulder belt anchorage switch is located on the front door trim. Using the switch, the shoulder belt anchor position can be adjusted electrically. Linked with the seat memory system and steering memory system, the shoulder belt anchor position can also be recorded in the memory.
