Steering Control Module: Diagrams

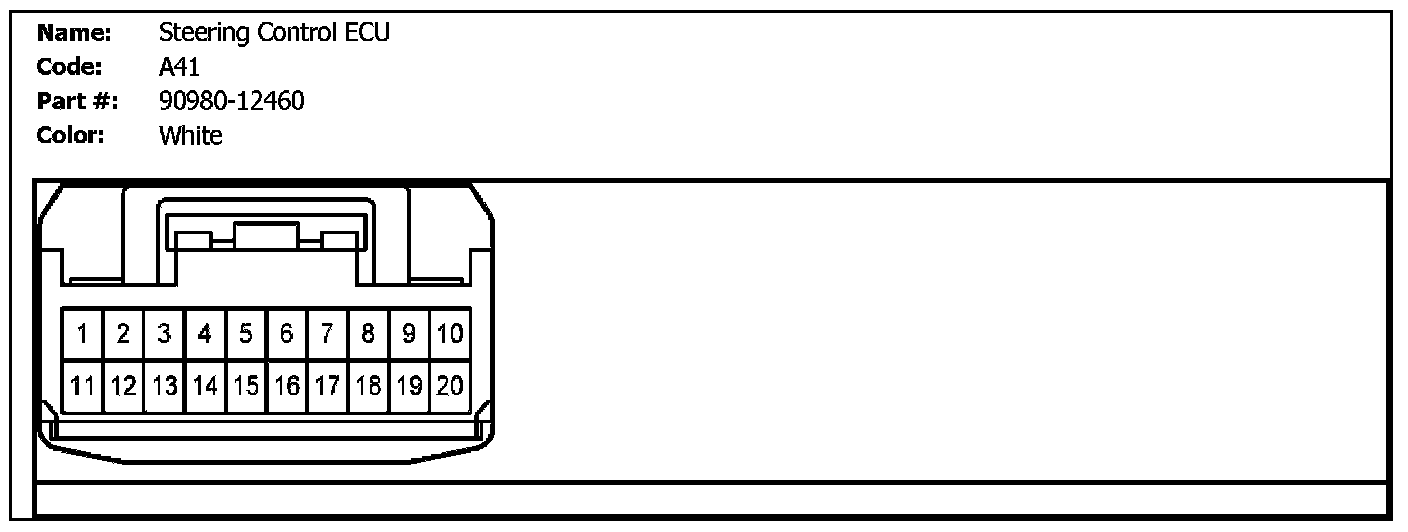

A41 (Steering Control ECU):

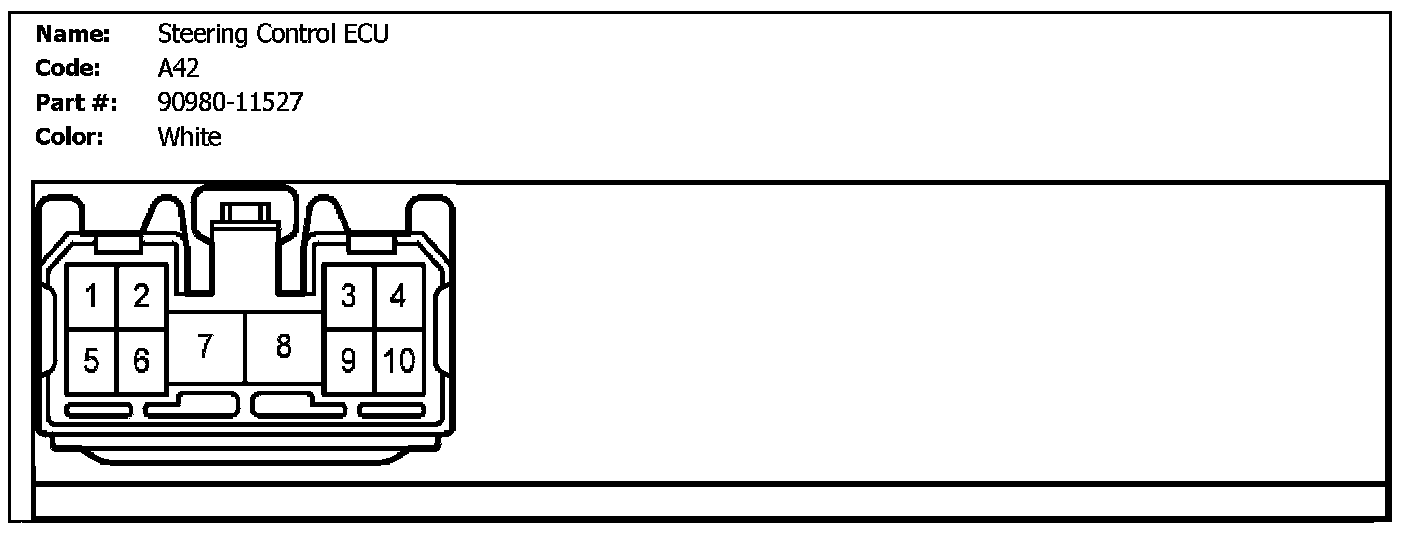

A42 (Steering Control ECU):

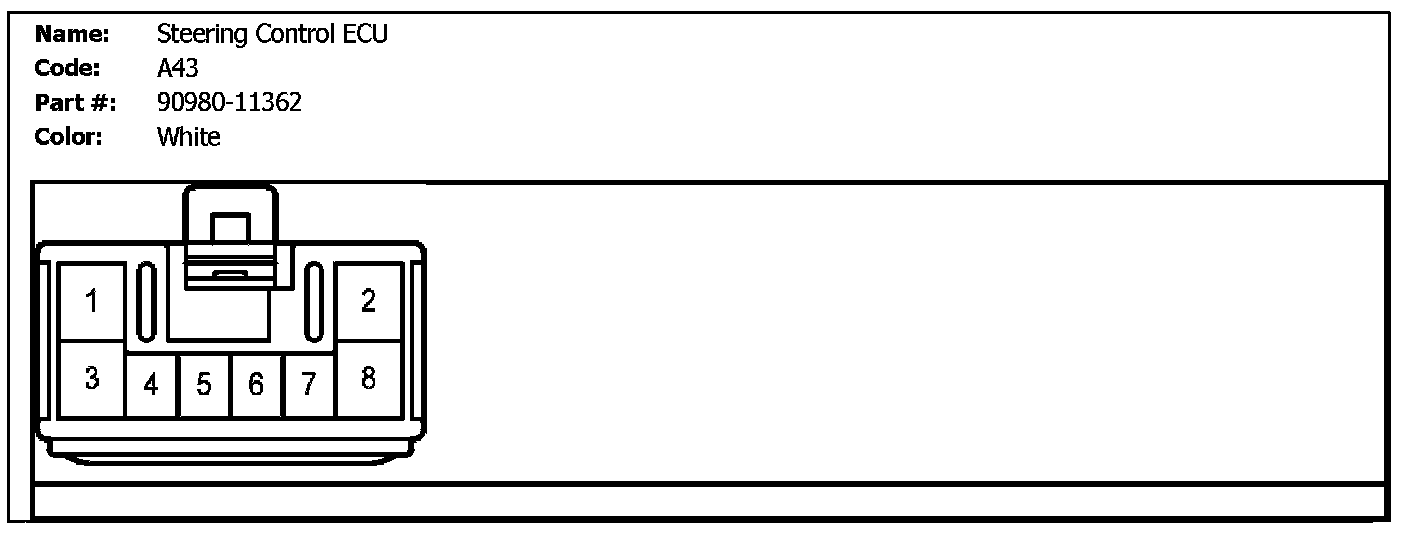

A43 (Steering Control ECU):

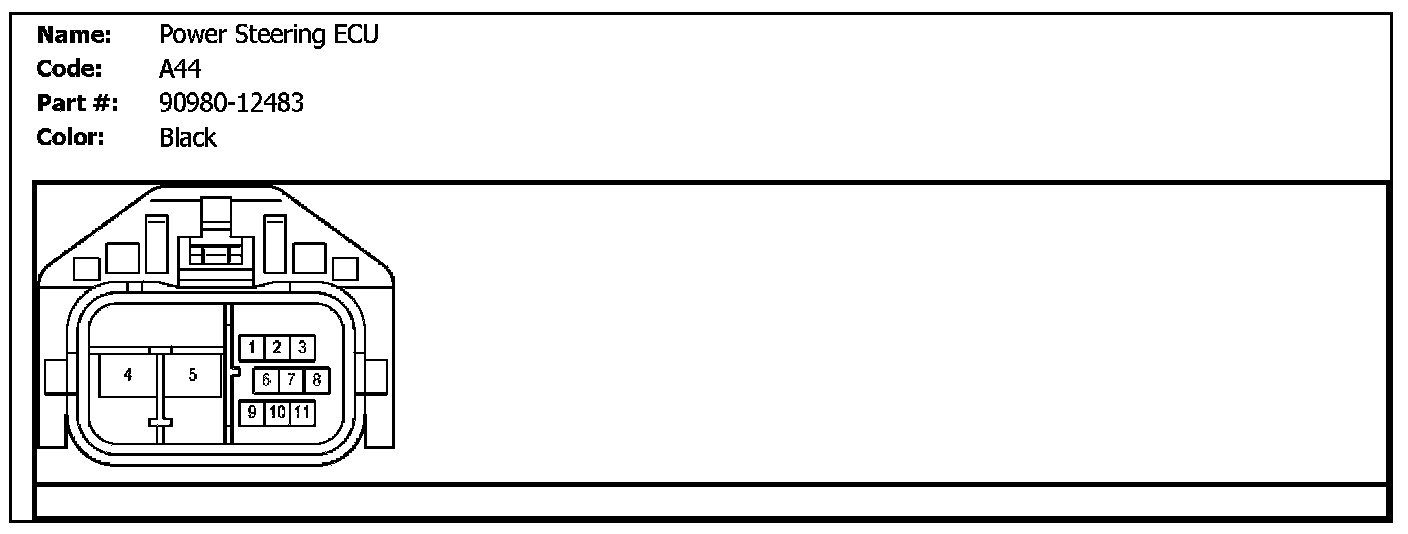

A44 (Power Steering ECU):

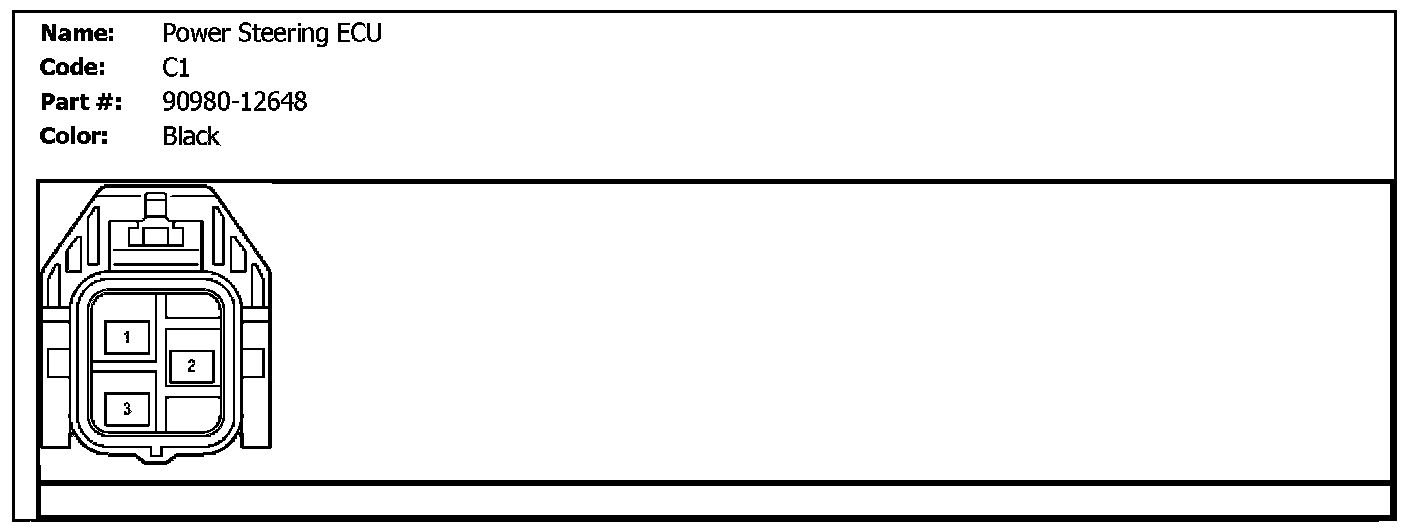

C1 (Power Steering ECU):

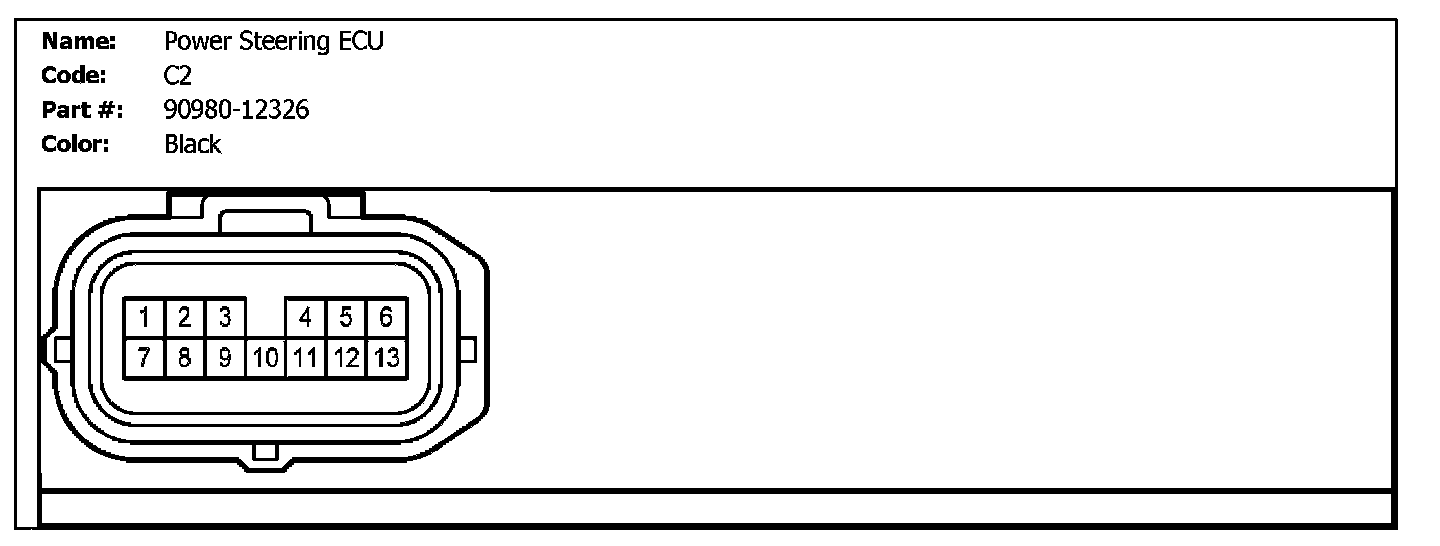

C2 (Power Steering ECU):
