Electronic Brake Control Module: Diagrams

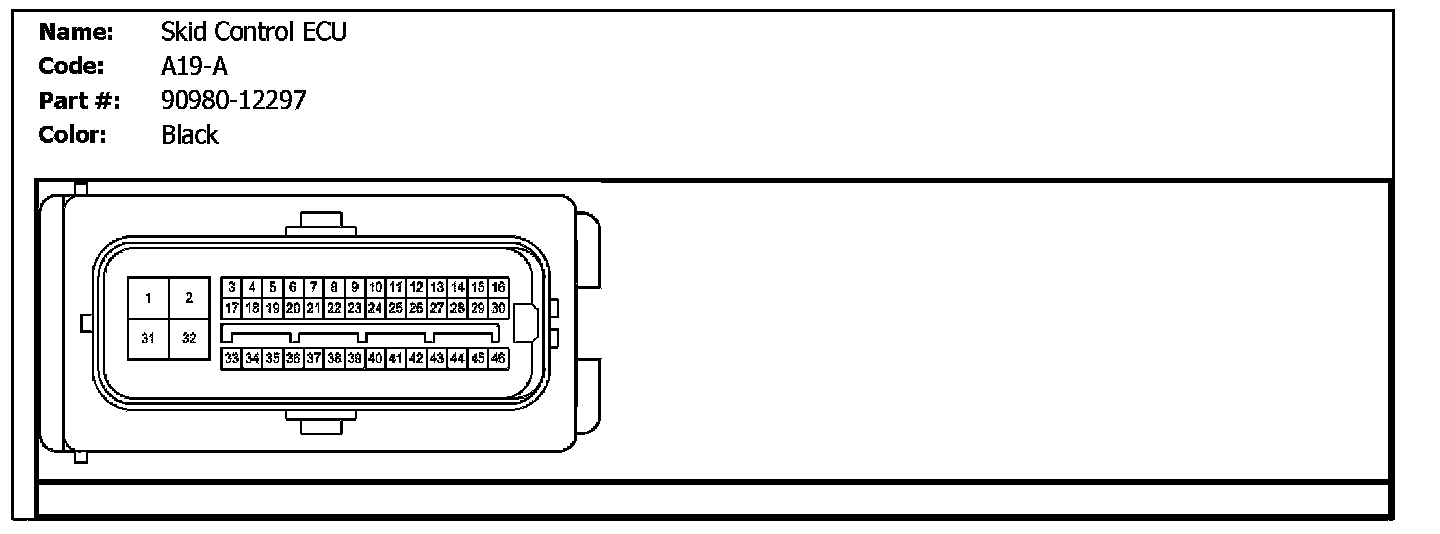

A19-A (Skid Control ECU):

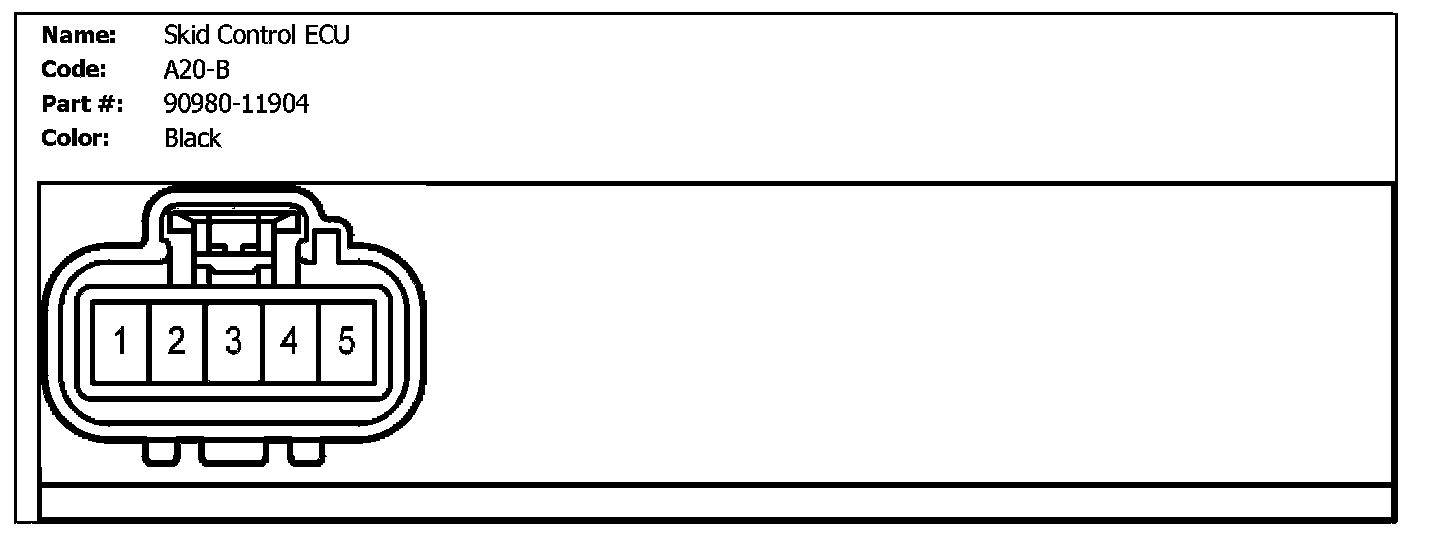

A20-B (Skid Control ECU):

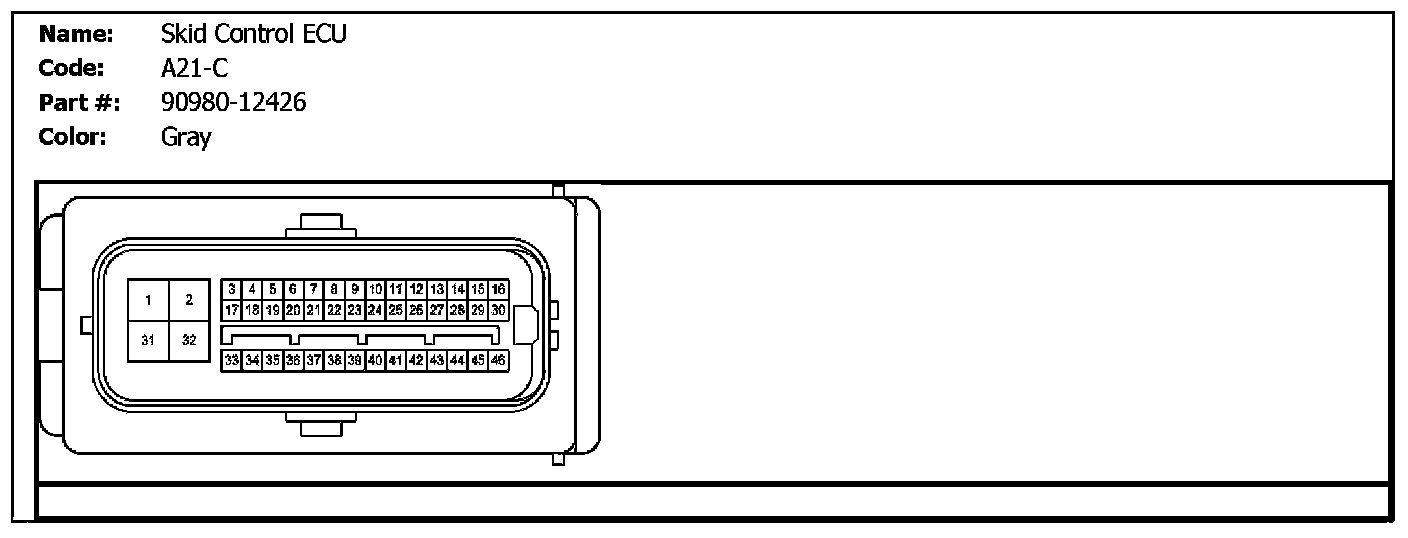

A21-C (Skid Control ECU):
