Power Seat Control Module: Diagrams

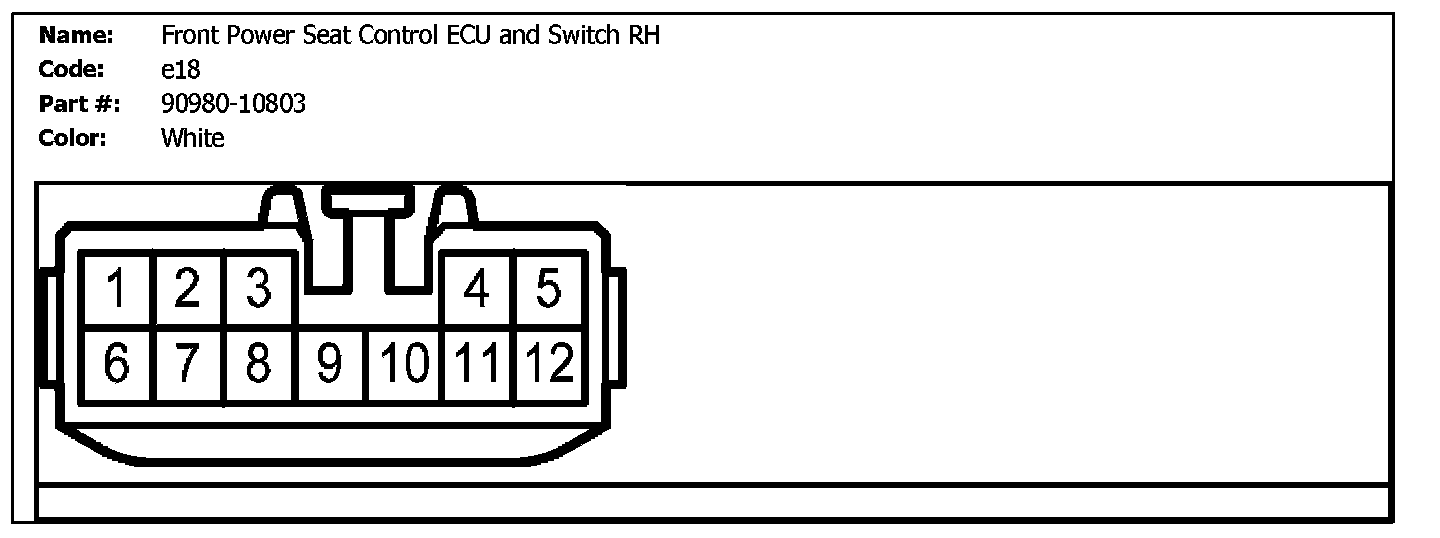

e18 (Front Power Seat Control ECU And Switch RH):

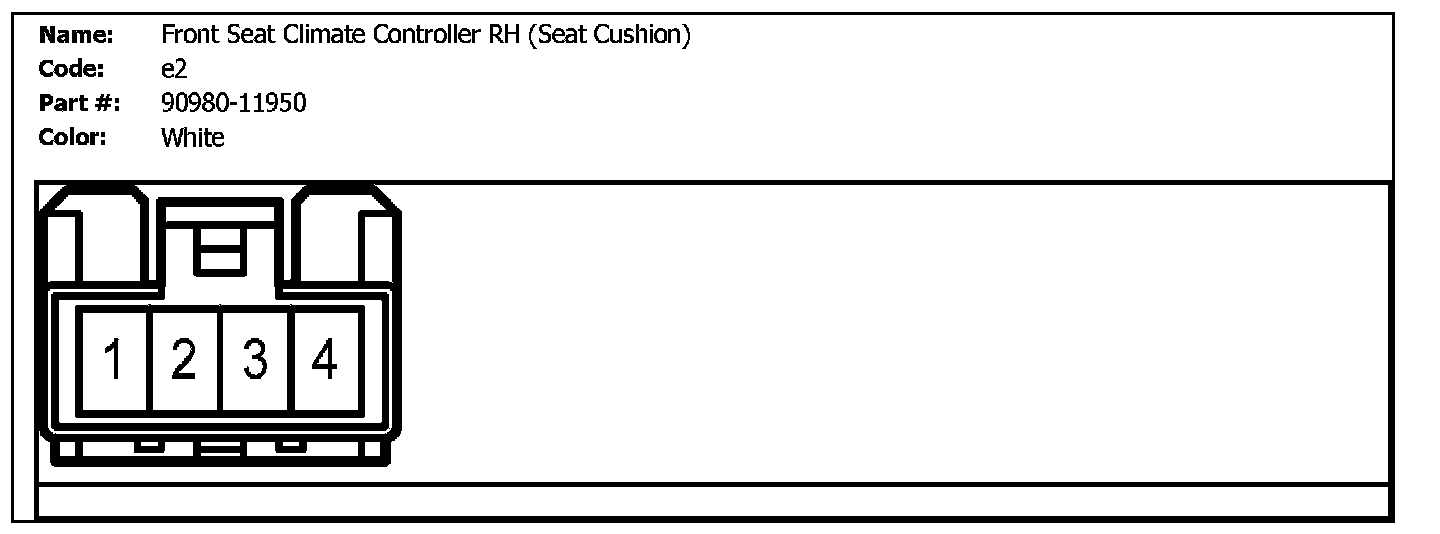

e2 (Front Seat Climate Controller RH (Seat Cushion)):

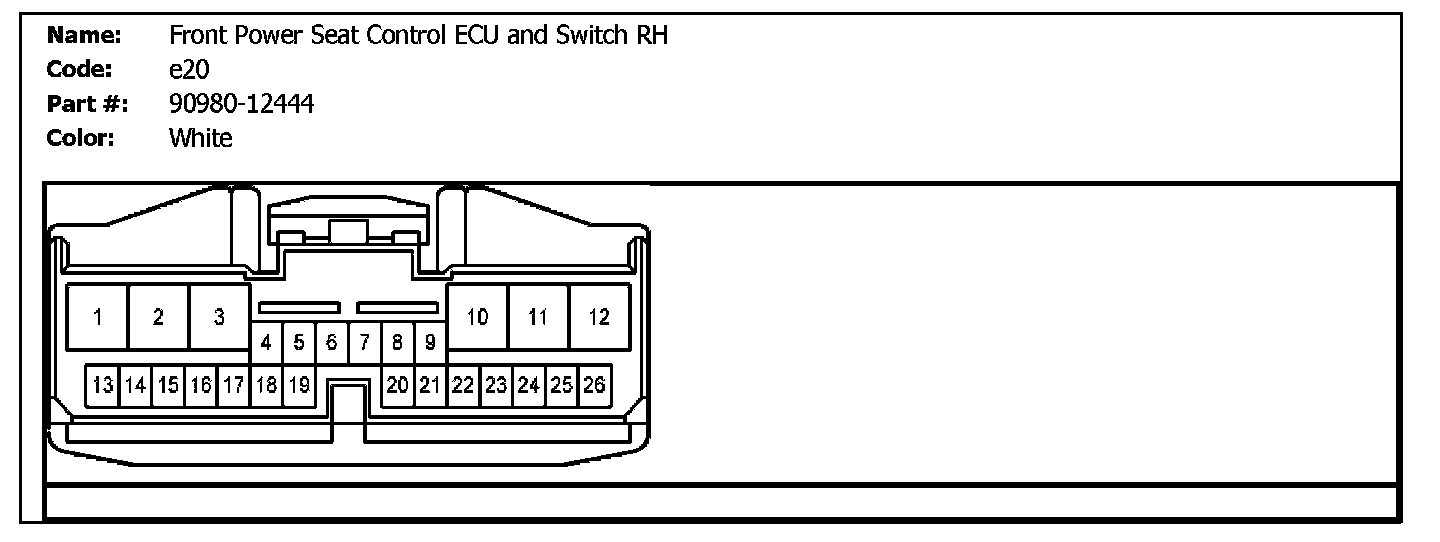

e20 (Front Power Seat Control ECU And Switch RH):

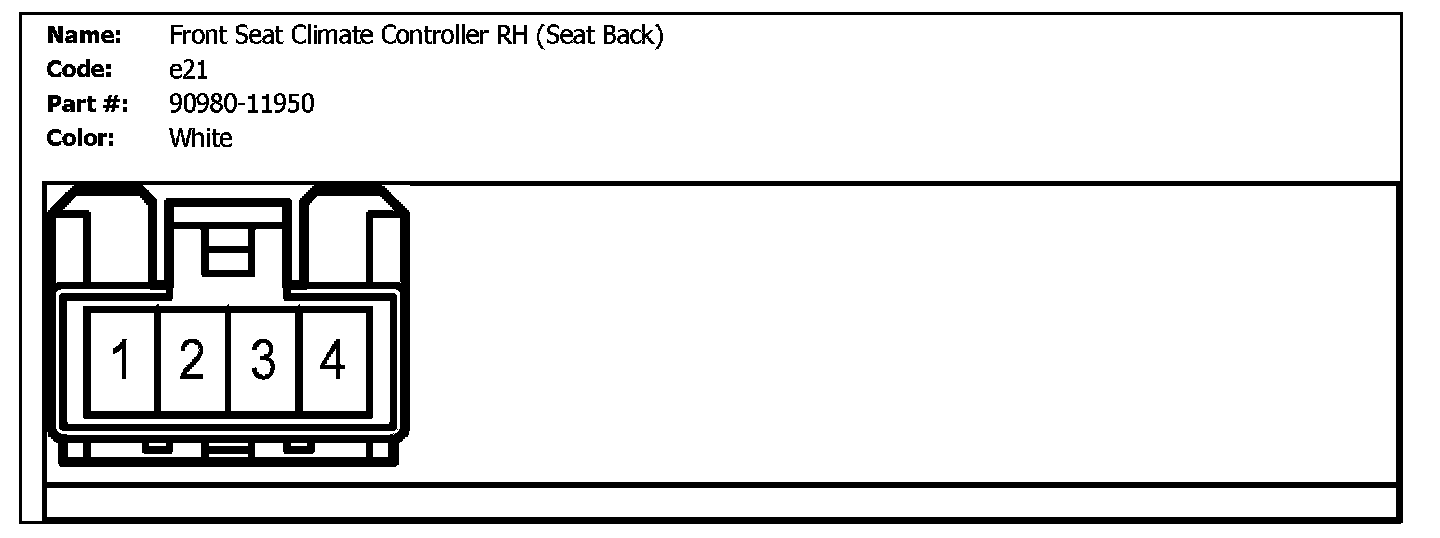

e21 (Front Seat Climate Controller RH (Seat Back)):

e3 (Front Seat Climate Control ECU RH):

e33 (Front Seat Climate Controller LH (Seat Cushion)):

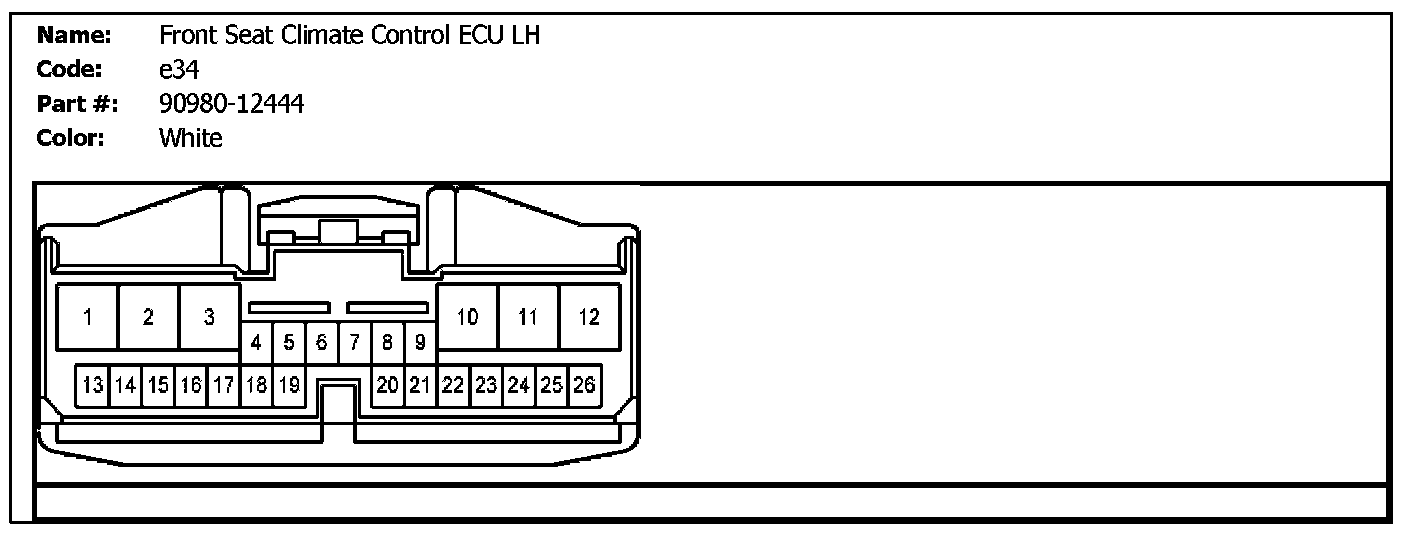

e34 (Front Seat Climate Control ECU LH):

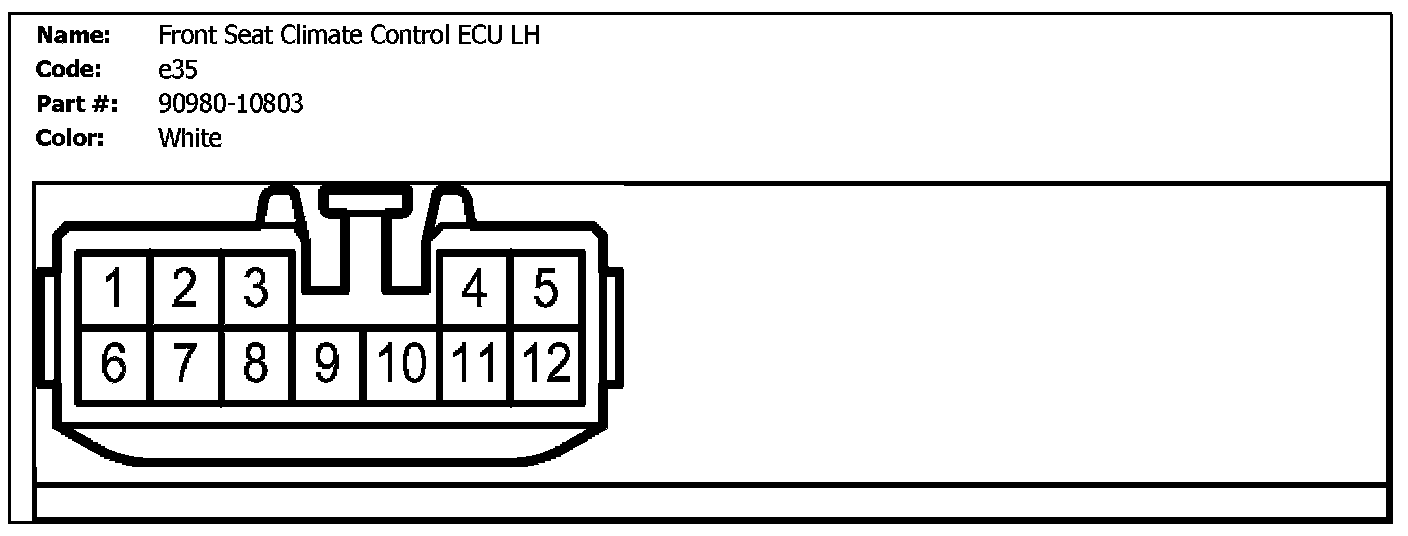

e35 (Front Seat Climate Control ECU LH):

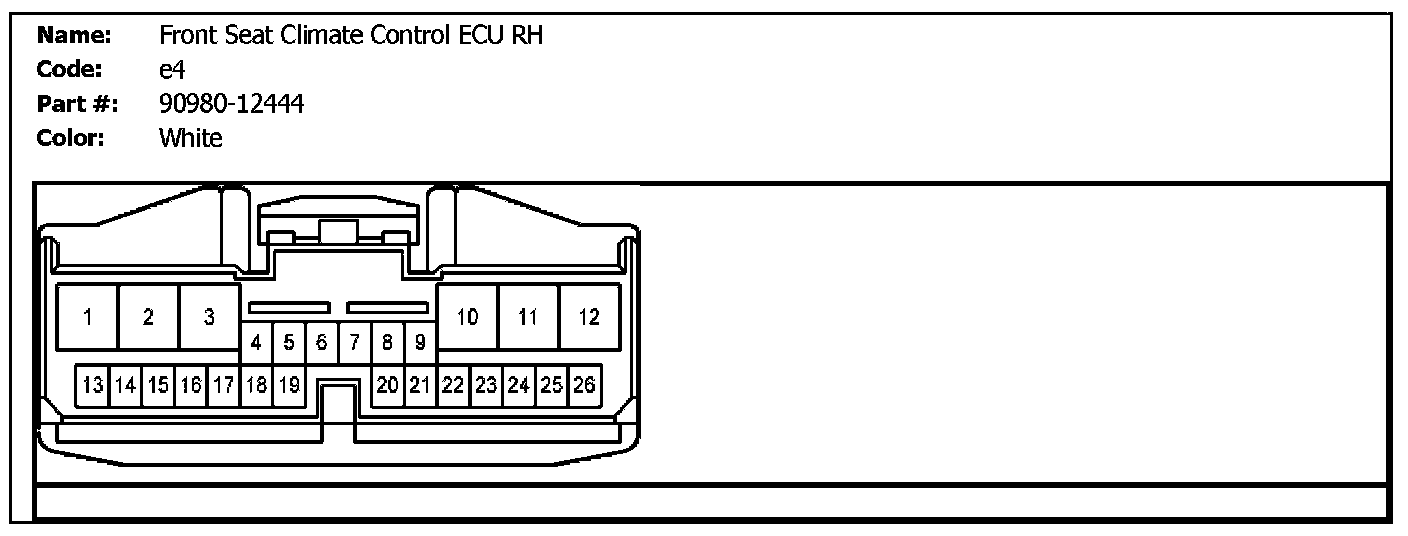

e4 (Front Seat Climate Control ECU RH):

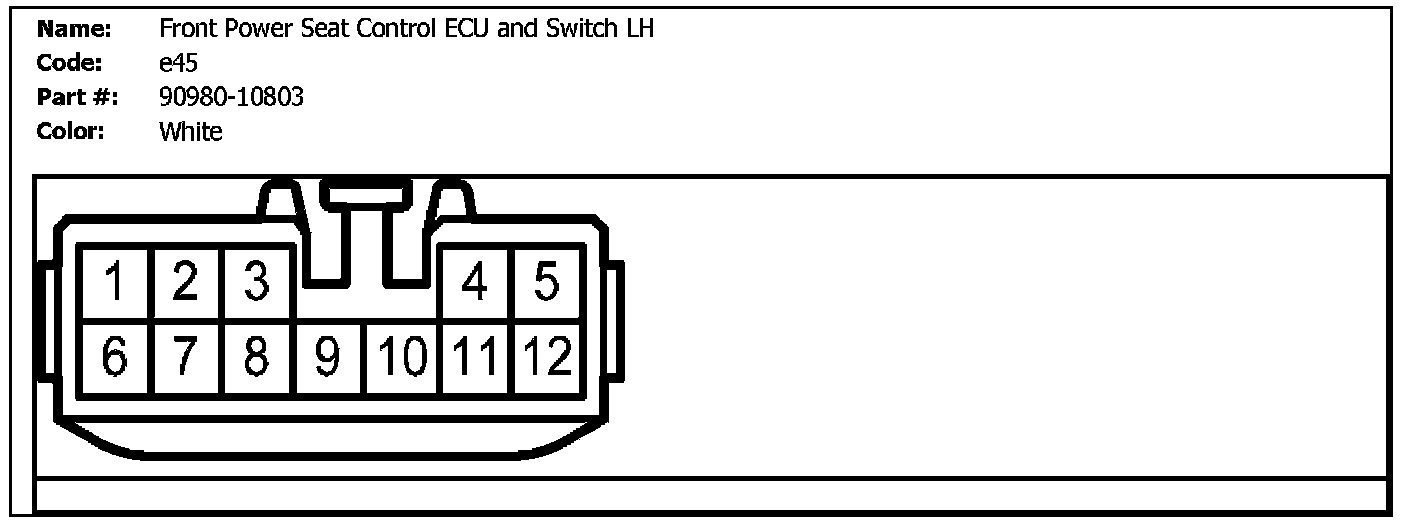

e45 (Front Power Seat Control ECU And Switch LH):

e46 (Front Power Seat Control ECU And Switch LH):

e51 (Front Seat Climate Controller LH (Seat Back)):

f12 (Rear Seat Climate Controller RH (Seat Back)):

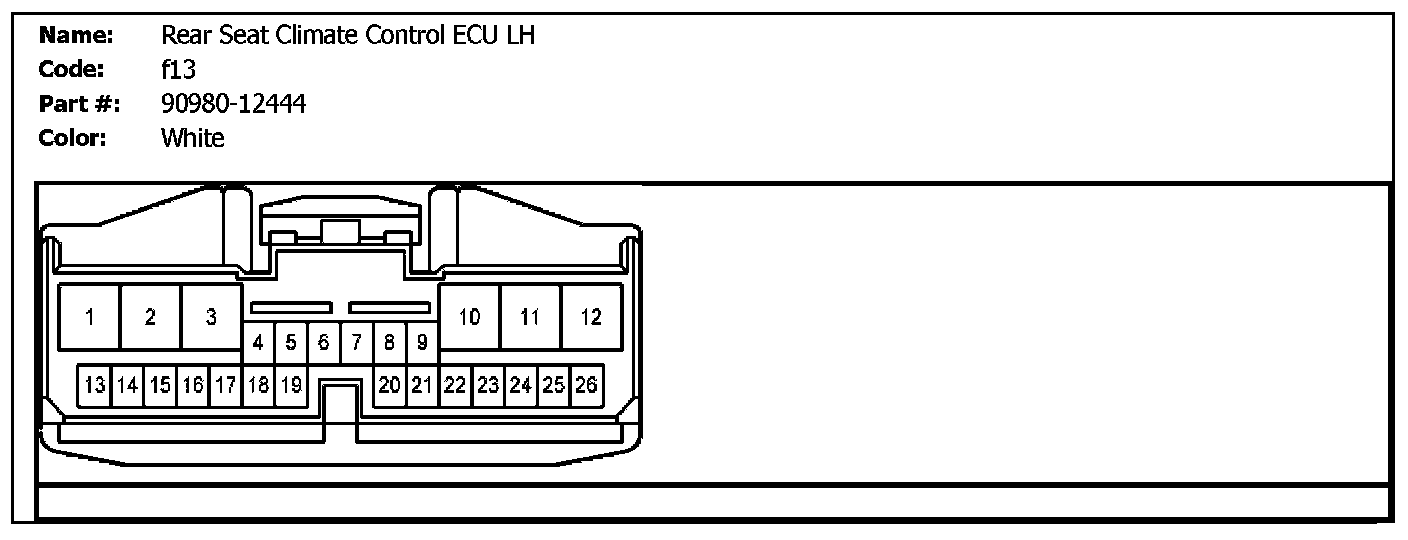

F13 (Rear Seat Climate Control ECU LH):

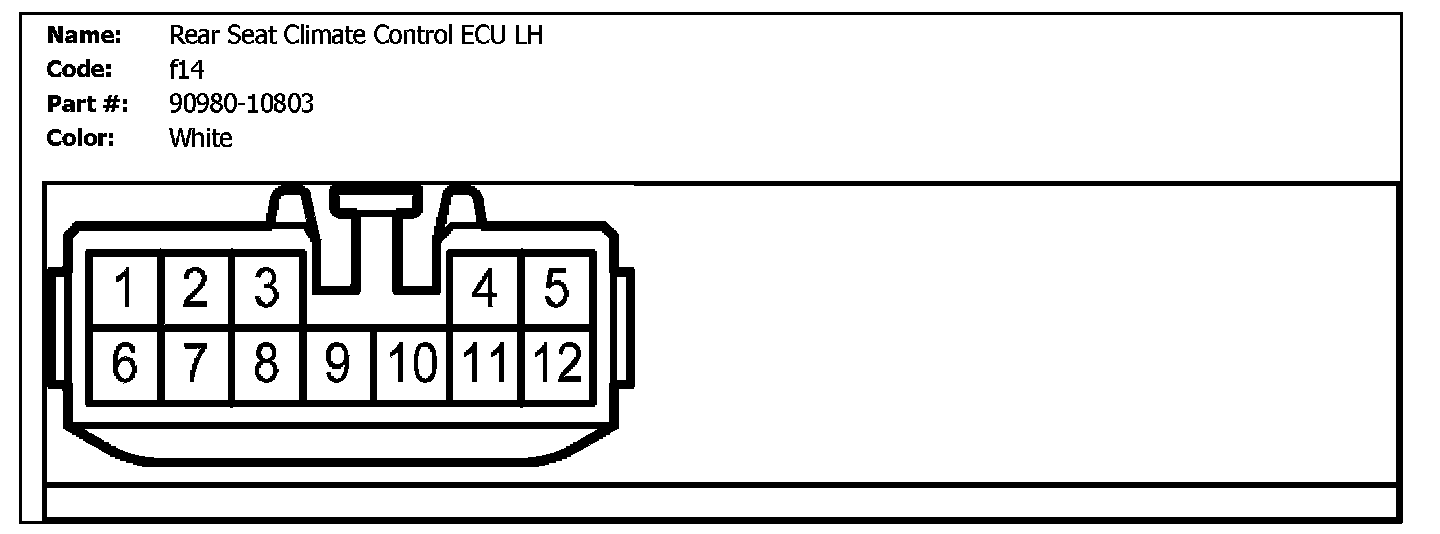

f14 (Rear Seat Climate Control ECU LH):

f24 (Rear Power Seat Control ECU LH):

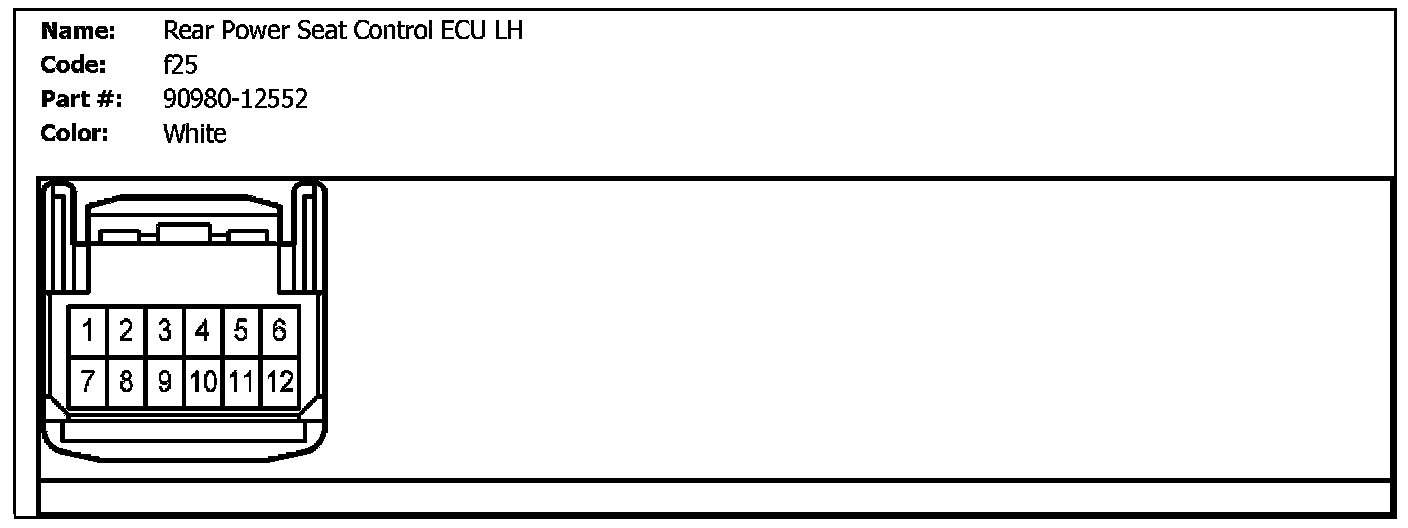

f25 (Rear Power Seat Control ECU LH):

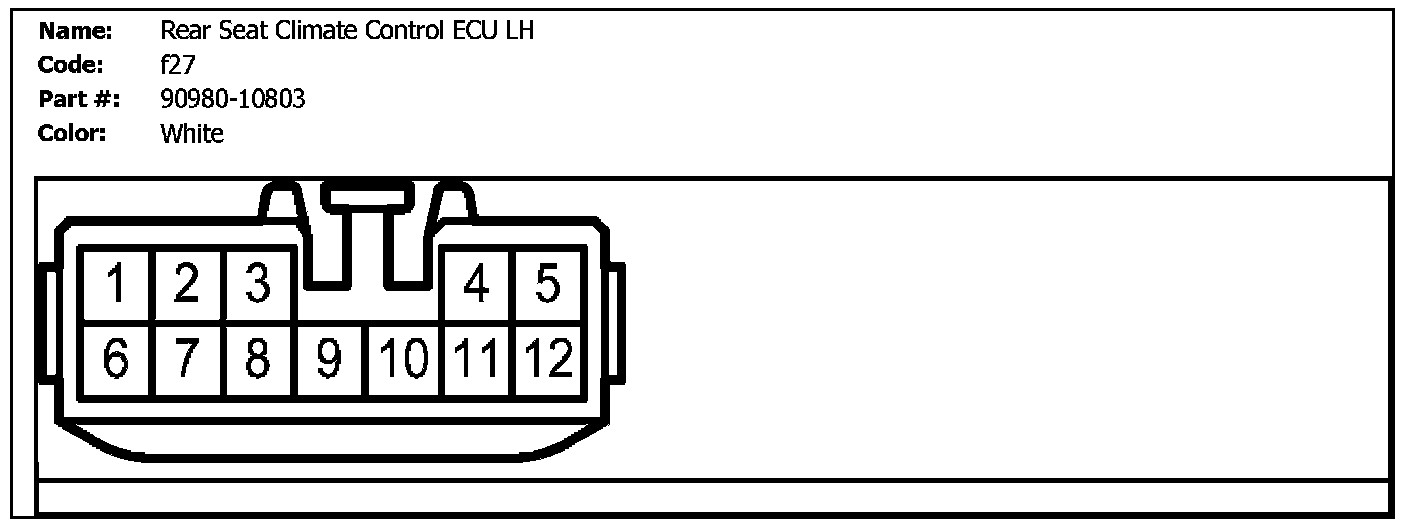

f27 (Rear Seat Climate Control ECU LH):

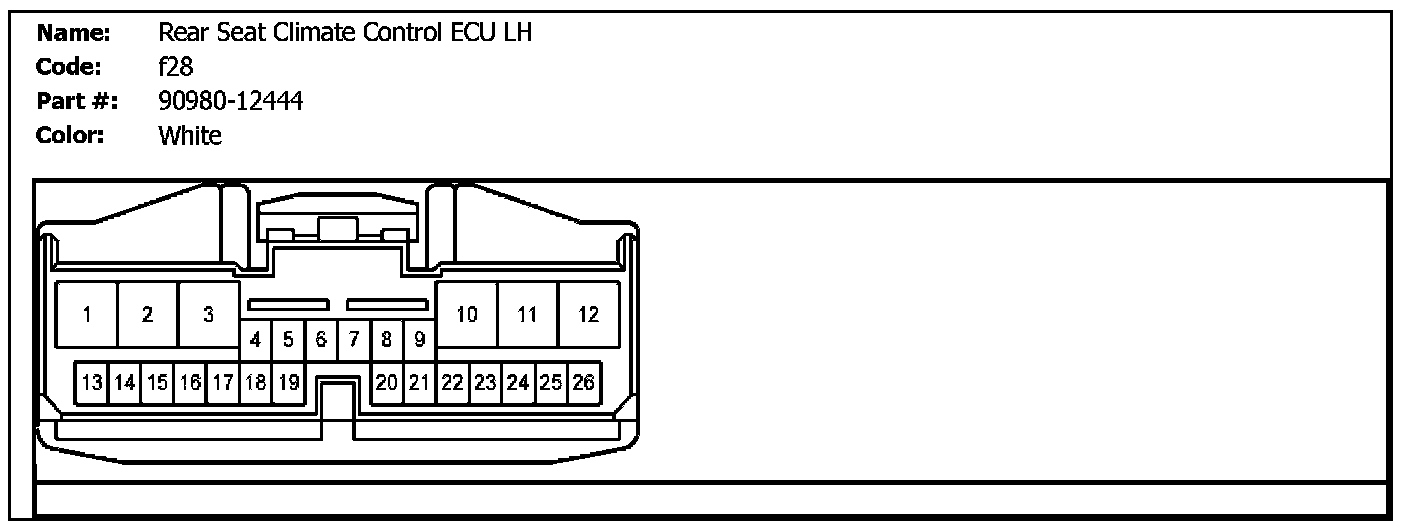

f28 (Rear Seat Climate Control ECU LH):

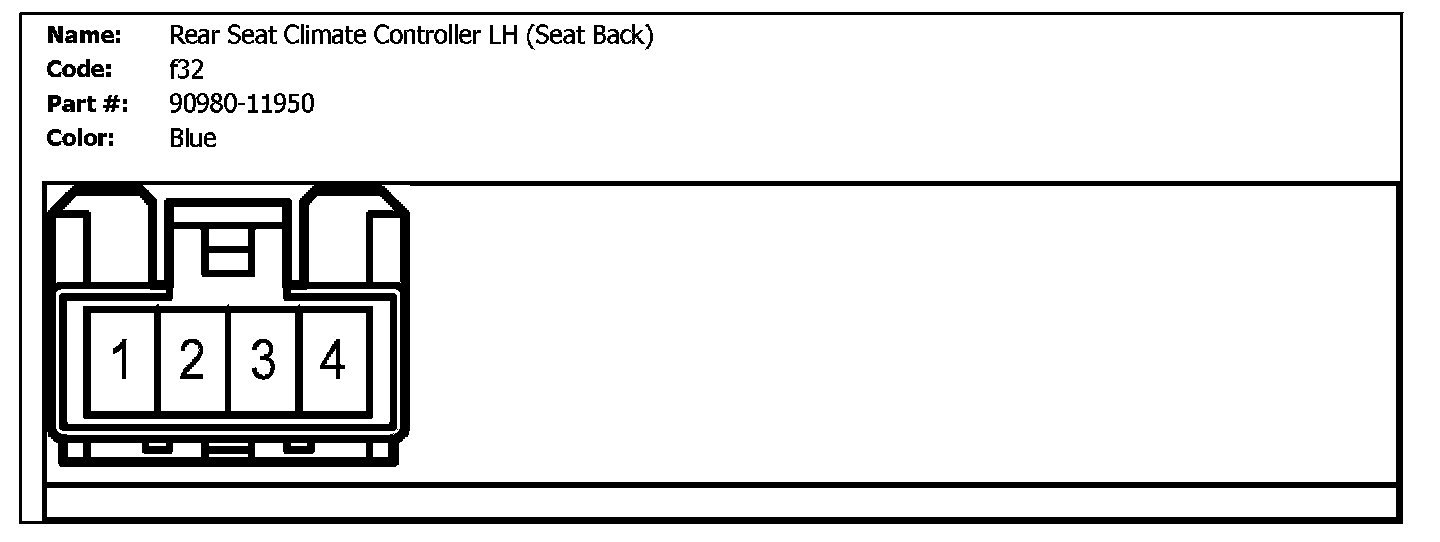

f32 (Rear Seat Climate Controller LH (Seat Back)):

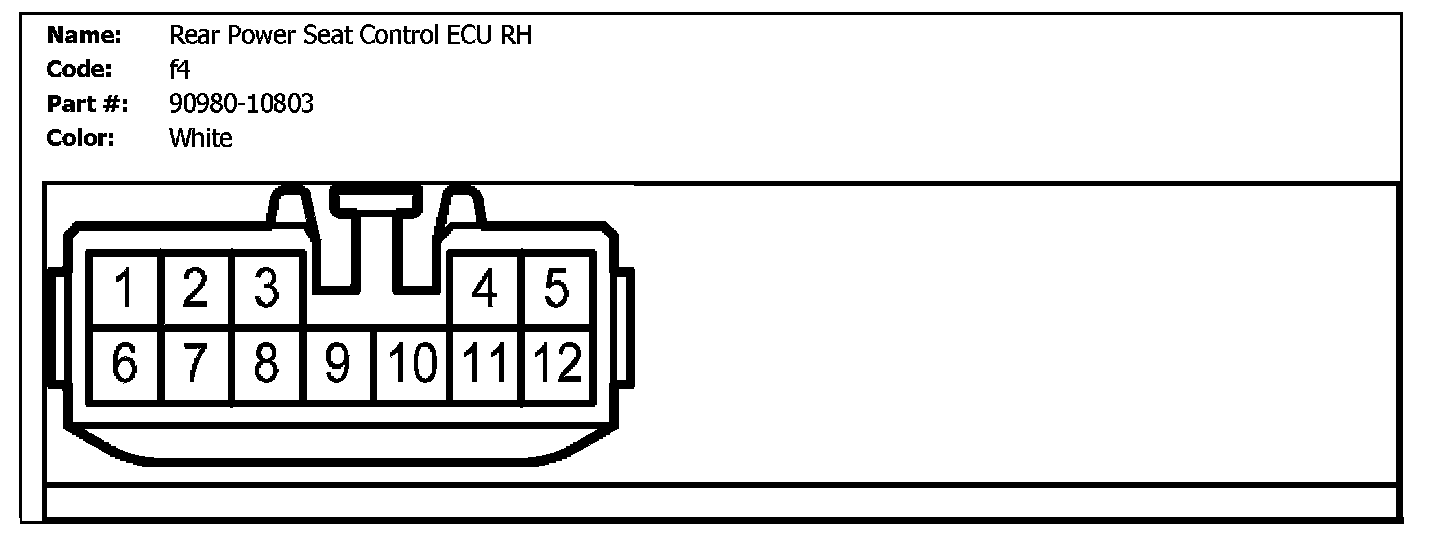

f4 (Rear Power Seat Control ECU RH):

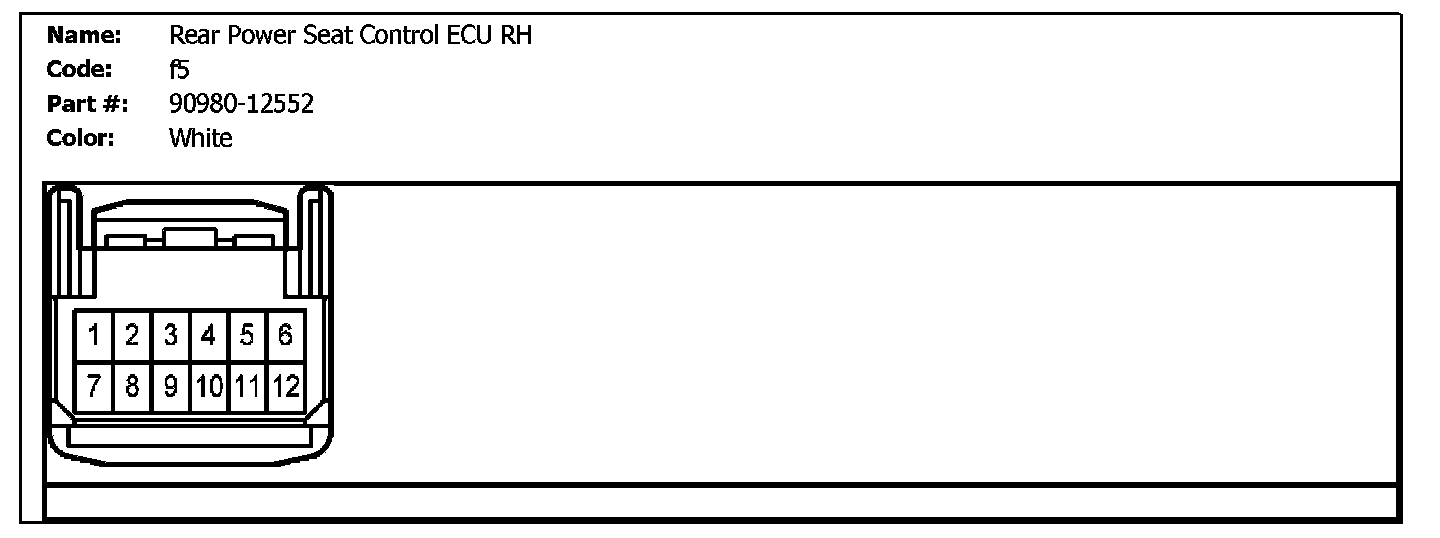

f5 (Rear Power Seat Control ECU RH):

f7 (Rear Seat Climate Control ECU RH):

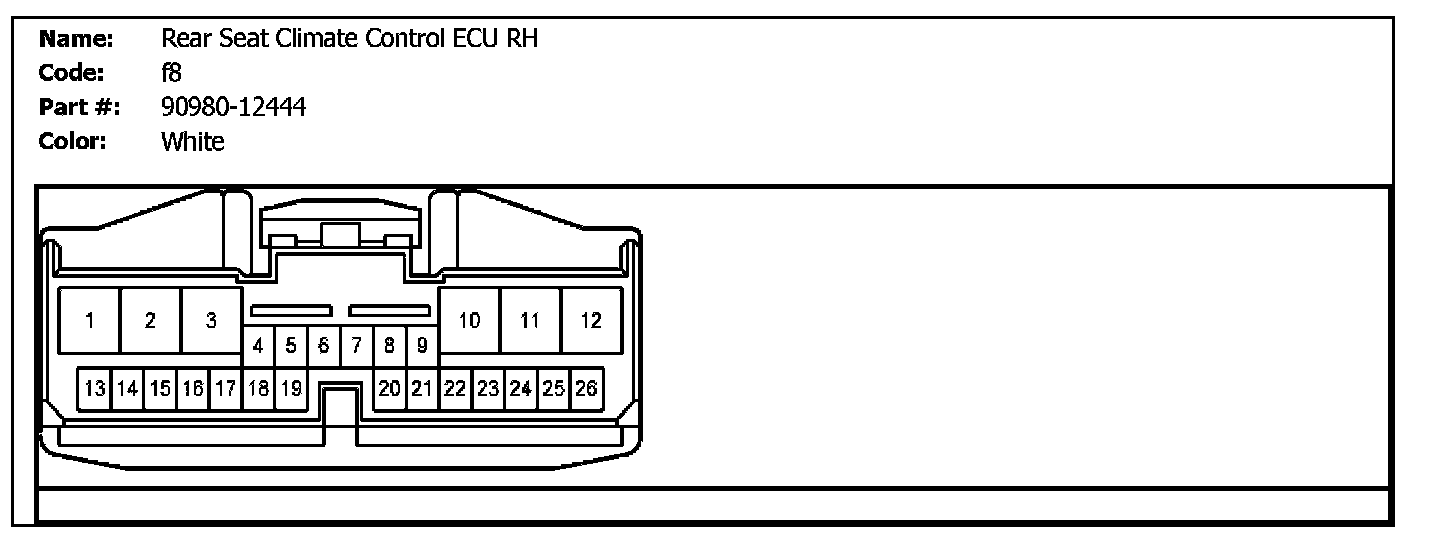

f8 (Rear Seat Climate Control ECU RH):

p1 (Rear Seat Climate Controller RH (Seat Cushion)):

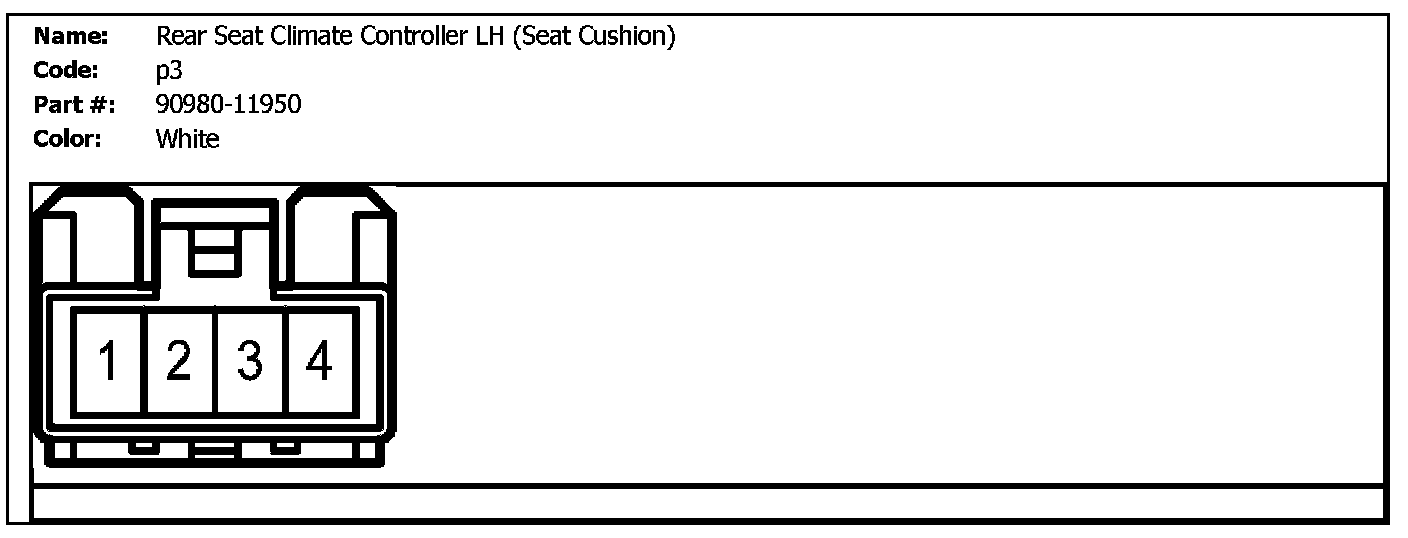

p3 (Rear Seat Climate Controller LH (Seat Cushion)):

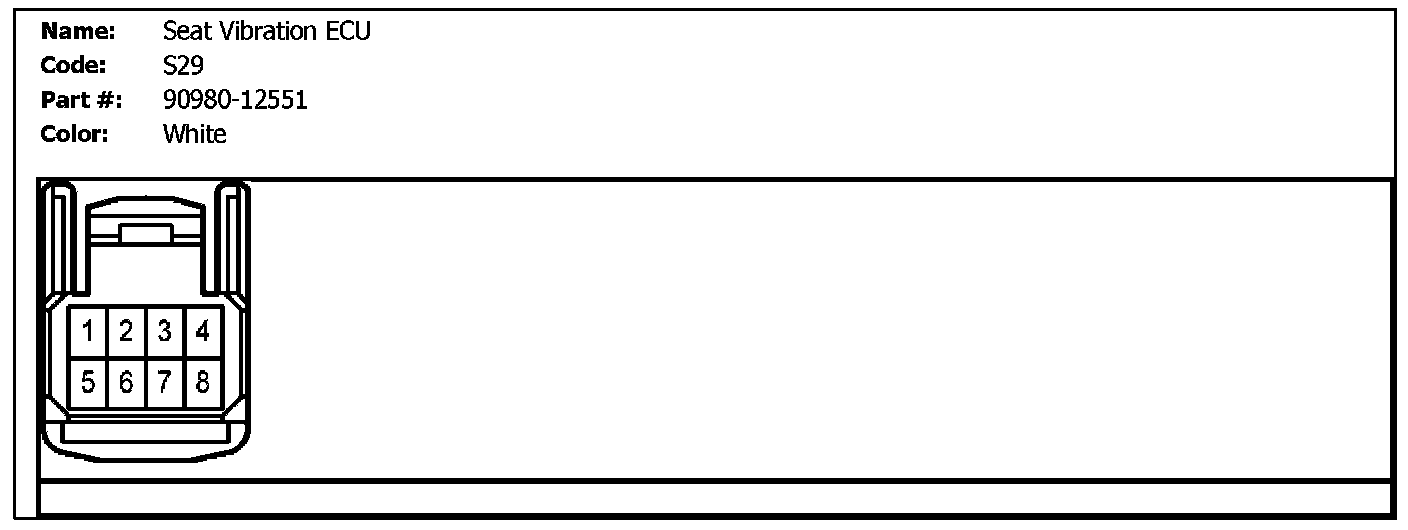

S29 (Seat Vibration ECU):
