PRE-COLLISION: DRIVER MONITOR ECU: INSTALLATION

INSTALLATION

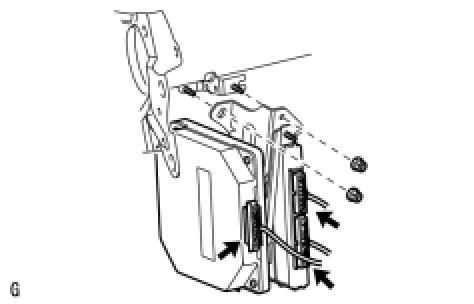

1. INSTALL DRIVER MONITOR ECU
(a) Install the ECU with the 2 nuts.
(b) Connect the connectors.
2. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY Installation

3. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Installation

4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

5. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING Installation

6. INSTALL INSTRUMENT SIDE PANEL LH Installation

7. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation

8. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
