Home >> Lexus >> 2008 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Powertrain Management >> Tune-up and Engine Performance Checks >> Fuel Pressure >> Specifications

Fuel Pressure: Specifications

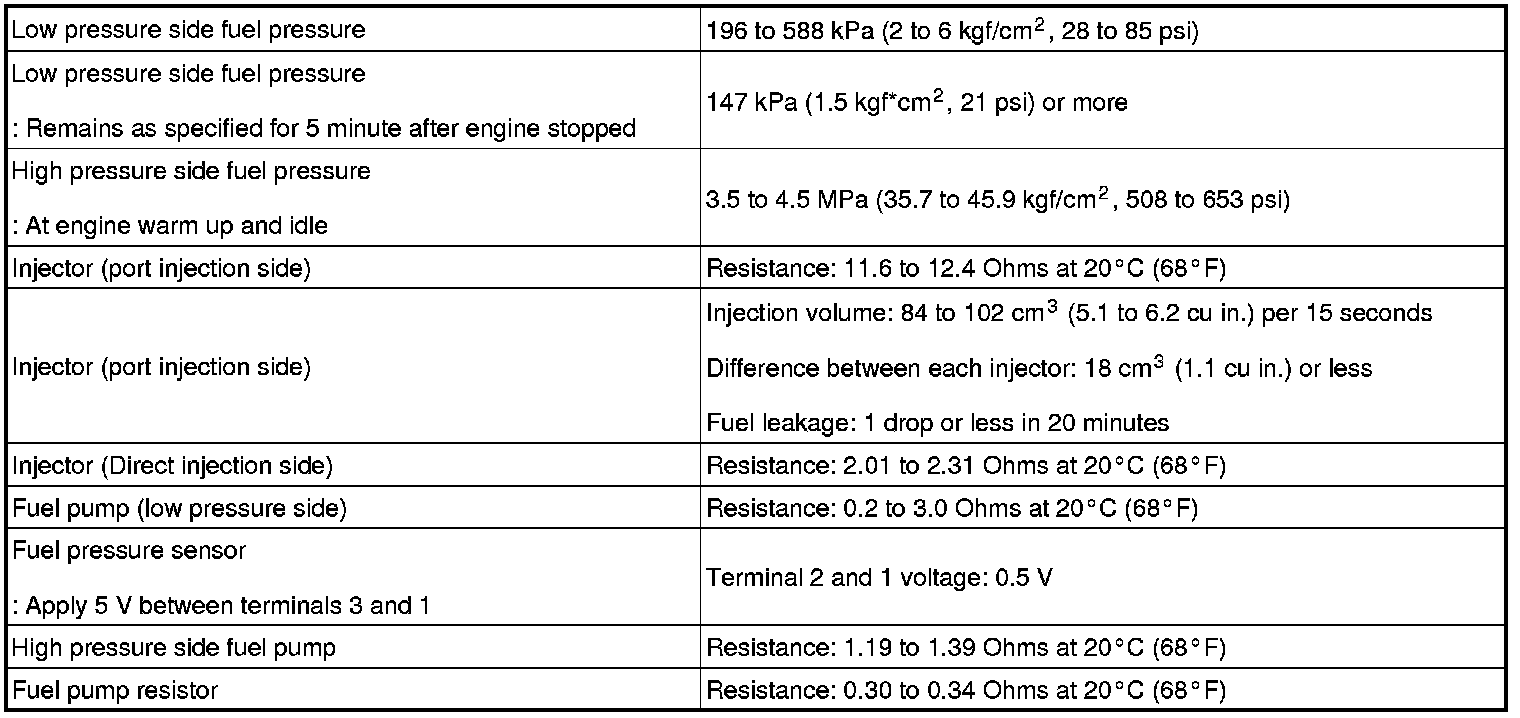

Fuel Pressure Specifications





Fuel pressure is tested under controlled conditions. Refer to Testing and Inspection for complete procedure. Testing and Inspection
