Installation

LIGHTING: HEADLIGHT ASSEMBLY: INSTALLATION

INSTALLATION

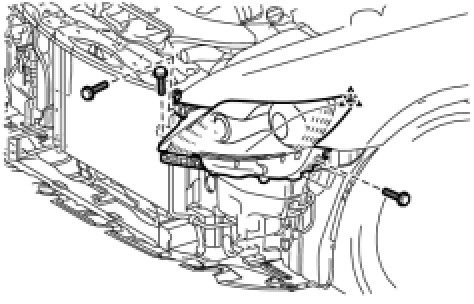

1. INSTALL HEADLIGHT ASSEMBLY LH (w/ Headlight Cleaner System)
(a) Attach the clamp.
(b) Connect the connectors.
(c) Install the headlight LH with the 3 bolts.
(d) Connect the headlight cleaner hose.






2. INSTALL HEADLIGHT ASSEMBLY LH (w/o Headlight Cleaner System)
(a) Attach the clamp.
(b) Connect the connectors.
(c) Install the headlight LH with the 3 bolts.
3. INSTALL FRONT BUMPER COVER Installation

4. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH Installation

5. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH Installation

6. INSTALL RADIATOR GRILLE ASSEMBLY Installation

7. INSTALL FRONT FENDER WHEEL OPENING MOULDING LH

8. INSTALL FRONT FENDER WHEEL OPENING MOULDING RH Installation

9. CHECK HEADLIGHT Adjustments

10. ADJUST HEADLIGHT Adjustments

11. INSTALL COOL AIR INTAKE DUCT SEAL Installation

12. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY Installation

13. INSTALL ENGINE ROOM SIDE COVER Installation

14. INSTALL ENGINE ROOM SIDE COVER LH Installation

15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
16. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

17. PERFORM INITIALIZATION
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

18. VEHICLE PREPARATION FOR HEADLIGHT AIMING ADJUSTMENT Adjustments

19. PREPARATION FOR HEADLIGHT AIMING (Using a screen) Adjustments

20. HEADLIGHT AIMING INSPECTION Adjustments

21. HEADLIGHT AIMING ADJUSTMENT Adjustments

22. VEHICLE PREPARATION FOR FOG LIGHT AIMING ADJUSTMENT Adjustments

23. PREPARATION FOR FOG LIGHT AIMING Adjustments

24. FOG LIGHT AIMING INSPECTION Adjustments

25. FOG LIGHT AIMING ADJUSTMENT Adjustments
