LIGHTING: INSIDE HANDLE LIGHT: INSTALLATION

INSTALLATION

1. INSTALL REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH

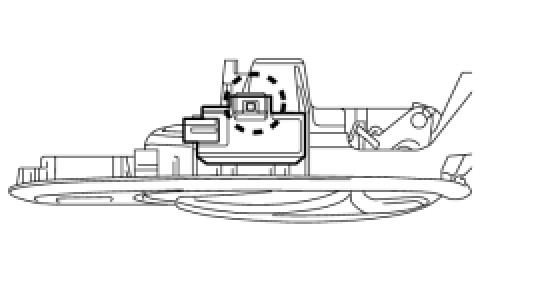

(a) Connect the connector.
2. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH Installation

3. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH (w/ Rear Door Sunshade) Installation

4. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY Installation

5. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG LH Installation

6. INSTALL FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH






(a) Connect the connector.
(b) Attach the claw to install the light.
7. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Installation

8. INSTALL FRONT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY LH Installation

9. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH Installation
