Installation

AIR CONDITIONING: PTC HEATER ASSEMBLY: INSTALLATION

INSTALLATION





1. INSTALL PTC HEATER ASSEMBLY

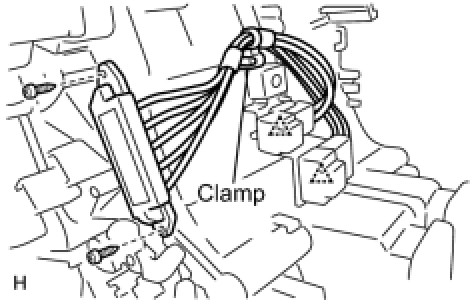

(a) Install the PTC heater with the 2 screws and 3 clamps.
2. INSTALL REAR MODE SERVO MOTOR LH Reassembly

3. INSTALL AIR CONDITIONING UNIT ASSEMBLY
(a) Install the air conditioning unit Installation.
