Wiper and Washer

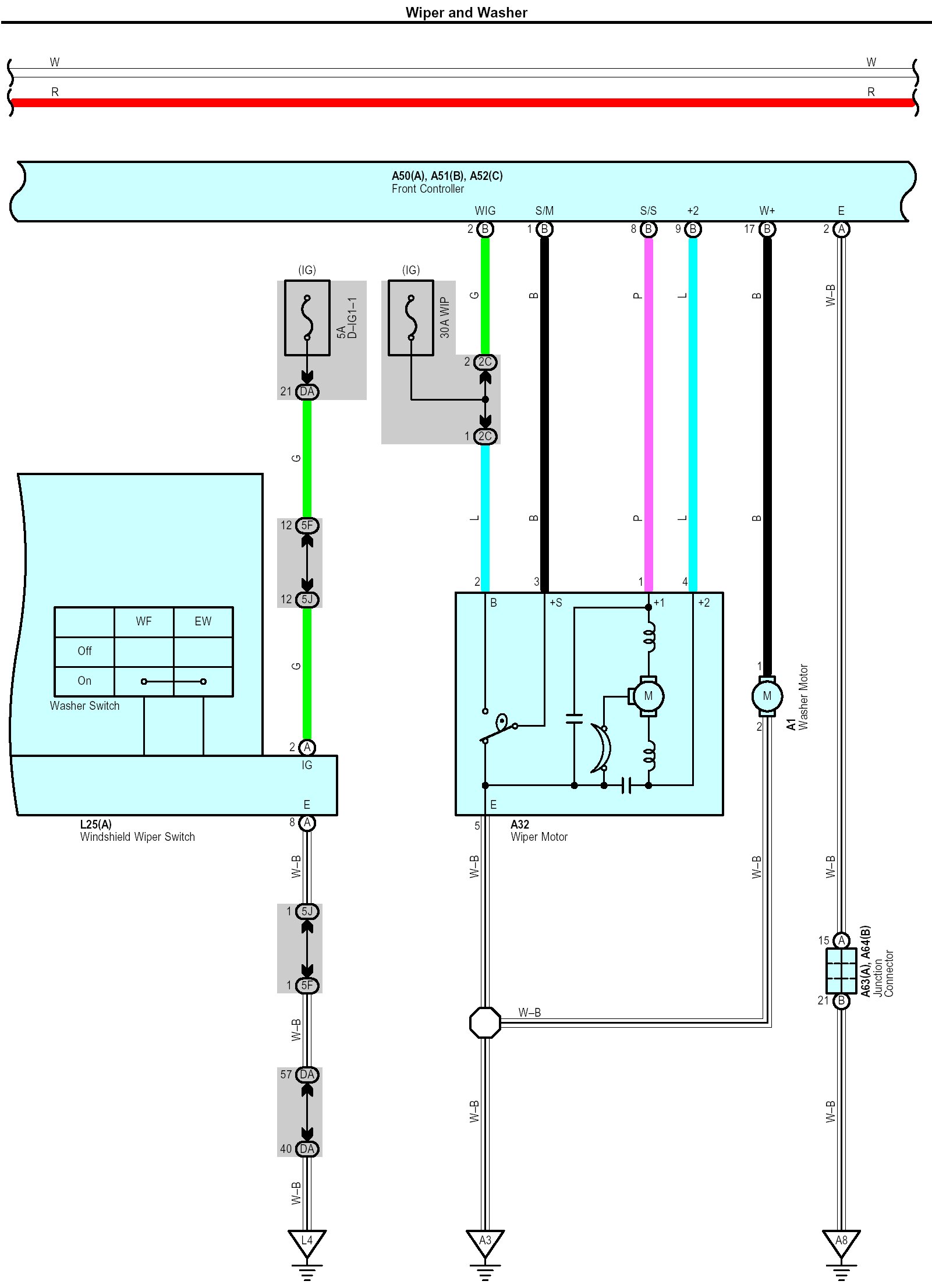

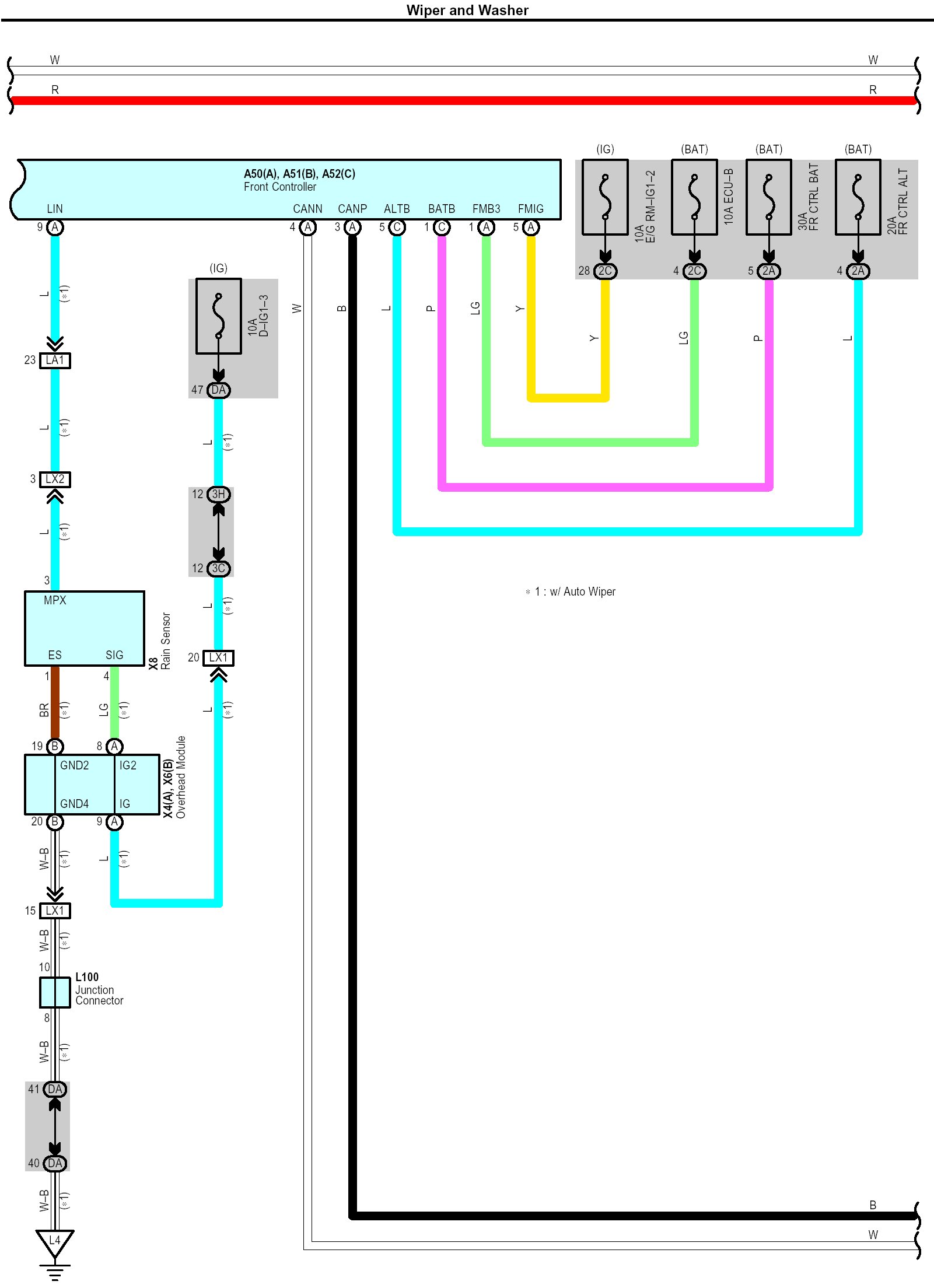

Wiper and Washer Part 1:

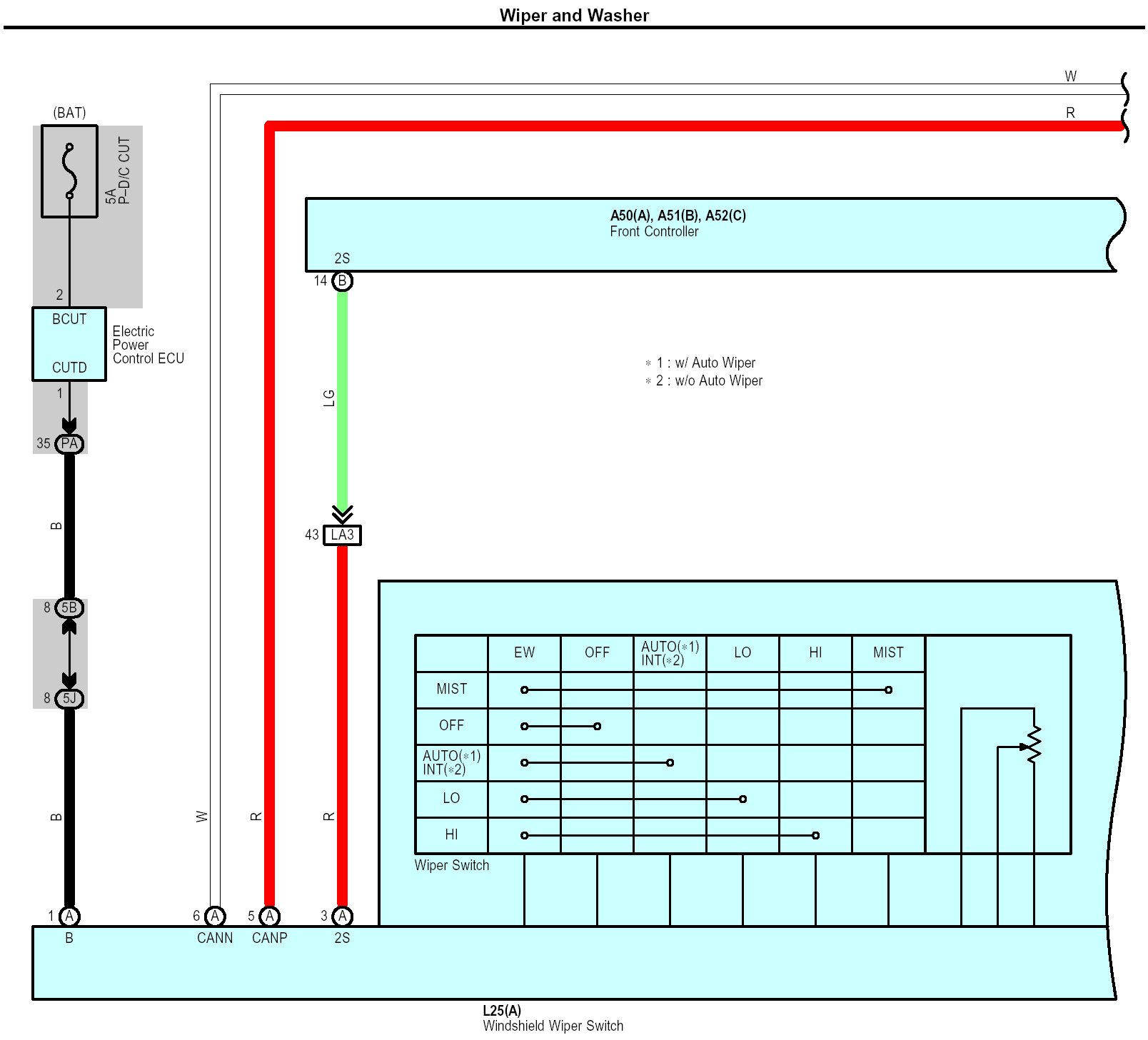

Wiper and Washer Part 2:

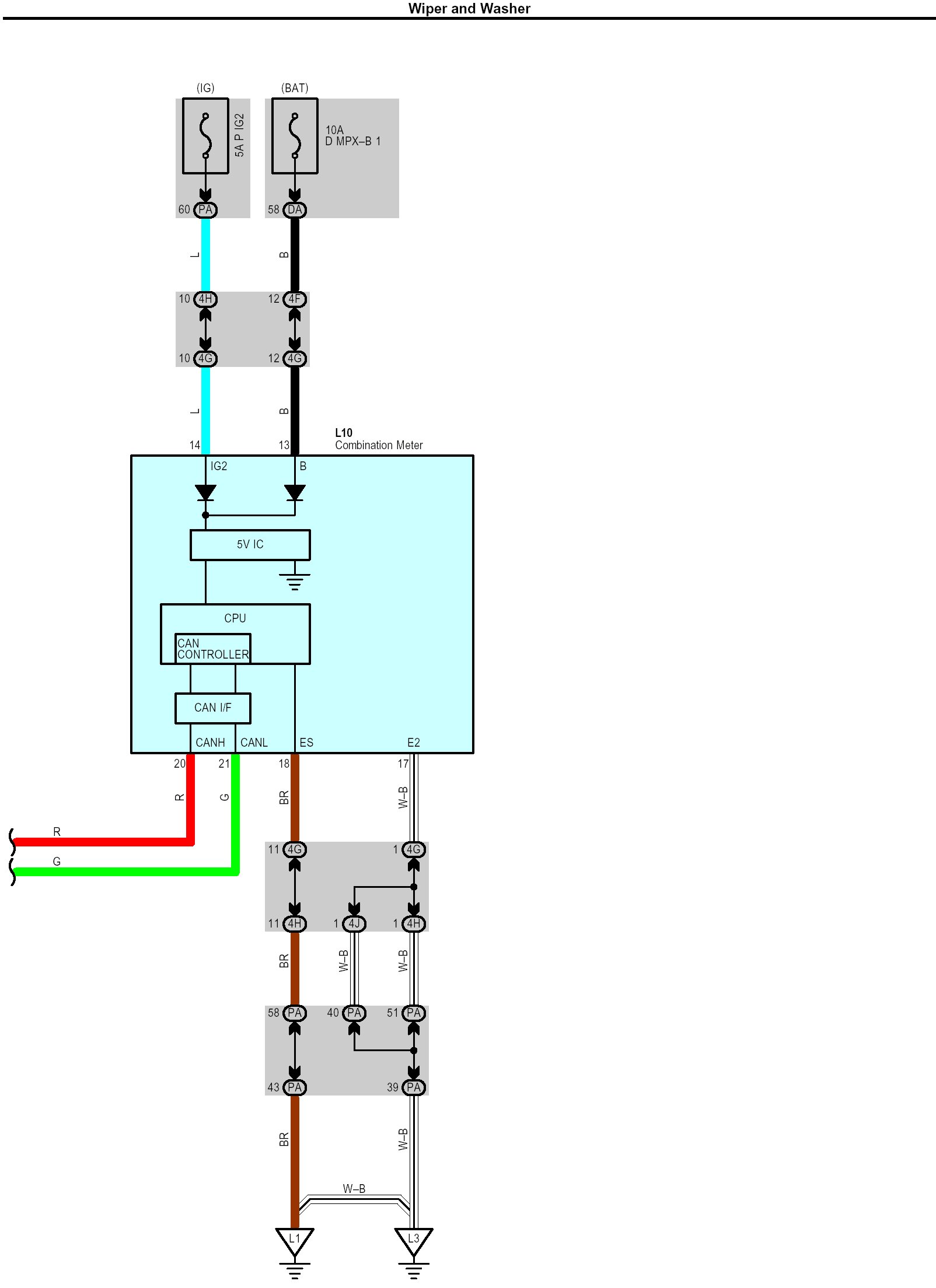

Wiper and Washer Part 3:

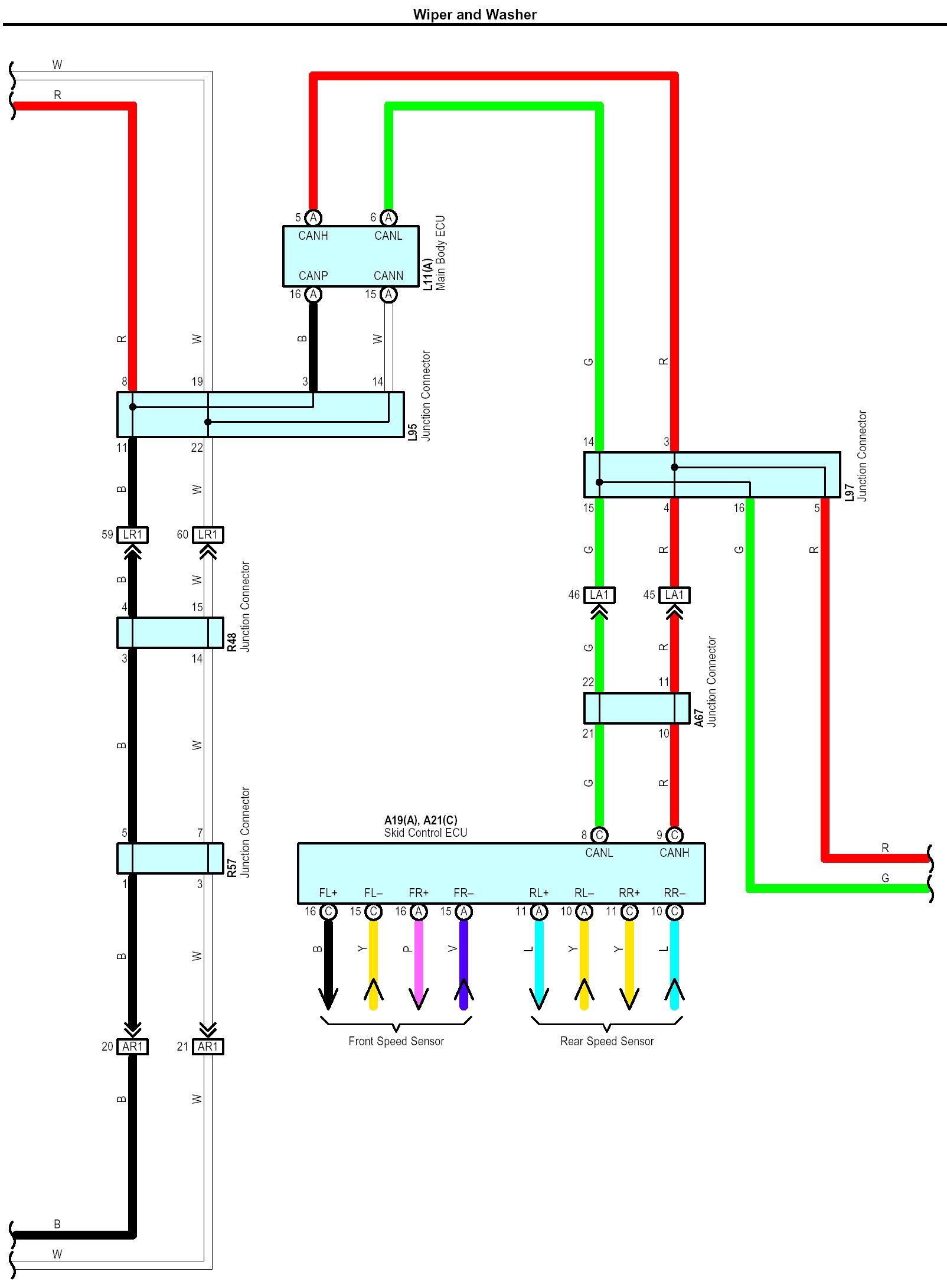

Wiper and Washer Part 4:

Wiper and Washer Part 5:

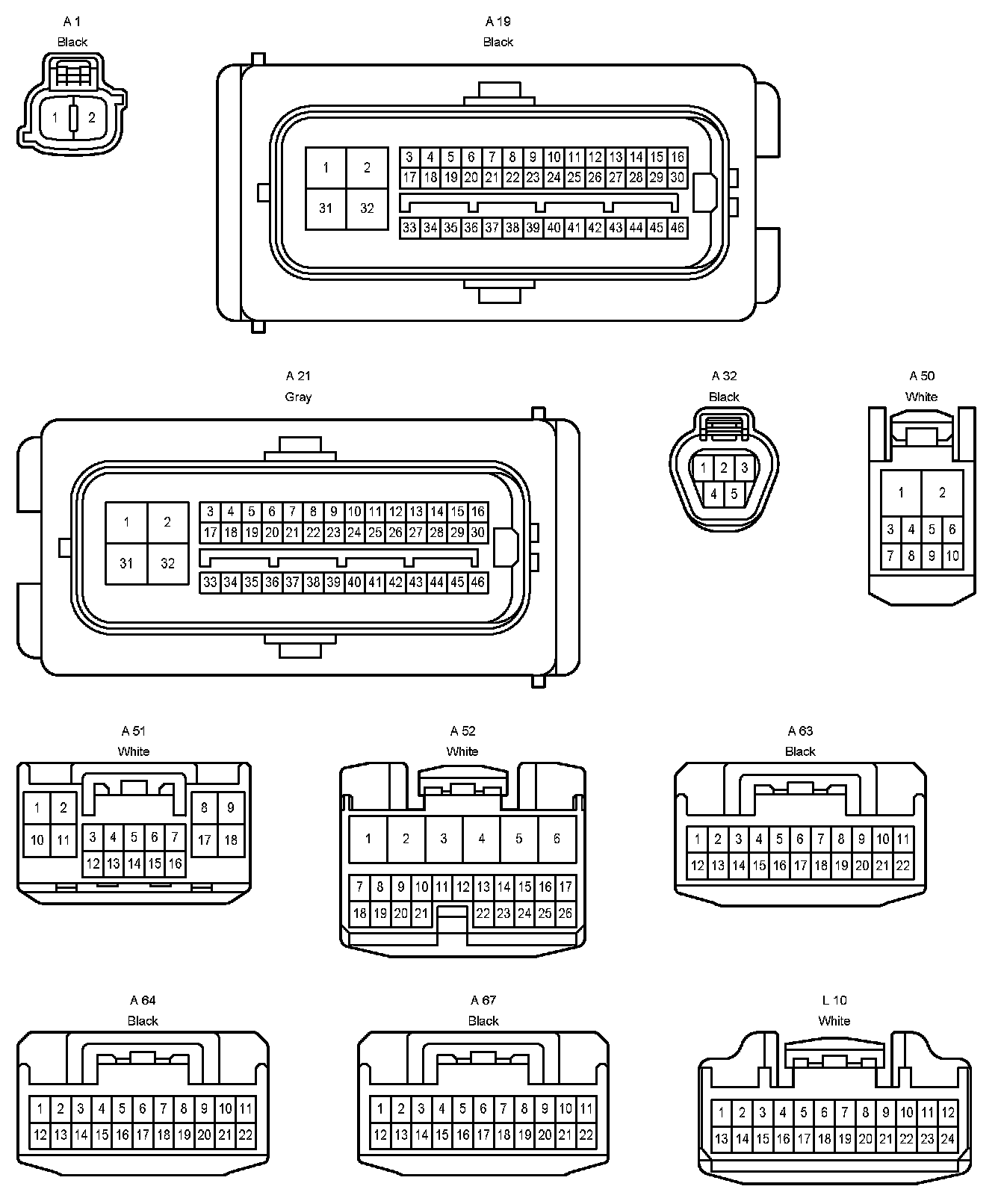

Connector Pin Outs Part 1:

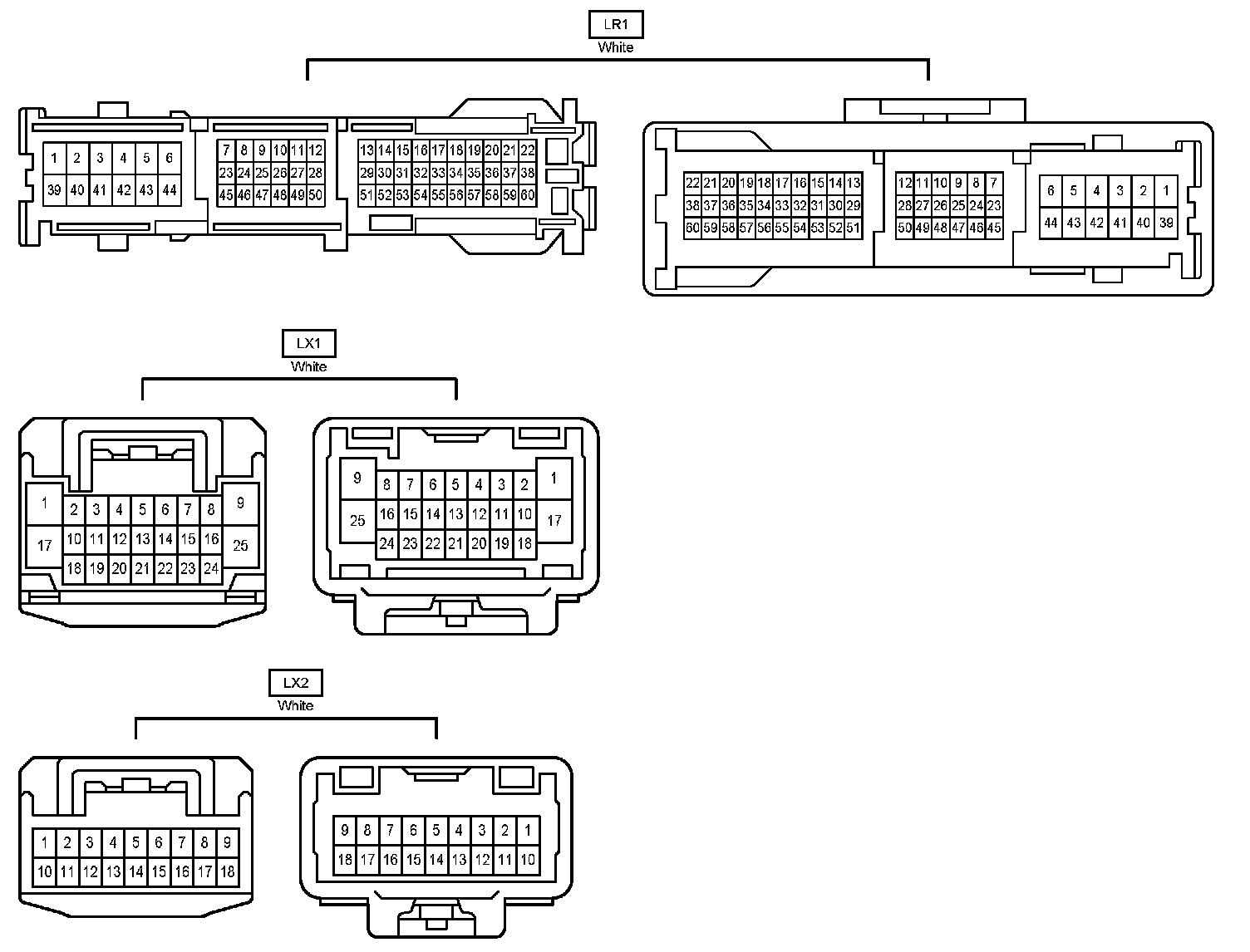

Connector Pin Outs Part 2:

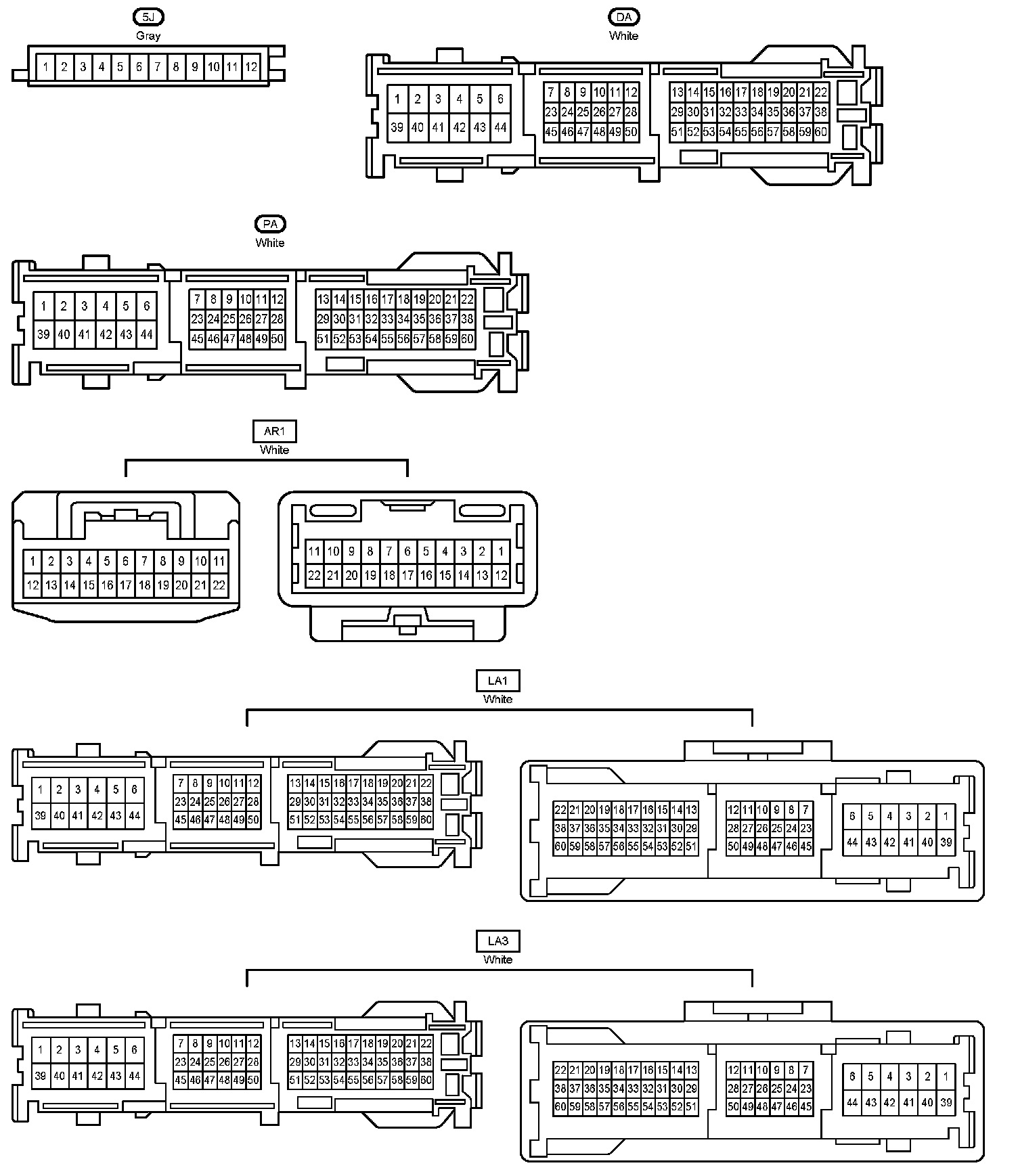

Connector Pin Outs Part 3:

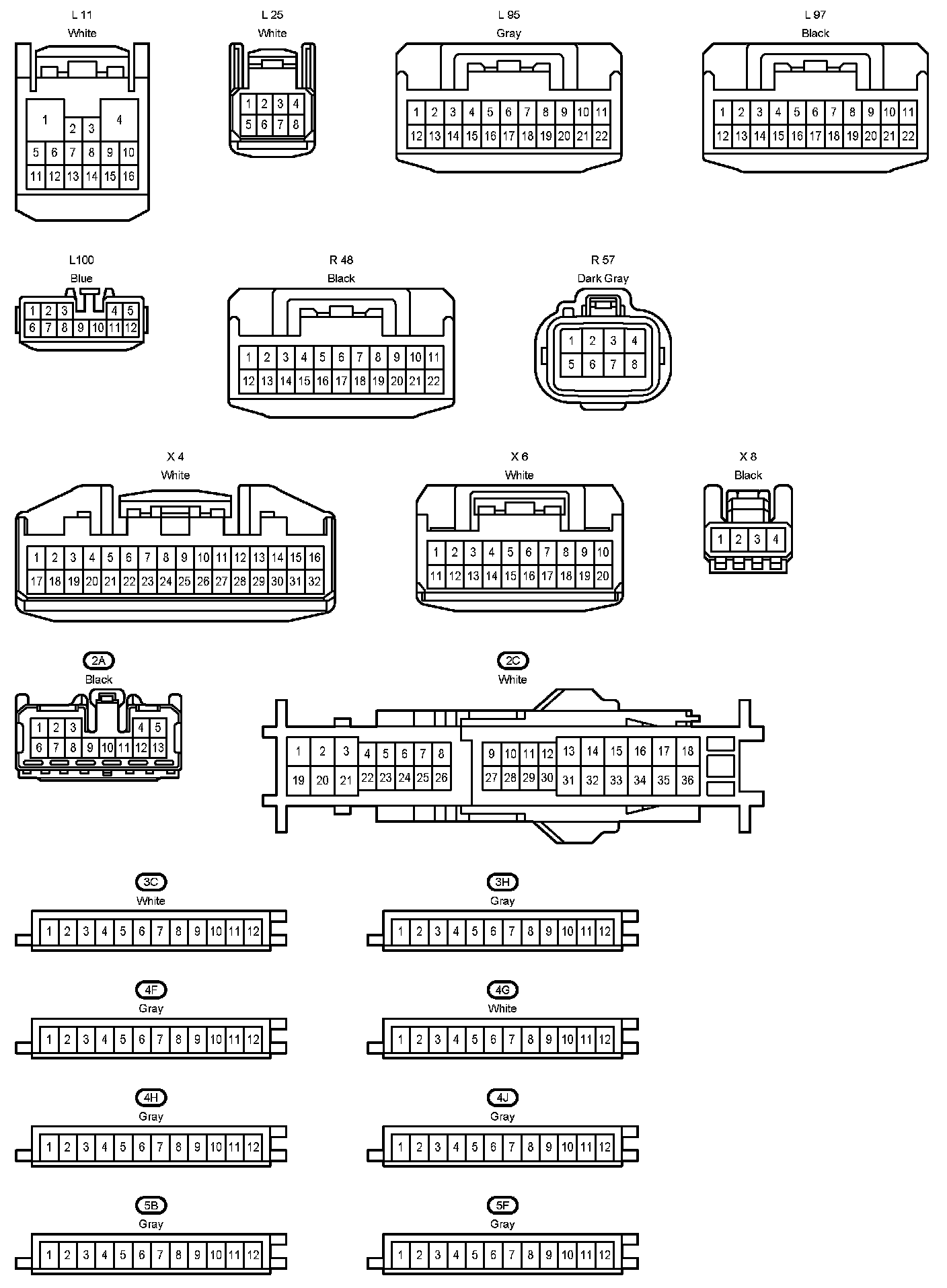

Connector Pin Outs Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
