Climate Control Seat (Driver's Seat and Front Passenger's Seat)

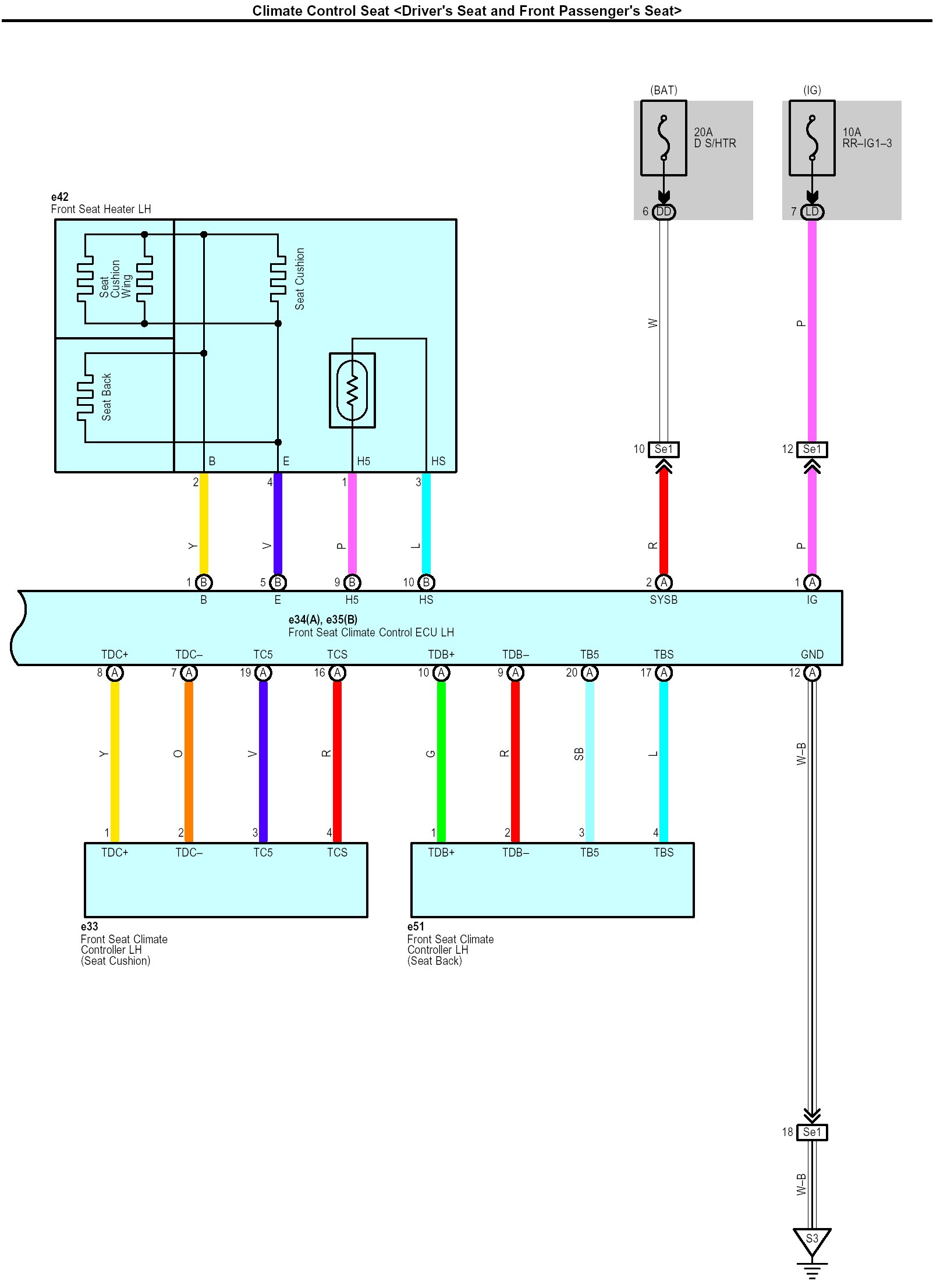

Climate Control Seat (Driver's Seat and Front Passenger's Seat) Part 1:

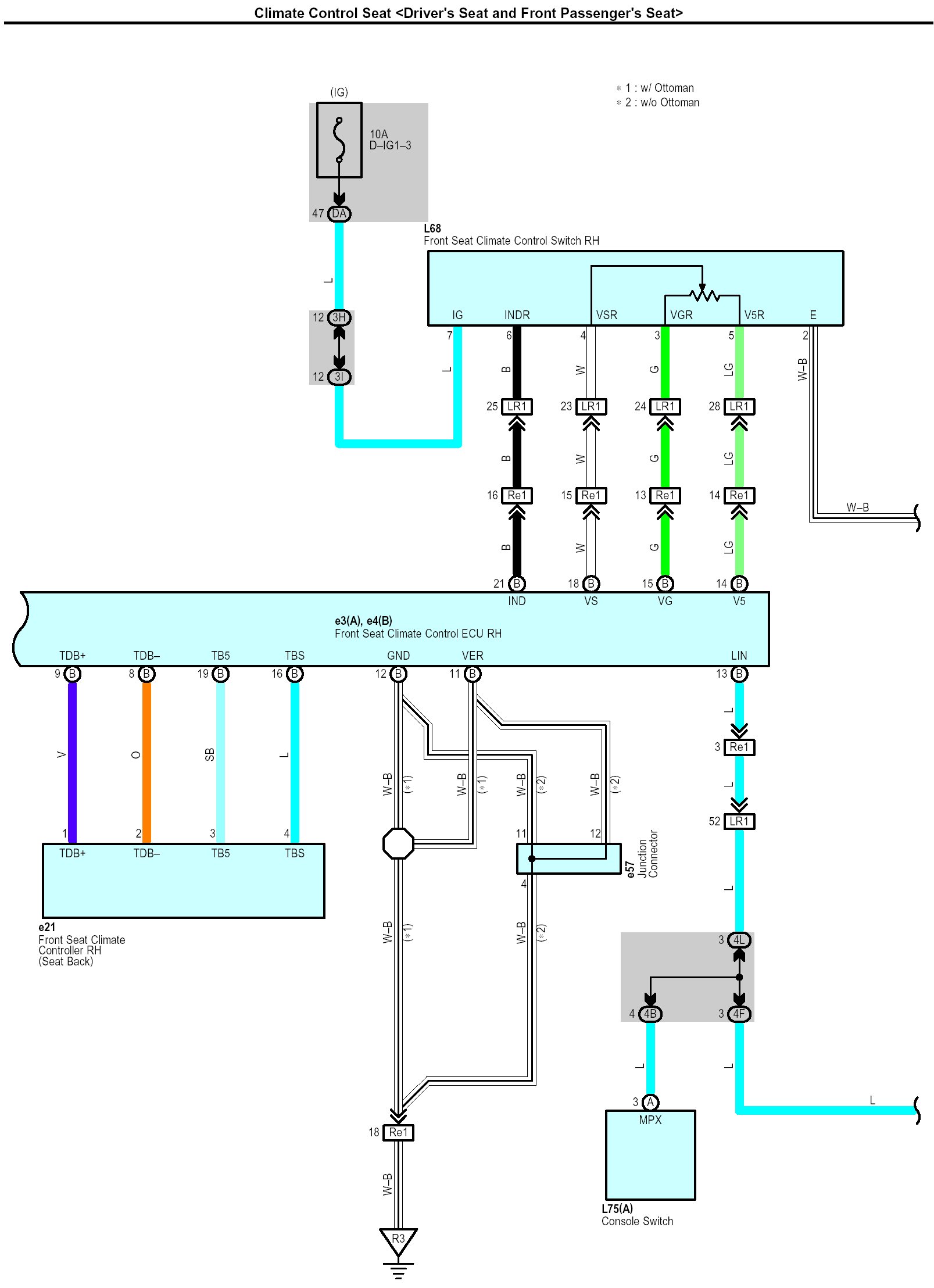

Climate Control Seat (Driver's Seat and Front Passenger's Seat) Part 2:

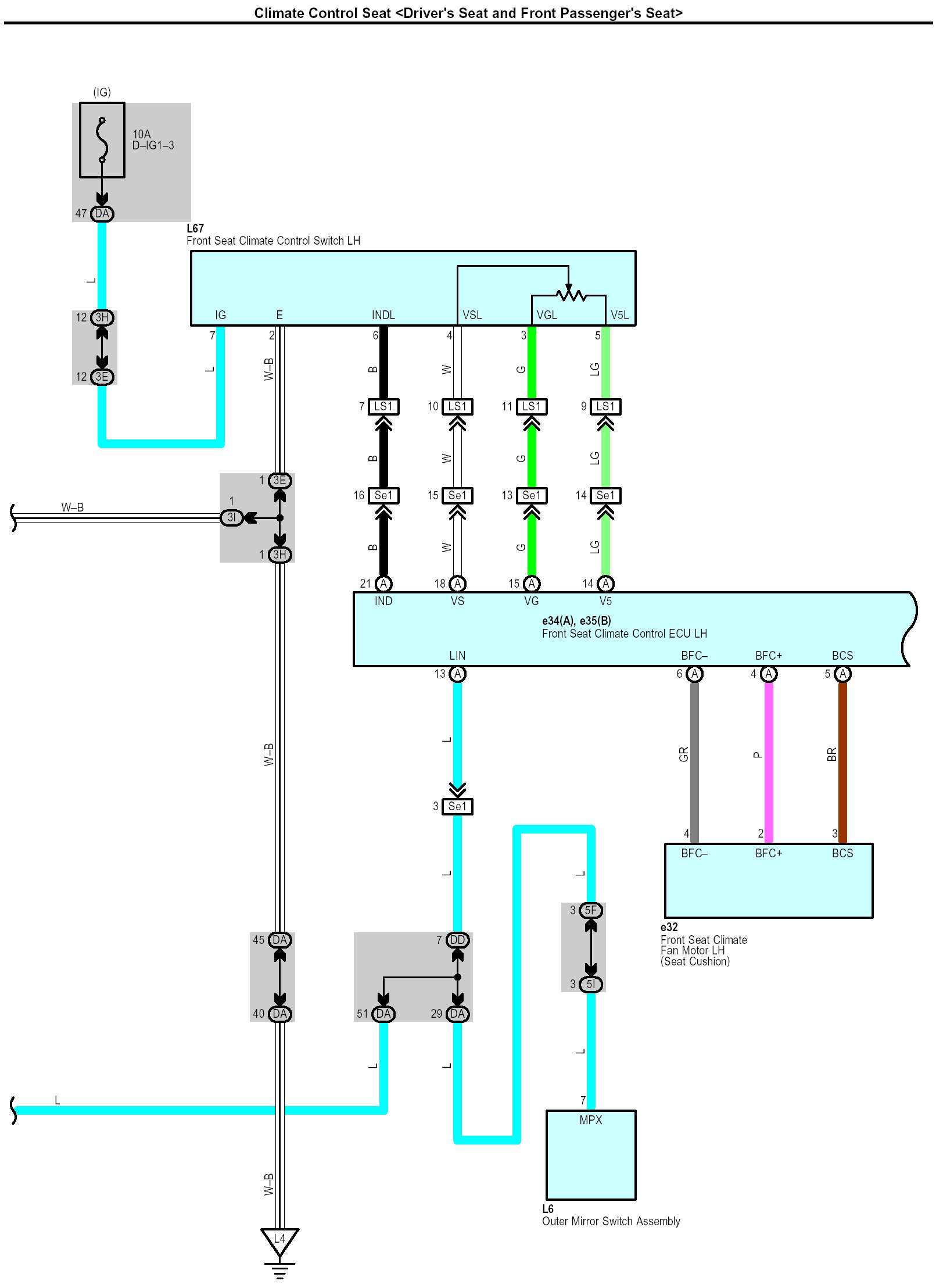

Climate Control Seat (Driver's Seat and Front Passenger's Seat) Part 3:

Climate Control Seat (Driver's Seat and Front Passenger's Seat) Part 4:

Connector Pin Outs Part 1:

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
