Audio System (w/ SDARS)

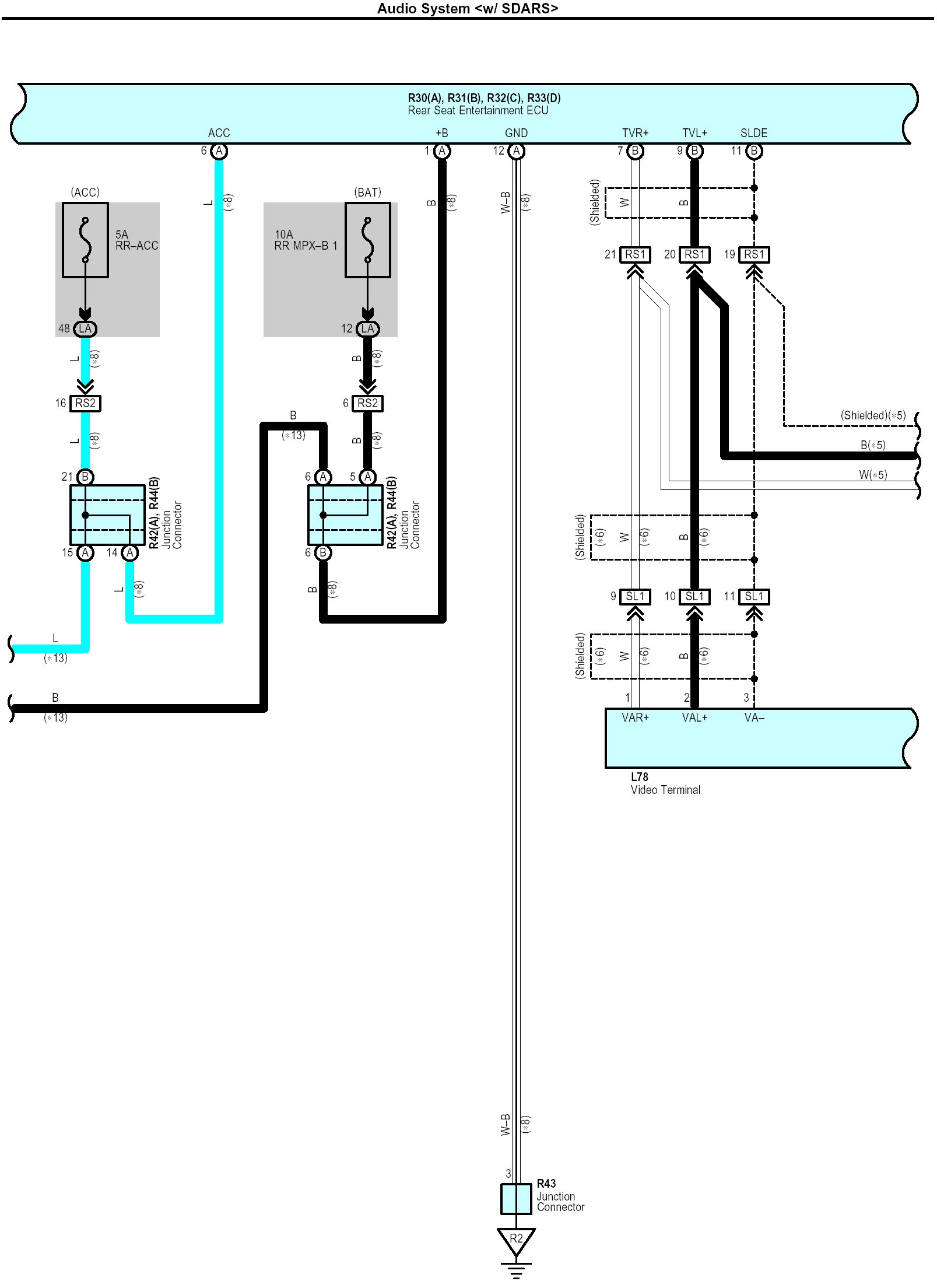

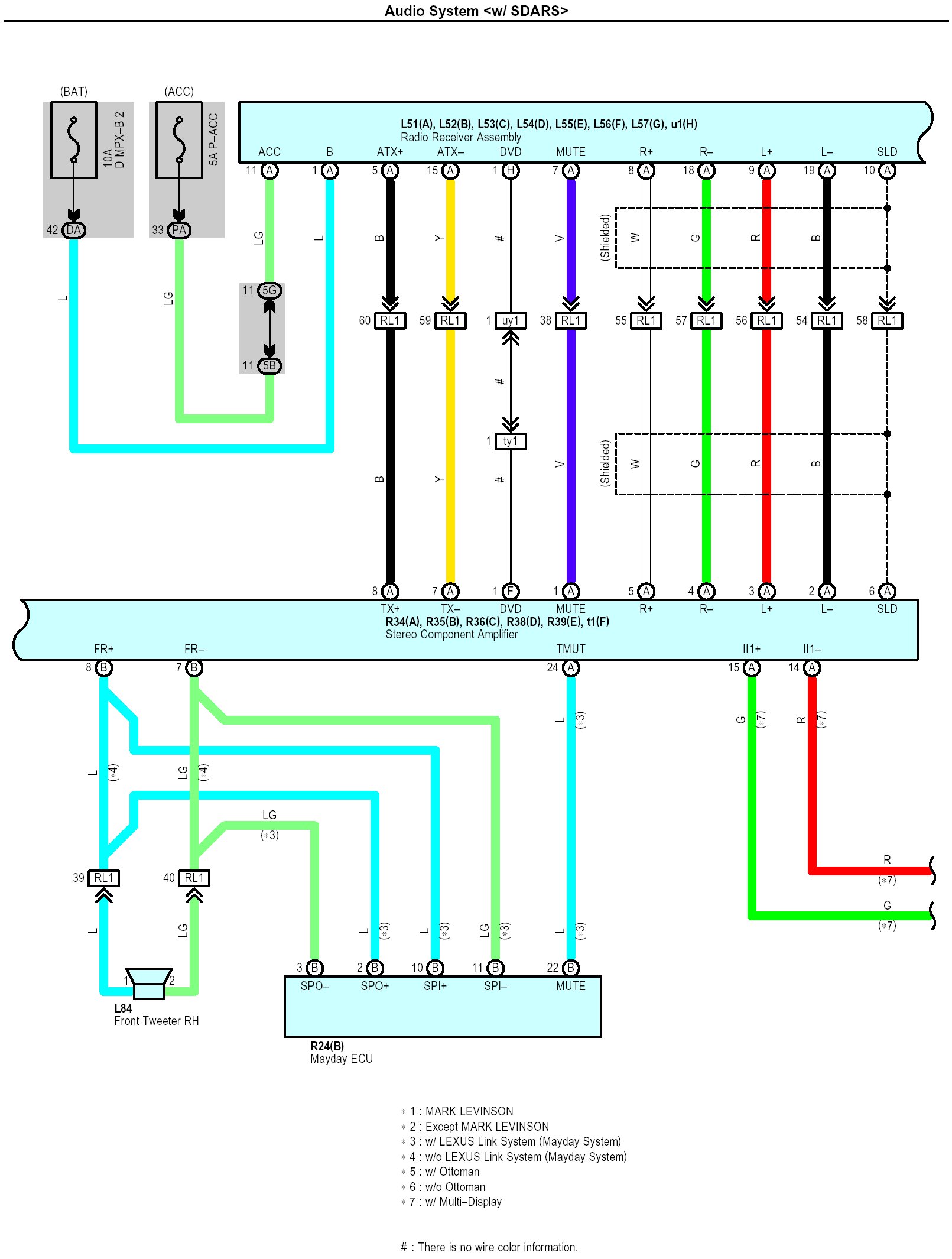

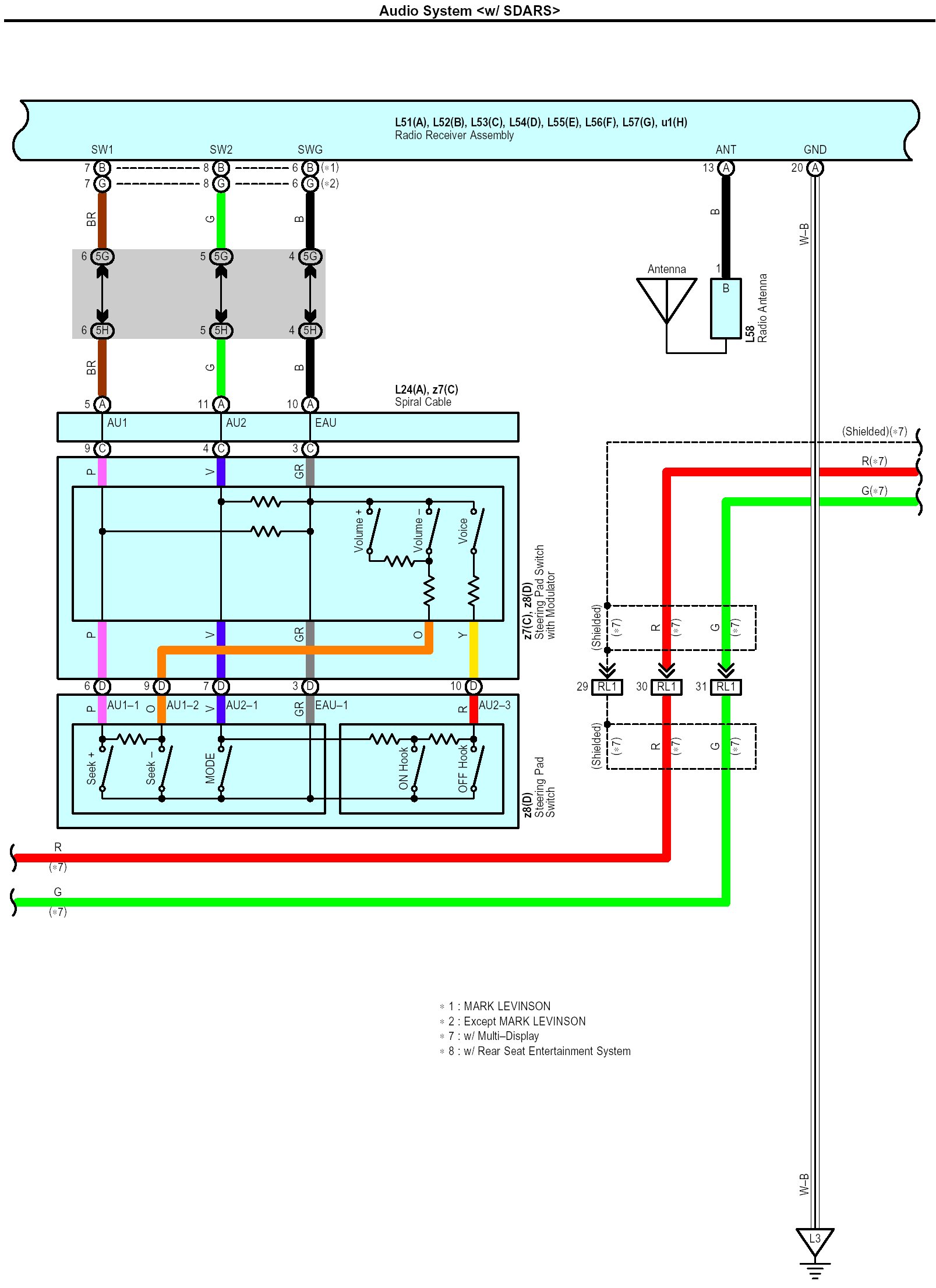

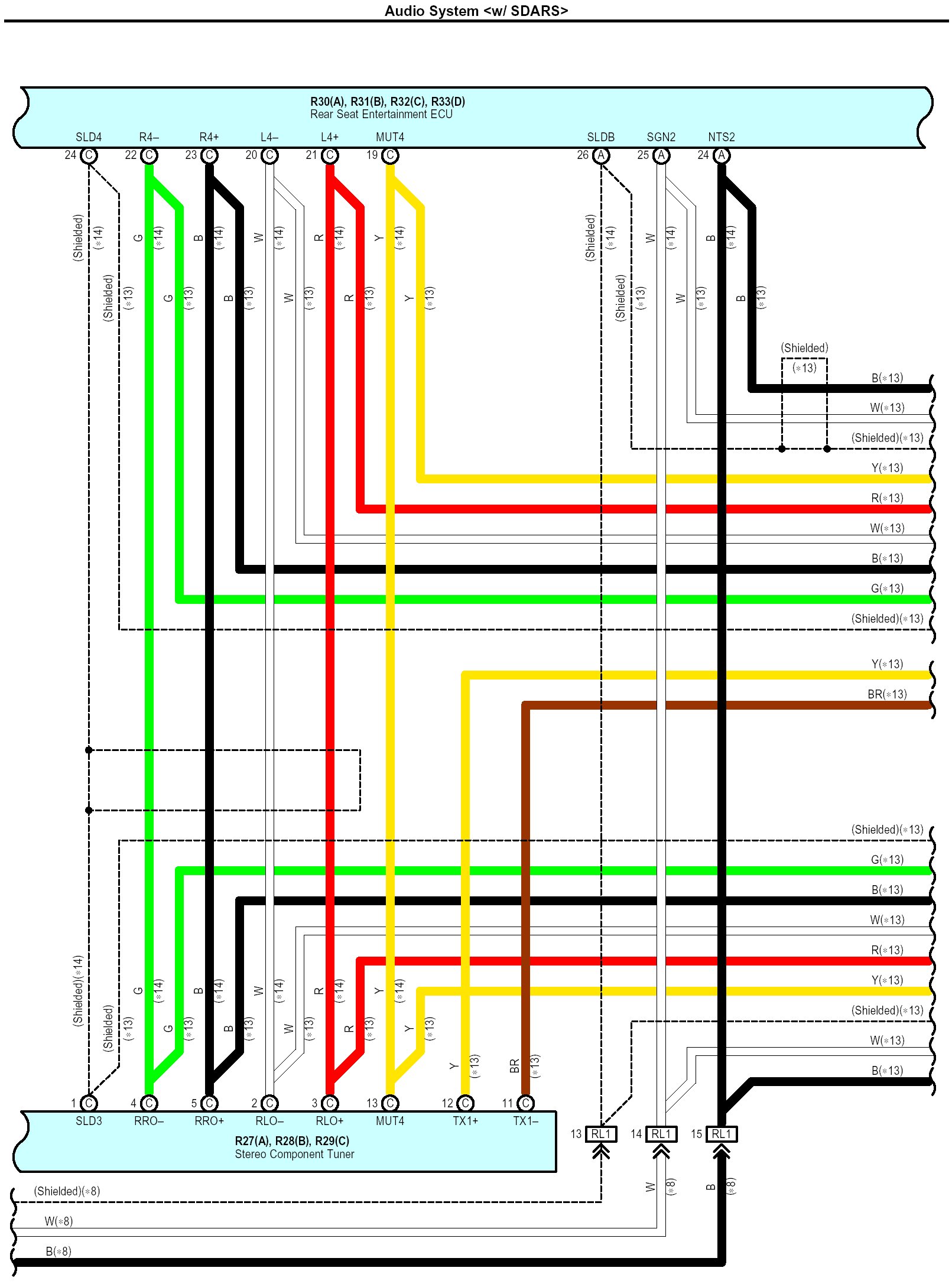

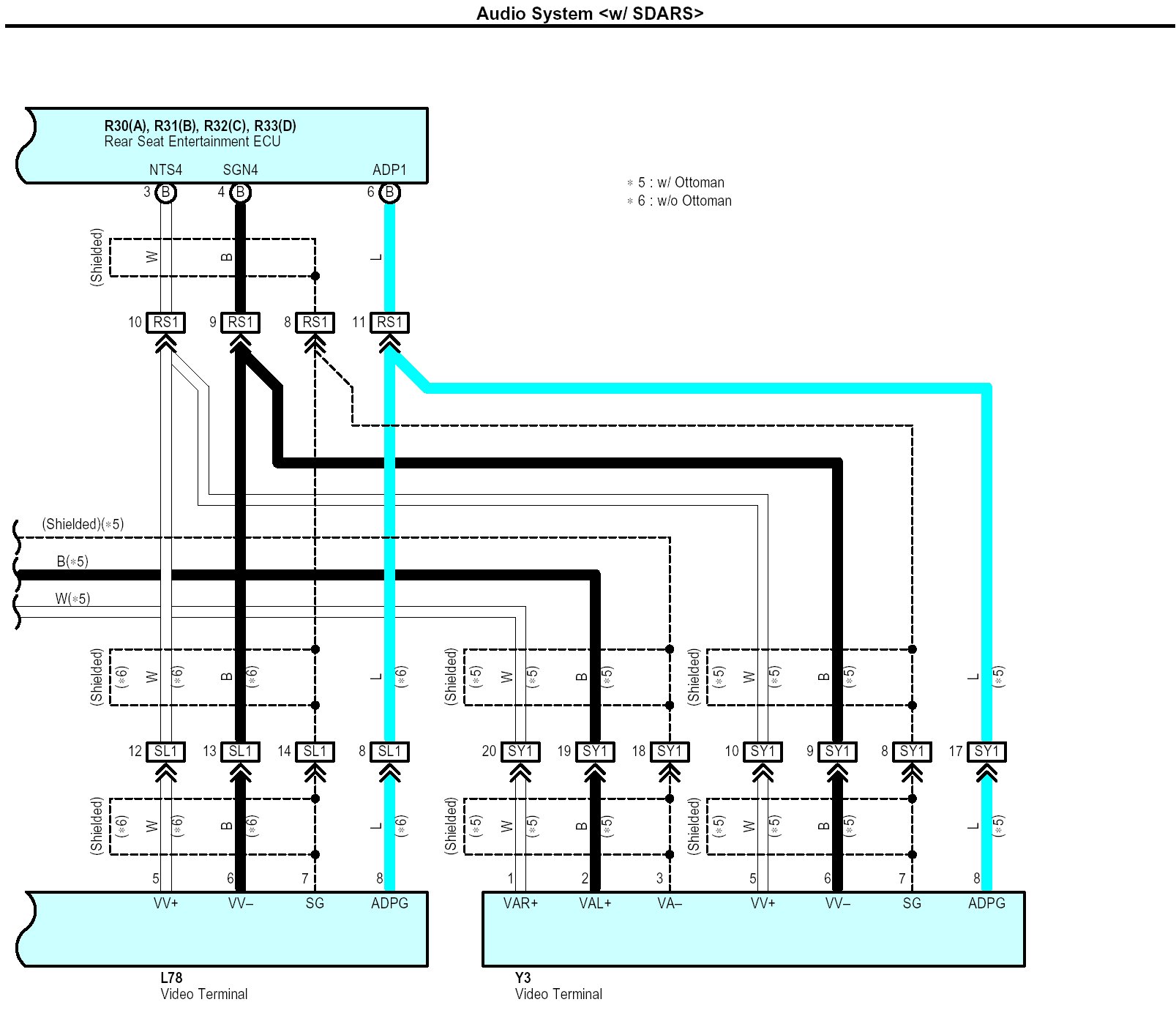

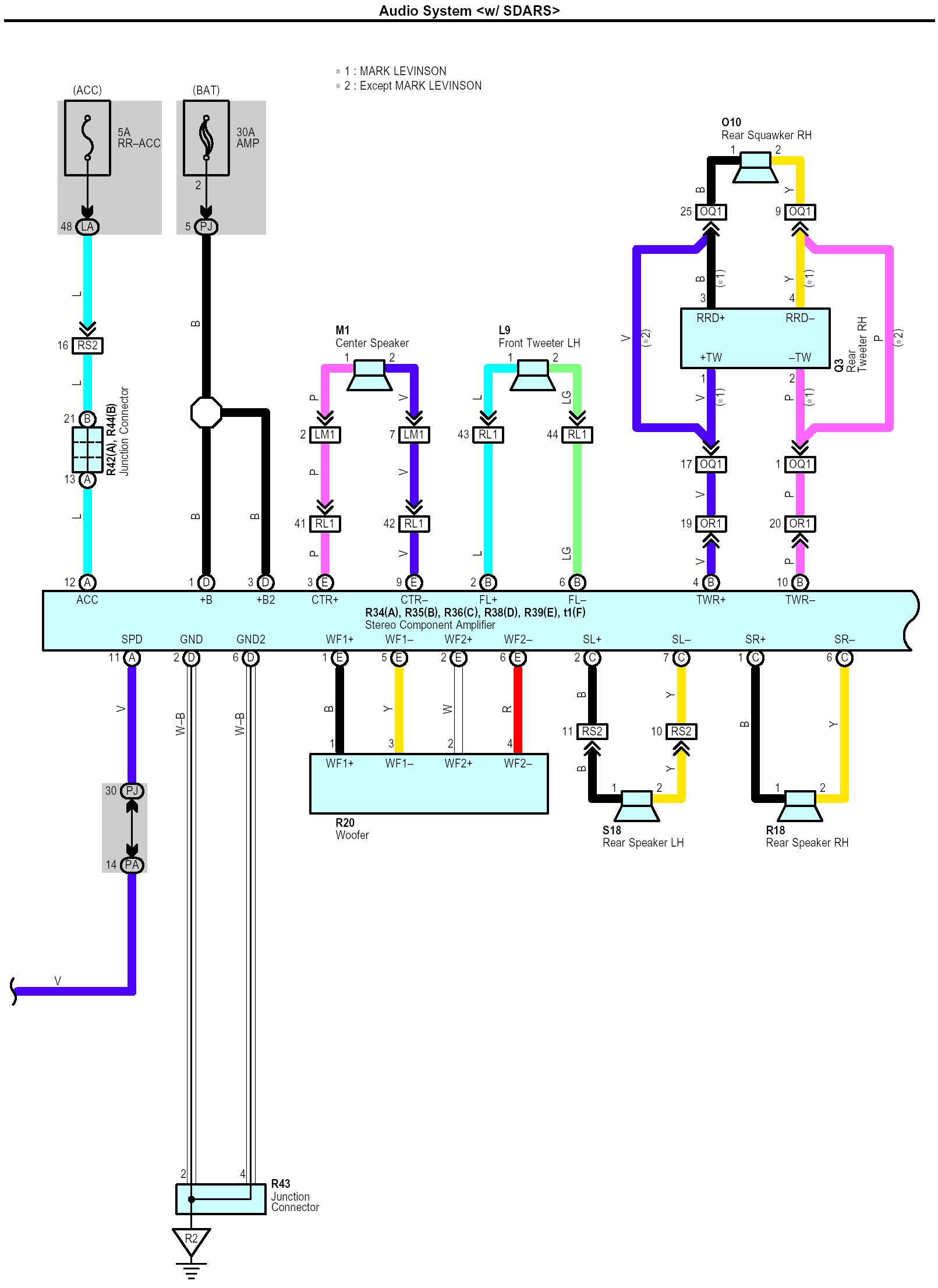

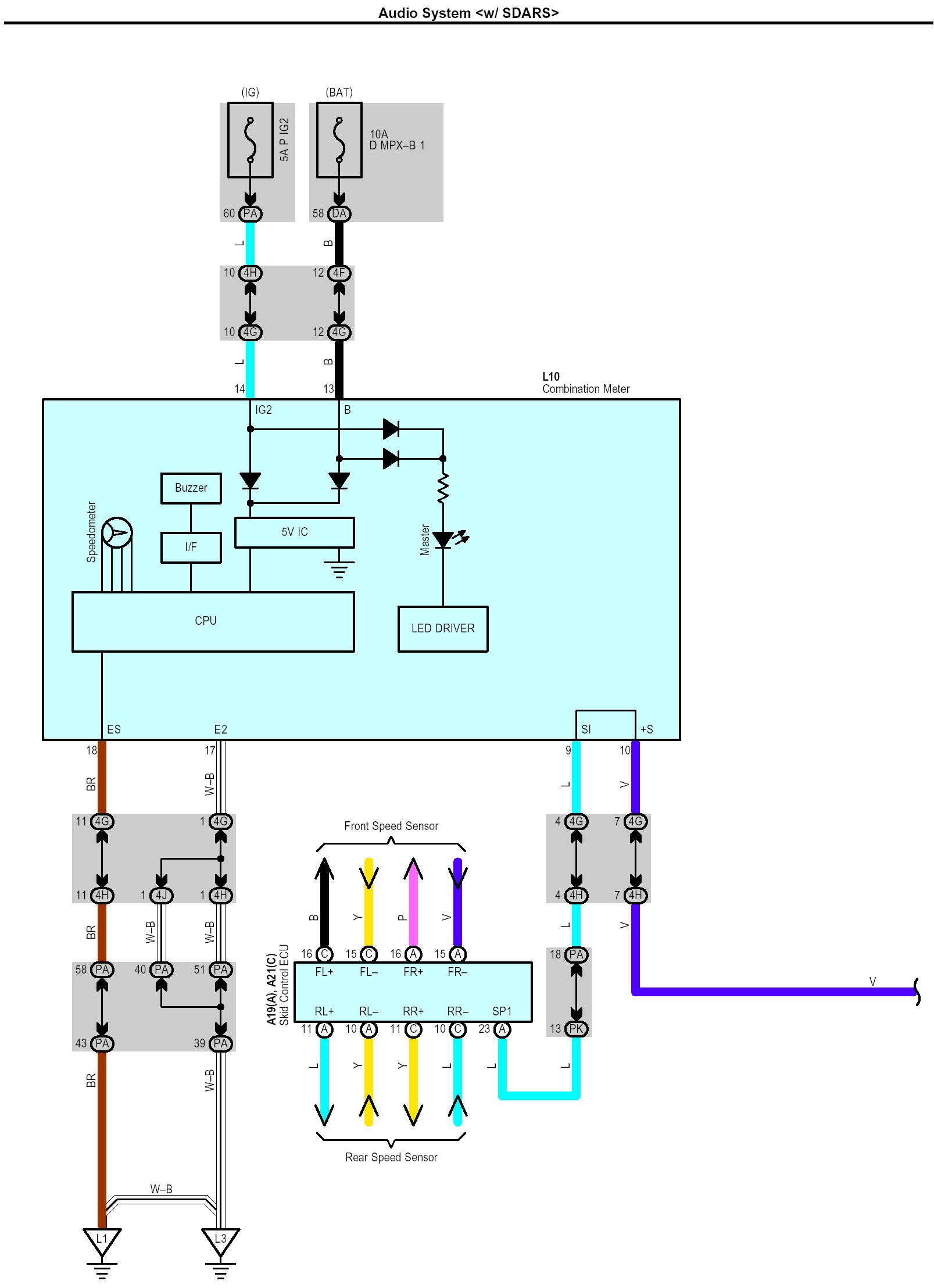

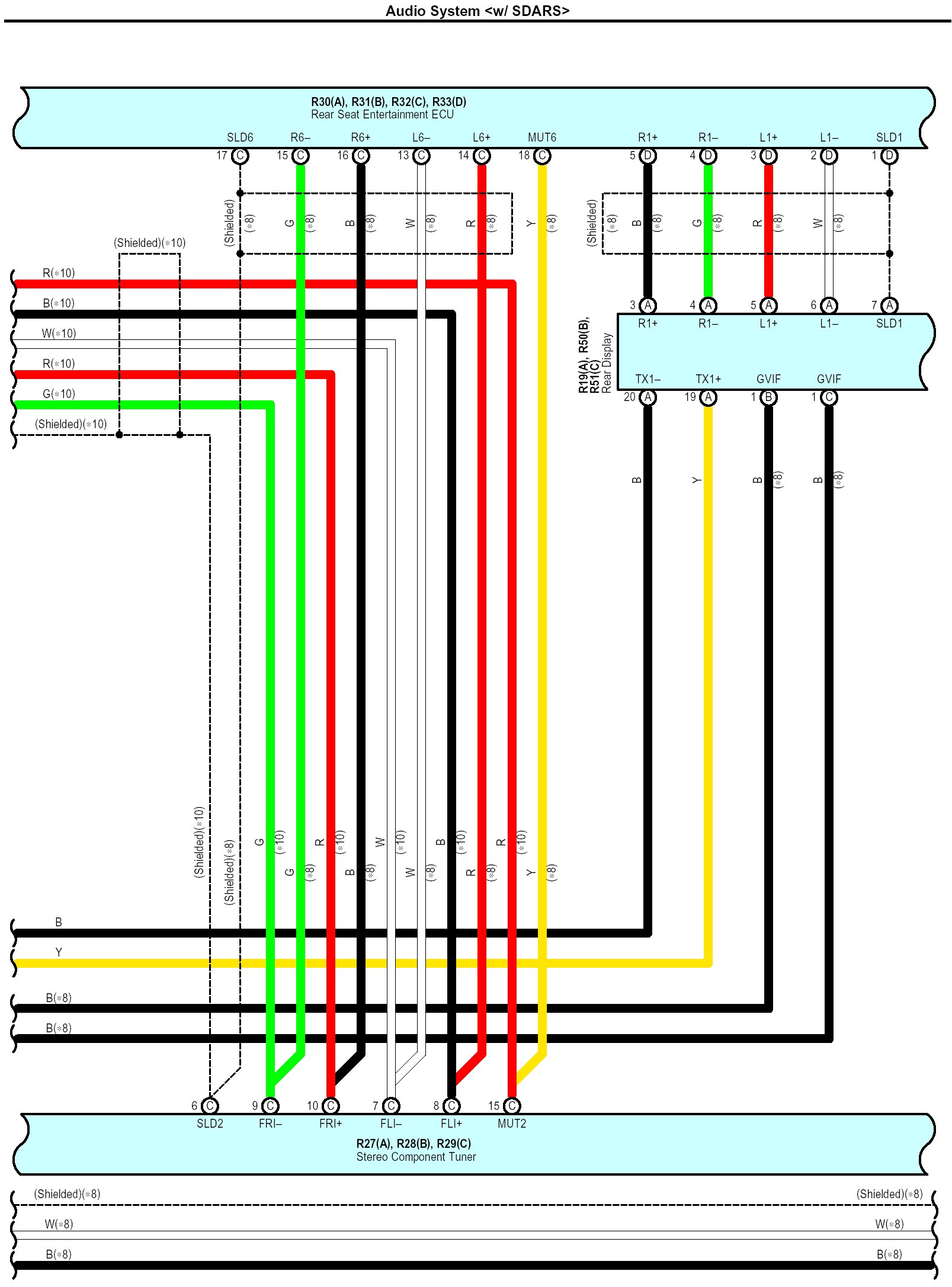

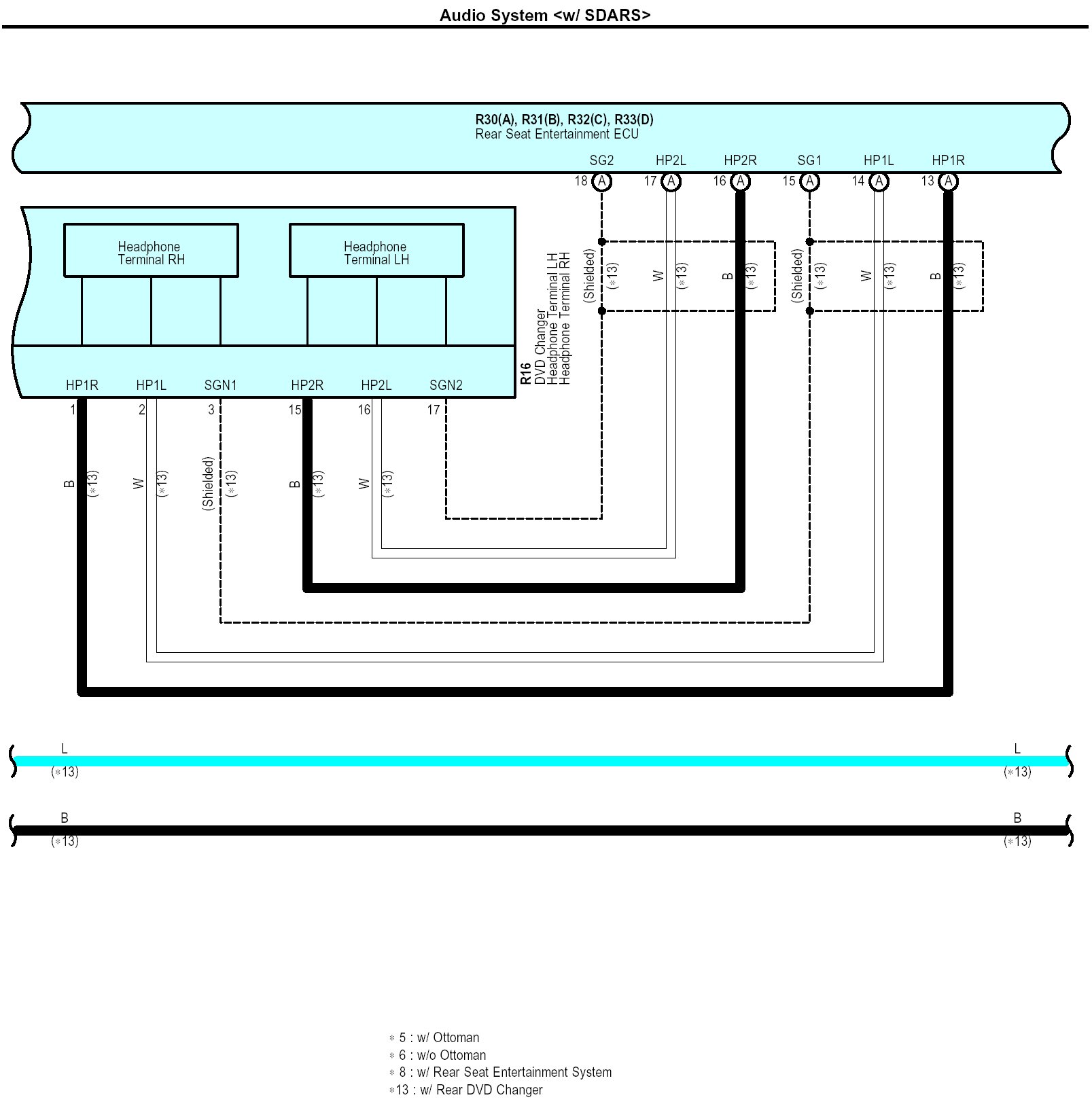

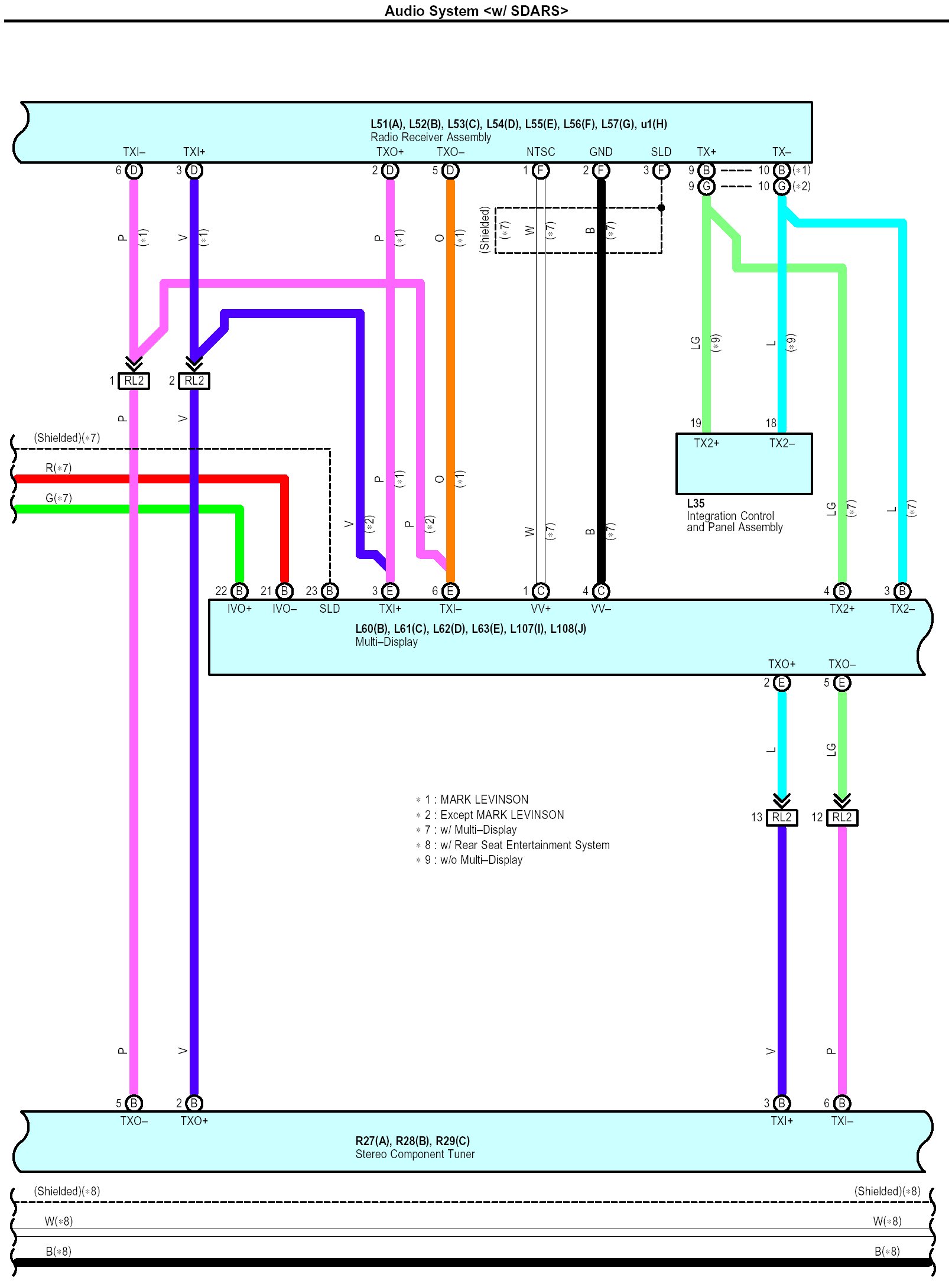

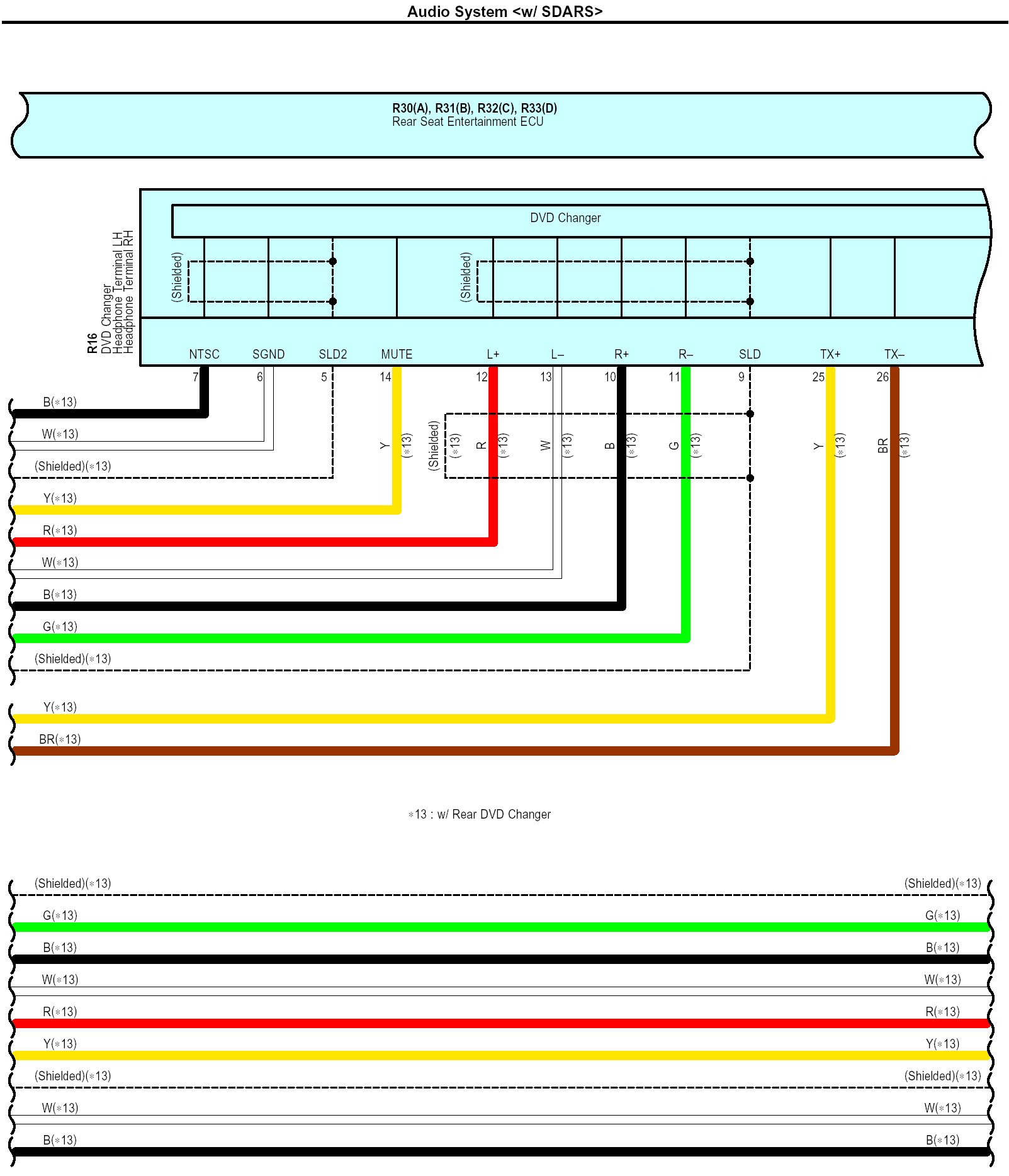

Audio System (w/ SDARS) Part 1:

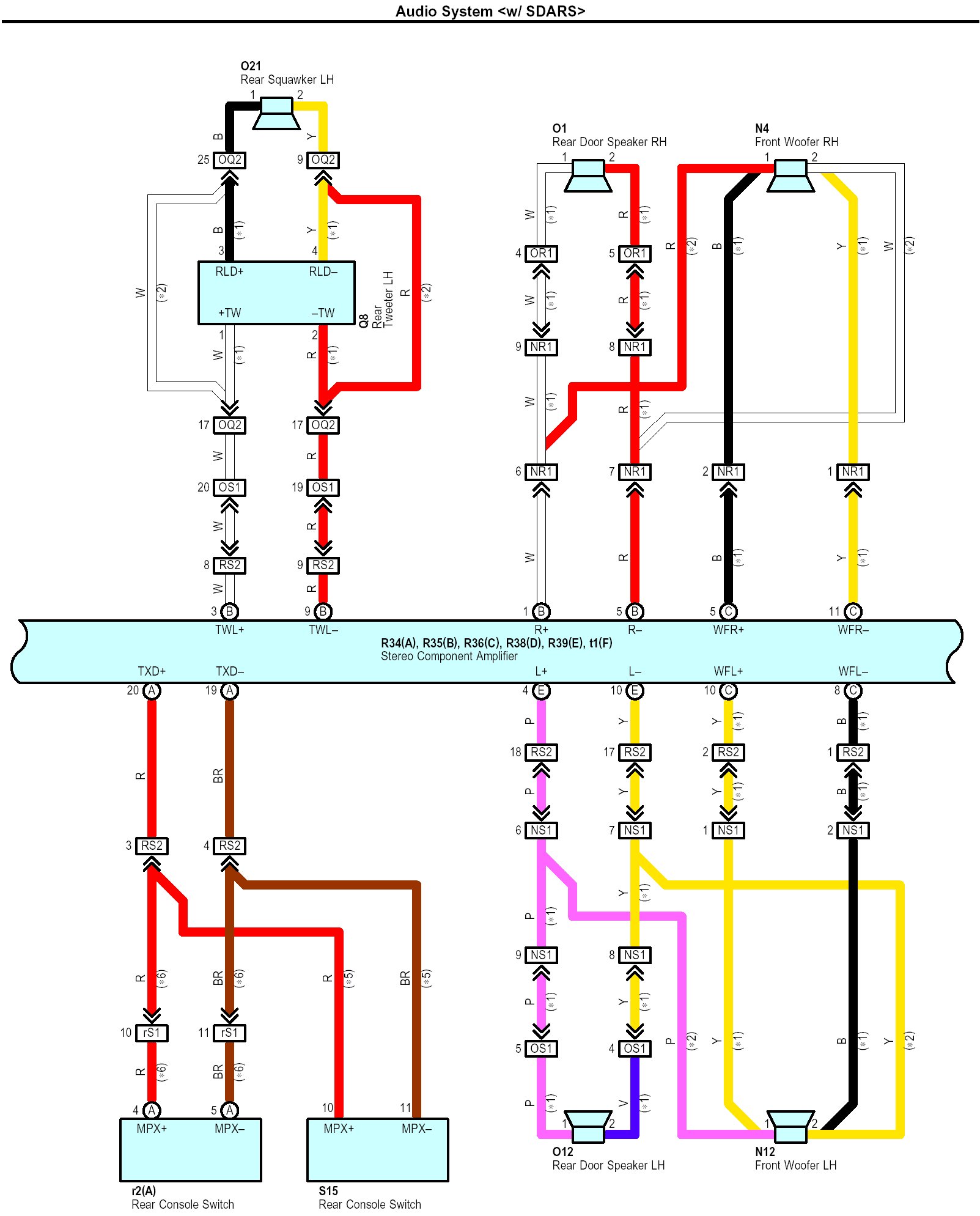

Audio System (w/ SDARS) Part 2:

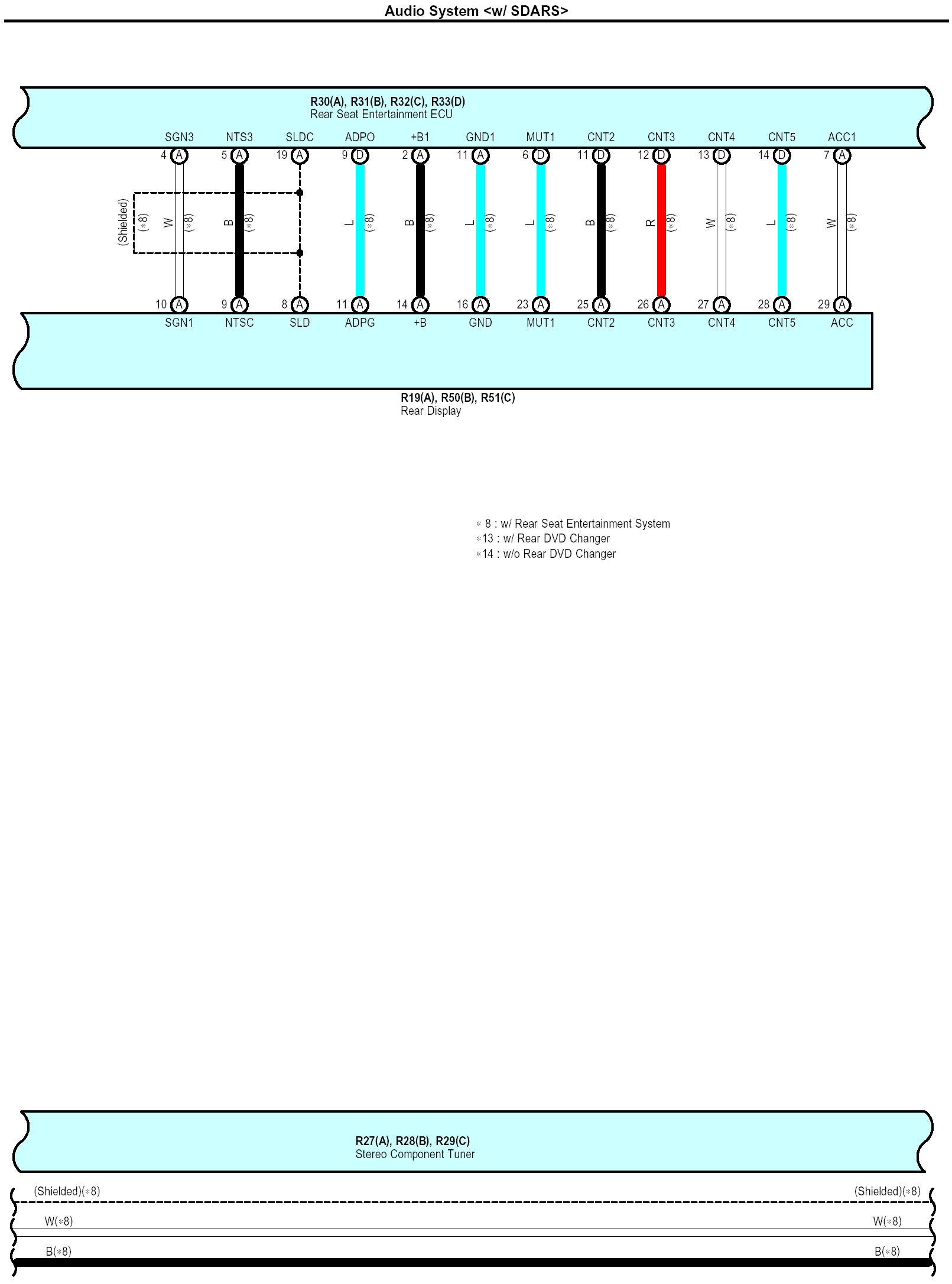

Audio System (w/ SDARS) Part 3:

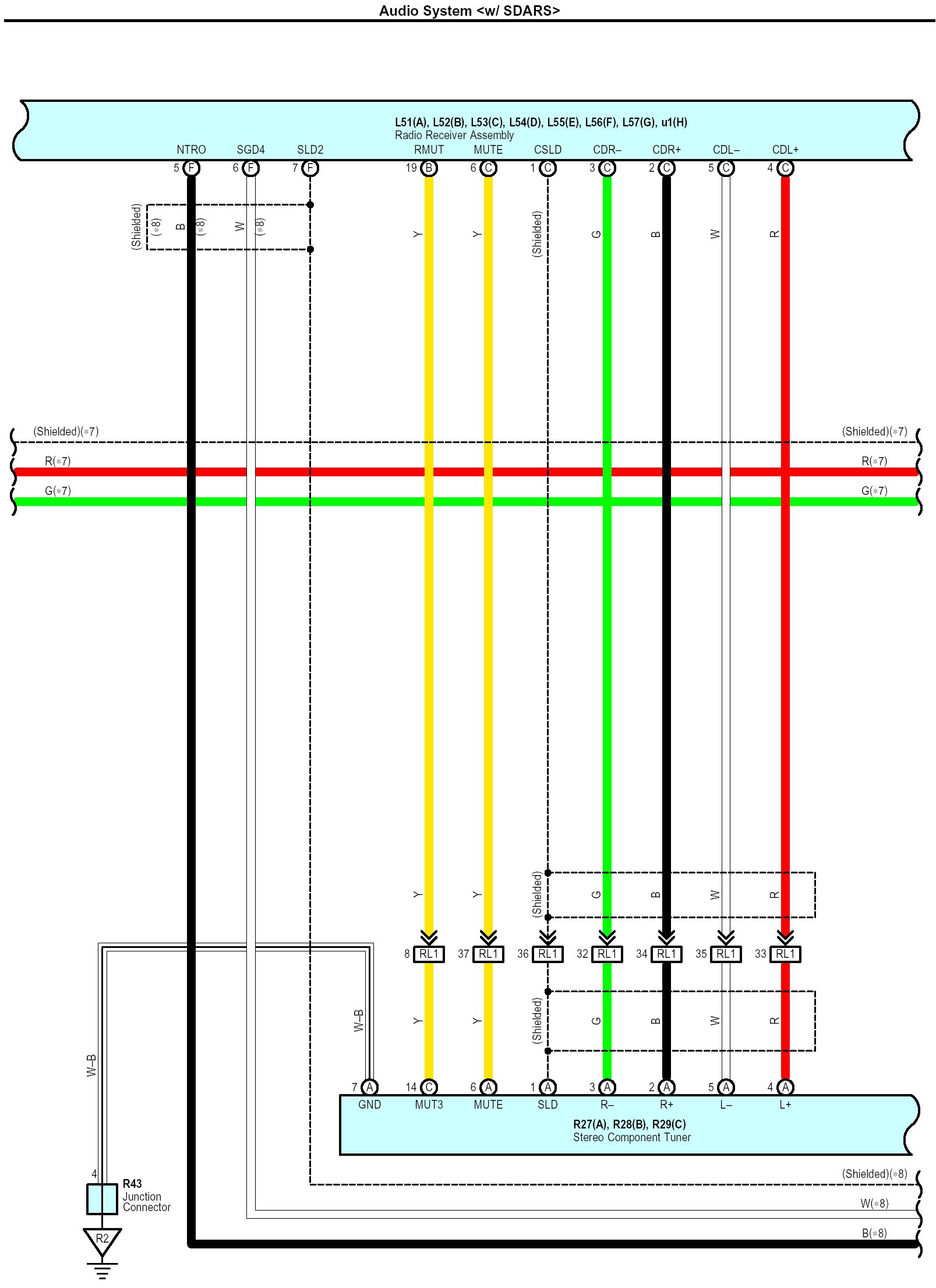

Audio System (w/ SDARS) Part 4:

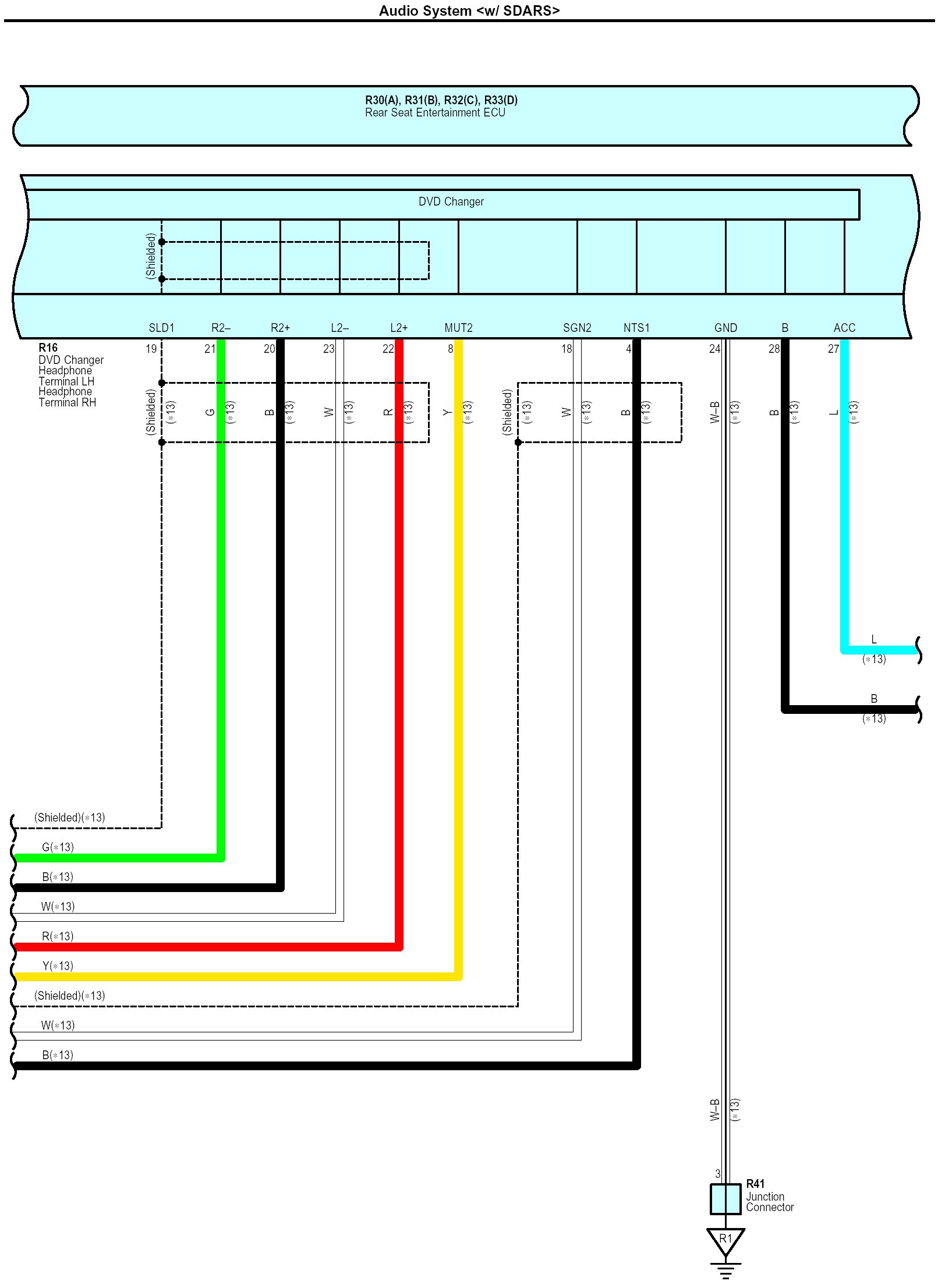

Audio System (w/ SDARS) Part 5:

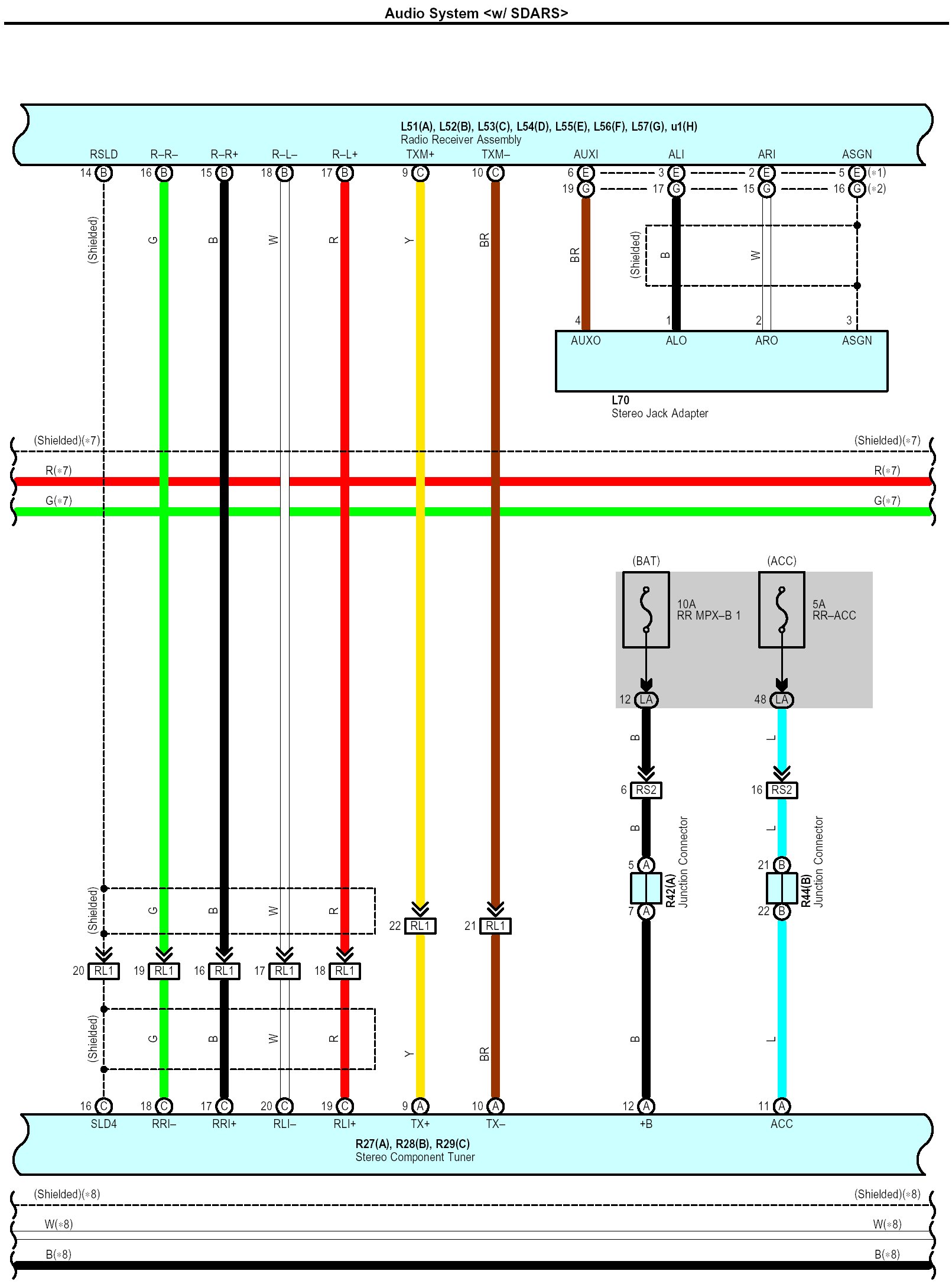

Audio System (w/ SDARS) Part 6:

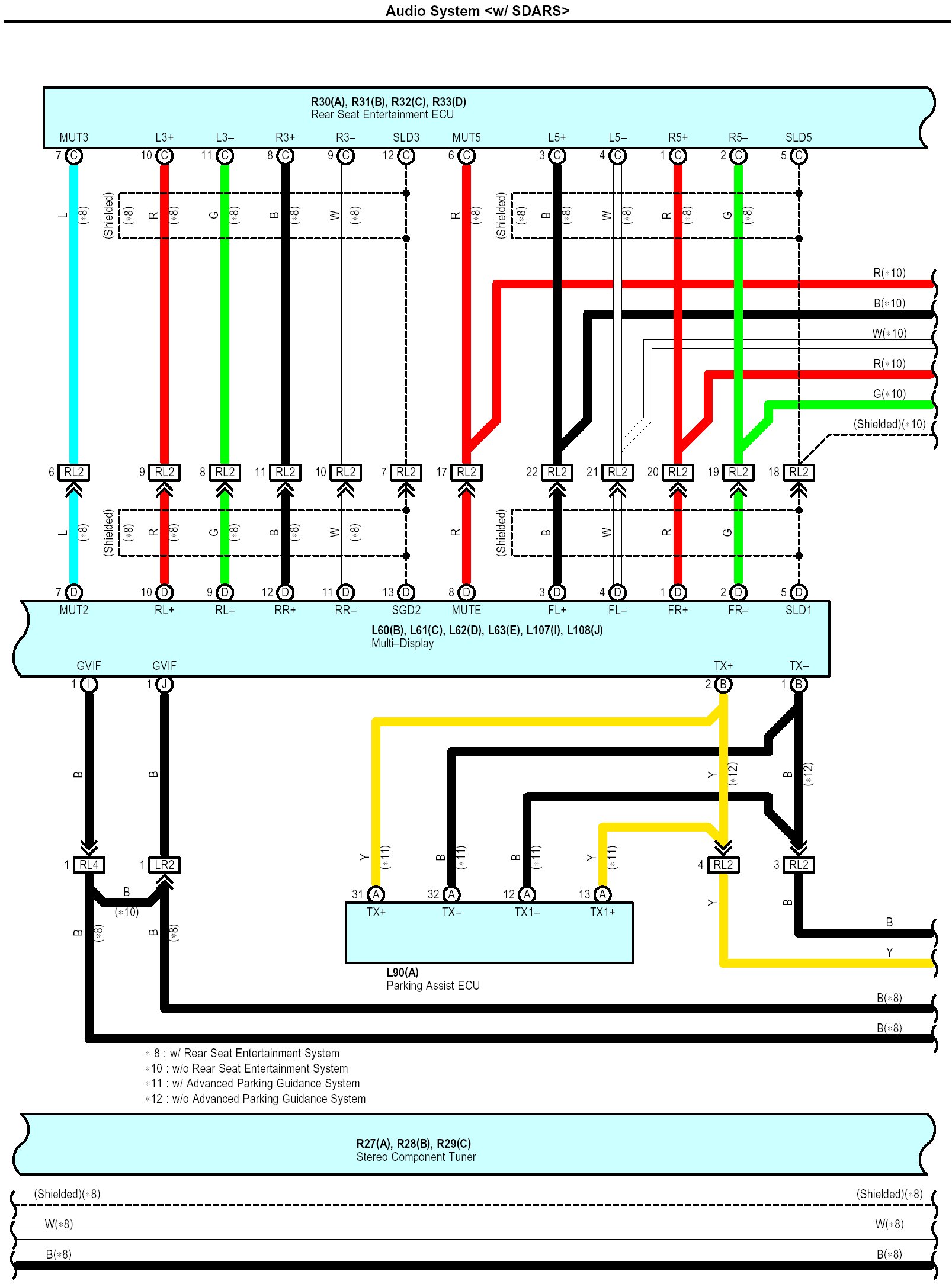

Audio System (w/ SDARS) Part 7:

Audio System (w/ SDARS) Part 8:

Audio System (w/ SDARS) Part 9:

Audio System (w/ SDARS) Part 10:

Audio System (w/ SDARS) Part 11:

Audio System (w/ SDARS) Part 12:

Audio System (w/ SDARS) Part 13:

Audio System (w/ SDARS) Part 14:

Audio System (w/ SDARS) Part 15:

Audio System (w/ SDARS) Part 16:

Audio System (w/ SDARS) Part 17:

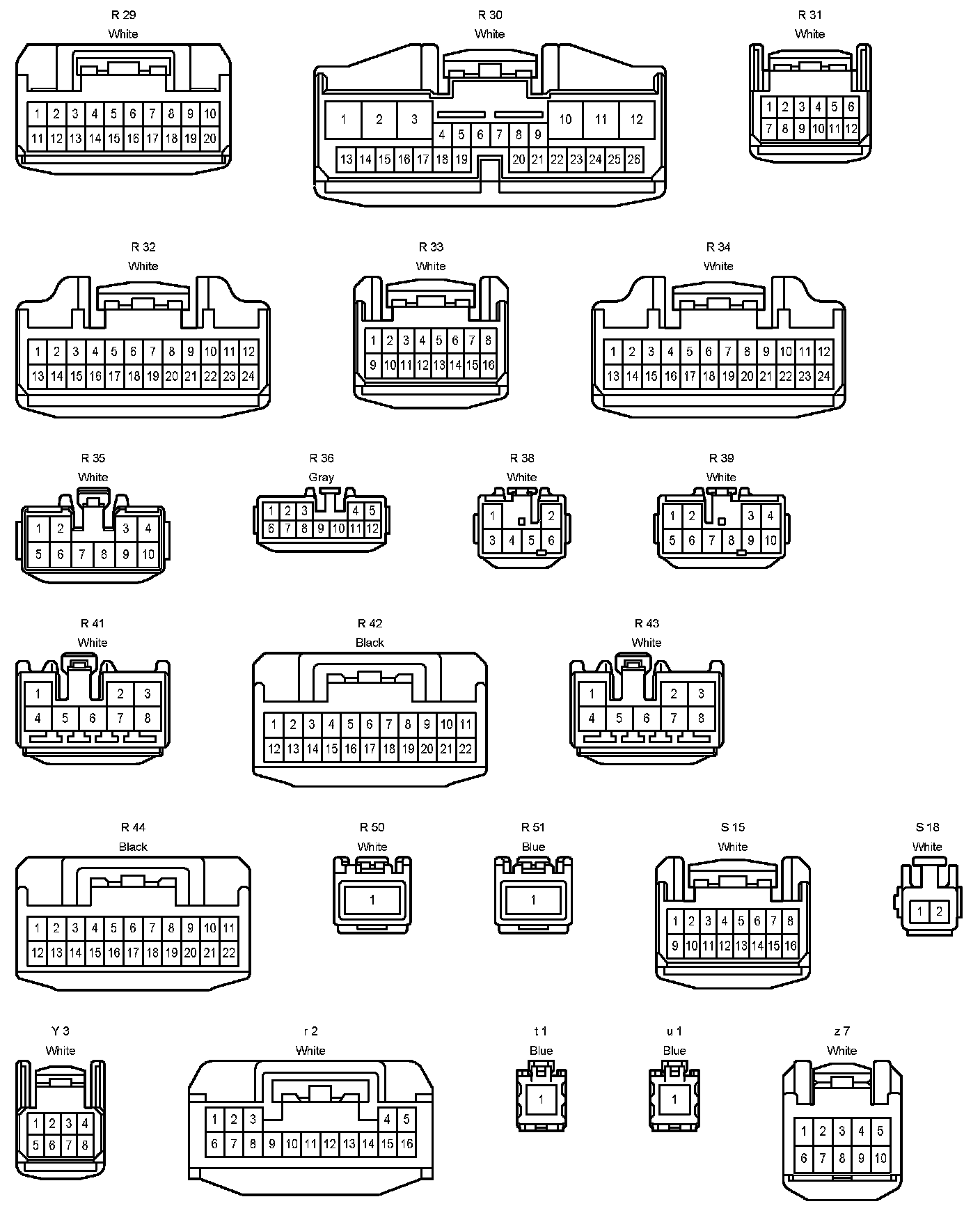

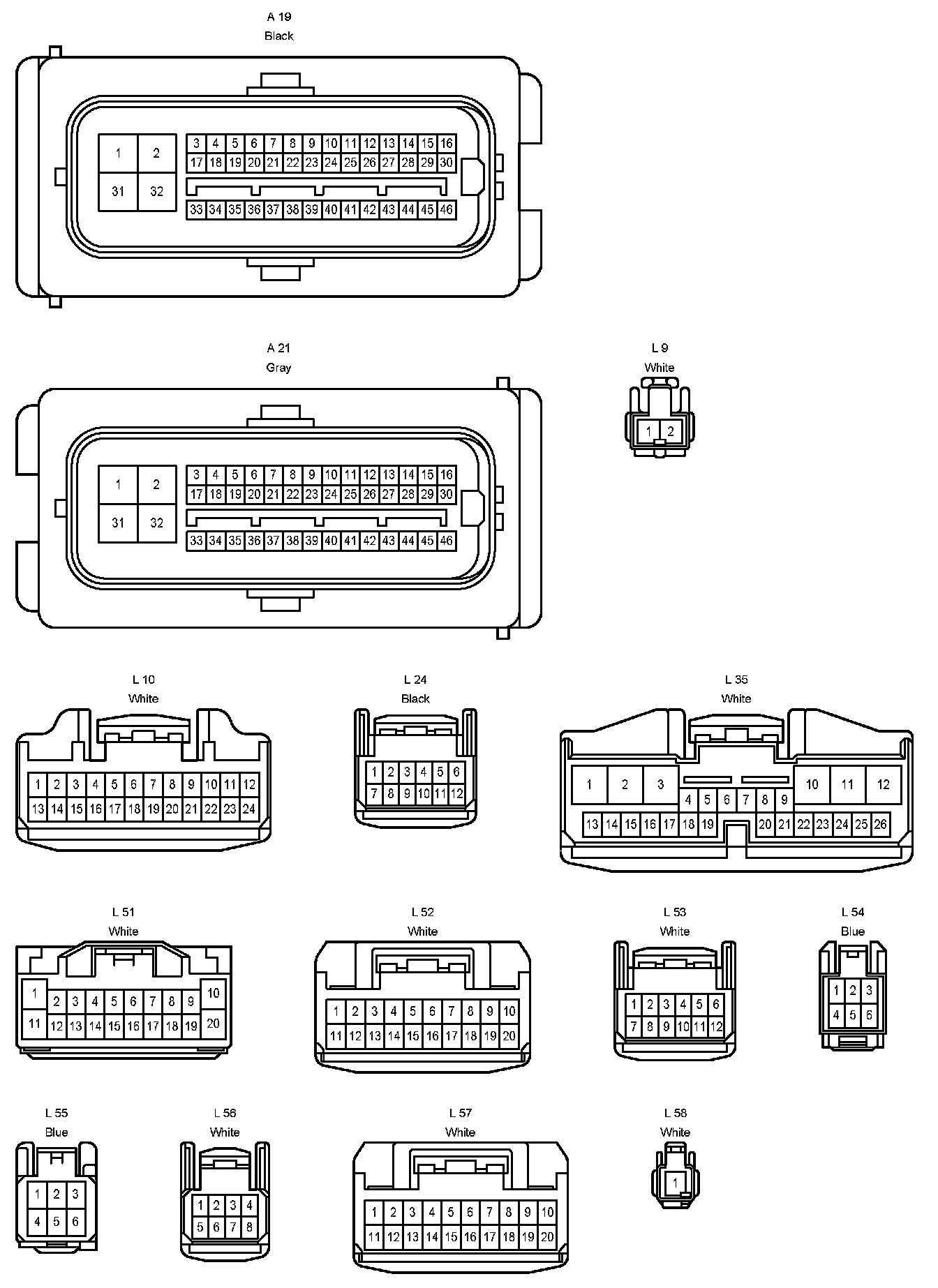

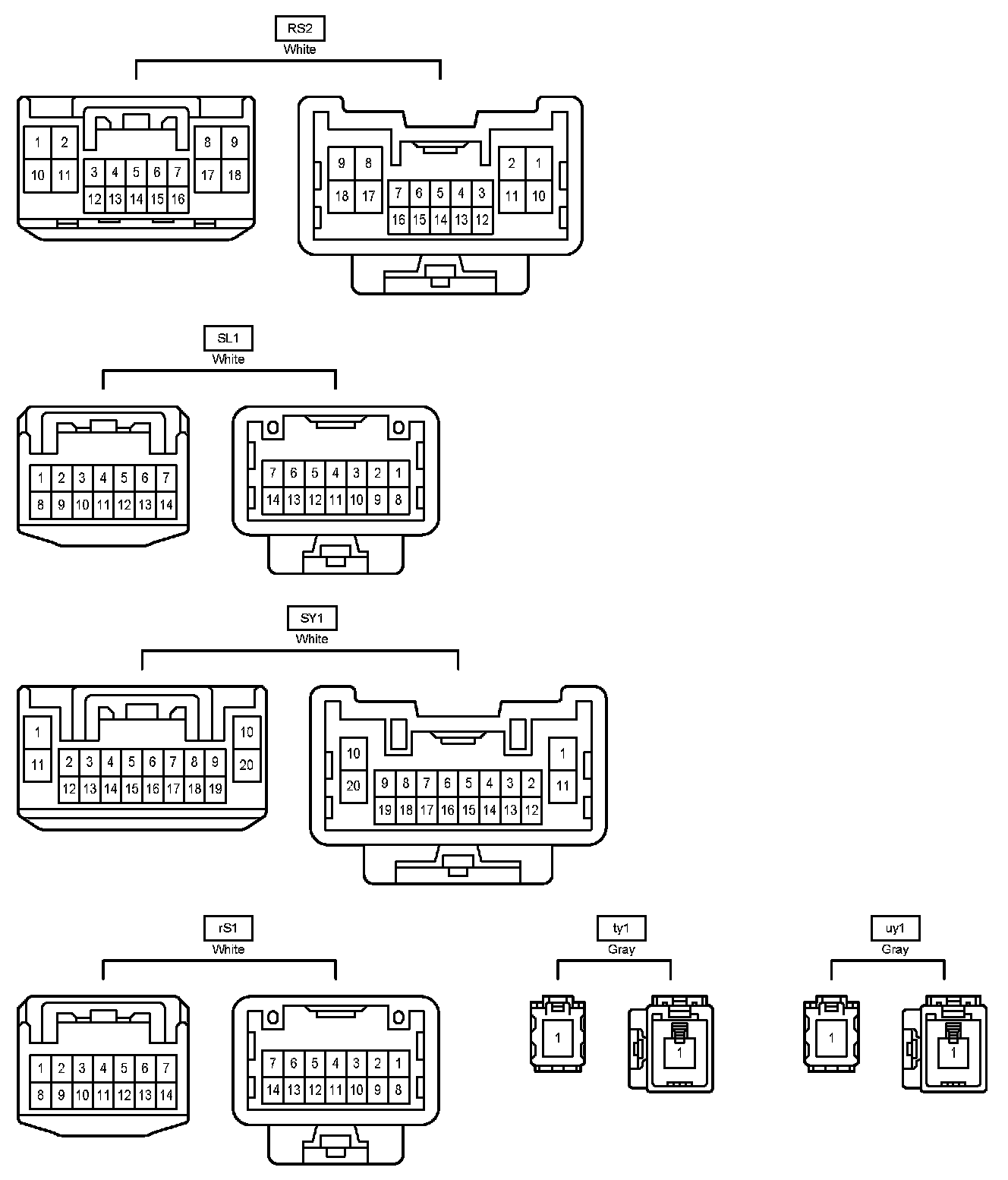

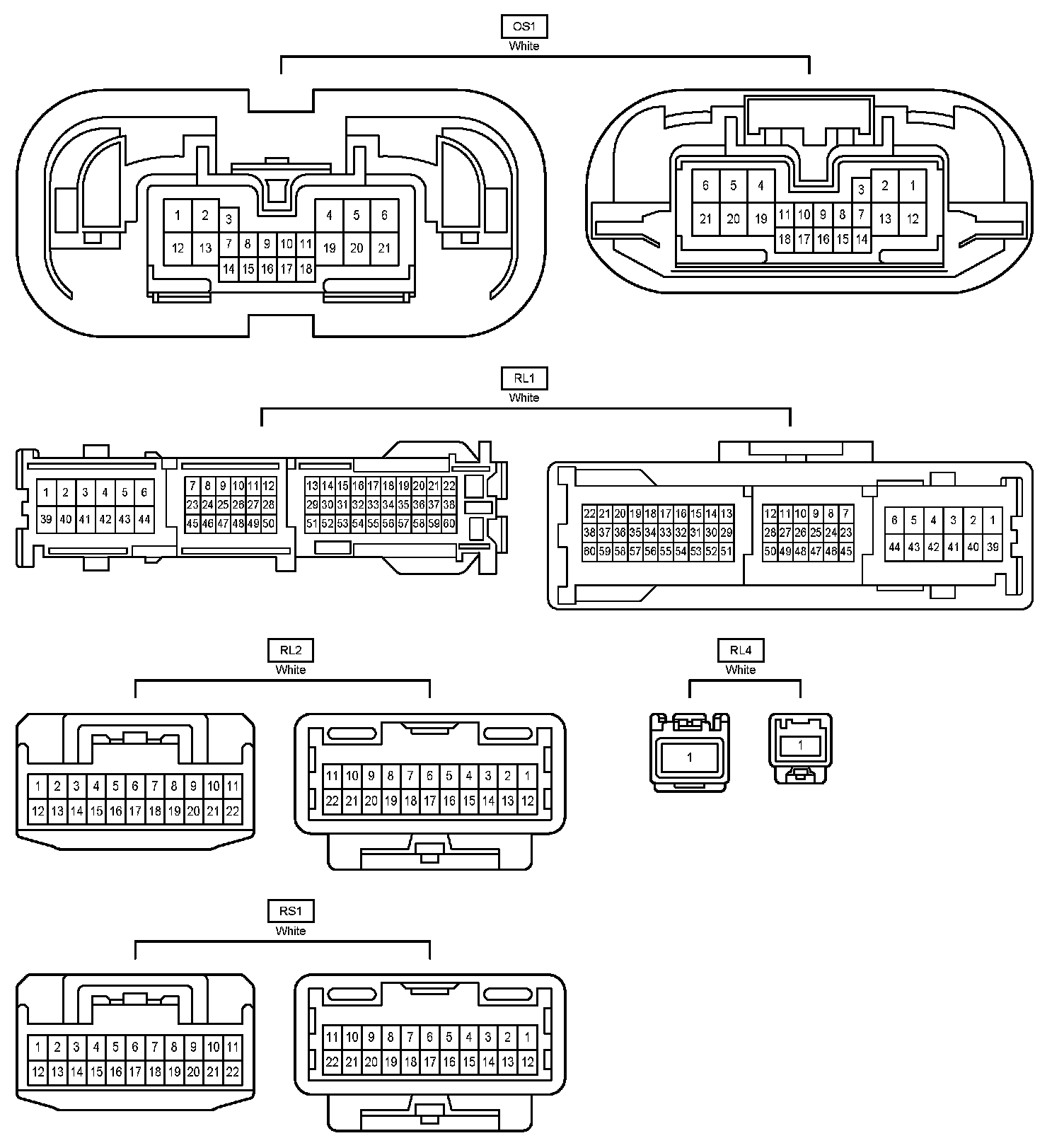

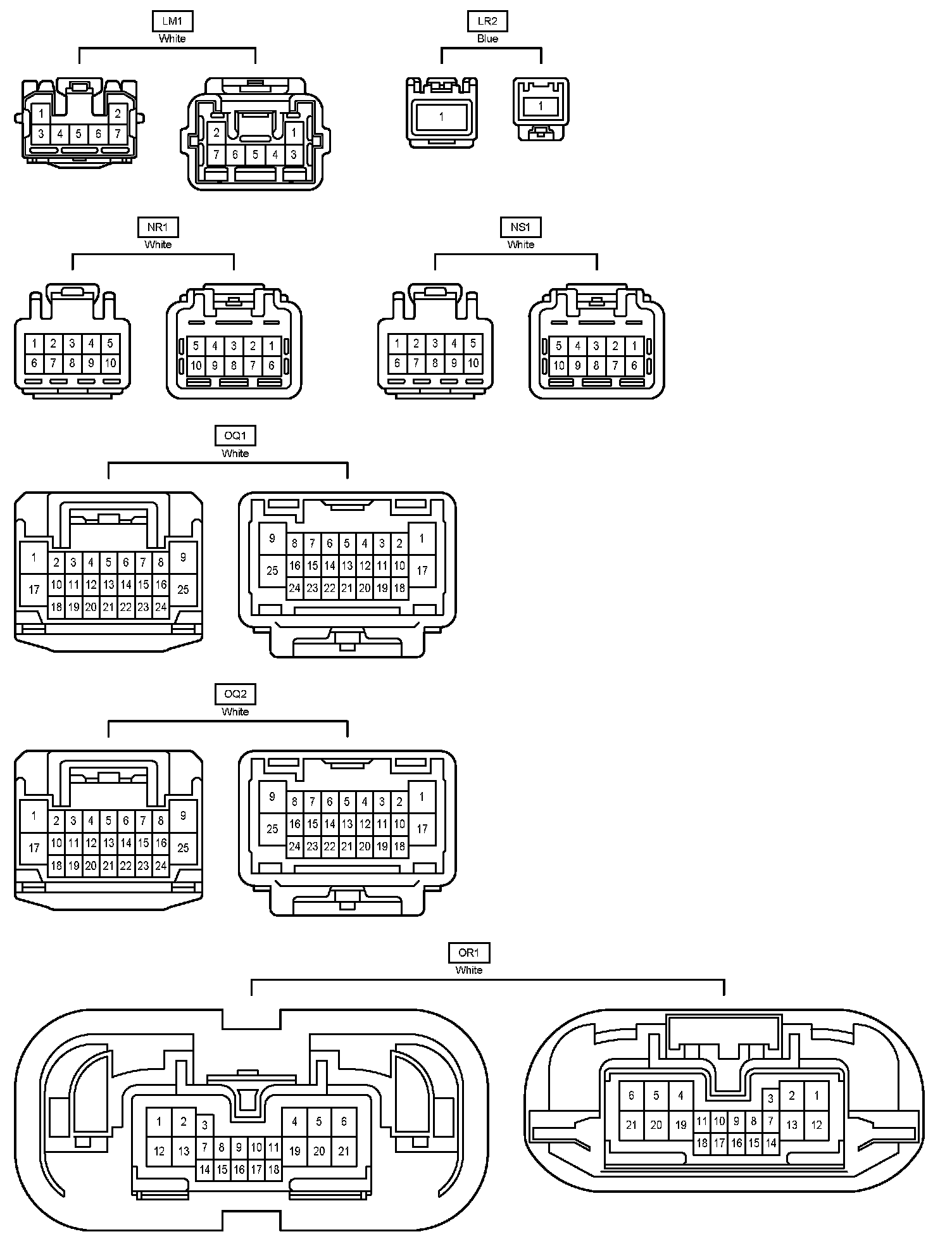

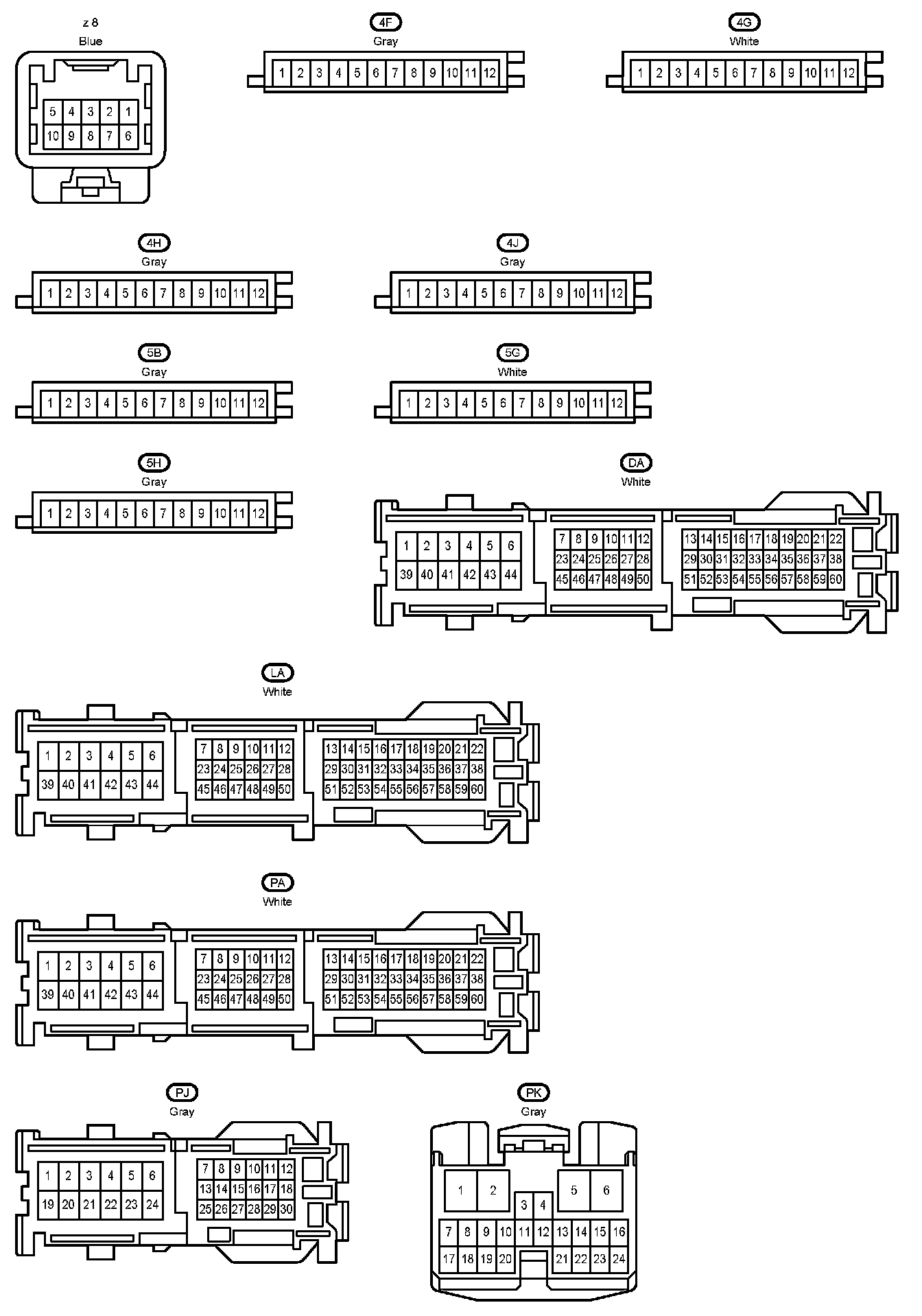

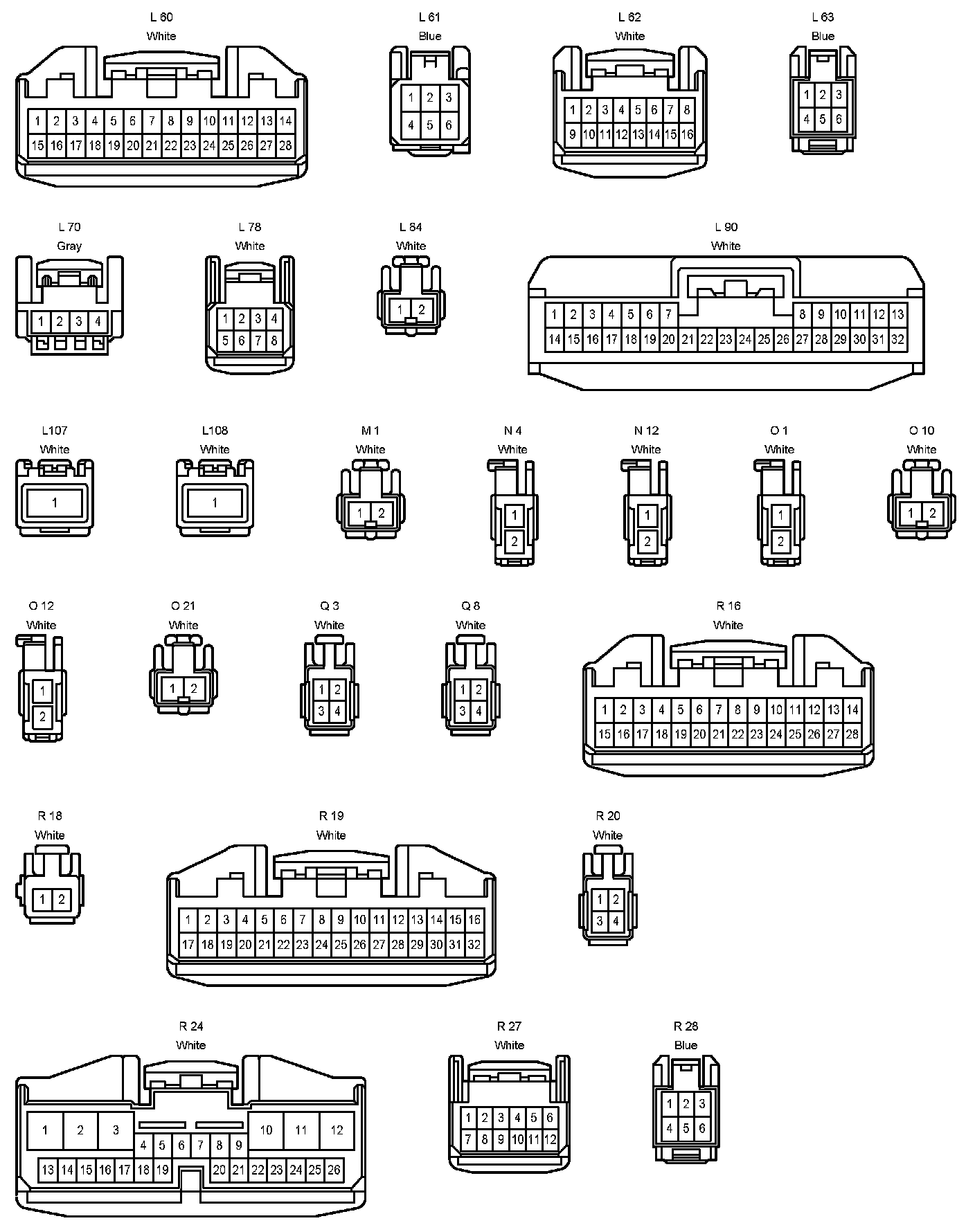

Connector Pin Outs Part 1:

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Connector Pin Outs Part 7:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
