Multiplex Communication System (AVC-LAN)

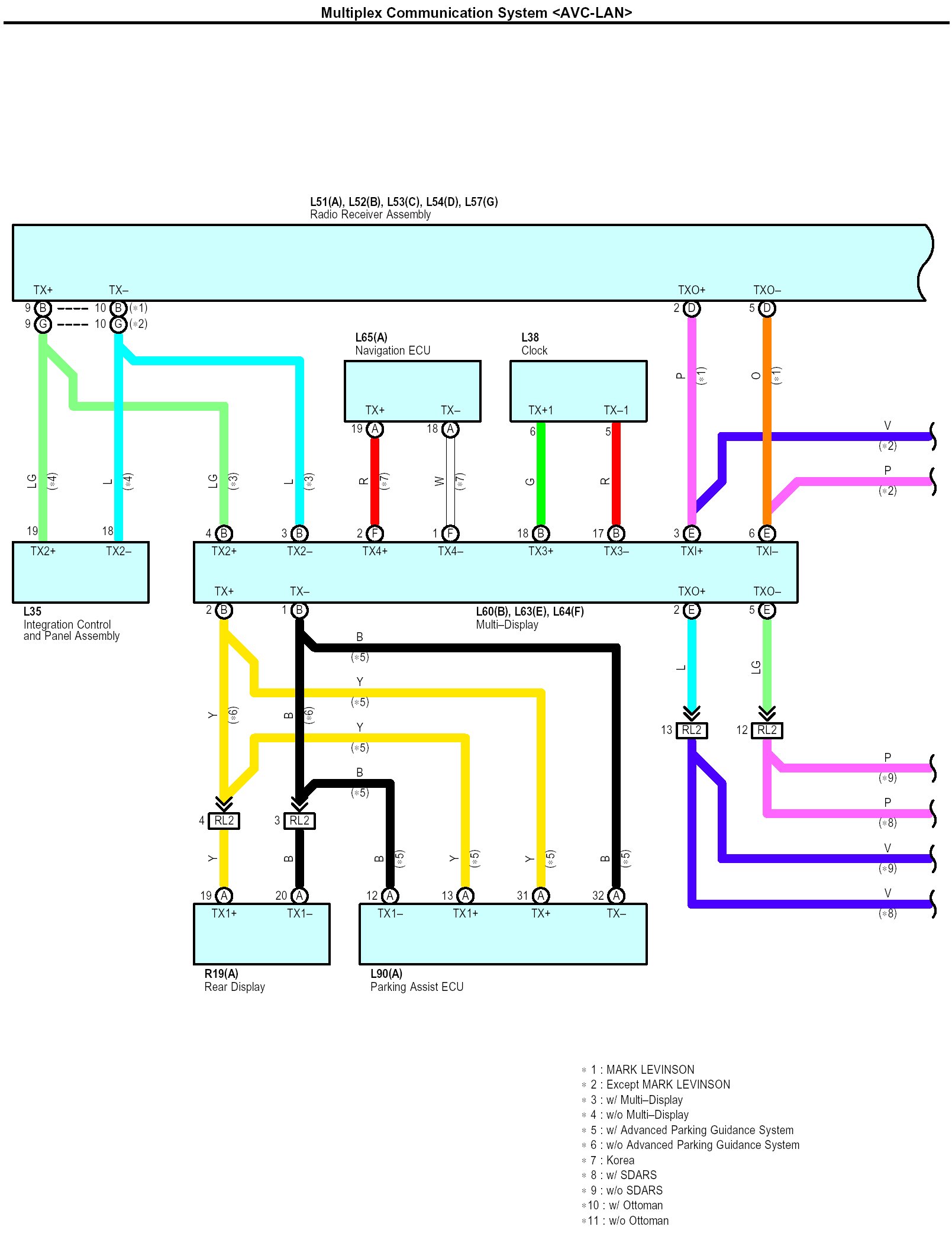

Multiplex Communication System (AVC-LAN) Part 1:

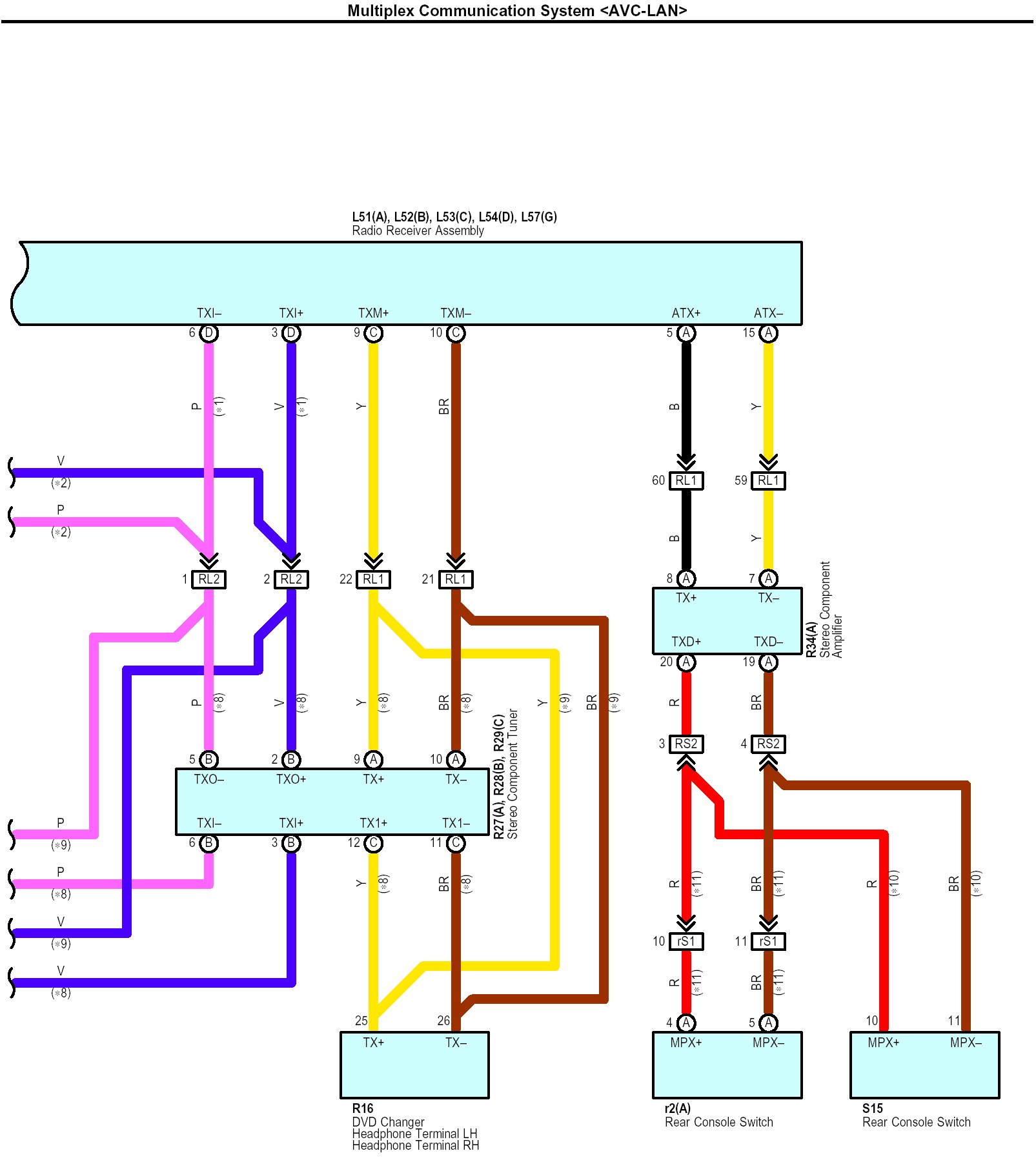

Multiplex Communication System (AVC-LAN) Part 2:

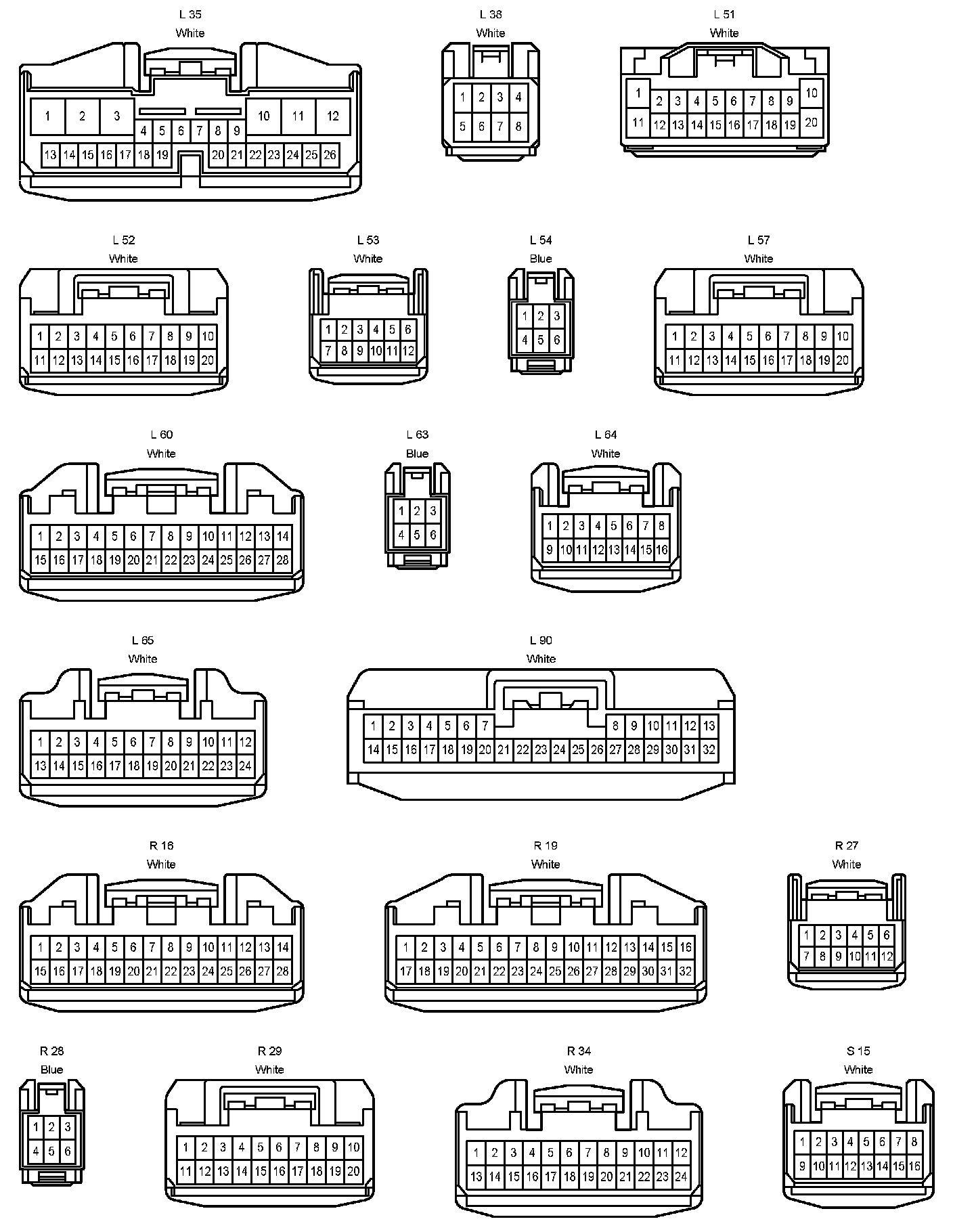

Connector Pin Outs Part 1:

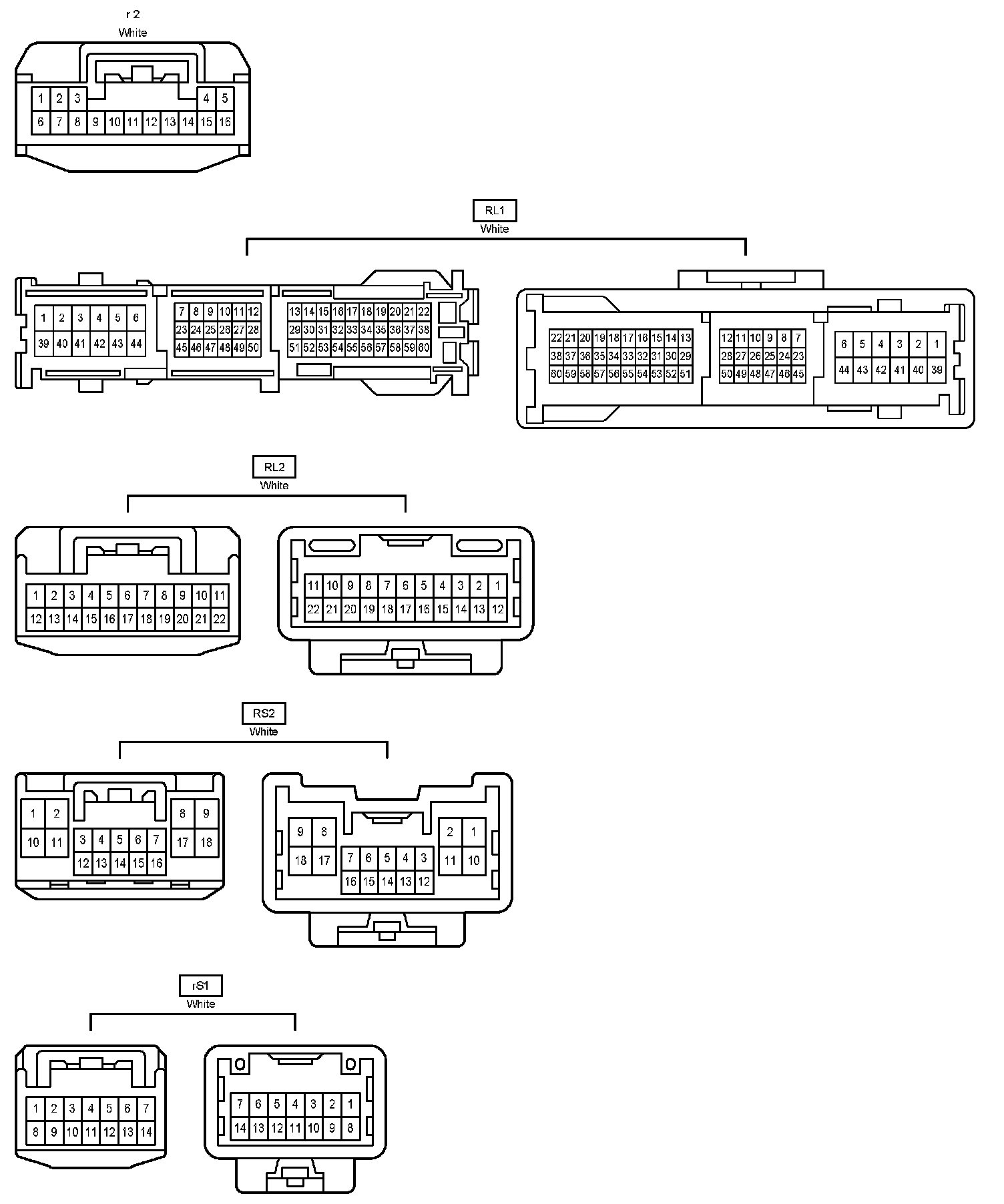

Connector Pin Outs Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
