Lexus Navigation System, Multi-Display (w/o Lexus Navigation System), Parking Assist (Rear View Monitor)

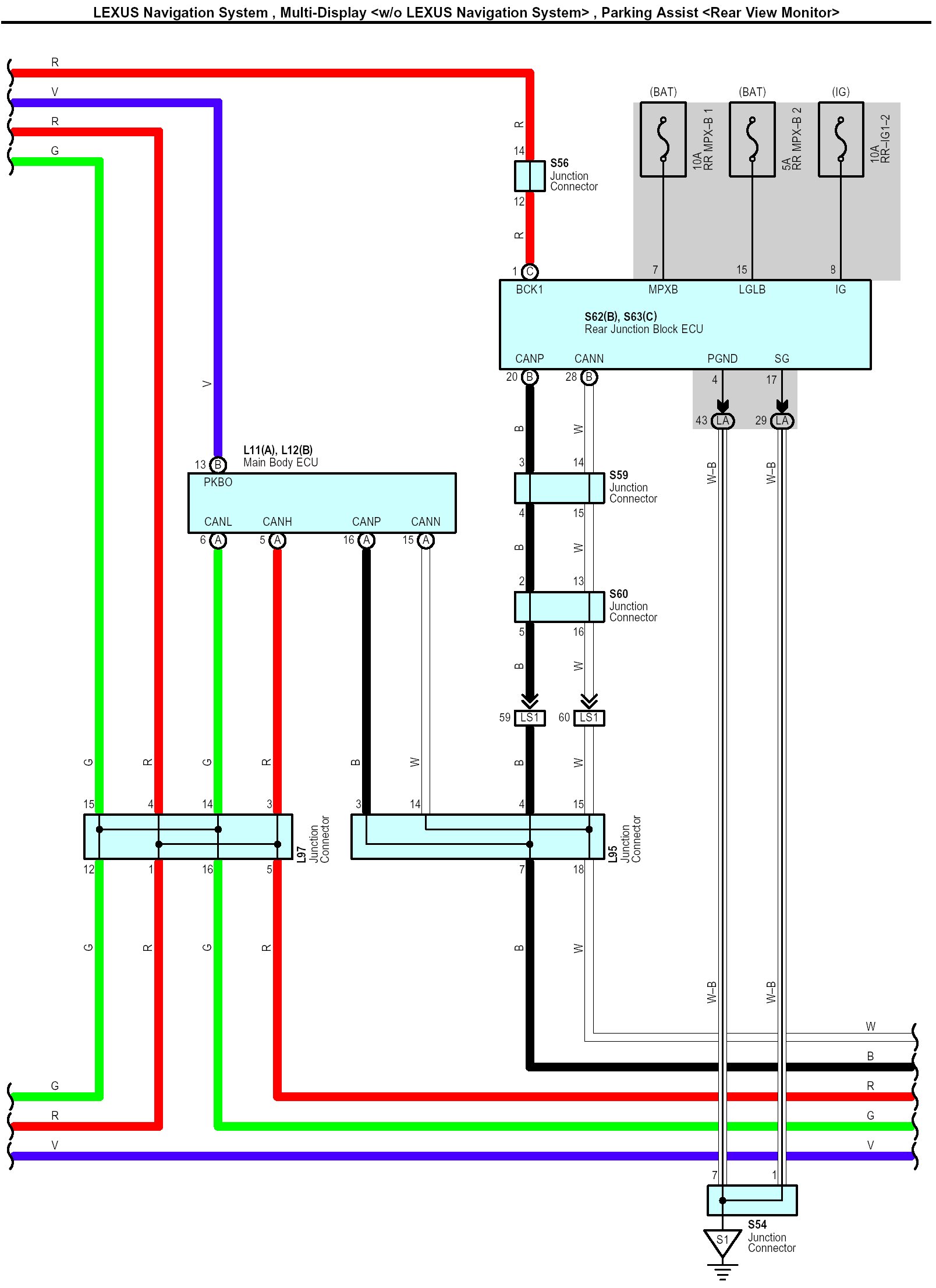

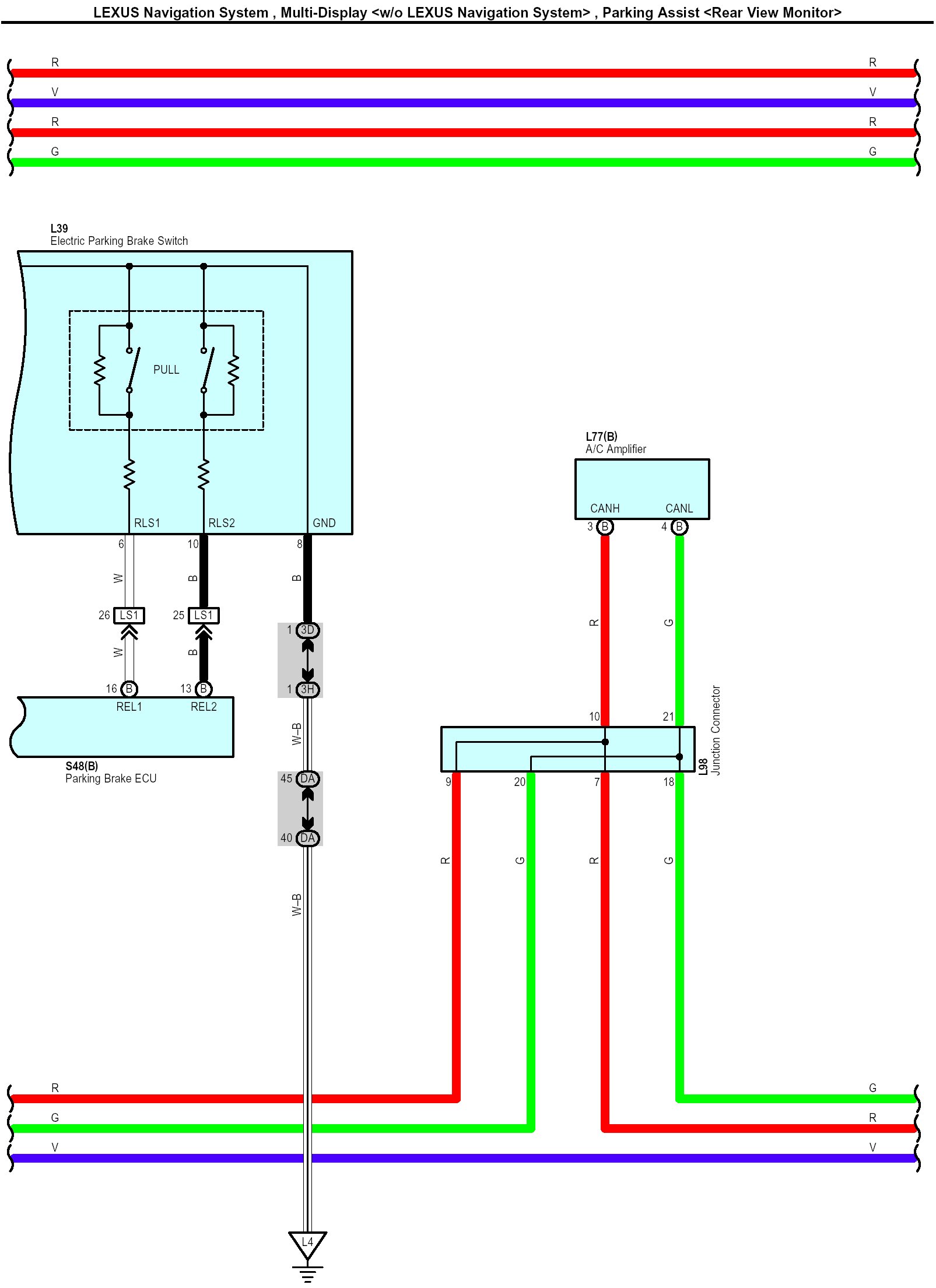

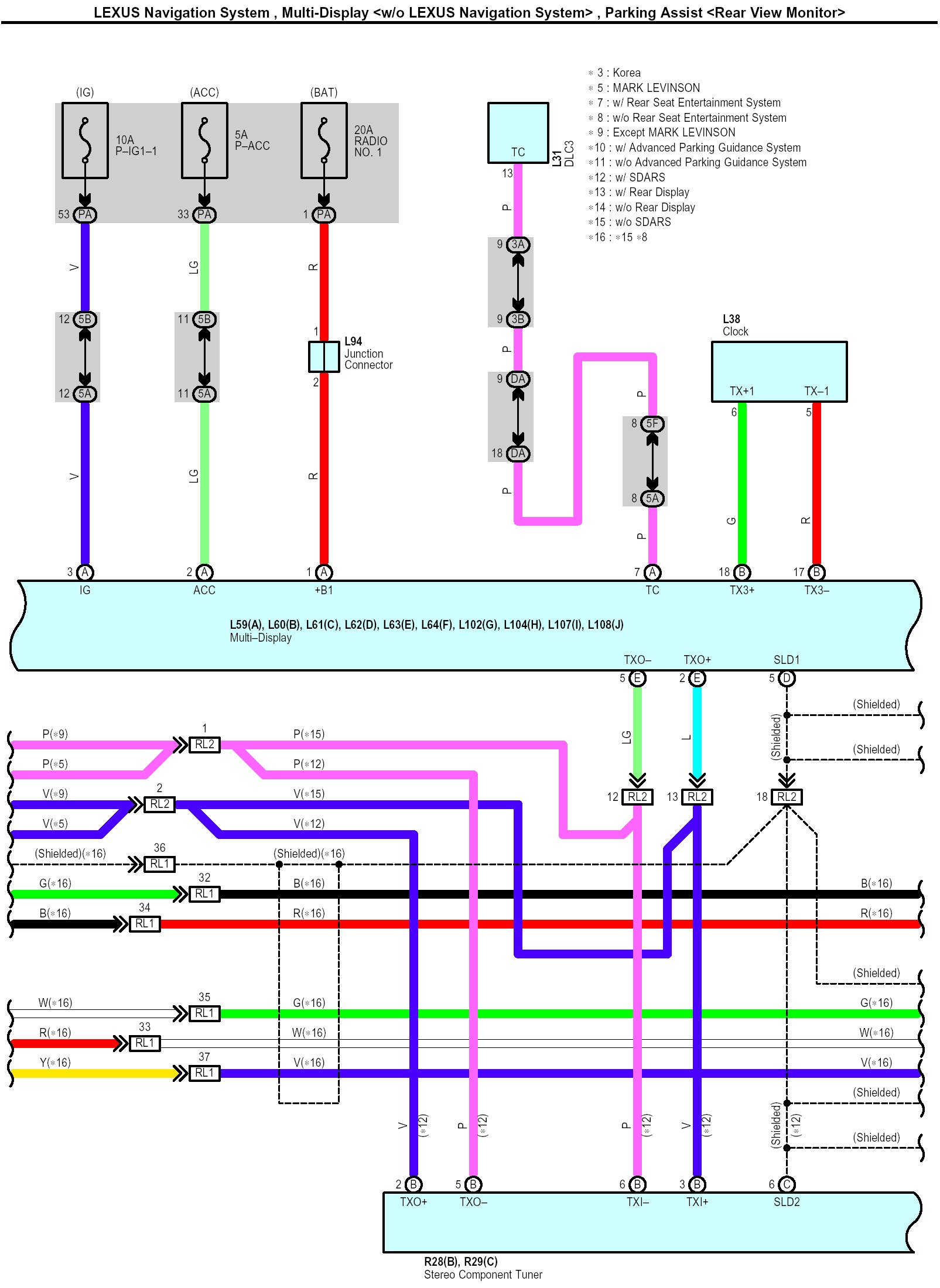

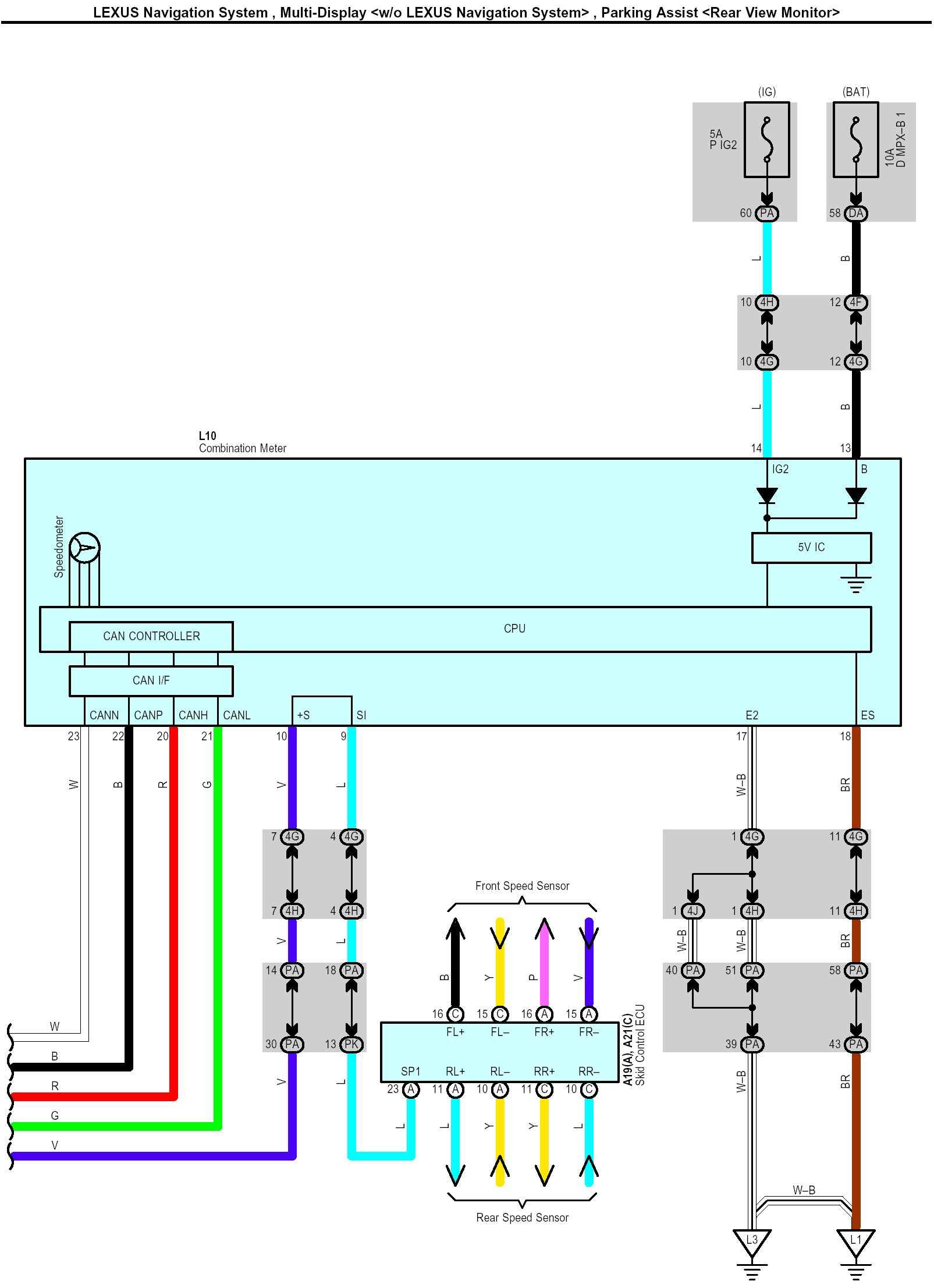

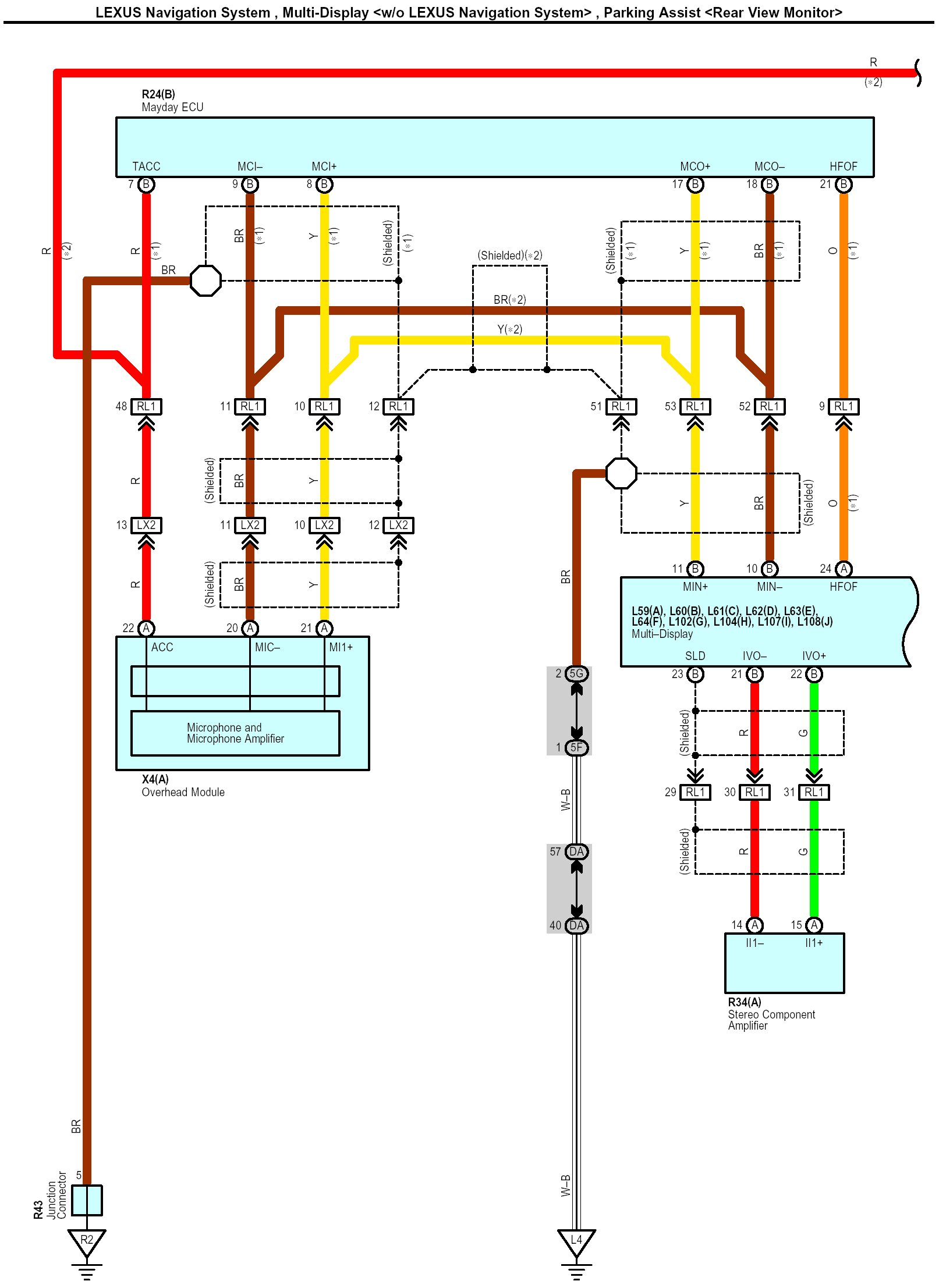

LEXUS Navigation System, Multi-Display (w/o LEXUS Navigation System), Parking Assist (Rear View Monitor) Part 1:

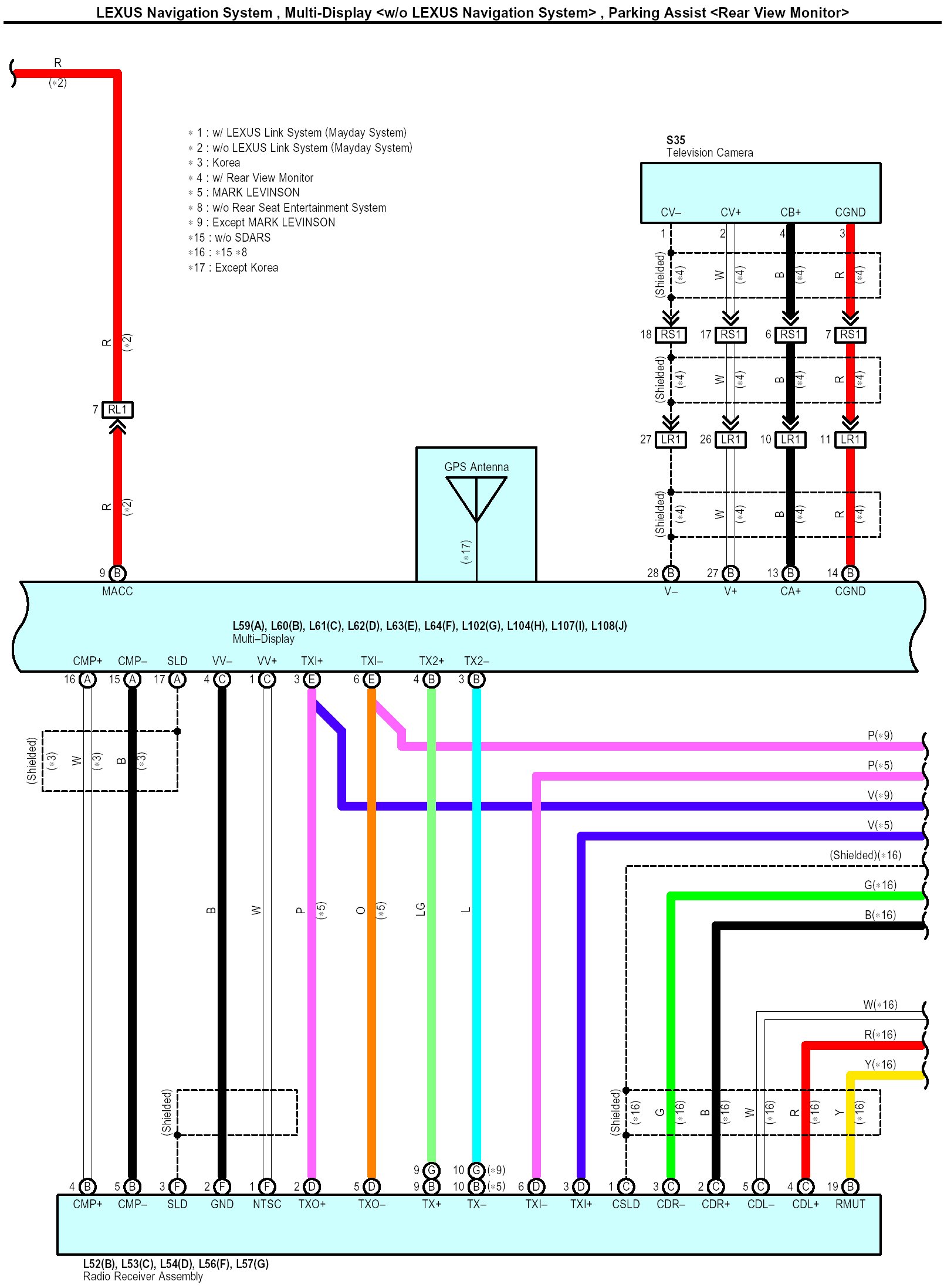

LEXUS Navigation System, Multi-Display (w/o LEXUS Navigation System), Parking Assist (Rear View Monitor) Part 2:

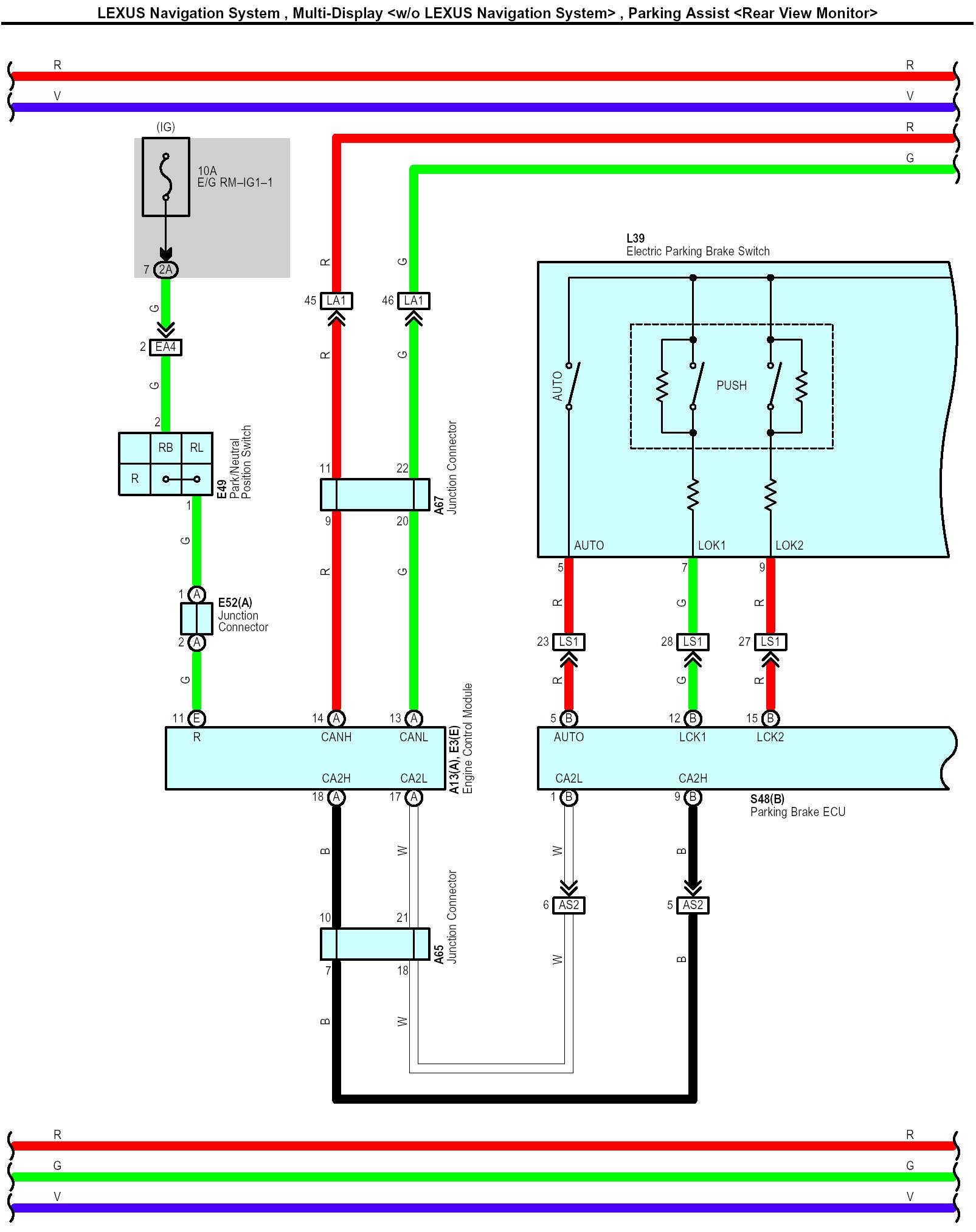

LEXUS Navigation System, Multi-Display (w/o LEXUS Navigation System), Parking Assist (Rear View Monitor) Part 3:

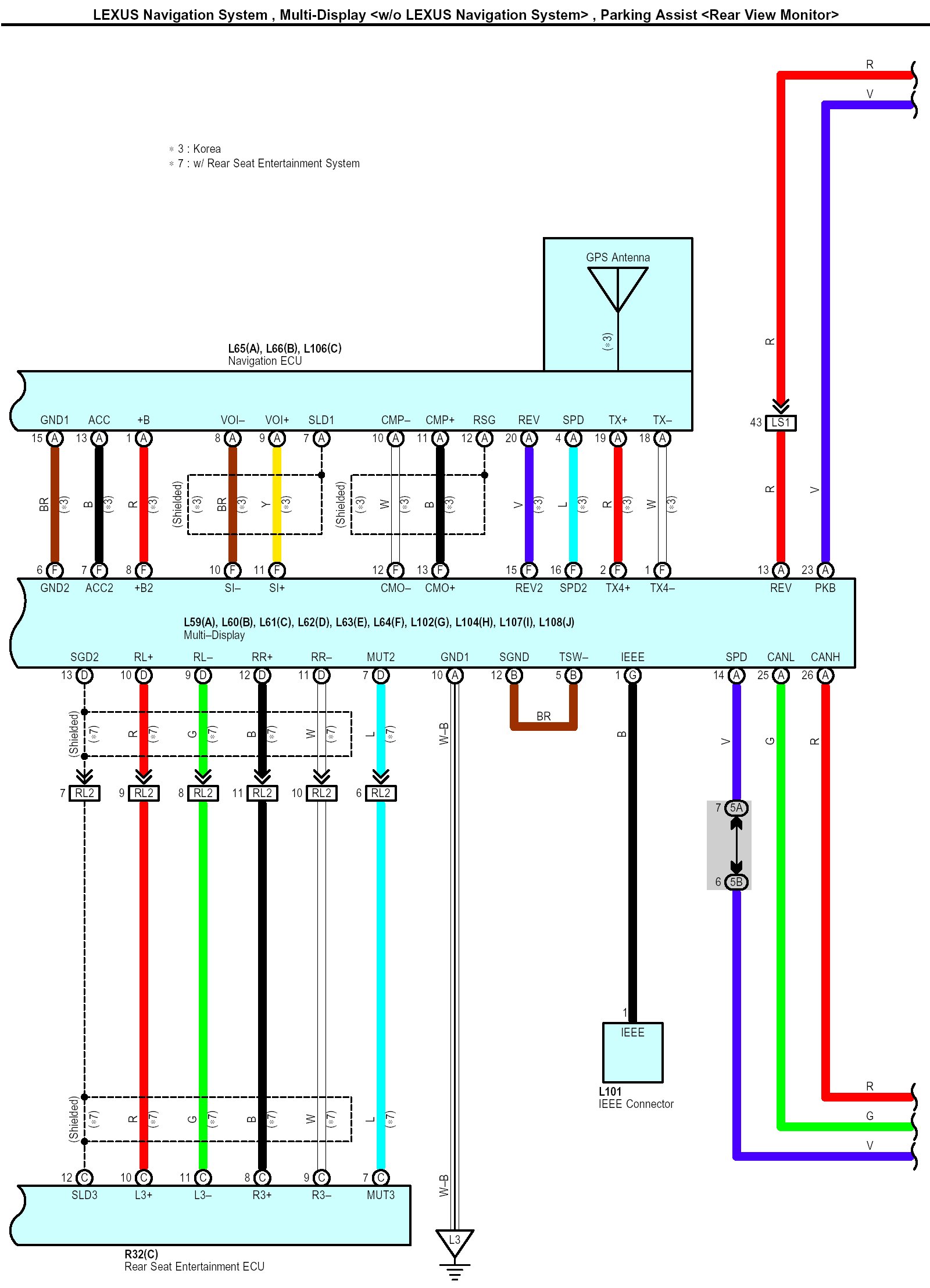

LEXUS Navigation System, Multi-Display (w/o LEXUS Navigation System), Parking Assist (Rear View Monitor) Part 4:

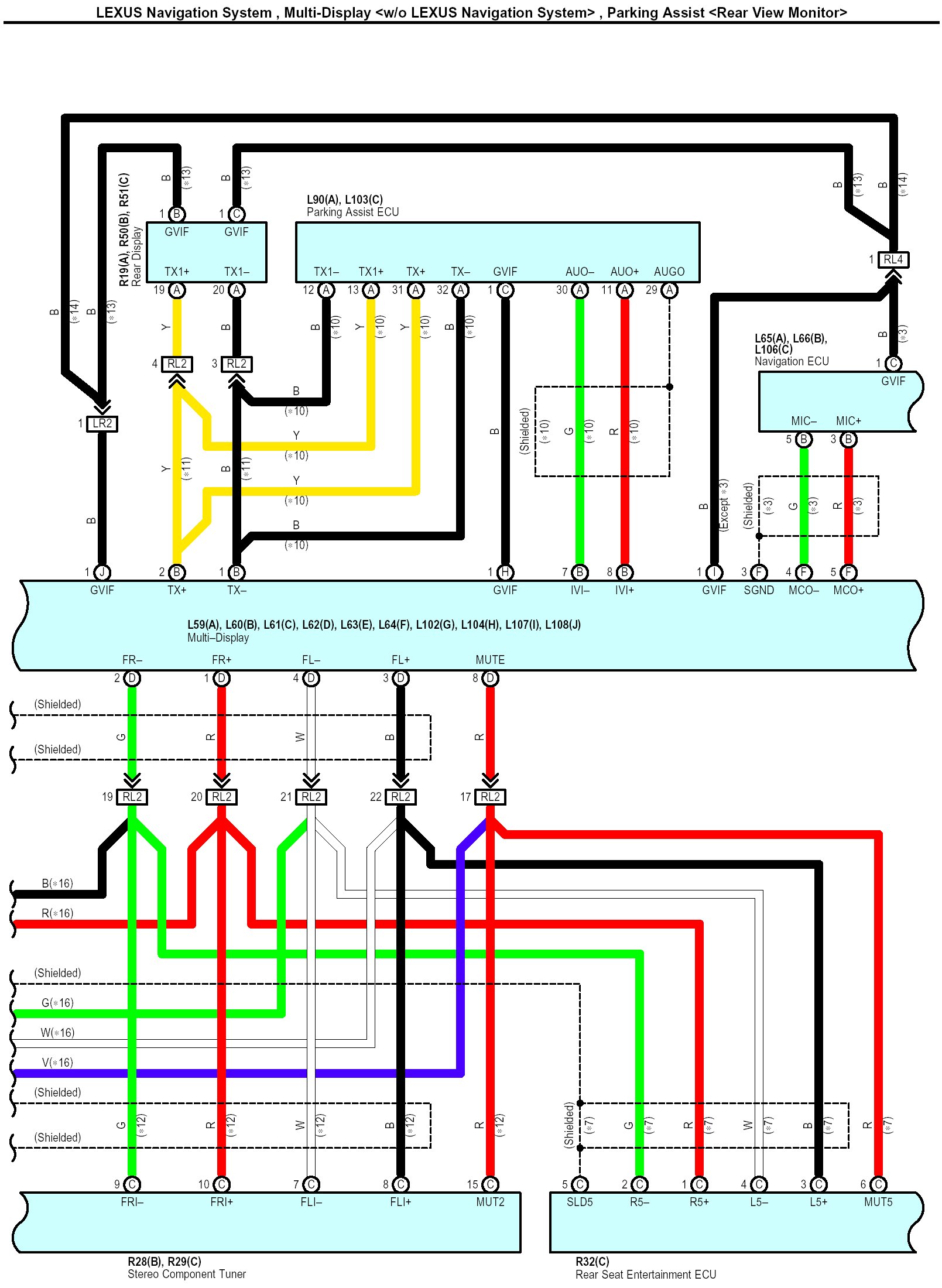

LEXUS Navigation System, Multi-Display (w/o LEXUS Navigation System), Parking Assist (Rear View Monitor) Part 5:

LEXUS Navigation System, Multi-Display (w/o LEXUS Navigation System), Parking Assist (Rear View Monitor) Part 6:

LEXUS Navigation System, Multi-Display (w/o LEXUS Navigation System), Parking Assist (Rear View Monitor) Part 7:

LEXUS Navigation System, Multi-Display (w/o LEXUS Navigation System), Parking Assist (Rear View Monitor) Part 8:

LEXUS Navigation System, Multi-Display (w/o LEXUS Navigation System), Parking Assist (Rear View Monitor) Part 9:

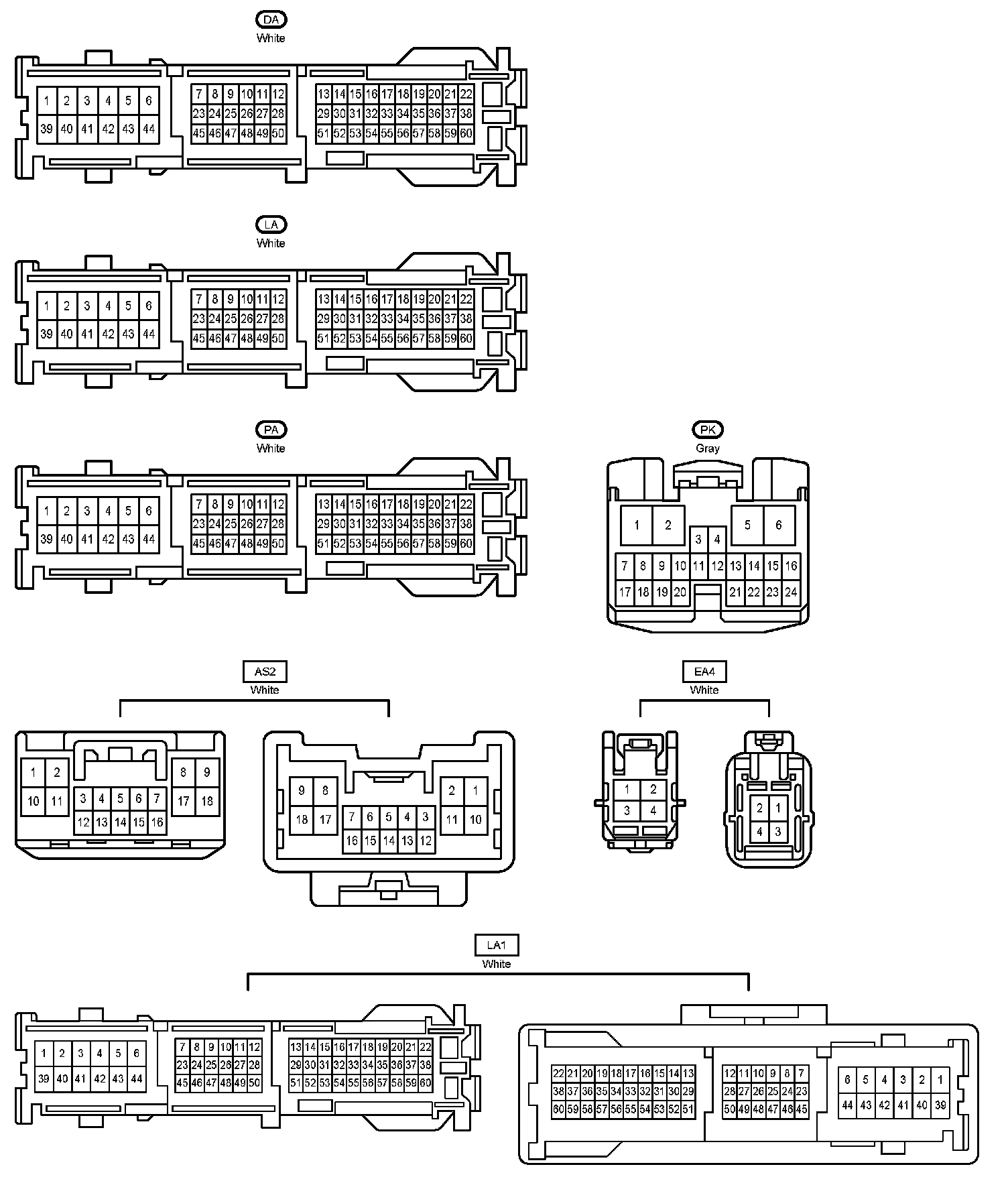

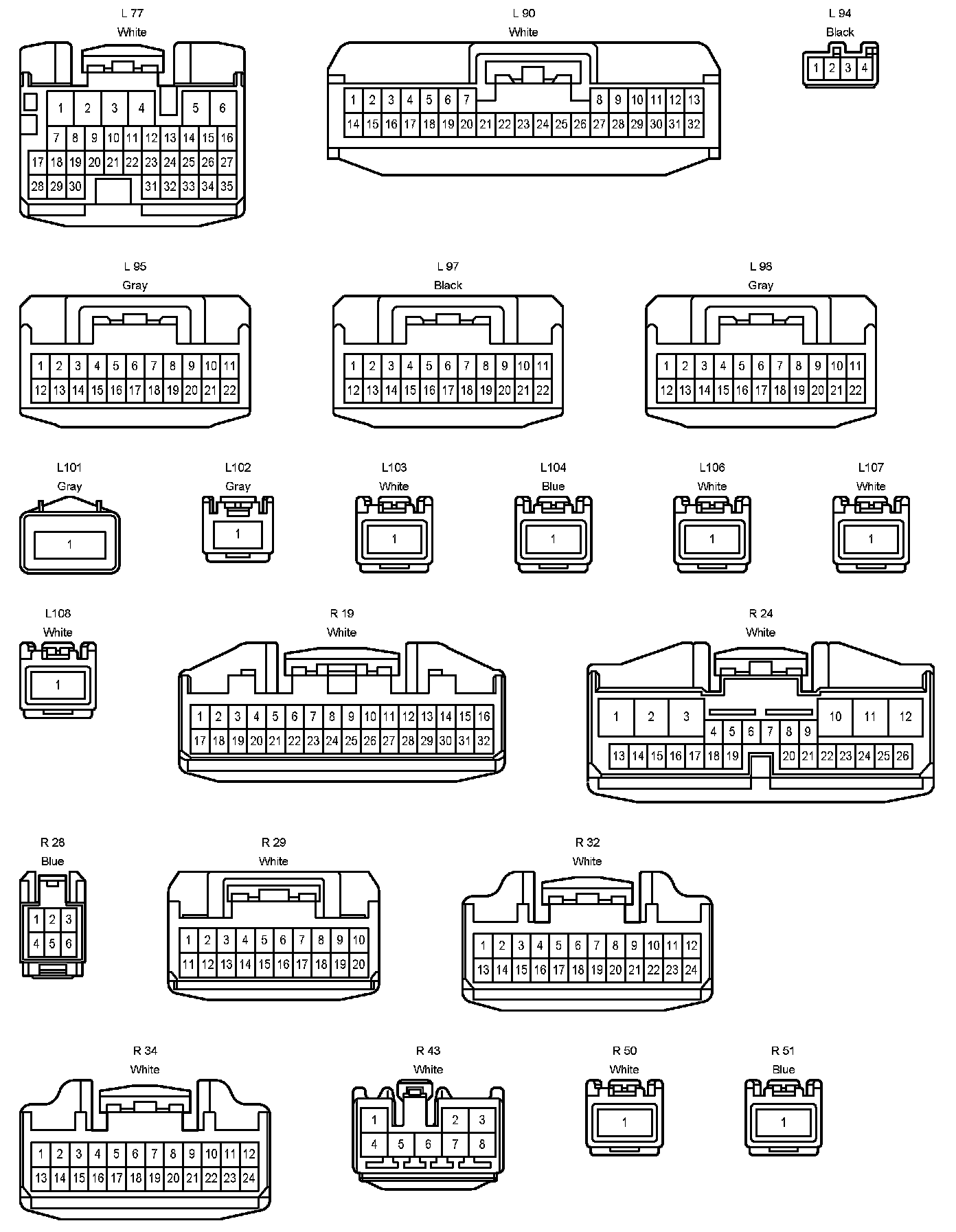

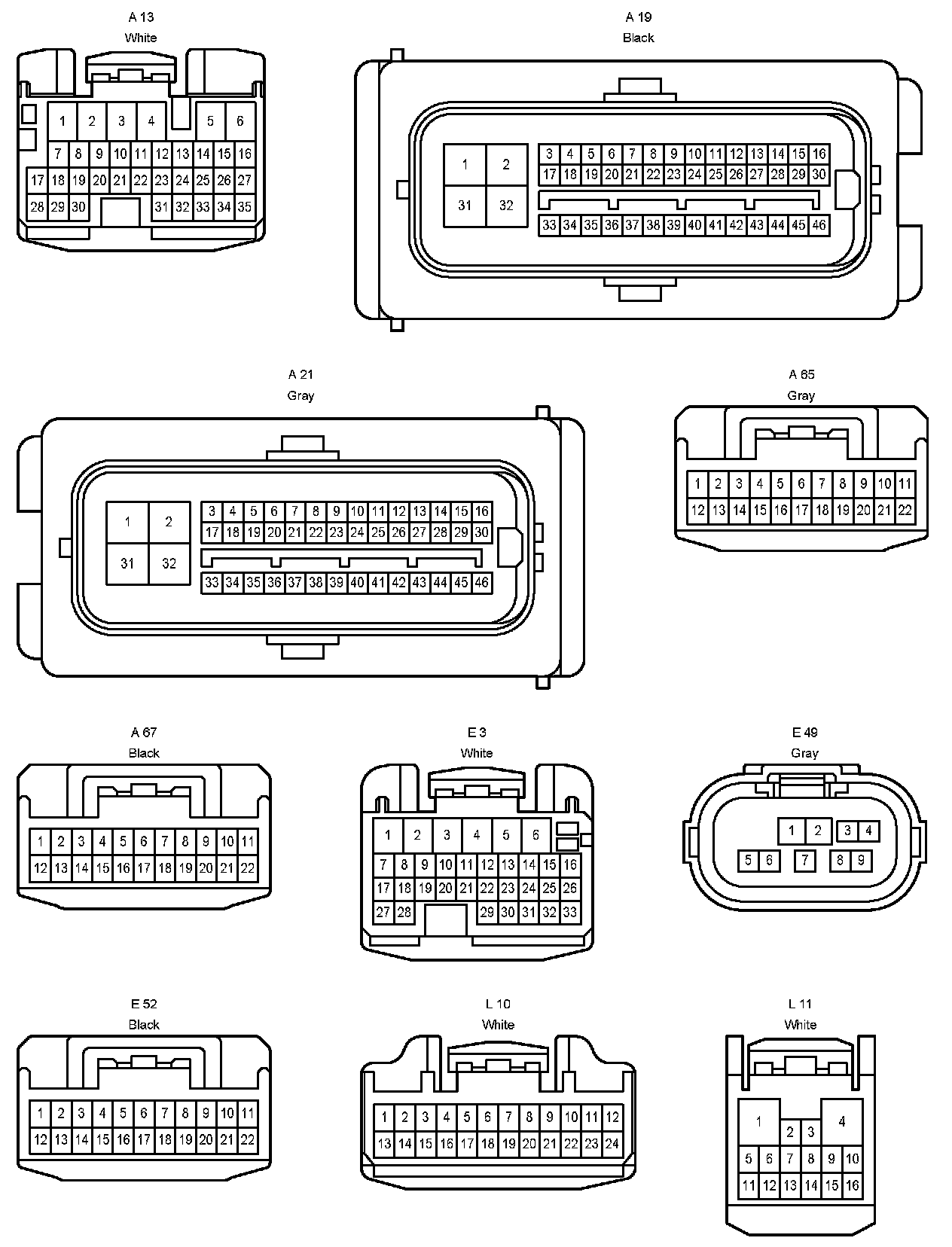

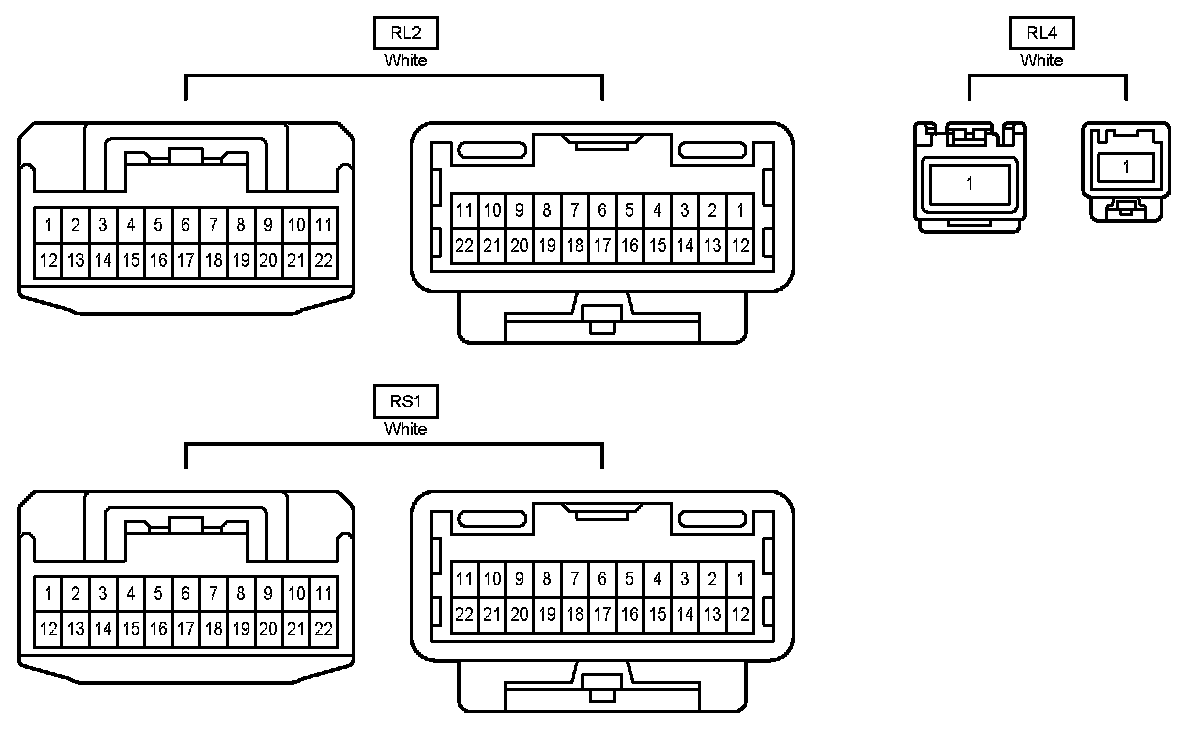

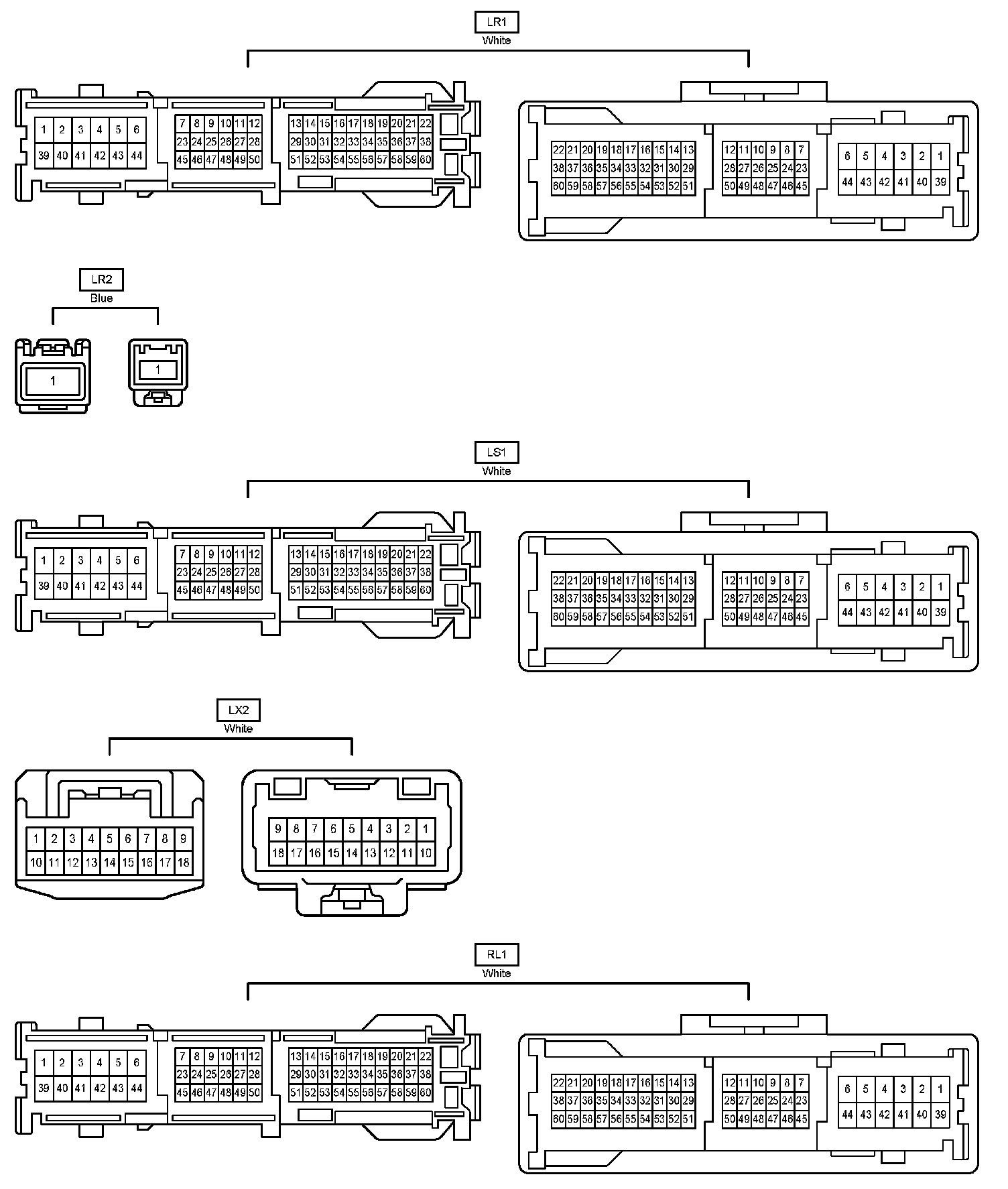

Connector Pin Outs Part 1:

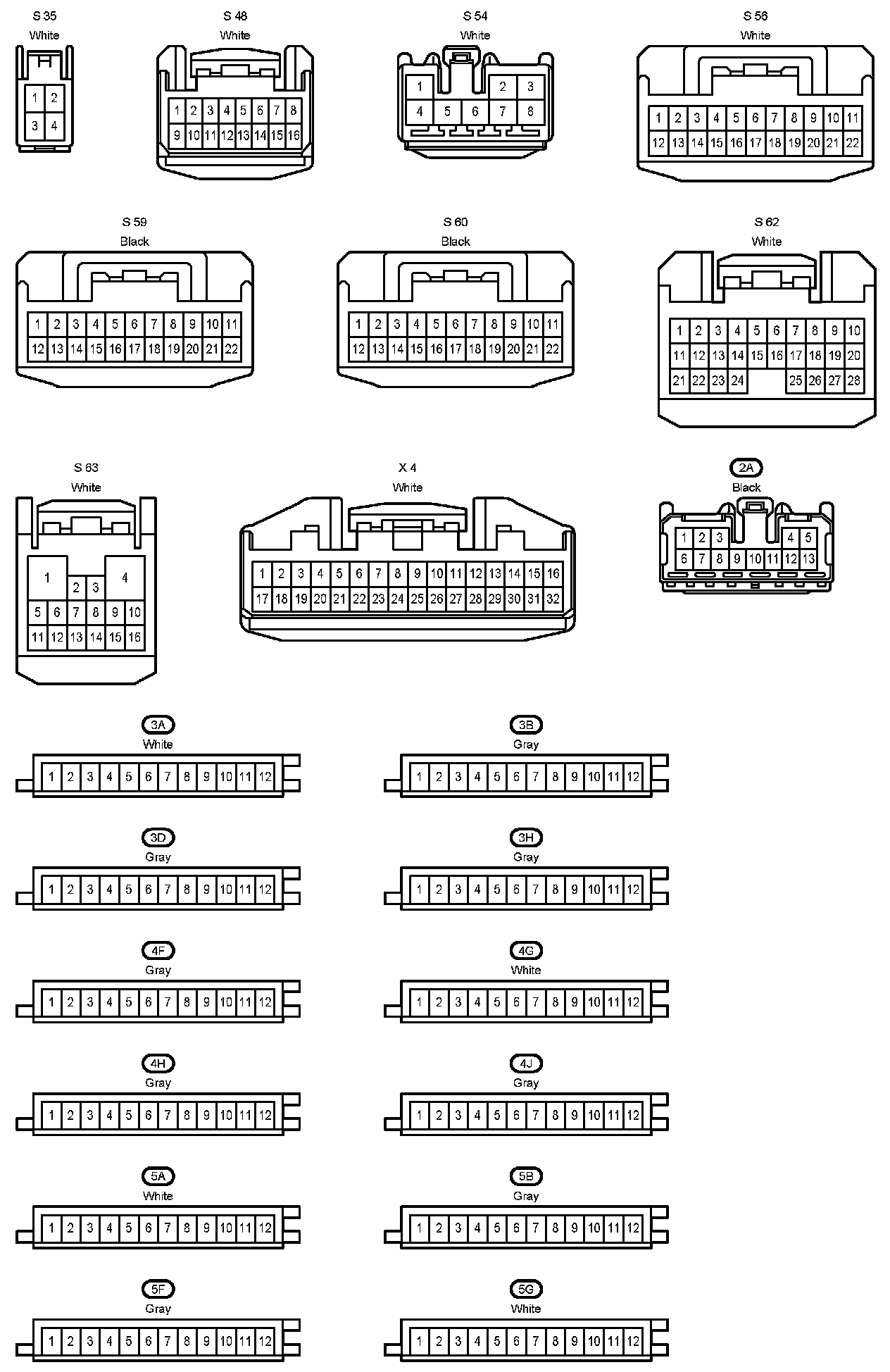

Connector Pin Outs Part 2:

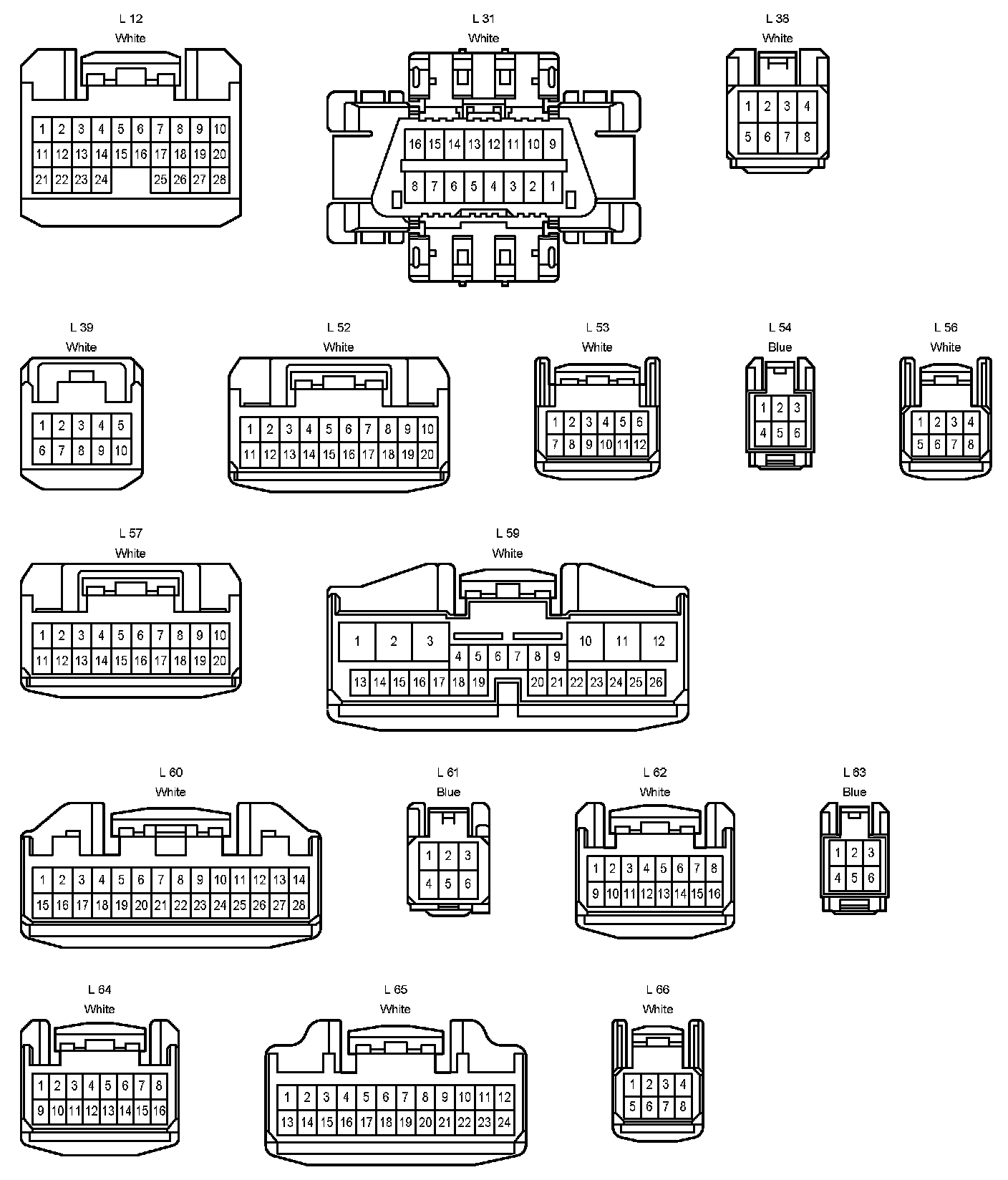

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Connector Pin Outs Part 7:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
