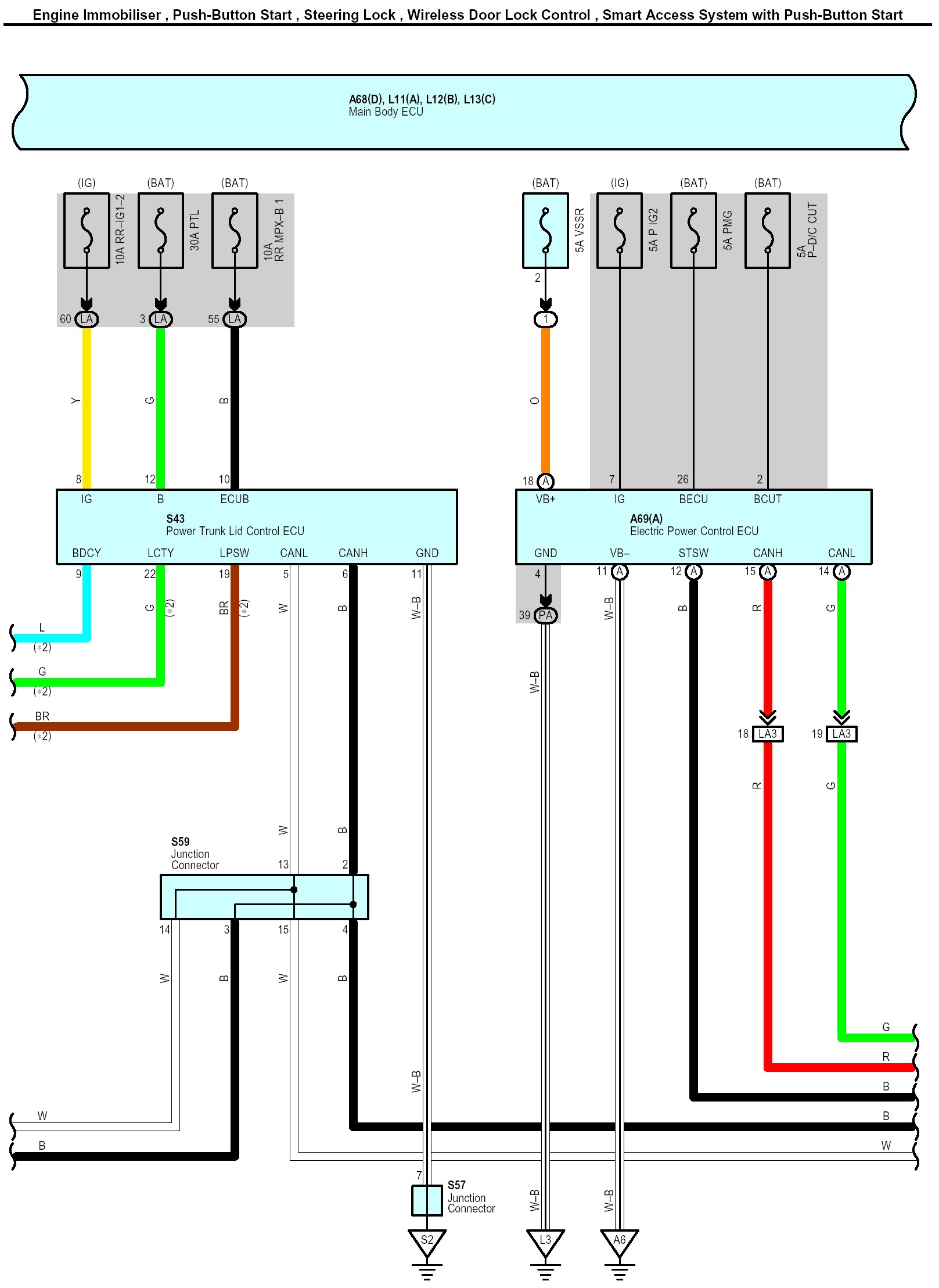

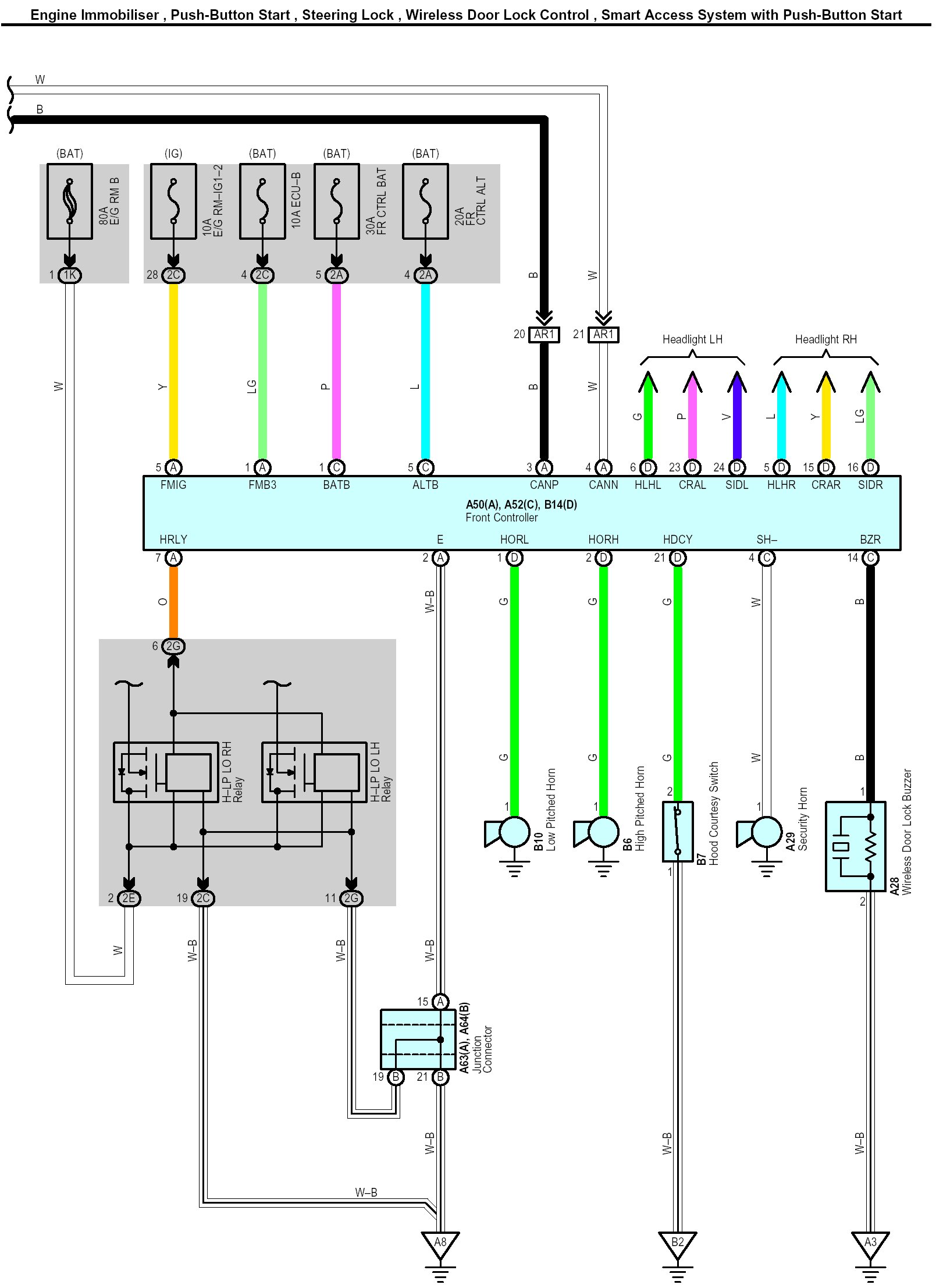

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System With Push-Button Start

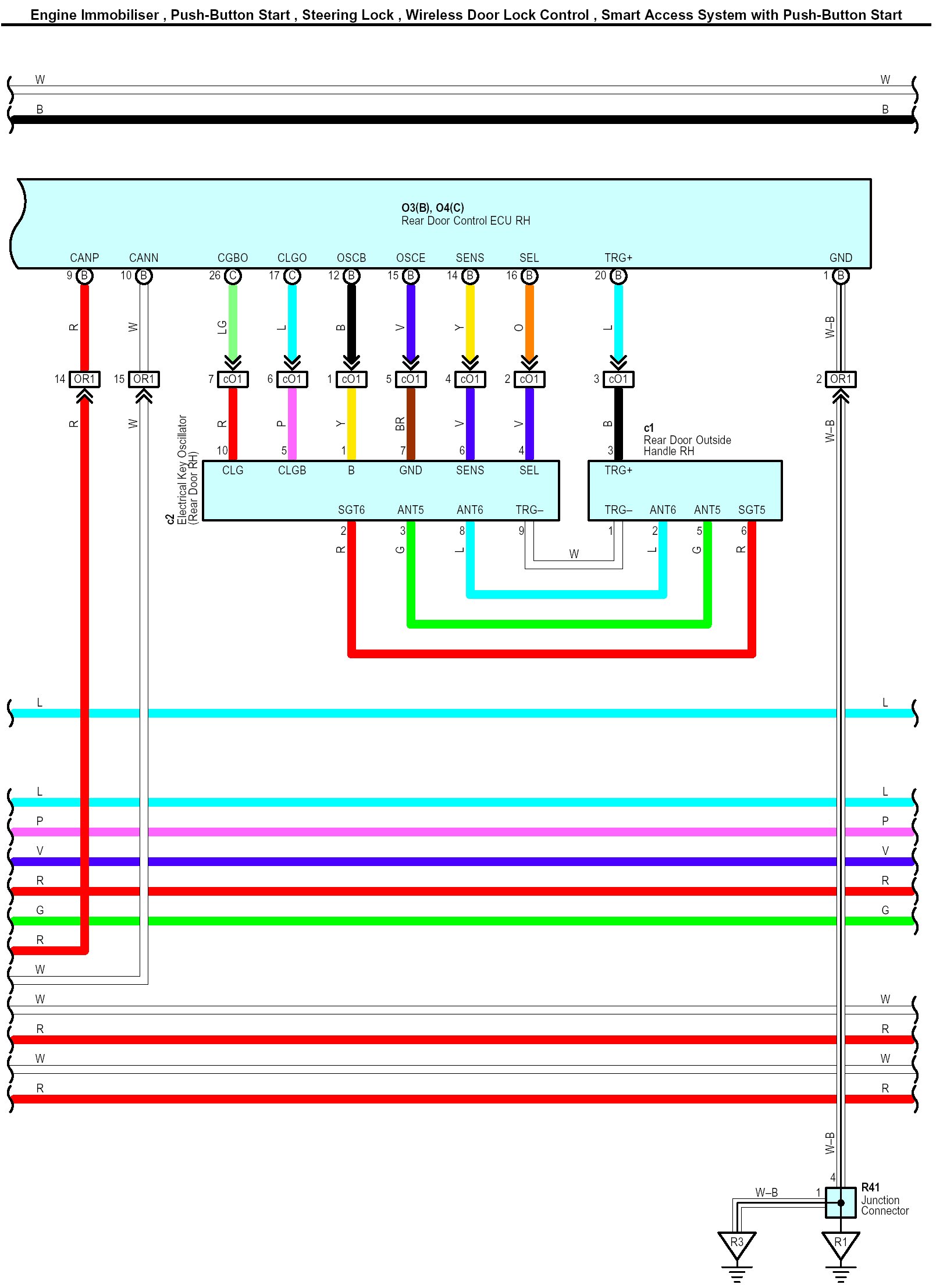

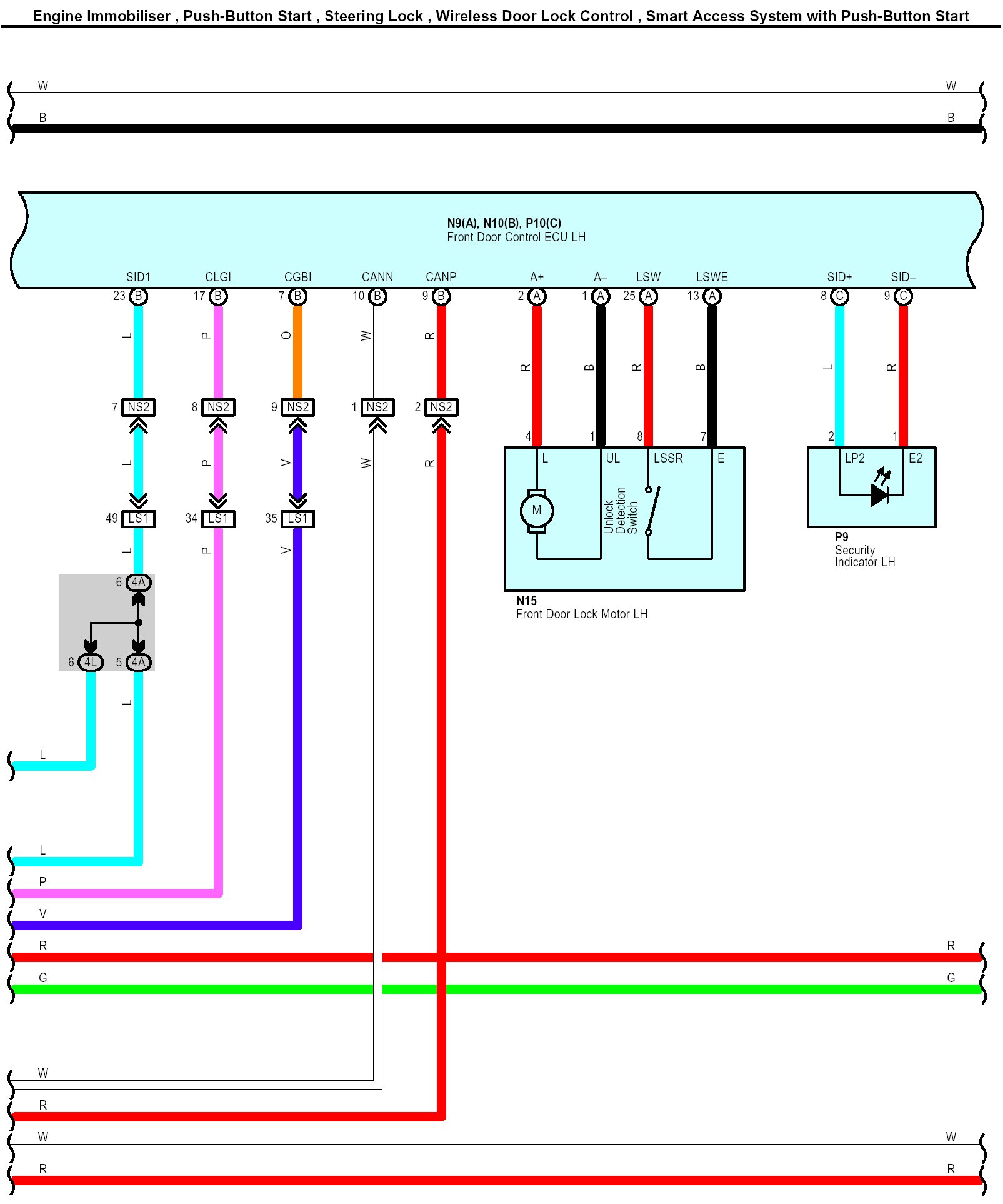

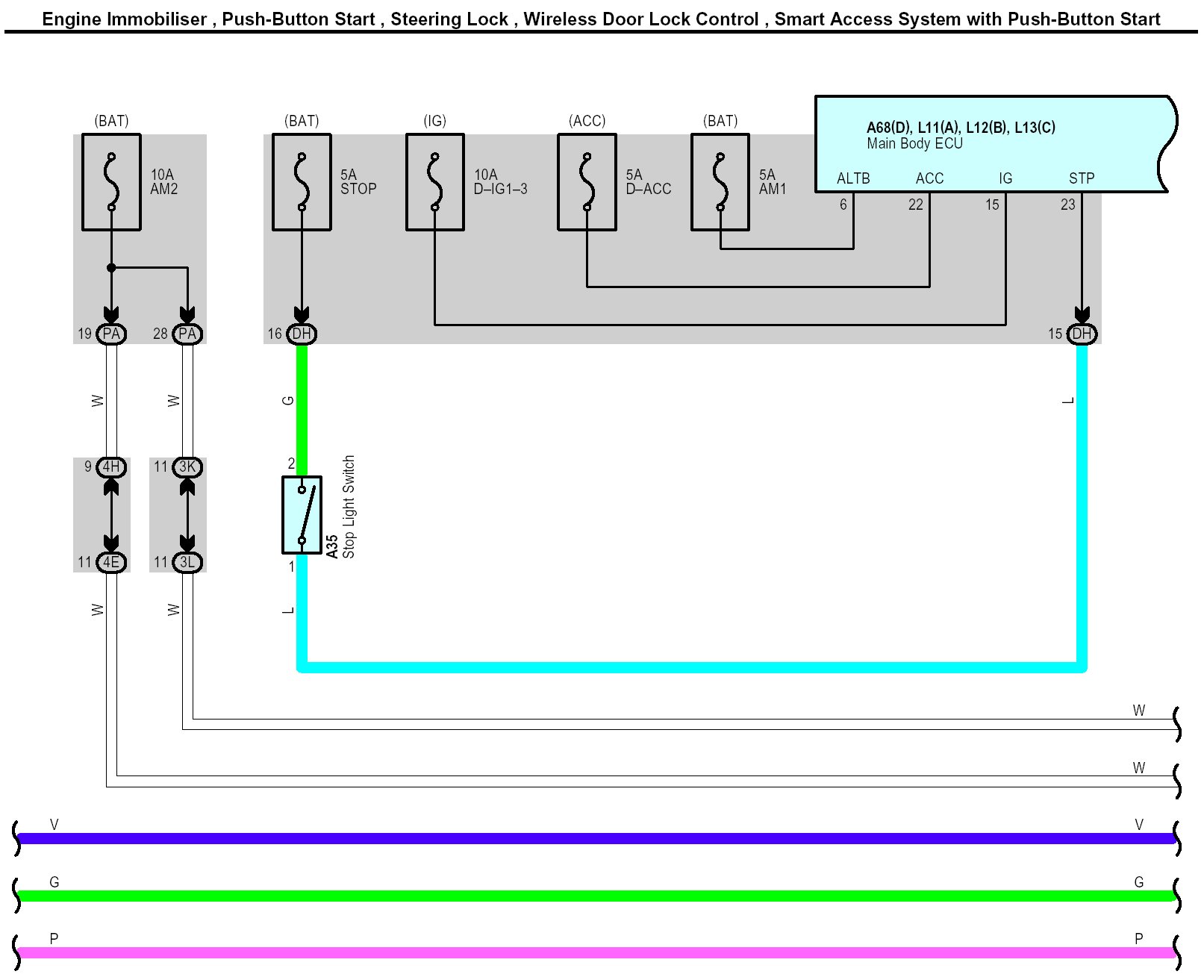

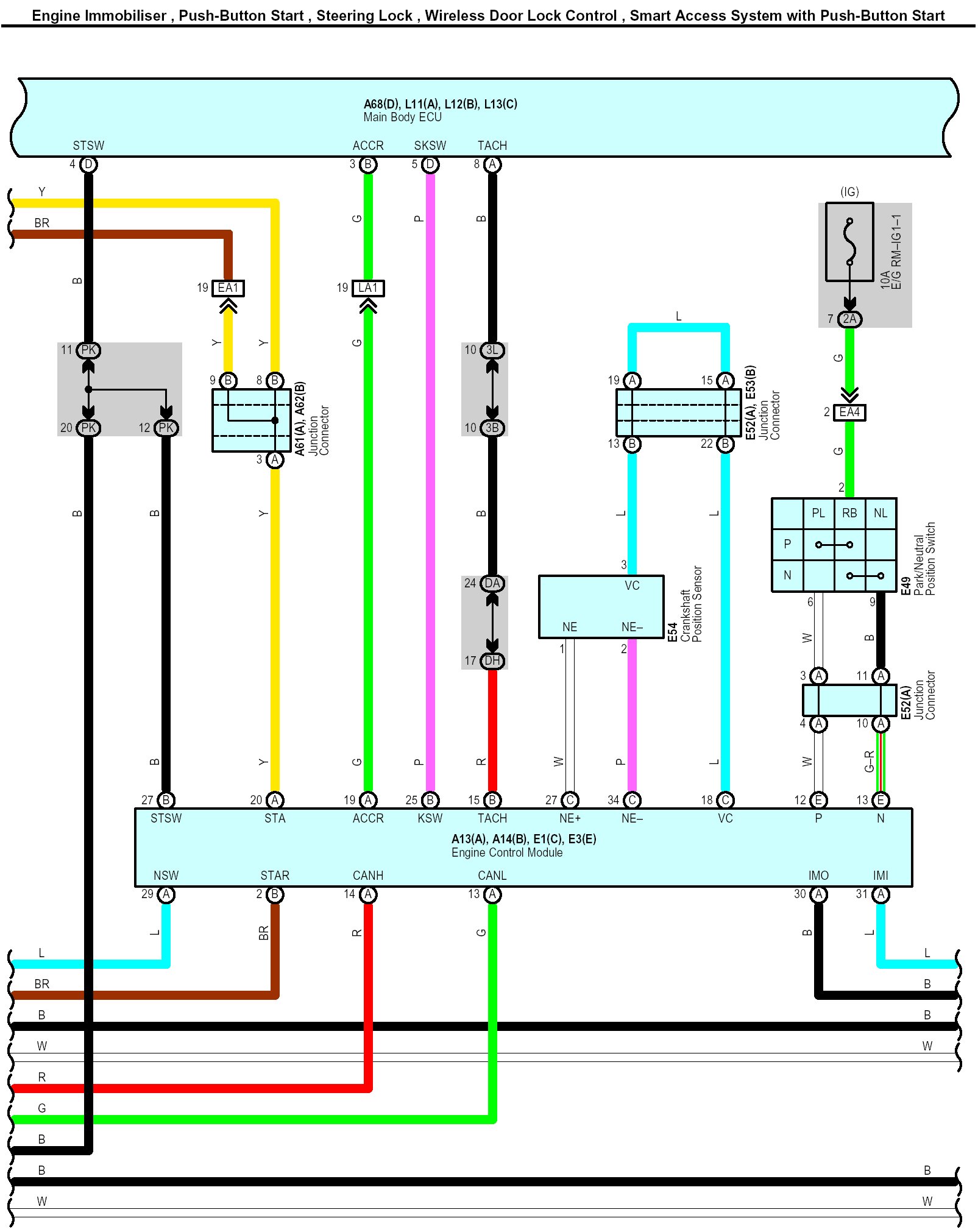

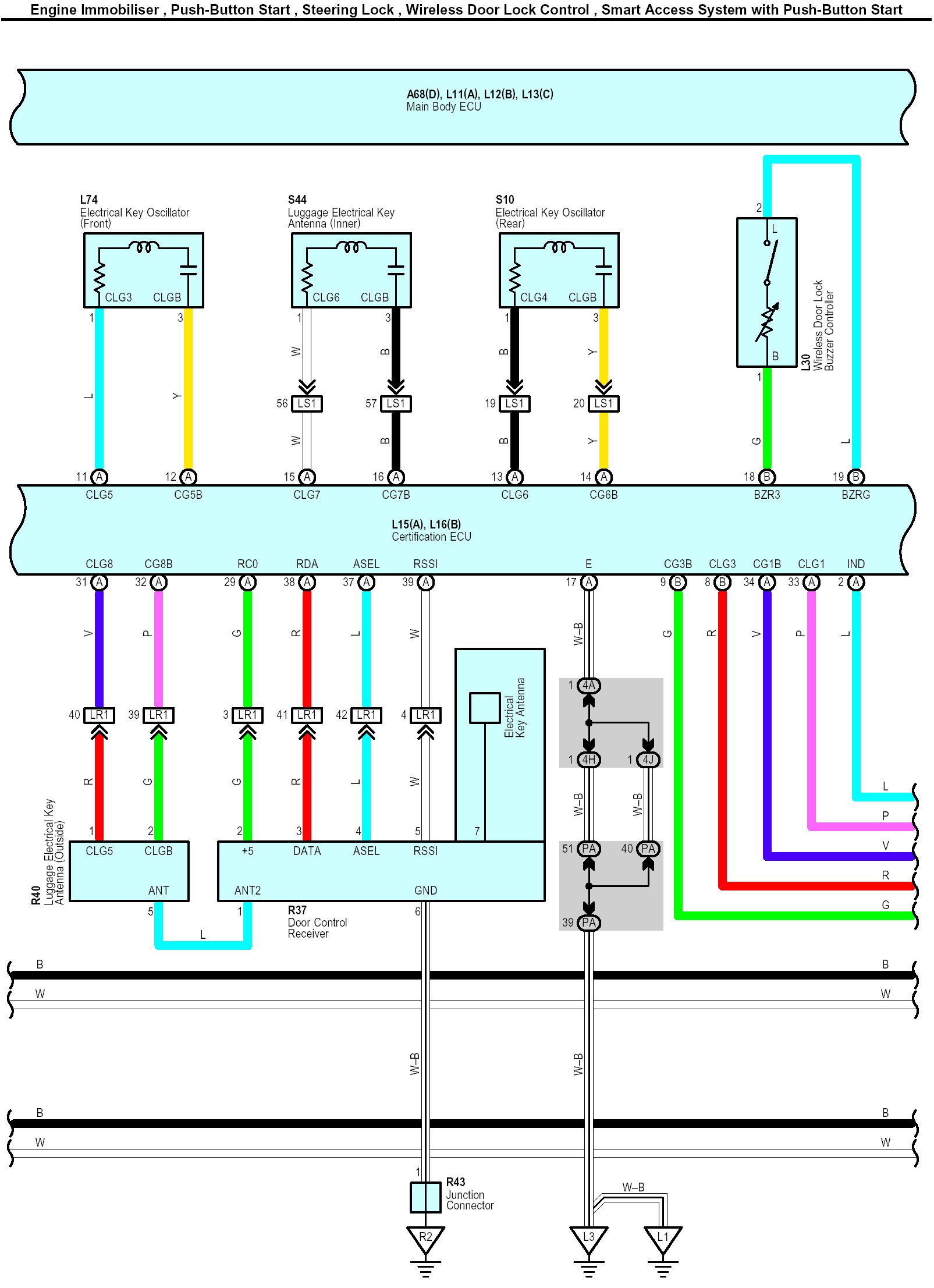

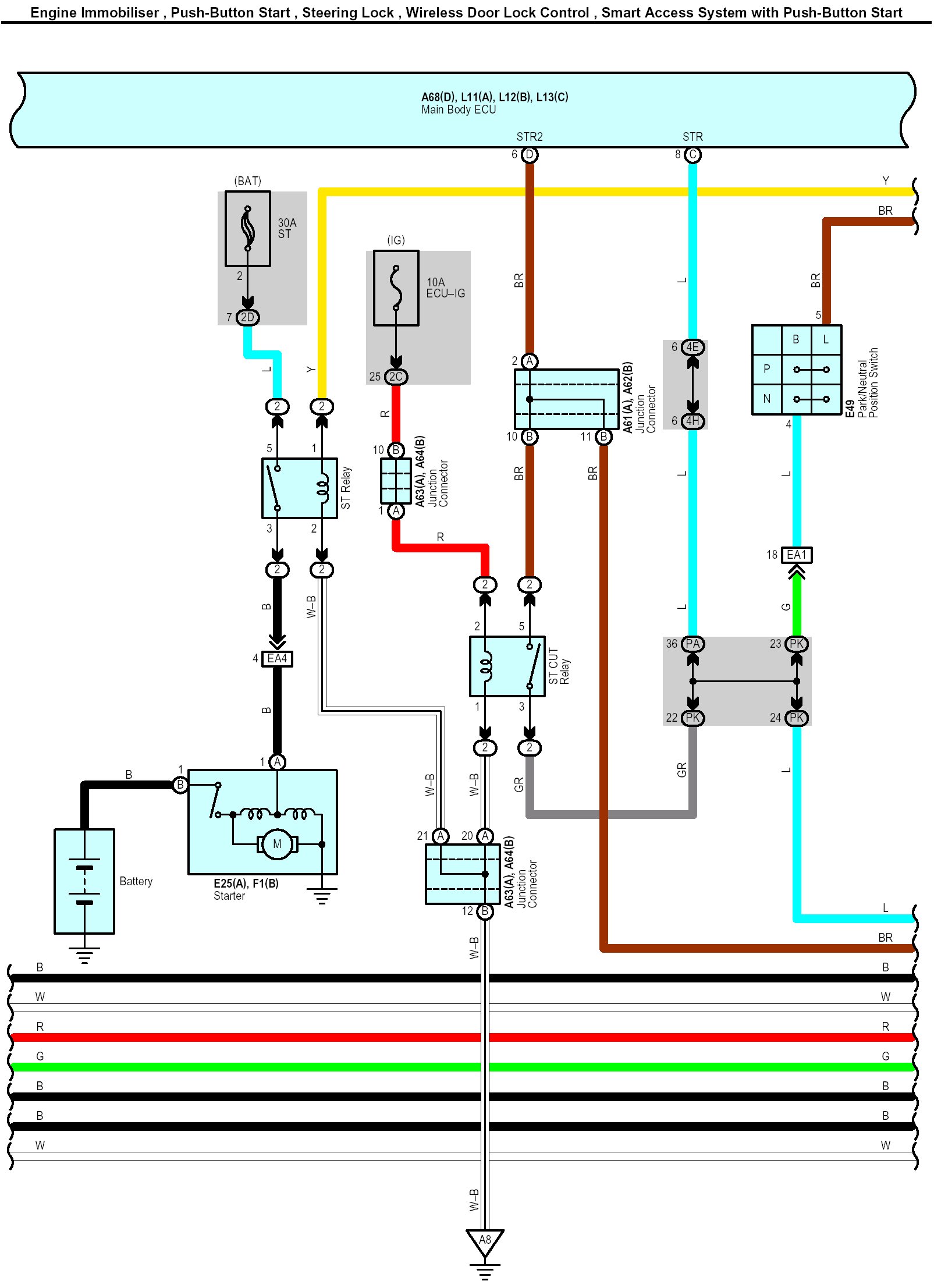

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 1:

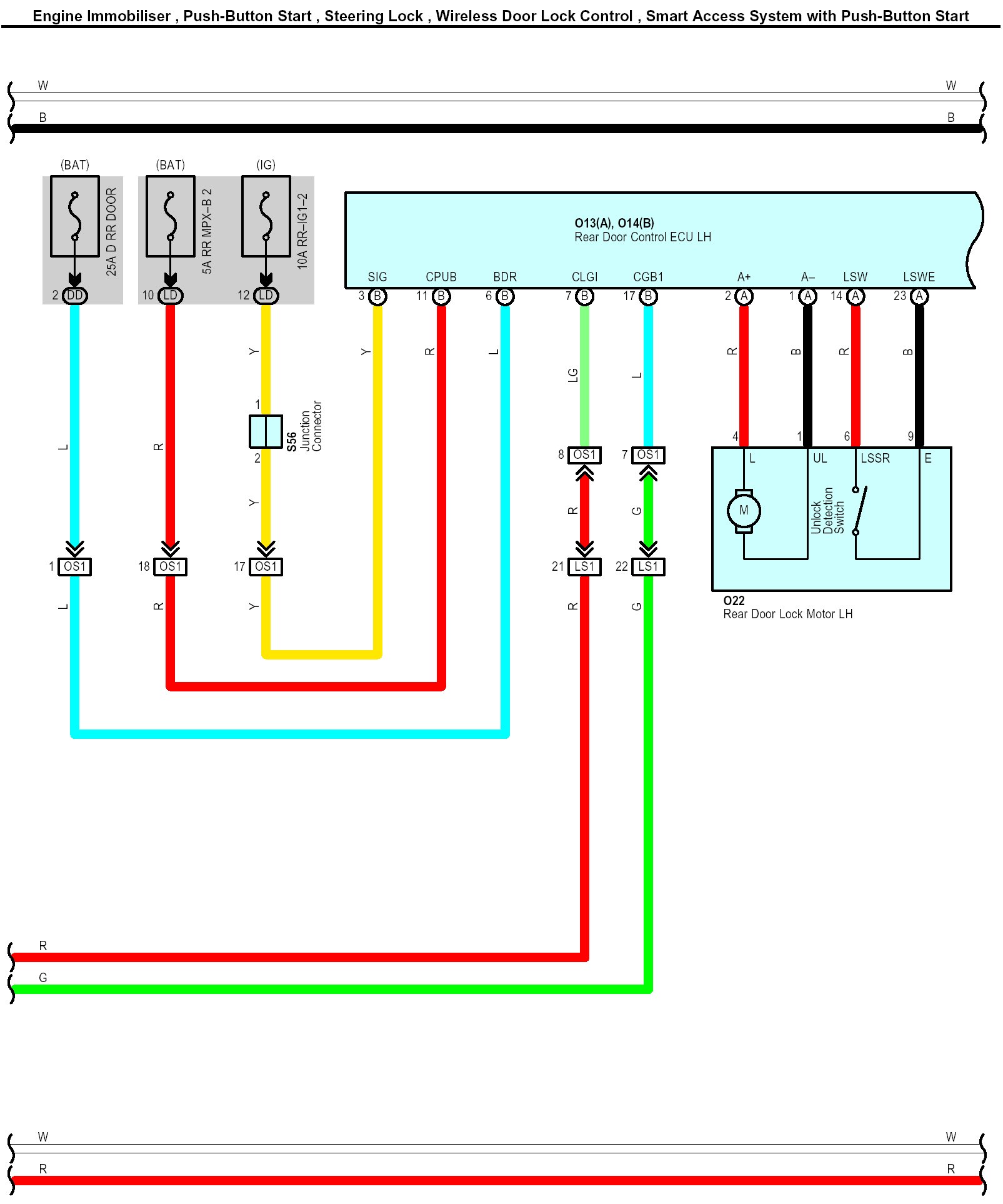

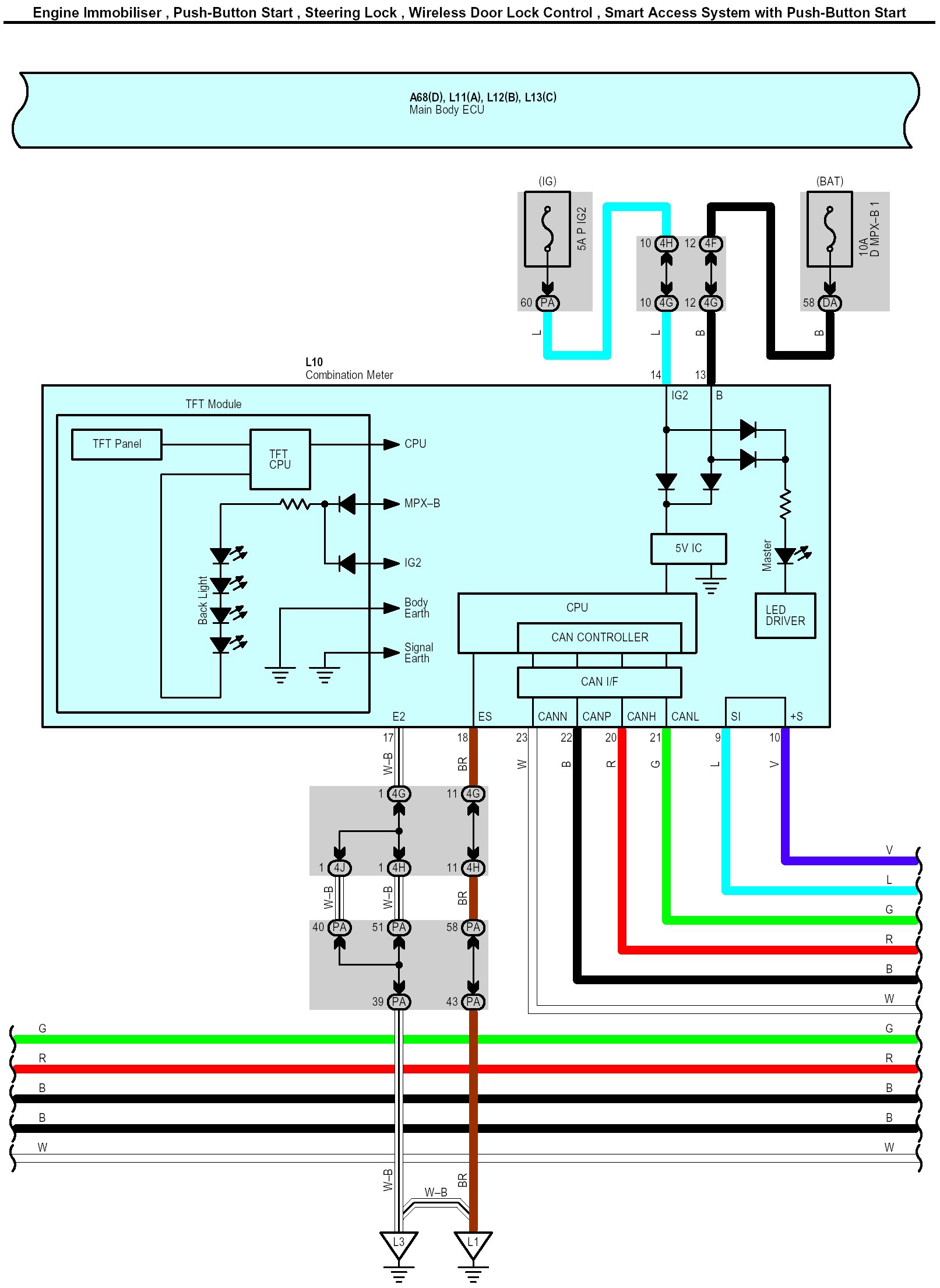

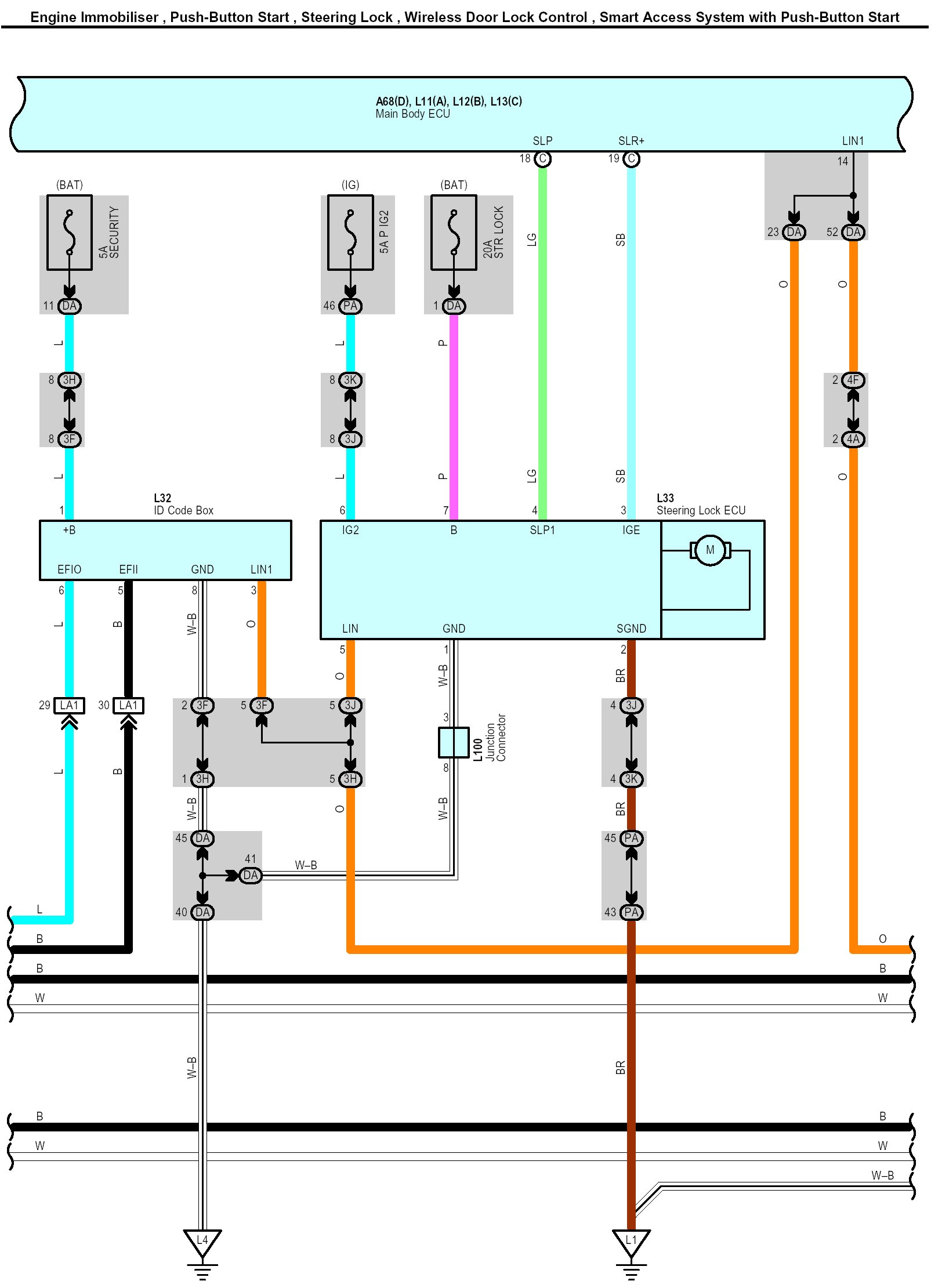

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 2:

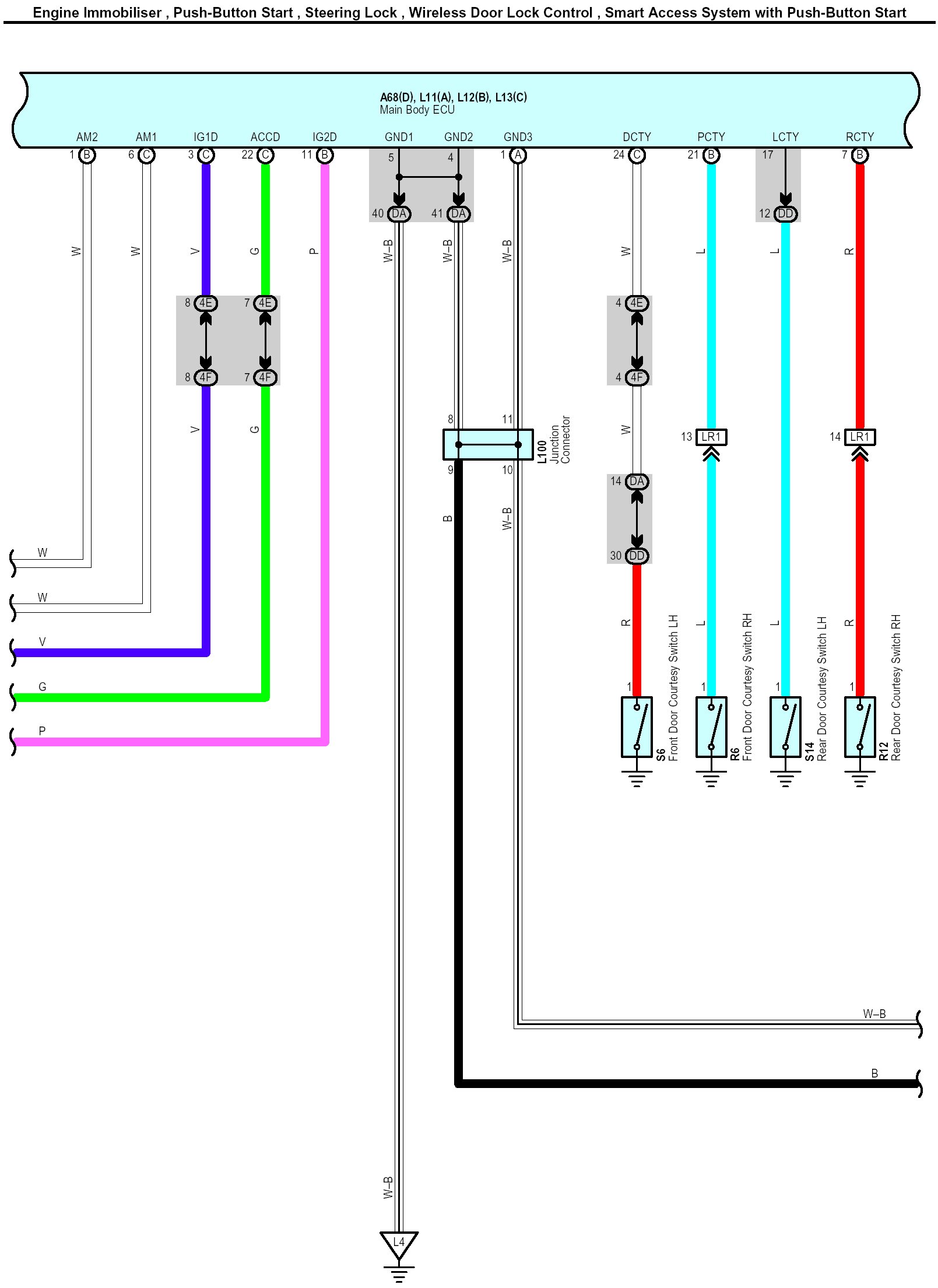

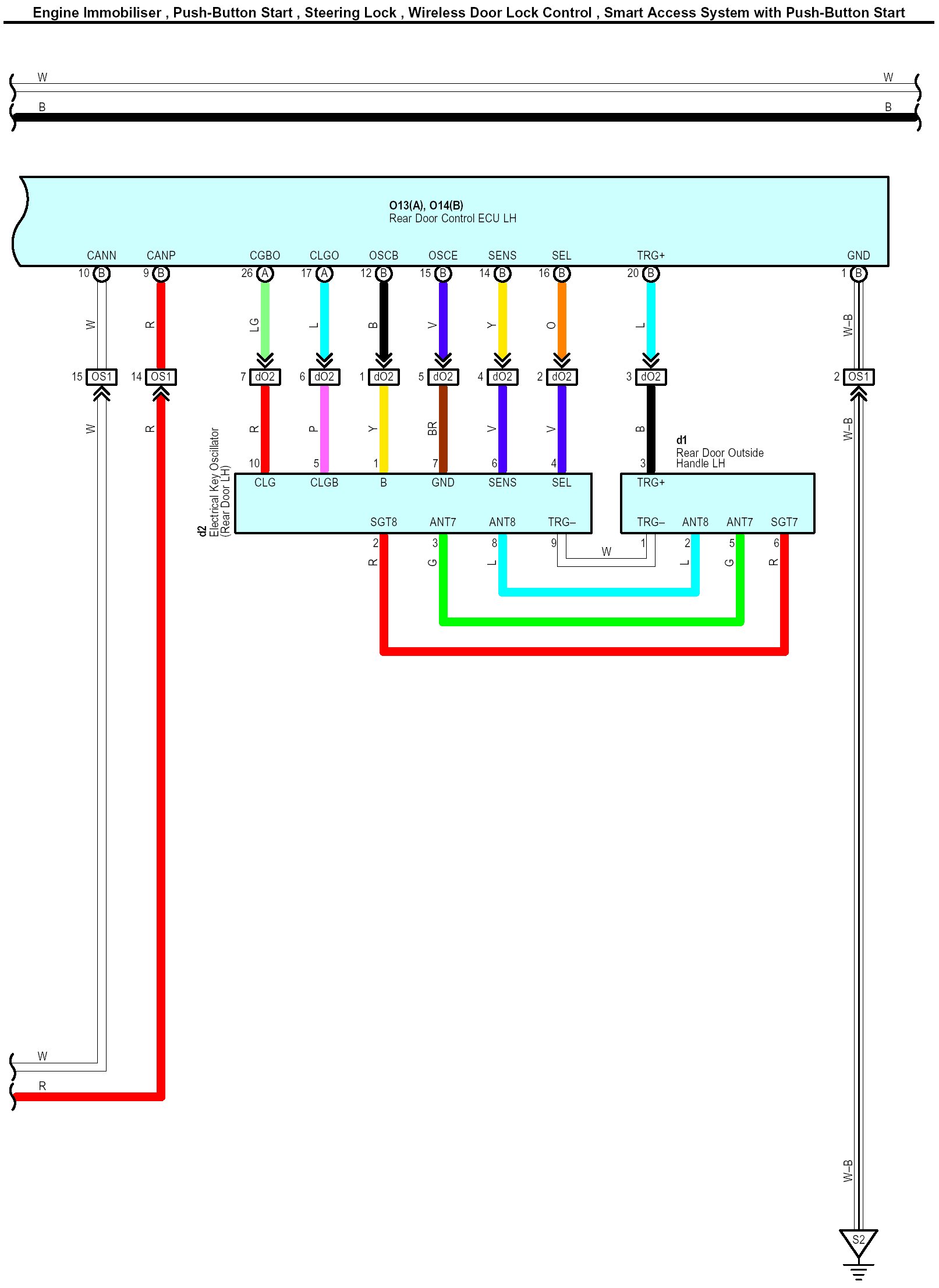

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 3:

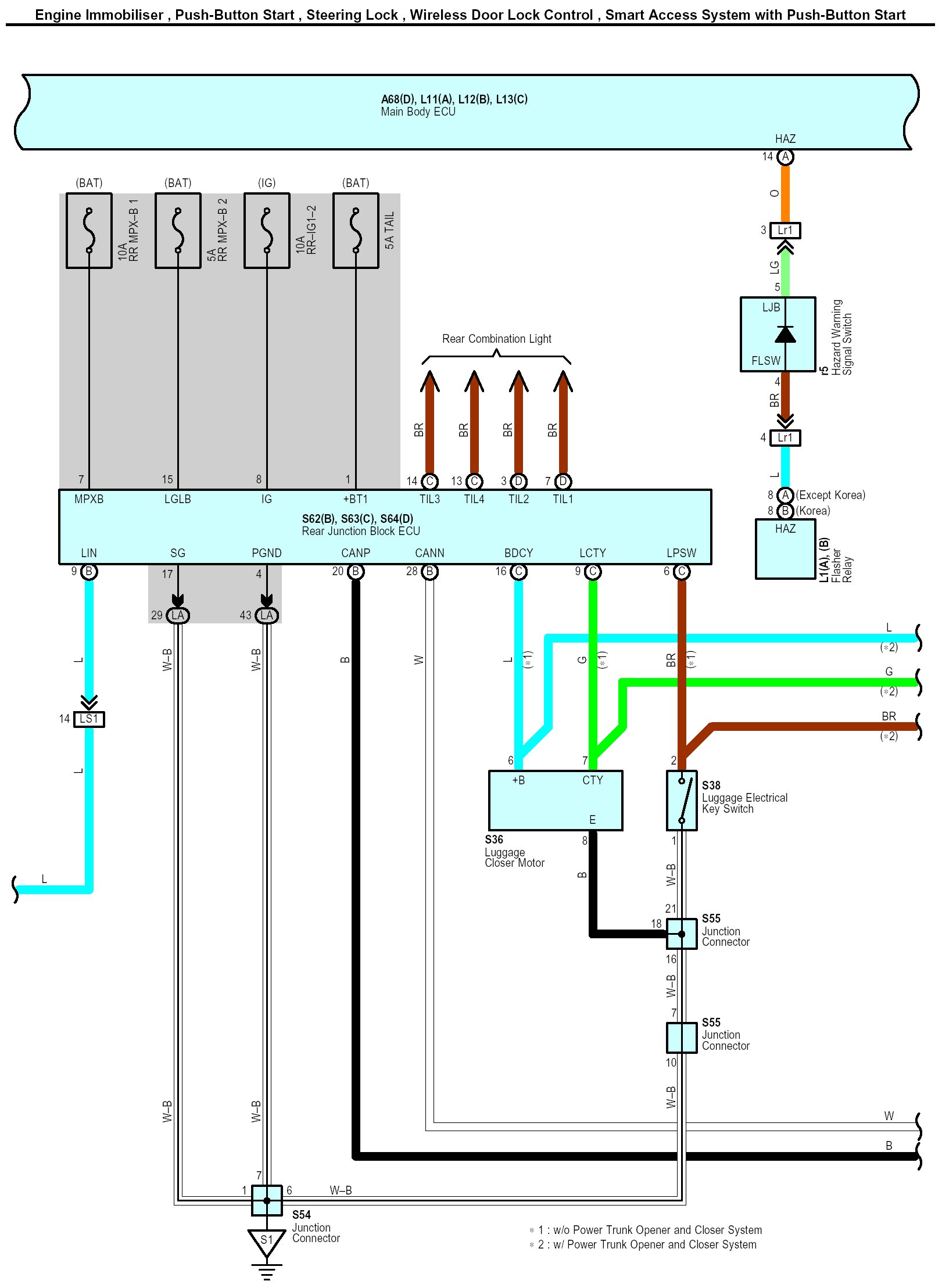

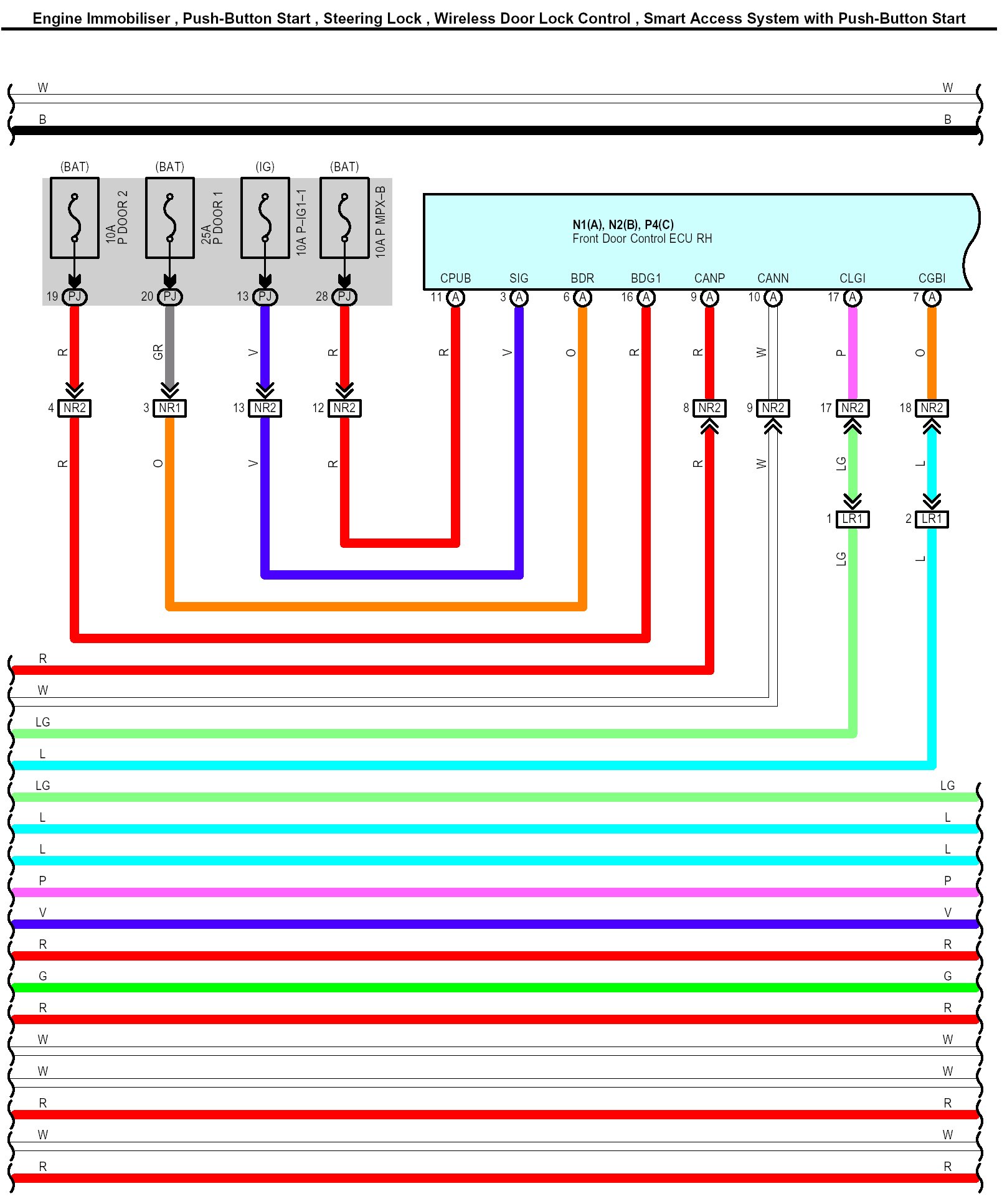

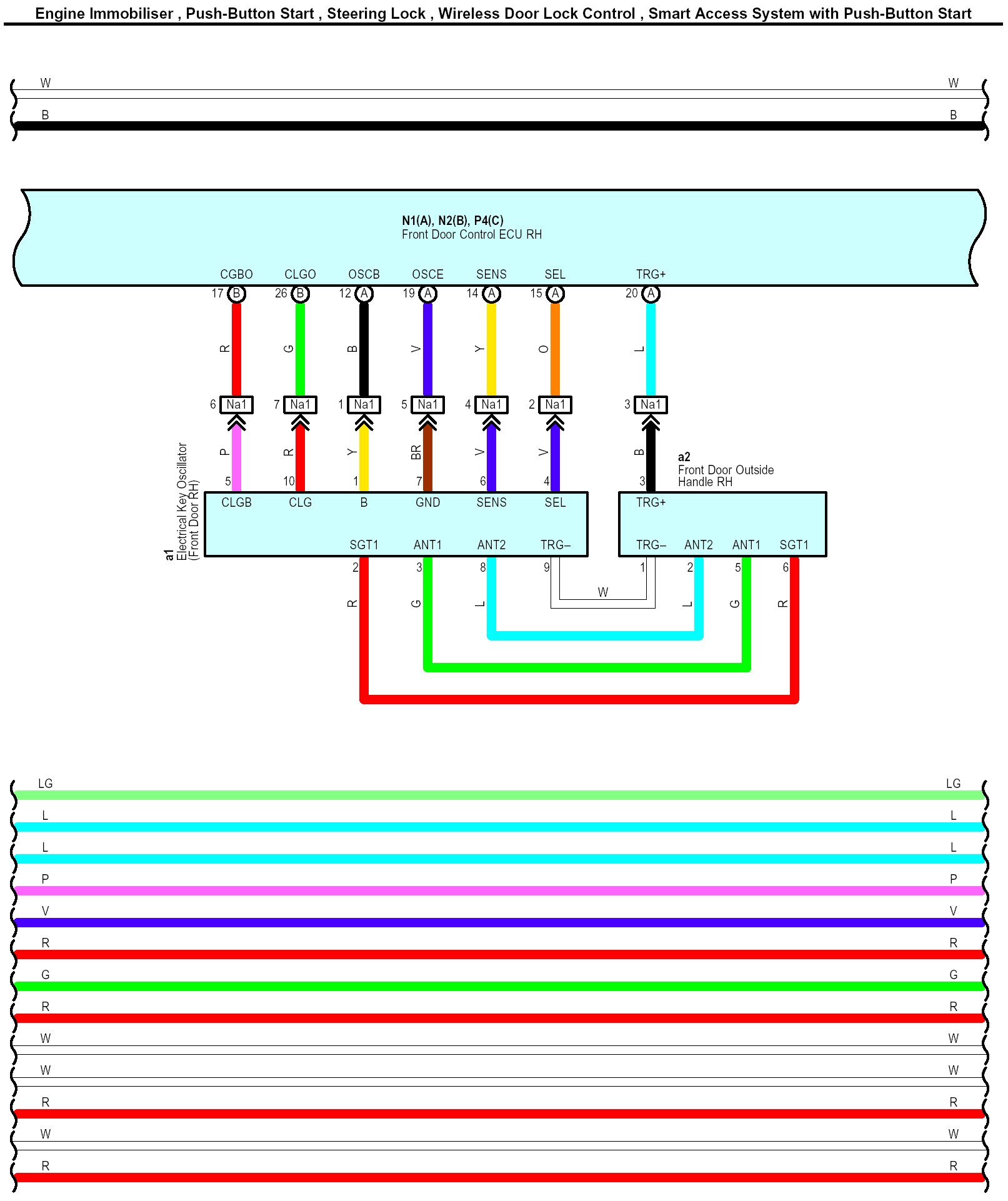

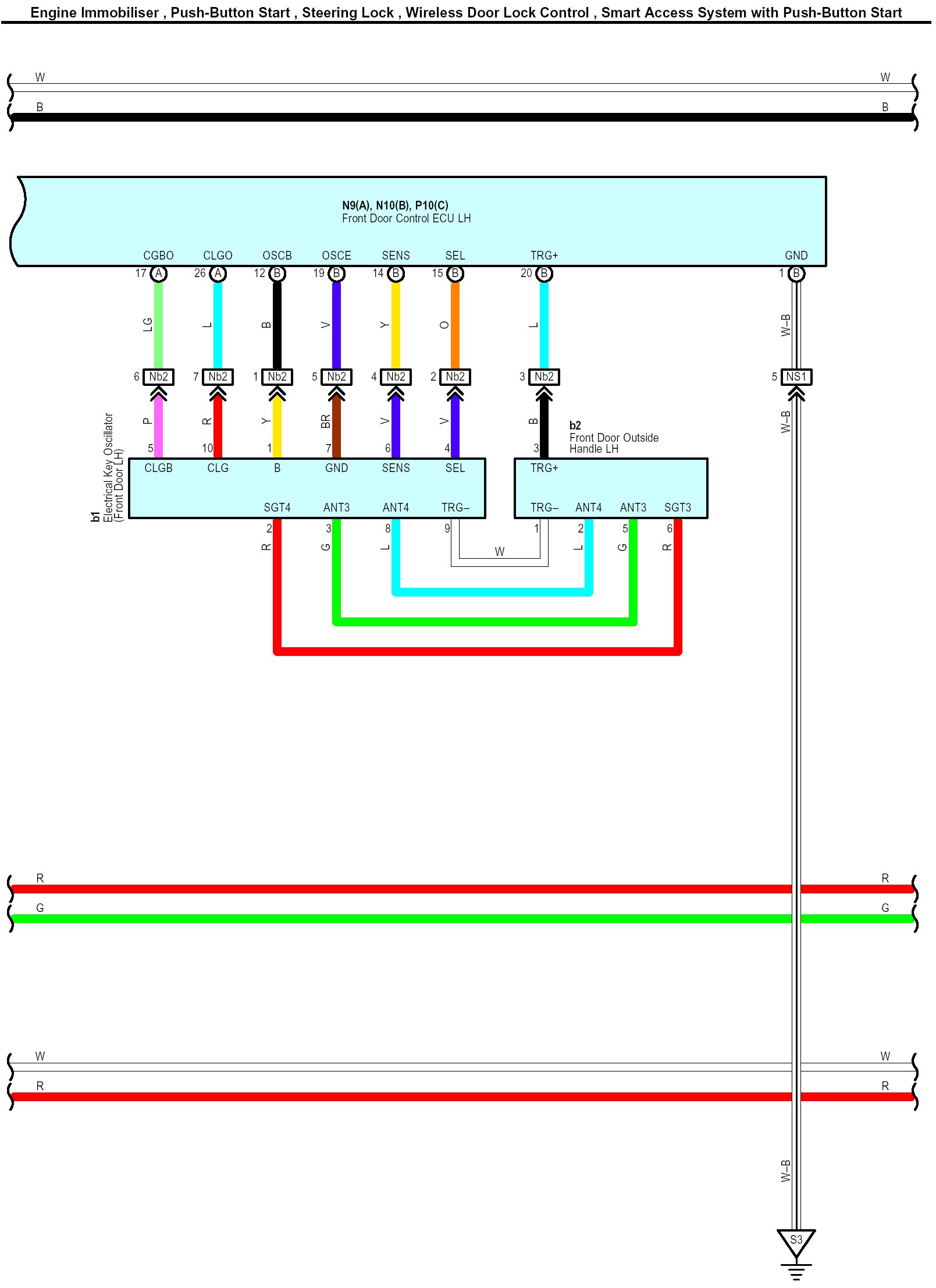

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 4:

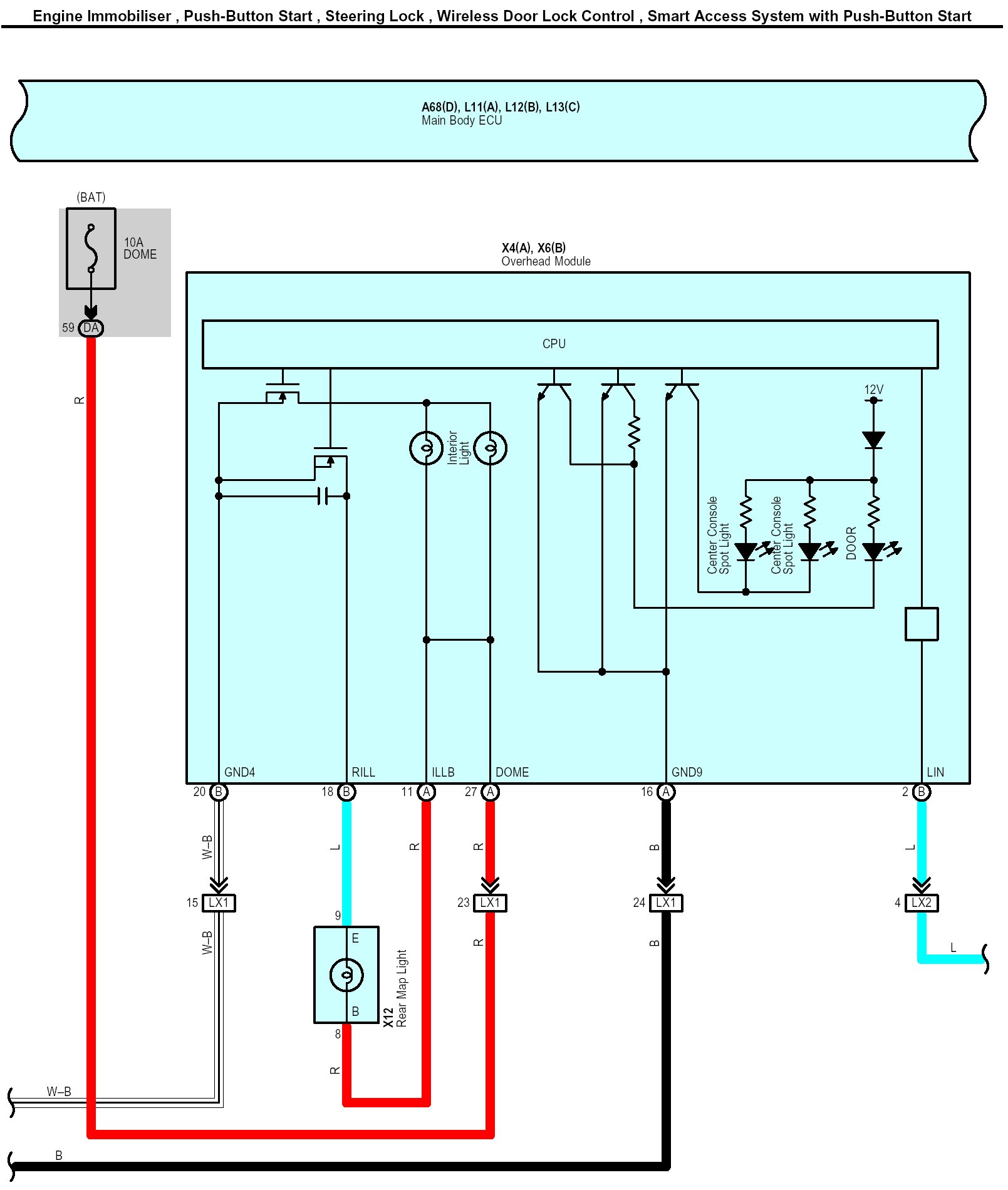

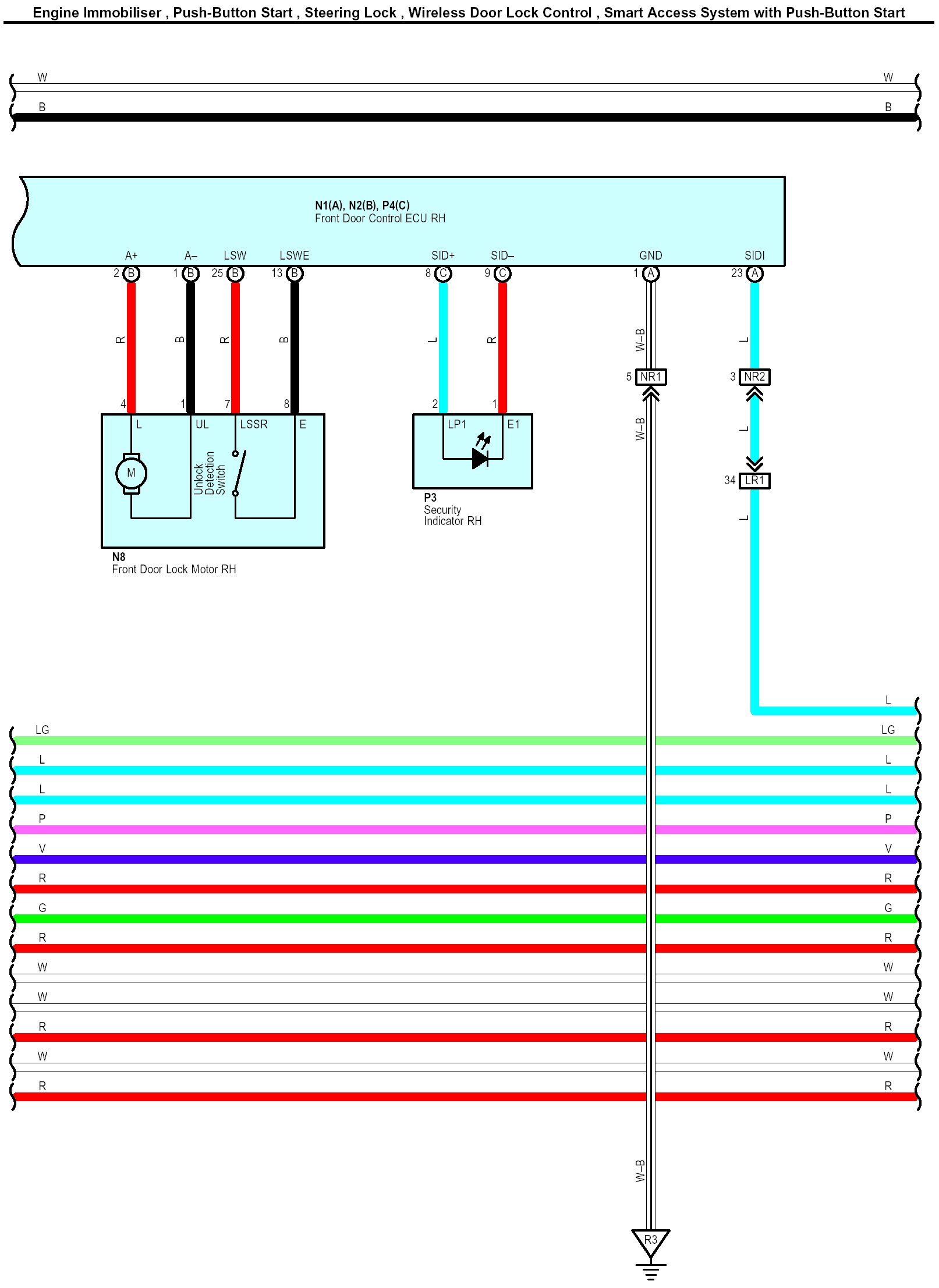

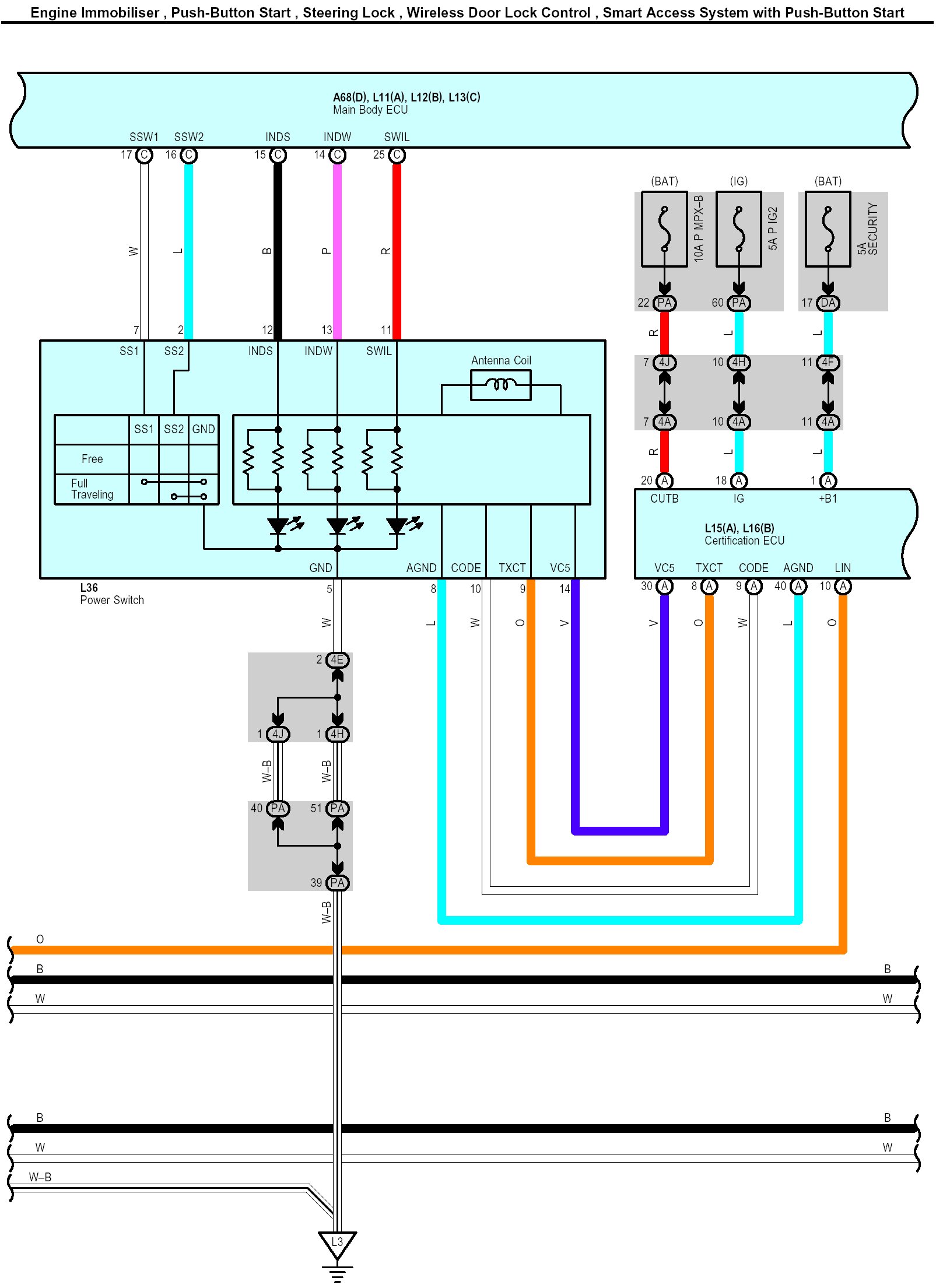

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 5:

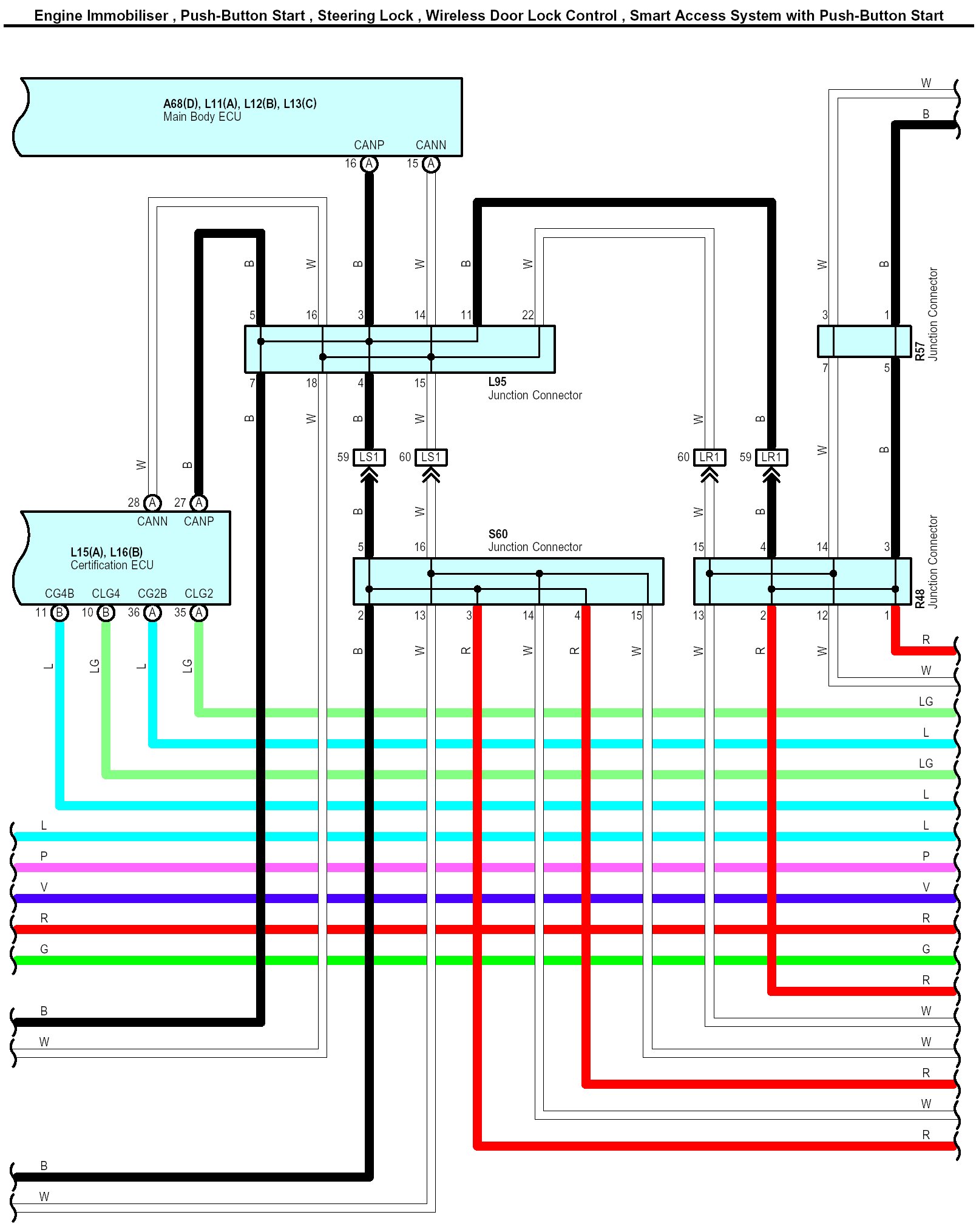

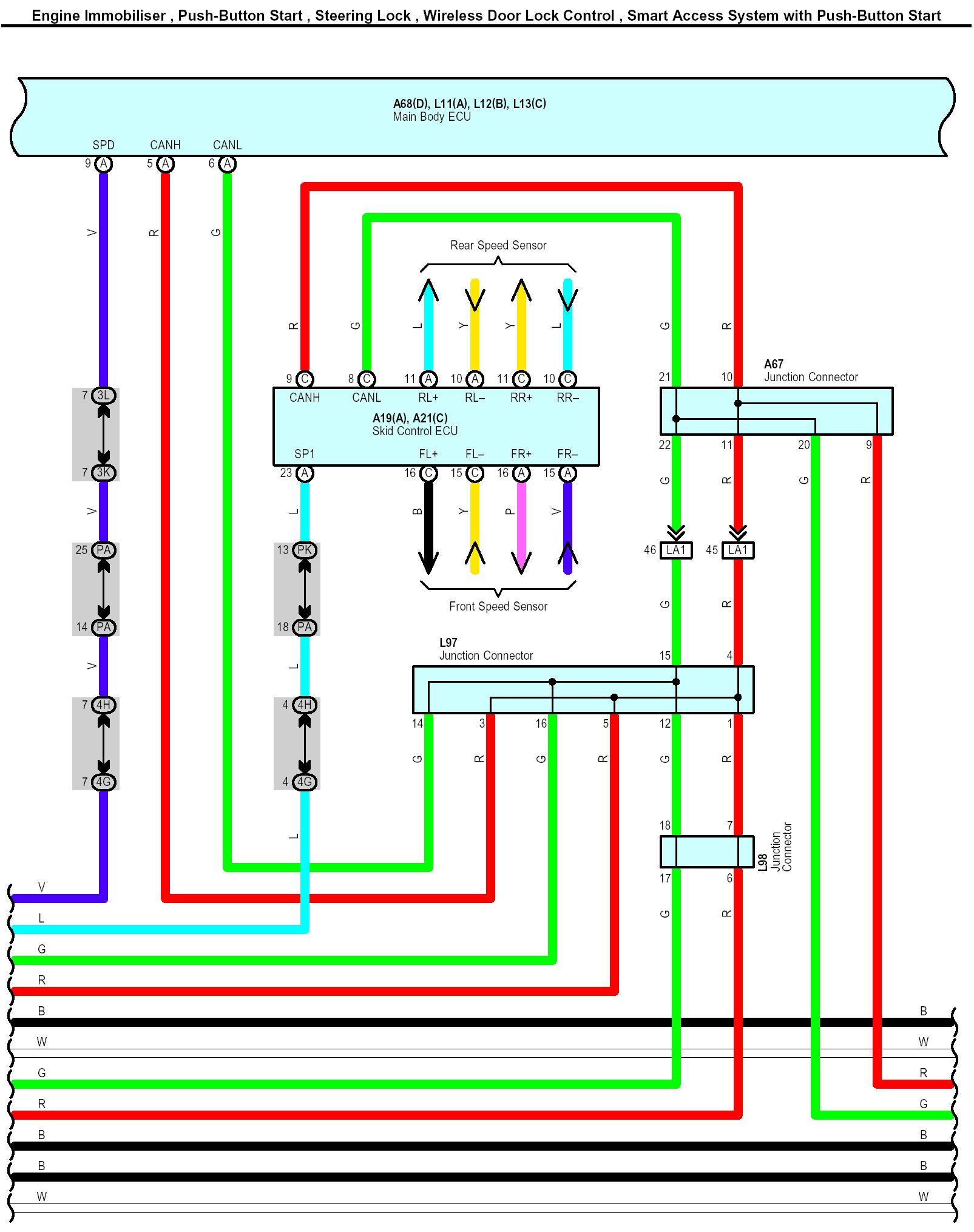

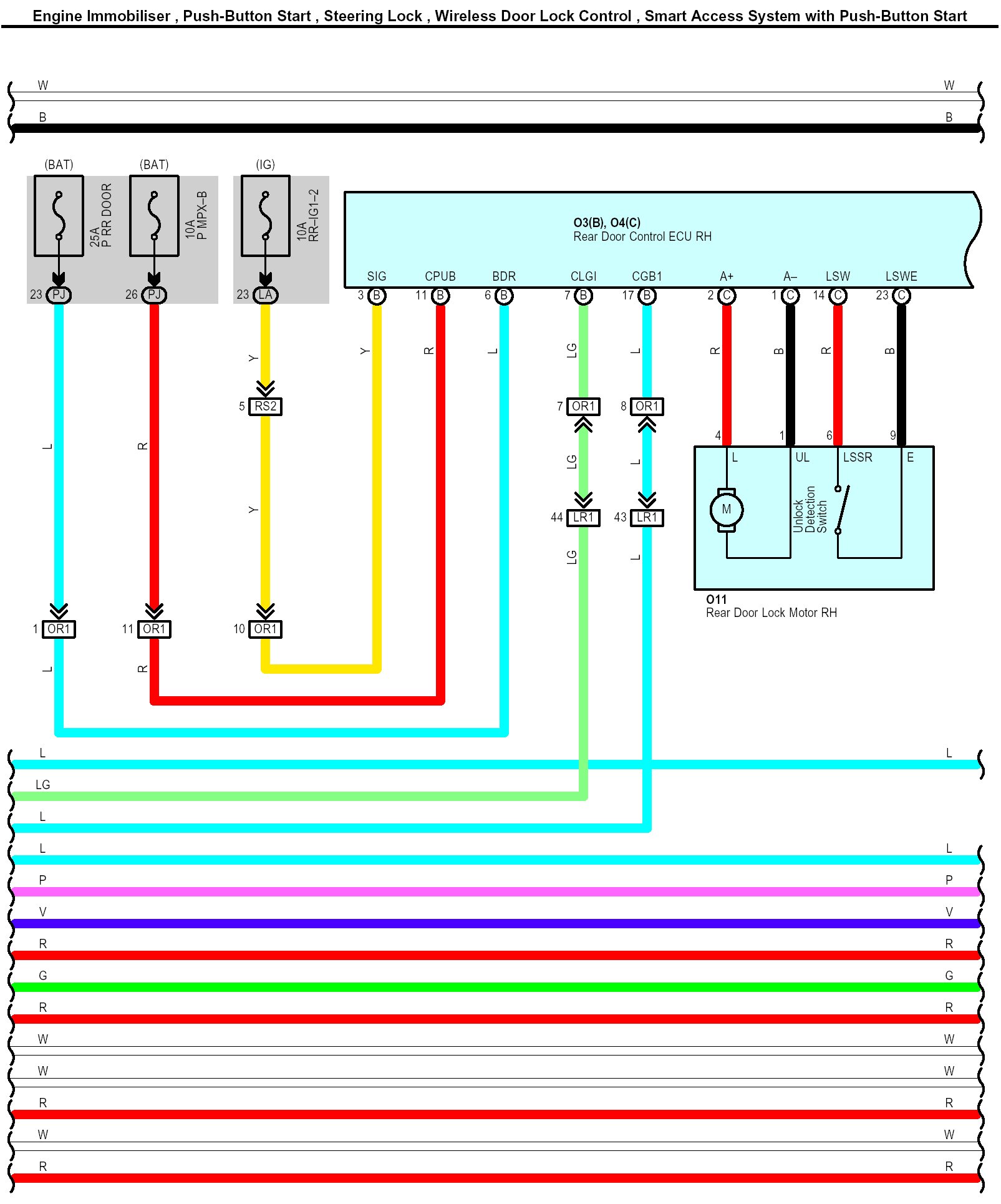

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 6:

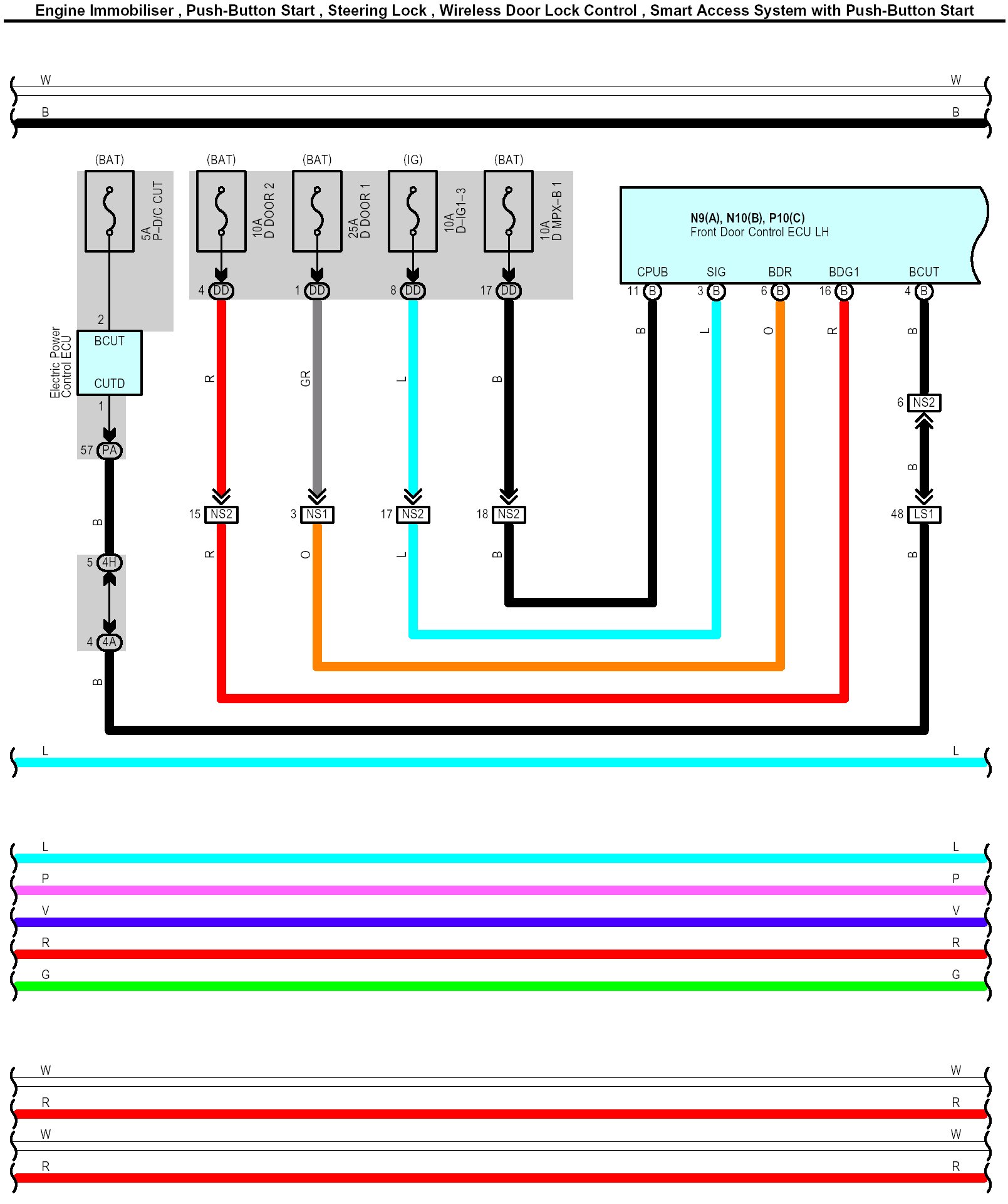

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 7:

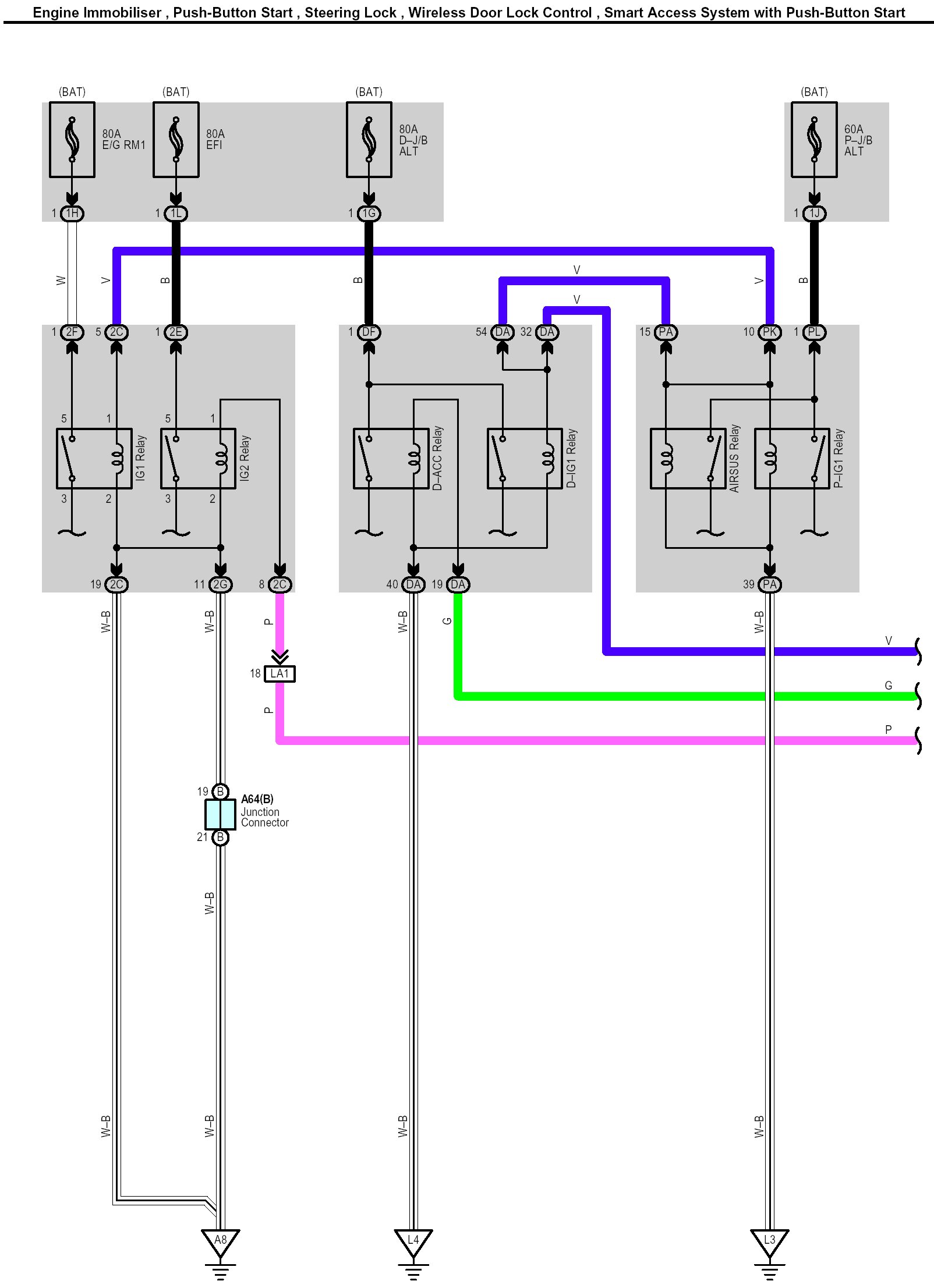

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 8:

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 9:

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 10:

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 11:

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 12:

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 13:

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 14:

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 15:

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 16:

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 17:

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 18:

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 19:

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 20:

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 21:

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 22:

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 23:

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 24:

Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Access System with Push-Button Start Part 25:

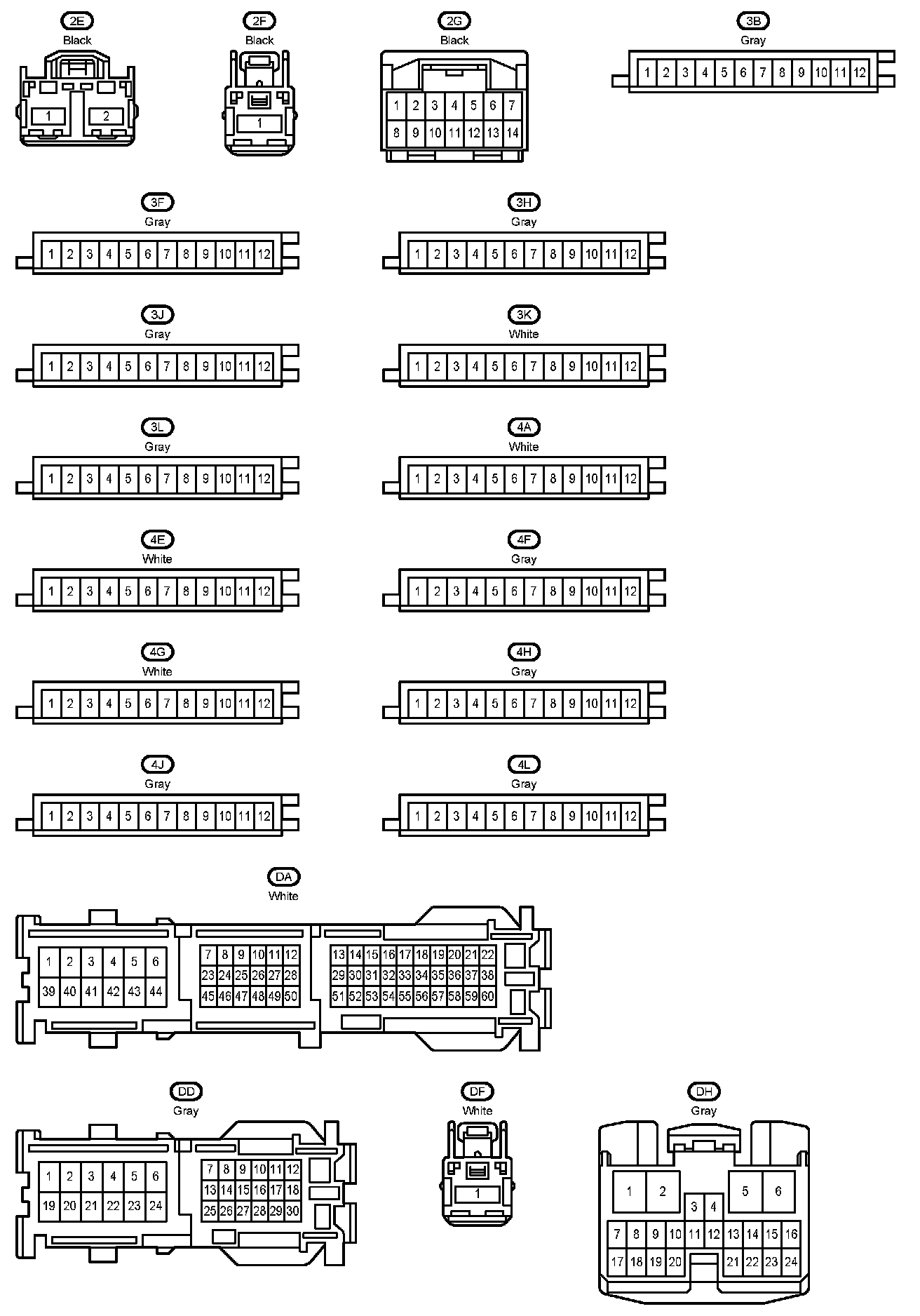

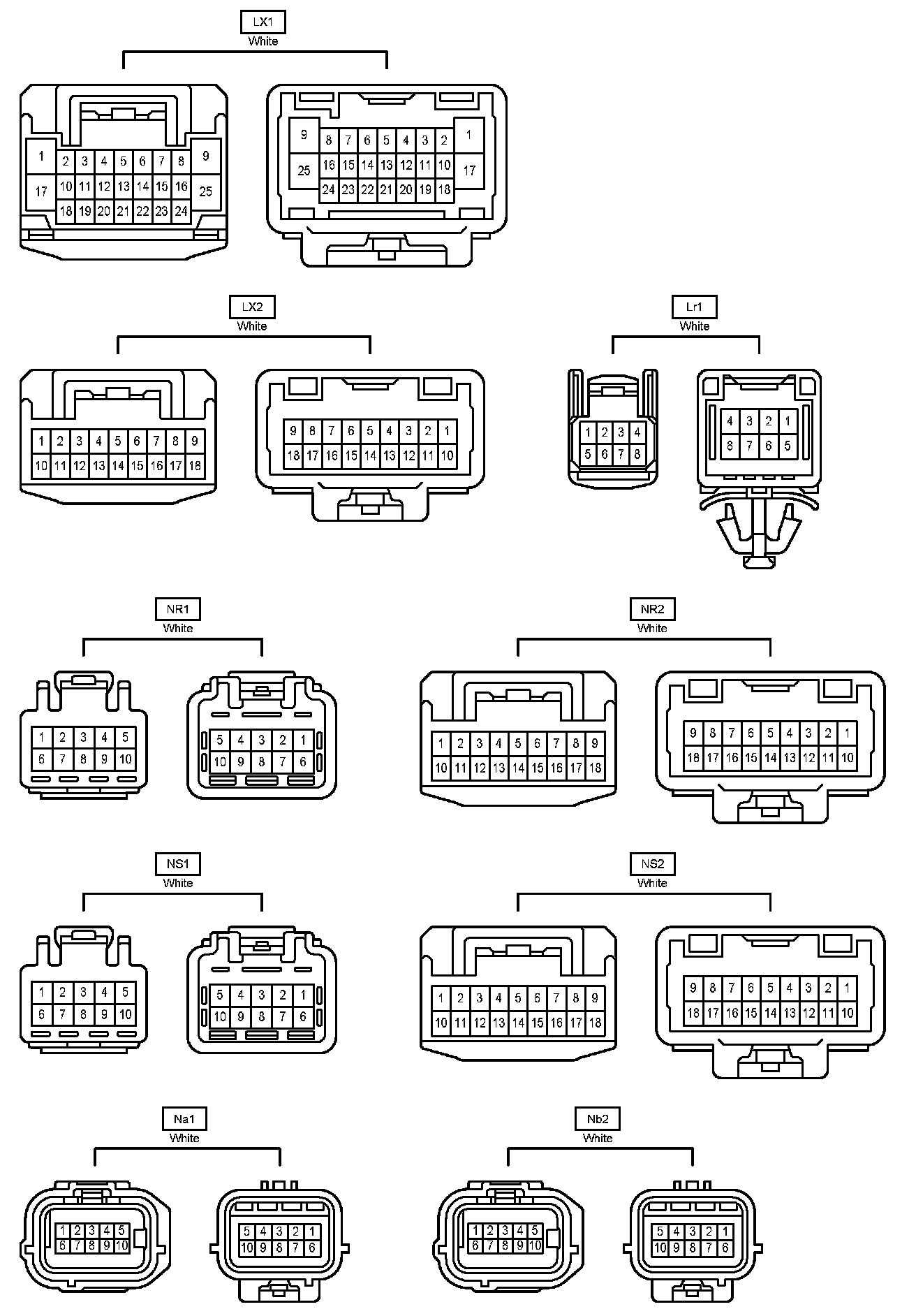

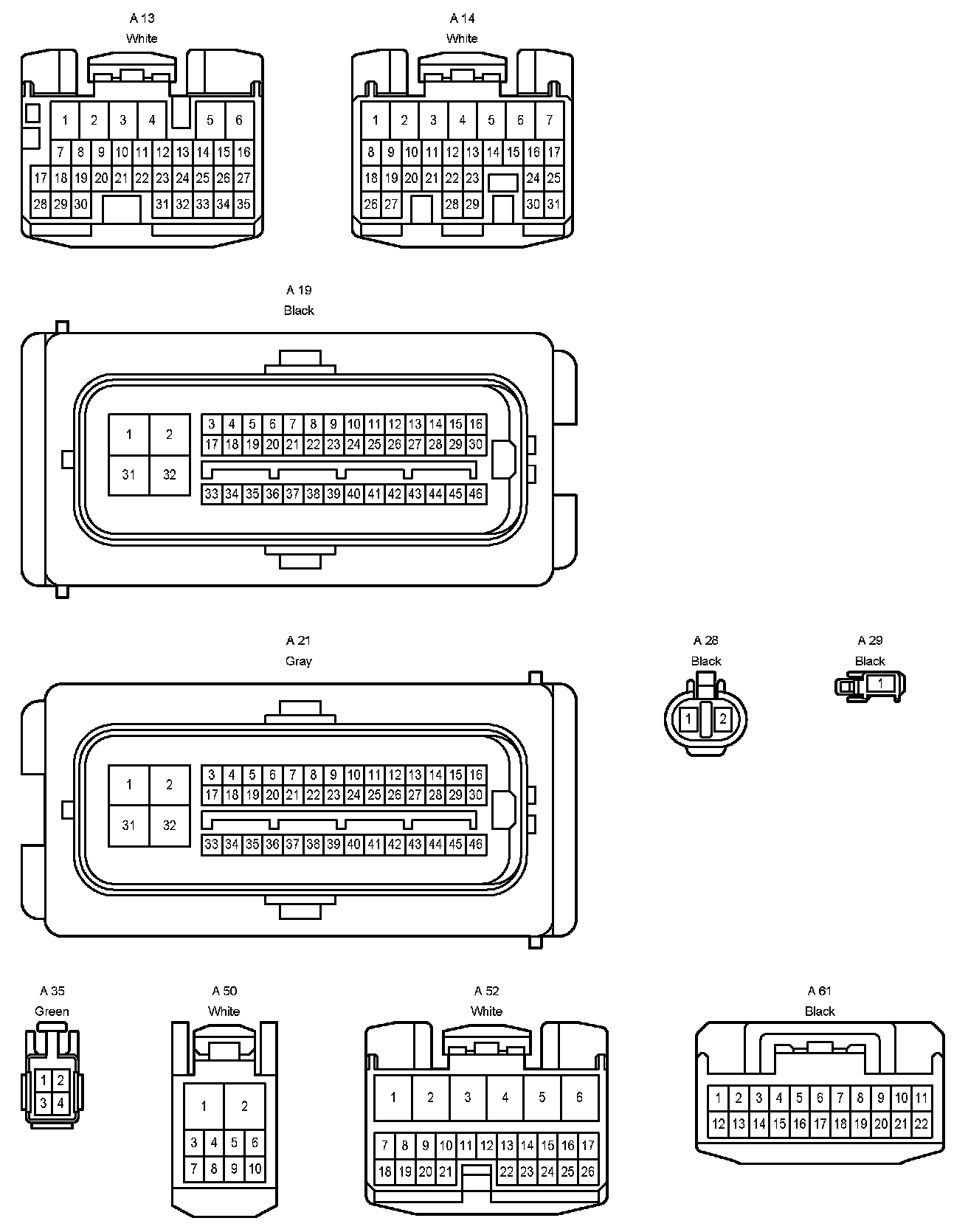

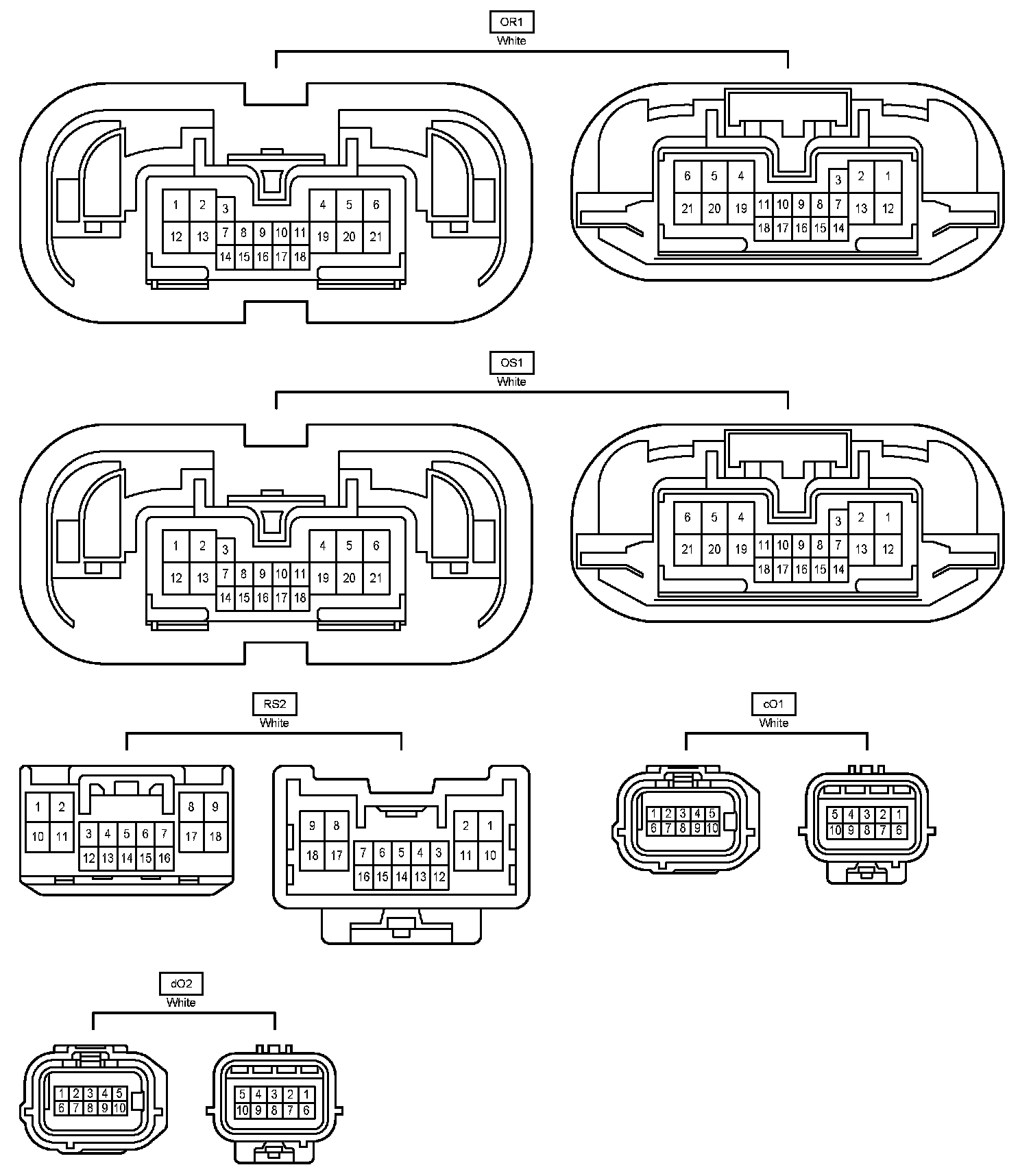

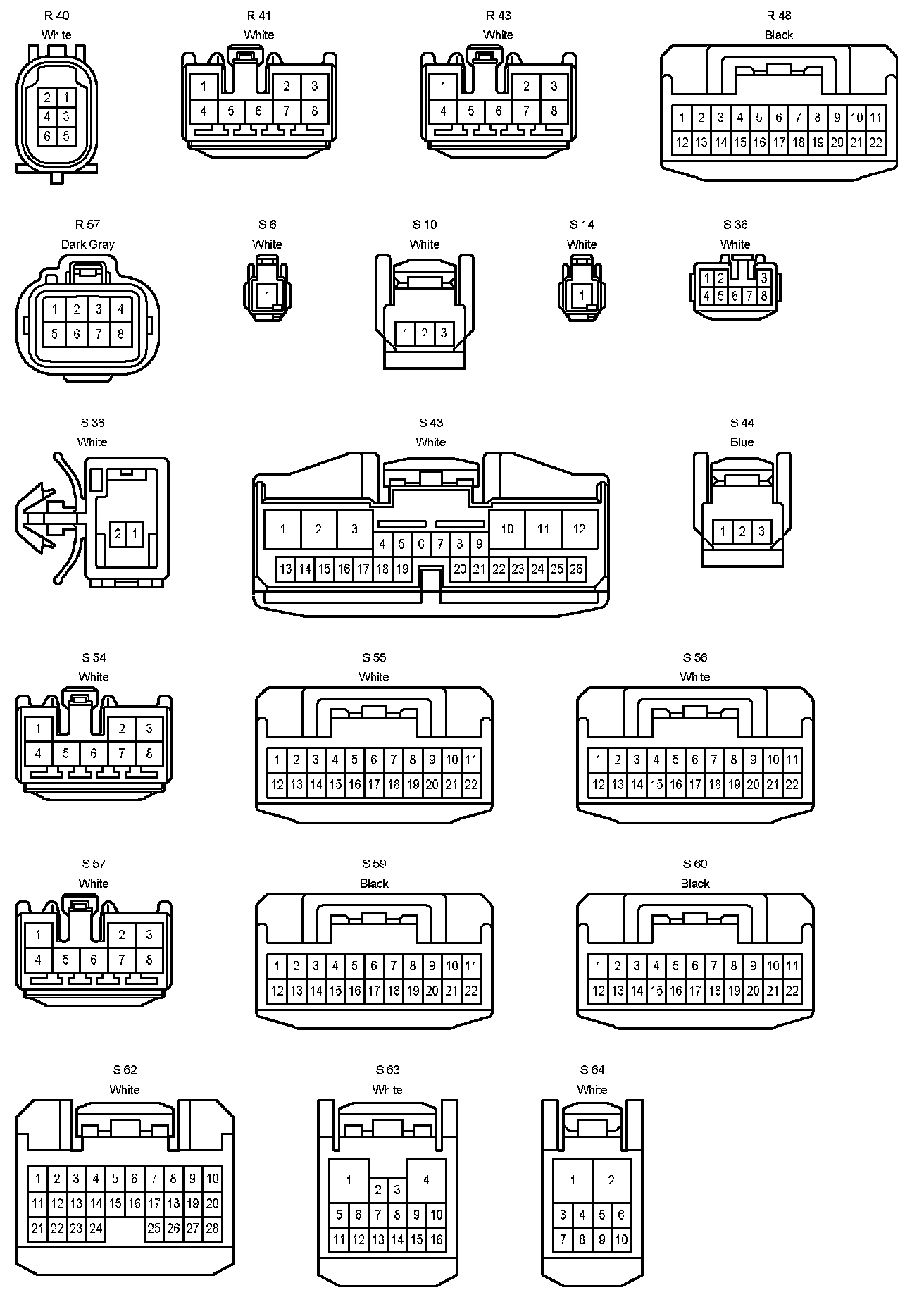

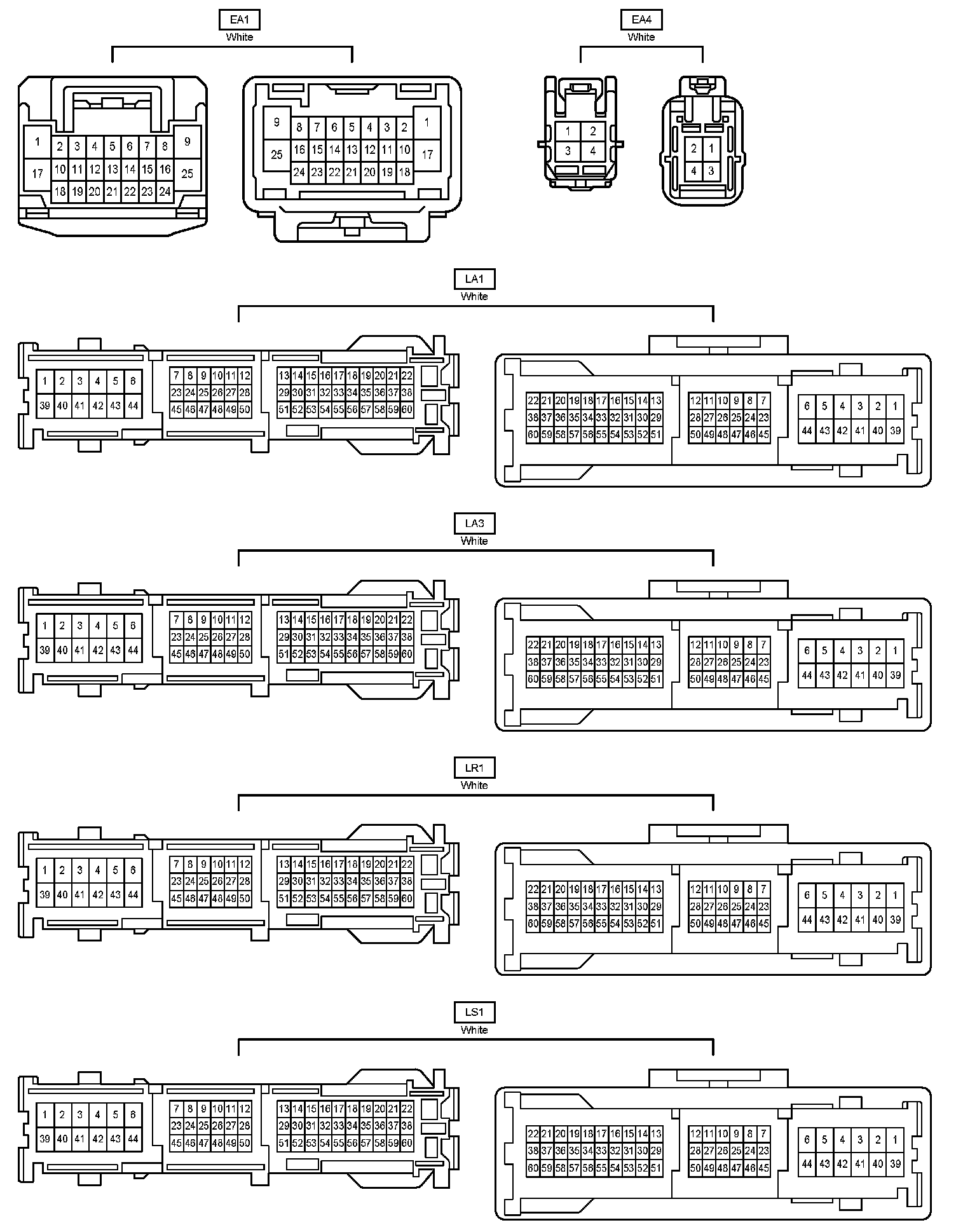

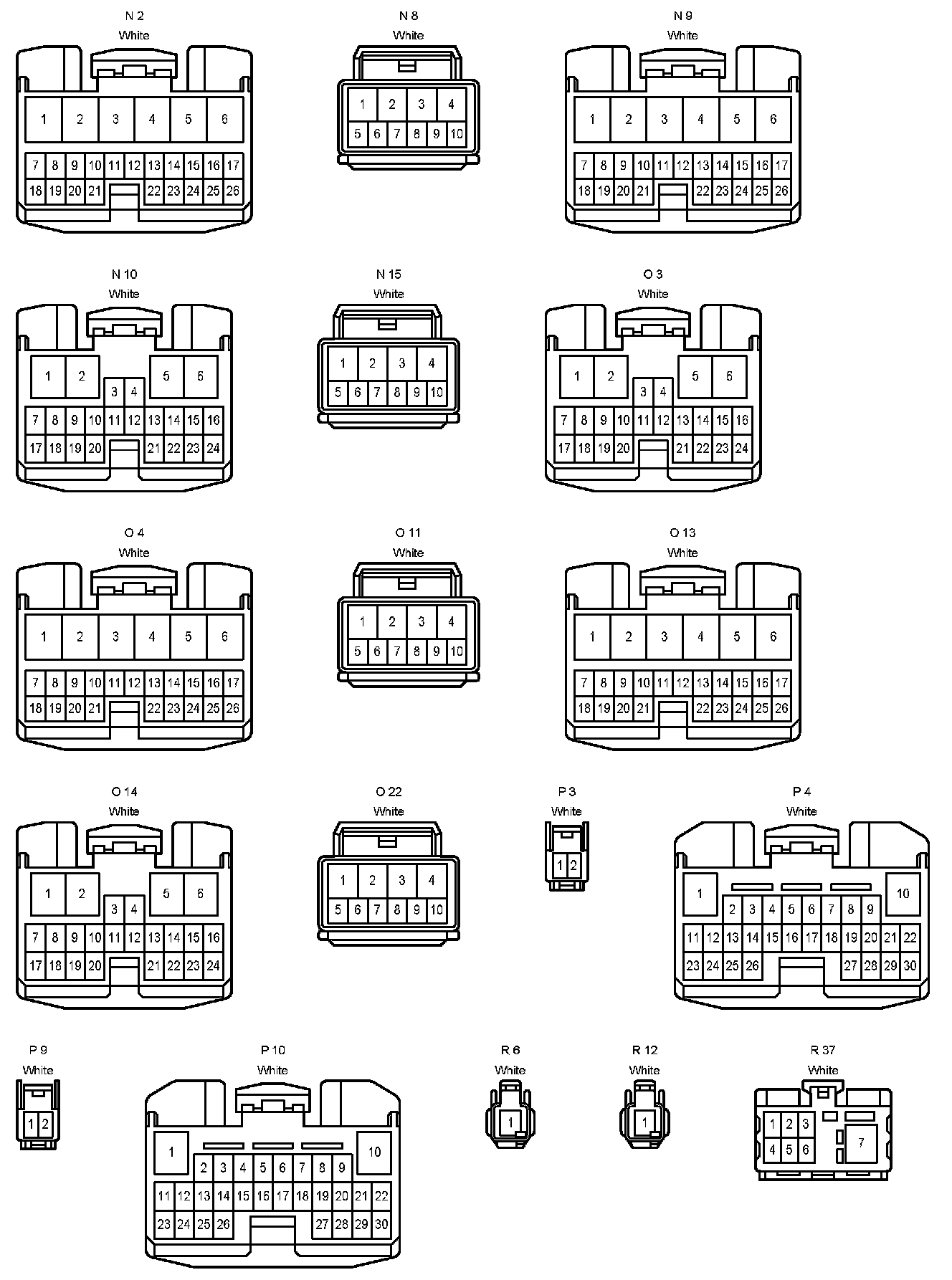

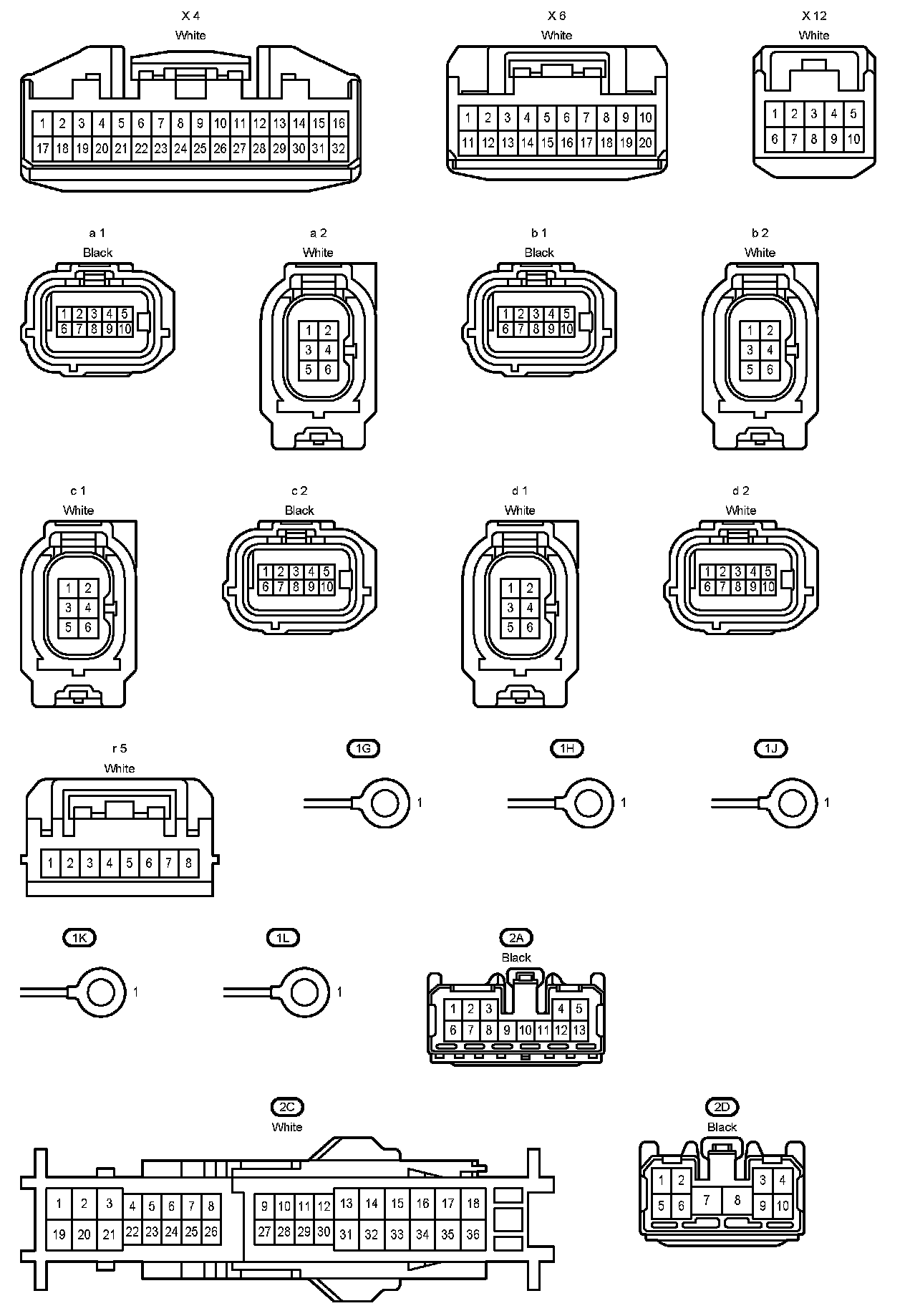

Connector Pin Outs Part 1:

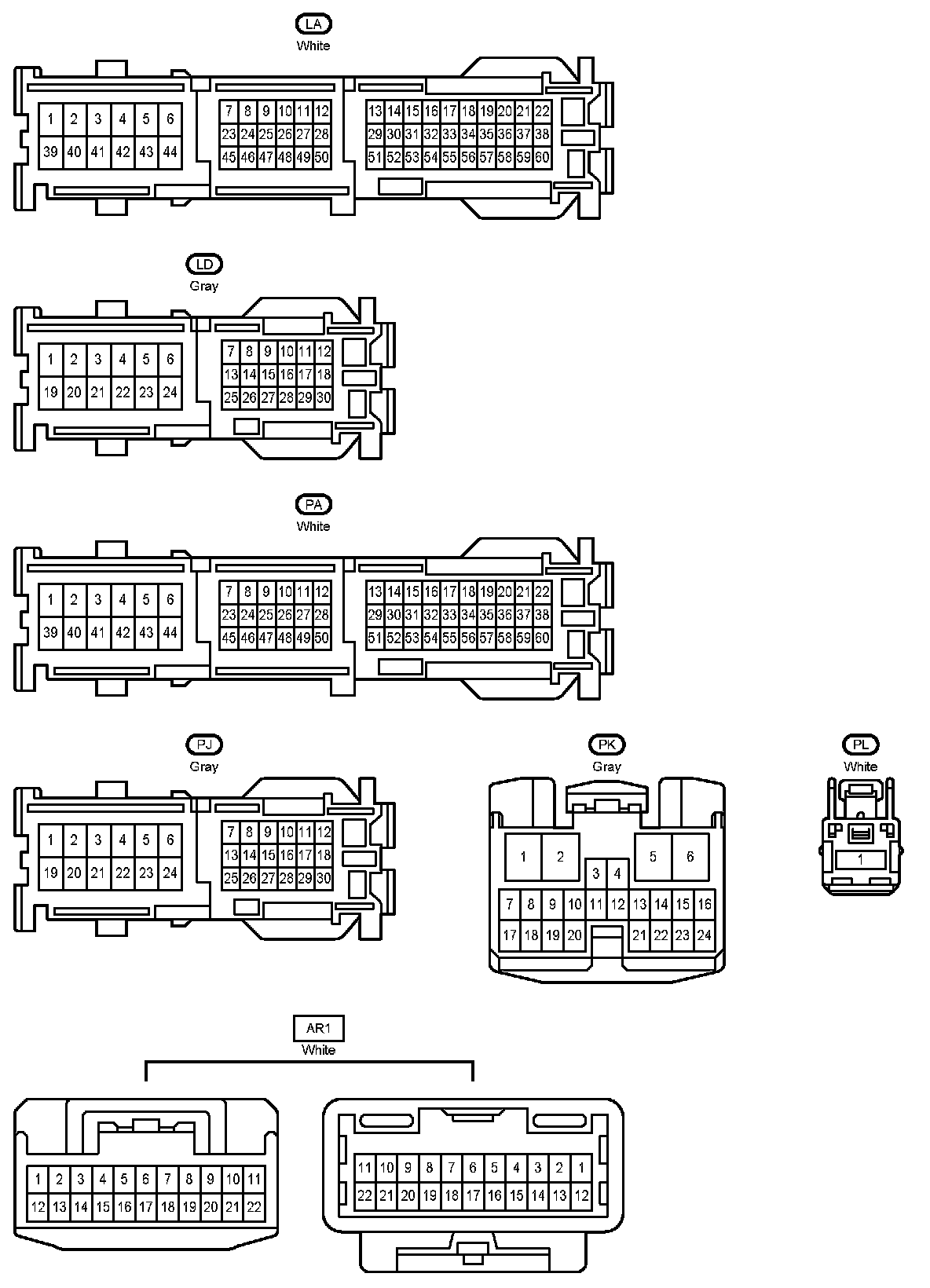

Connector Pin Outs Part 2:

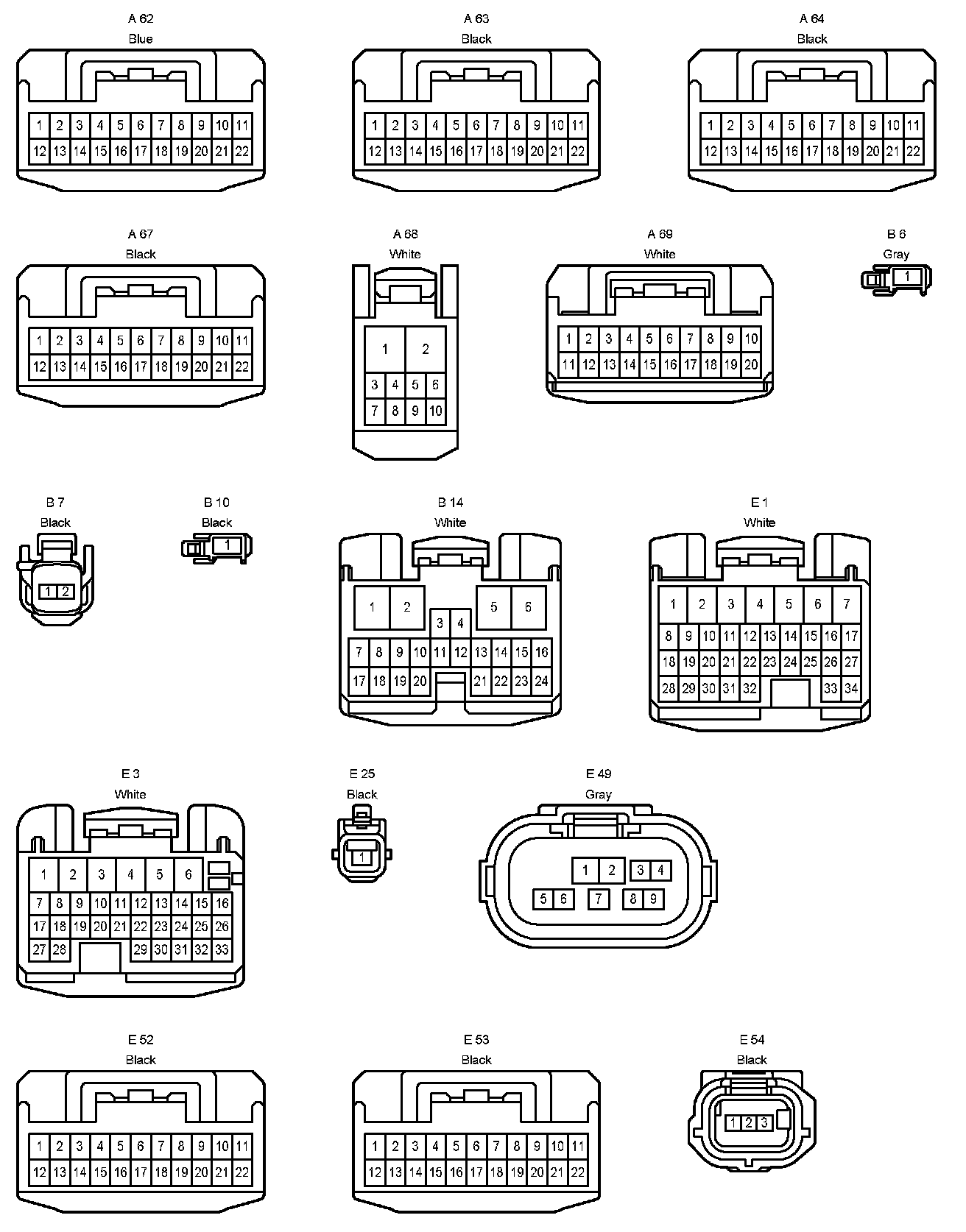

Connector Pin Outs Part 3:

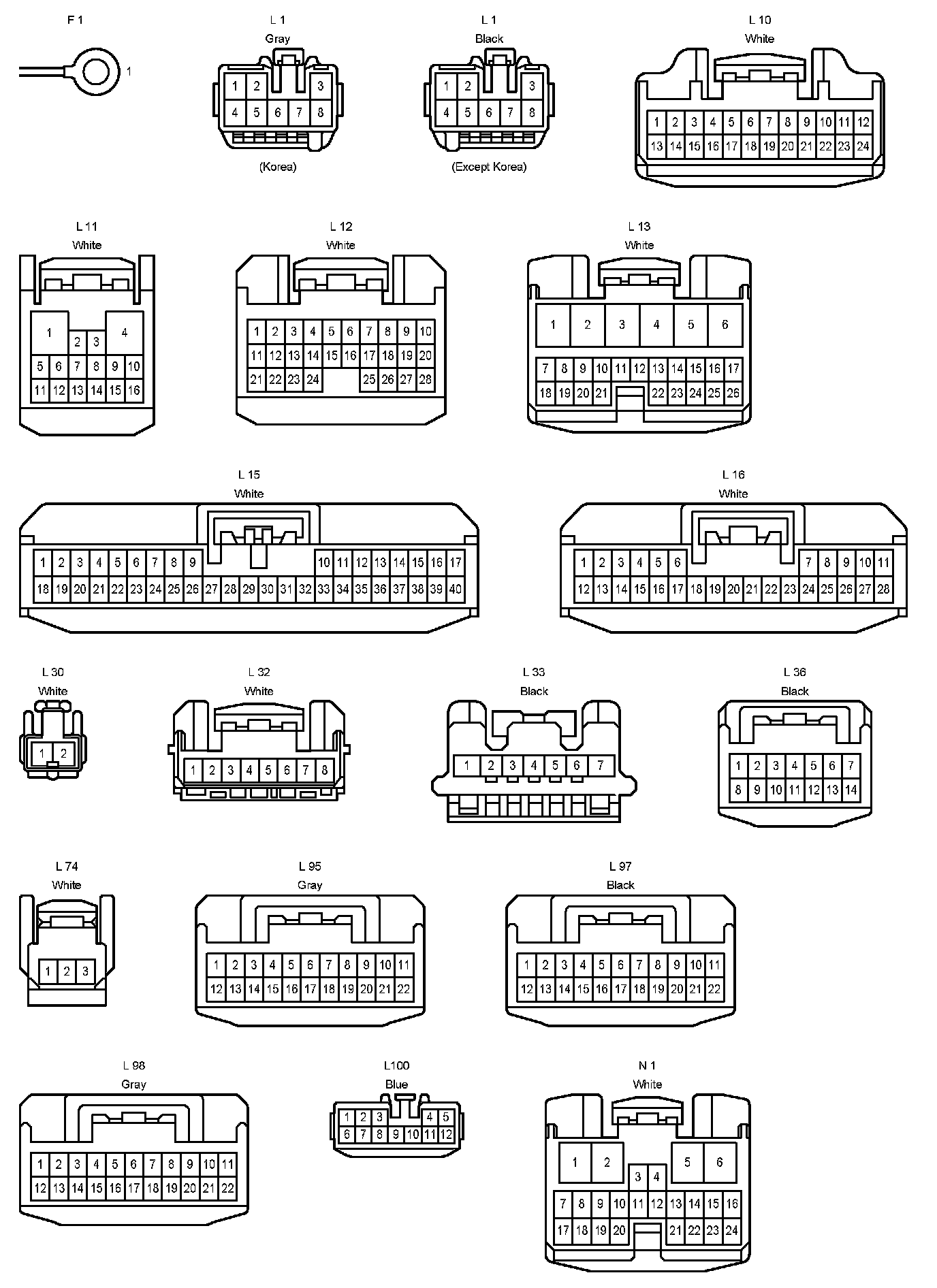

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Connector Pin Outs Part 7:

Connector Pin Outs Part 8:

Connector Pin Outs Part 9:

Connector Pin Outs Part 10:

Connector Pin Outs Part 11:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
